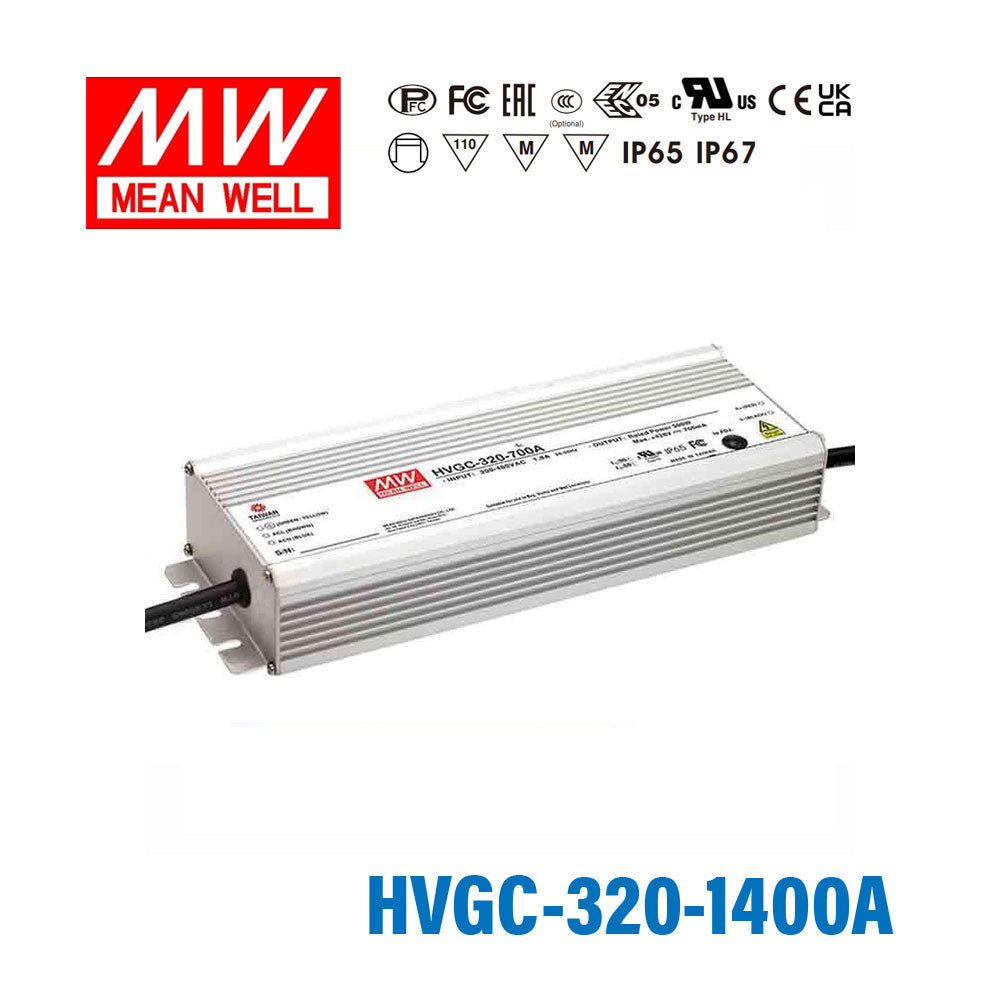

Mean Well HVGC-320-1400A Power Supply 320W 1400mA - Adjustable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-1400A

Please for Pricing

Notify me when it's back in stock

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

320 Watt
Output Voltage

234 Volt
Rated Current

1.4 Ampere
Input Voltage

180V~528V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

26.2 cm
Width

9 cm
Height

4.38 cm
Weight

2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-320-1400A for LED downlights that need 1400mA drive current?

Yes, if the downlight array is designed for constant current at 1400mA and its total forward voltage falls within the 114-228V constant-current range. This driver is rated for 320W, so it is intended for higher-power constant-current LED systems rather than constant-voltage fixtures.

Is the HVGC-320-1400A suitable for signage modules with medium-voltage LED strings?

It can be, as long as the signage assembly is a 1400mA constant-current load and the total LED forward voltage stays between 114V and 228V. Compared with the 1050mA version, this model is aimed at loads that need more current and a lower CC voltage range.

Can this driver power a small high-output LED array?

Yes, when the array is specified for 1400mA constant current and its combined forward voltage is inside the 114-228V CC range. With 320W output and a maximum output voltage of 234V, it fits higher-output constant-current LED arrays within that voltage window.

How do I verify compatibility with the HVGC-320-1400A?

The LED load must require 1400mA constant current, and the total forward voltage must be within the 114-228V constant-current range. The number of LEDs depends on each LED's forward voltage, so this driver should not be selected by LED count alone or treated like a constant-voltage supply.

Can the HVGC-320-1400A be used in demanding temperature conditions?

Yes. It is rated for operation from -40°C to +90°C and uses an aluminium casing with an IP65 water-resistant enclosure, which makes it suitable for applications where temperature range and enclosure durability matter.
