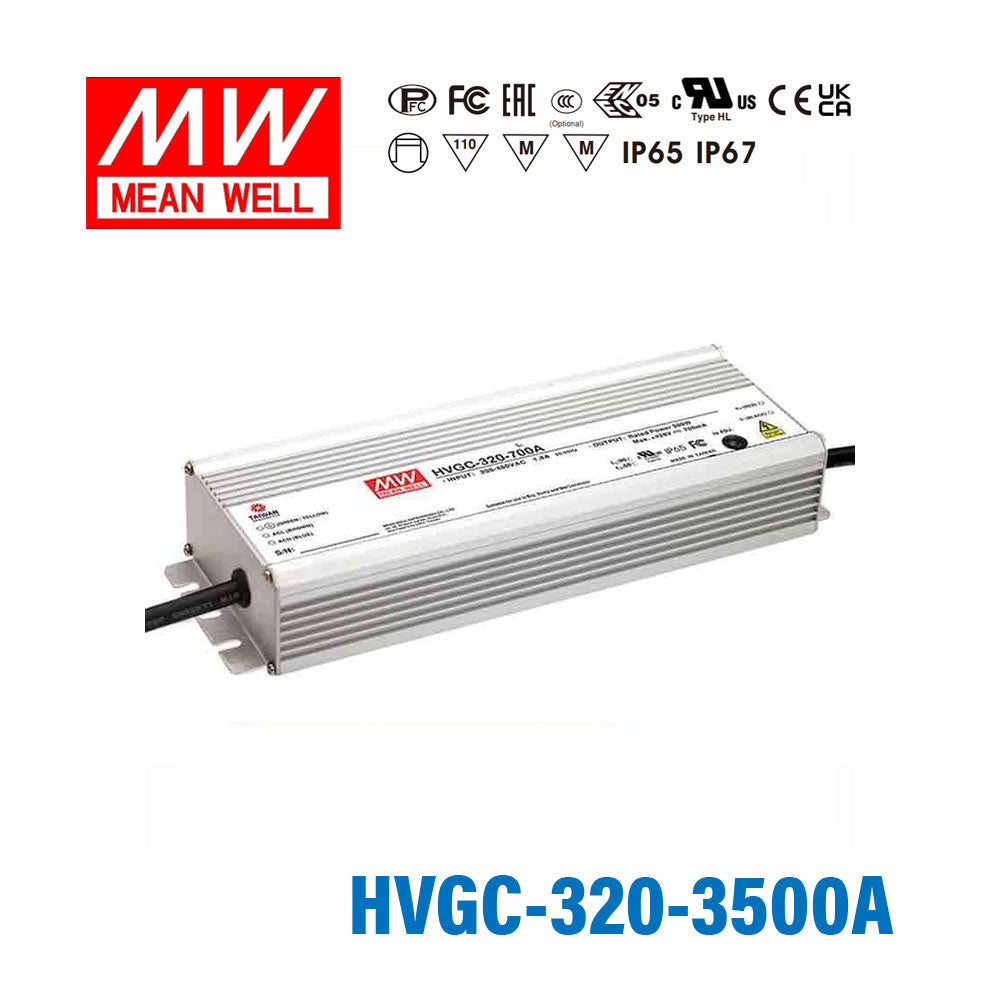

Mean Well HVGC-320-3500A Power Supply 320W 3500mA - Adjustable
Please Login for Pricing
Description
Description
Features
| Wide input range 180 ~ 528VAC |
| Constant Current mode output |
| Metal housing with Class design |
| Built-in active PFC function |
| IP67 / IP65 design for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC ; 254~747VDC |
| AC inrush current (max.) | Cold start 50A/480VAC |
| Over temperature protection | Shut down and latch off o/p voltage, re-power on to recover |
| Over voltage protection | Shut down o/p voltage with auto-recovery or re-power on to recovery |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+90ºC (refer to output derating curve) |
| Safety standards | UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved |
| EMC standards | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A |
| Dimension (LxWxH)(mm) | 262 x 90 x 43.8 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage94 Volt
-
Rated Current3.5 Ampere
-
Input Voltage180V~528V
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length26.2 cm
-
Width9 cm
-
Height4.38 cm
-
Weight2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the HVGC-320-3500A for high-power LED downlights?
Yes, if the downlight array is designed for a constant current driver at 3500mA and the load stays within the 45-91V constant current range. Its 320W rating fits high-power downlight assemblies, and the driver is not intended for constant voltage LED products.
Is this driver suitable for signage modules or channel letters?
Usually only if the signage modules are built as a constant current system at 3500mA and fall within the 45-91V CC range. Many signage products use constant voltage power supplies instead, so this model is for constant current LED loads rather than constant voltage modules.
Can this power supply run a small LED array for area or architectural lighting?
It can, as long as the array is a constant current design that needs 3500mA and operates within 45-91V under load. With a 320W output, it is intended for higher-power arrays rather than low-power boards.
How do I know if my LED load is compatible with this constant current driver?
Match the LED load to 3500mA constant current and make sure the total forward voltage falls within the 45-91V CC output range. The number of LEDs depends on each LED's forward voltage, so compatibility is based on total forward voltage, not a fixed LED count.
How does the HVGC-320-3500A compare with other 320W HVGC current options?
In the 320W HVGC family, the current and CC ranges are 700mA at 214-428V with 300W, 1050mA at 152-304V with 320W, 1400mA at 114-228V with 320W, 1750mA at 91-182V with 320W, 2100mA at 76-152V with 320W, 2800mA at 57-114V with 320W, and 3500mA at 45-91V with 320W. The HVGC-320-3500A is the highest-current version in that 320W group and has the lowest CC voltage range of those models.
