Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

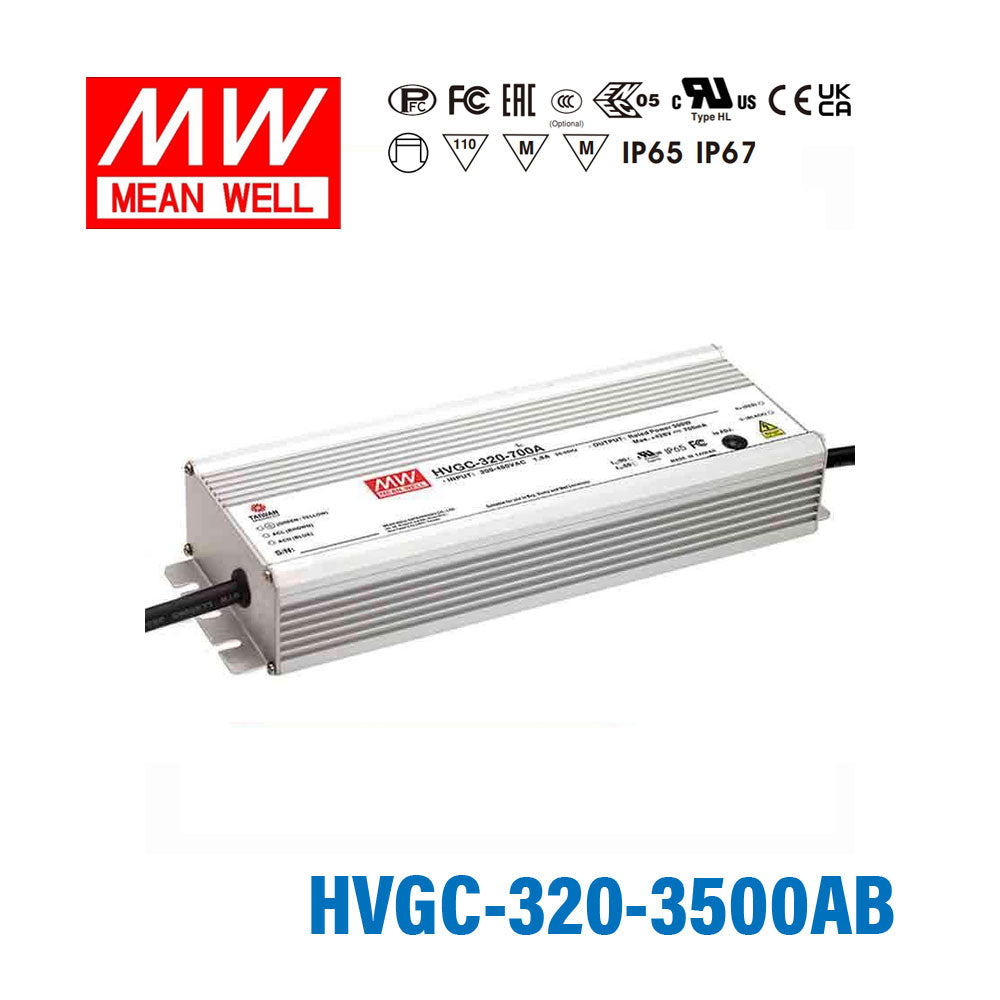

Mean Well HVGC-320-3500AB Power Supply 320W 3500mA - Adjustable and Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-3500AB

Please for Pricing

Notify me when it's back in stock

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

320 Watt
Output Voltage

94 Volt
Rated Current

3.5 Ampere
Input Voltage

180V~528V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

26.2 cm
Width

9 cm
Height

4.38 cm
Weight

2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the HVGC-320-3500AB be used for dimmable LED downlights?

Yes, when the downlight assembly is built for constant current operation at 3500mA and the LED load stays within 45-91V. This model is a constant current driver, so it should be paired with constant current downlight arrays rather than constant voltage LED products.

Will this driver work for a dimmable small LED array?

It will work for a small LED array if the array requires 3500mA constant current and its total forward voltage falls inside the 45-91V CC range. With 320W output, it is intended for higher-power arrays, not low-power indicator-style boards.

Is the HVGC-320-3500AB a fit for signage lighting projects?

It can be, but only for signage assemblies that are designed as constant current loads at 3500mA. If the signage modules are constant voltage types, this is not the correct driver because this unit operates in constant current mode.

What should I check to confirm LED compatibility with this model?

Confirm that the LED load is rated for 3500mA constant current and that the combined forward voltage is within the 45-91V CC output range. The number of LEDs depends on each LED forward voltage, so there is no single fixed LED count for this driver.

Is the HVGC-320-3500AB suitable for damp or outdoor locations?

It has an IP65 water-resistant rating and an operating temperature range of -40°C to +90°C, so it is suited to demanding environments where water resistance is needed. The aluminium casing and 180-528VAC input range also make it appropriate for commercial and industrial LED driver use.
