Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

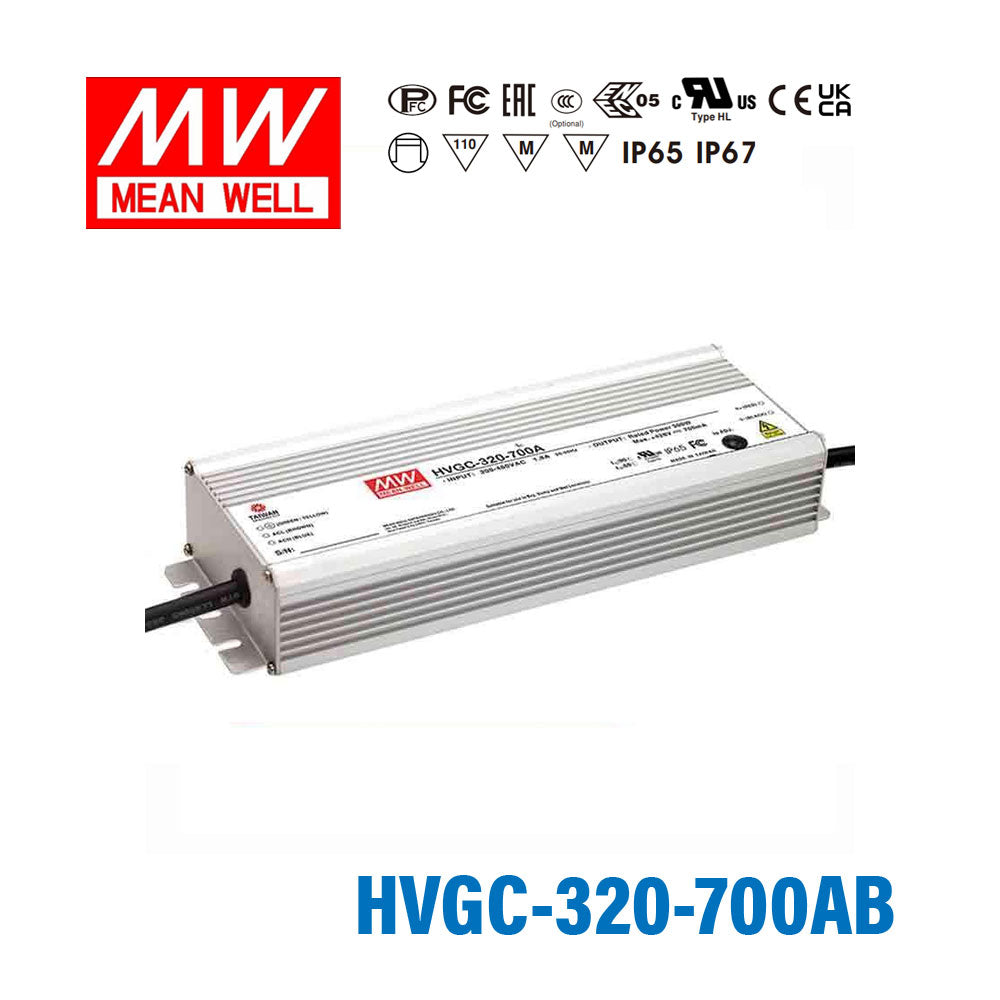

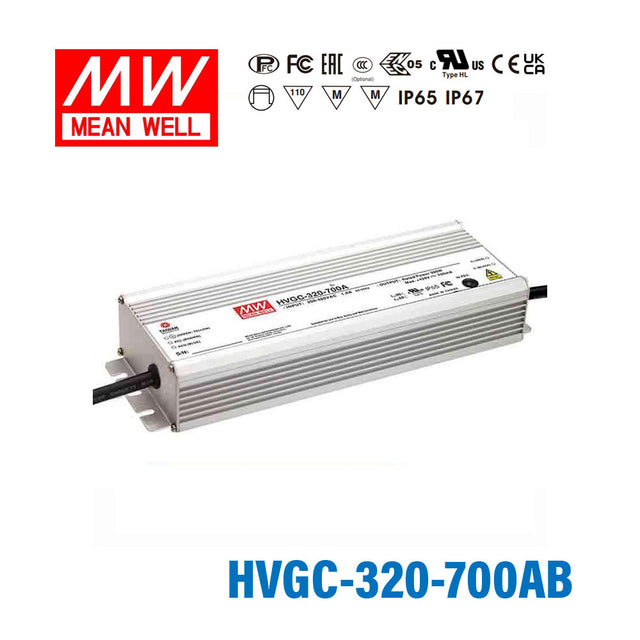

Mean Well HVGC-320-700AB Power Supply 320W 700mA - Adjustable and Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-700AB

Please for Pricing

Notify me when it's back in stock

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

300 Watt
Output Voltage

442 Volt
Rated Current

0.7 Ampere
Input Voltage

180V~528V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

26.2 cm
Width

9 cm
Height

4.38 cm
Weight

2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can the HVGC-320-700AB power dimmable LED downlights with long series strings?

Yes, when the downlight array is a constant current design at 700mA and the total forward voltage stays within 214-428V. This is a constant current driver for higher-voltage arrays, not a constant voltage supply for standard LED tape or modules.

Is this driver suitable for dimmable signage modules or linear LED arrays?

It is suitable only if the signage or linear array is engineered as a 700mA constant current load within the 214-428V CC range. Many signage products use constant voltage power supplies, so load type needs to be checked first.

Can I use the HVGC-320-700AB for a high-voltage small LED array in commercial lighting?

Yes, if the array needs 700mA constant current and its total forward voltage fits within 214V to 428V. The 300W rating and 180-528VAC input range make it appropriate for larger constant current LED assemblies.

What makes an LED load compatible with this driver?

The load must be specified for 700mA constant current, and the combined forward voltage must be within the 214-428V CC output range. The number of LEDs depends on each LED's forward voltage, so the right match is based on total forward voltage rather than a stated LED quantity.

Can this model be used in exposed indoor or outdoor conditions?

It carries an IP65 water-resistant rating and operates from -40°C to +90°C, so it is suited to demanding indoor or outdoor environments where water resistance is needed. The aluminium casing and 2.0 kg housing reflect its industrial-style driver format.

Model	Power	Voltage	Current	IP Rating
Mean Well HVGC-320-700B Power Supply 320W 700mA - Dimmable	300W	442V	0.7A	IP67	View
Mean Well HVGC-320-700A Power Supply 320W 700mA - Adjustable	300W	442V	0.7A	IP65	View
Mean Well HVGC-320-3500B Power Supply 320W 3500mA - Dimmable	320W	94V	3.5A	IP67	View
Mean Well HVGC-320-3500AB Power Supply 320W 3500mA - Adjustable and Dimmable	320W	94V	3.5A	IP65	View
Mean Well HVGC-320-3500A Power Supply 320W 3500mA - Adjustable	320W	94V	3.5A	IP65	View
Mean Well HVGC-320-2800B Power Supply 320W 2800mA - Dimmable	320W	118V	2.8A	IP67	View
Mean Well HVGC-320-2800AB Power Supply 320W 2800mA - Adjustable and Dimmable	320W	118V	2.8A	IP65	View
Mean Well HVGC-320-2800A Power Supply 320W 2800mA - Adjustable	320W	118V	2.8A	IP65	View
Mean Well HVGC-320-2100B Power Supply 320W 2100mA - Dimmable	320W	156V	2.1A	IP67	View
Mean Well HVGC-320-2100AB Power Supply 320W 2100mA - Adjustable and Dimmable	320W	156V	2.1A	IP65	View
Mean Well HVGC-320-2100A Power Supply 320W 2100mA - Adjustable	320W	156V	2.1A	IP65	View
Mean Well HVGC-320-1750B Power Supply 320W 1750mA - Dimmable	320W	187V	1.75A	IP67	View
Mean Well HVGC-320-1750AB Power Supply 320W 1750mA - Adjustable and Dimmable	320W	187V	1.75A	IP65	View
Mean Well HVGC-320-1750A Power Supply 320W 1750mA - Adjustable	320W	187V	1.75A	IP65	View
Mean Well HVGC-320-1400B Power Supply 320W 1400mA - Dimmable	320W	234V	1.4A	IP67	View
Mean Well HVGC-320-1400AB Power Supply 320W 1400mA - Adjustable and Dimmable	320W	234V	1.4A	IP65	View
Mean Well HVGC-320-1400A Power Supply 320W 1400mA - Adjustable	320W	234V	1.4A	IP65	View
Mean Well HVGC-320-1050B Power Supply 320W 1050mA - Dimmable	320W	311V	1.05A	IP67	View
Mean Well HVGC-320-1050AB Power Supply 320W 1050mA - Adjustable and Dimmable	320W	311V	1.05A	IP65	View
Mean Well HVGC-320-1050A Power Supply 320W 1050mA - Adjustable	320W	311V	1.05A	IP65	View
