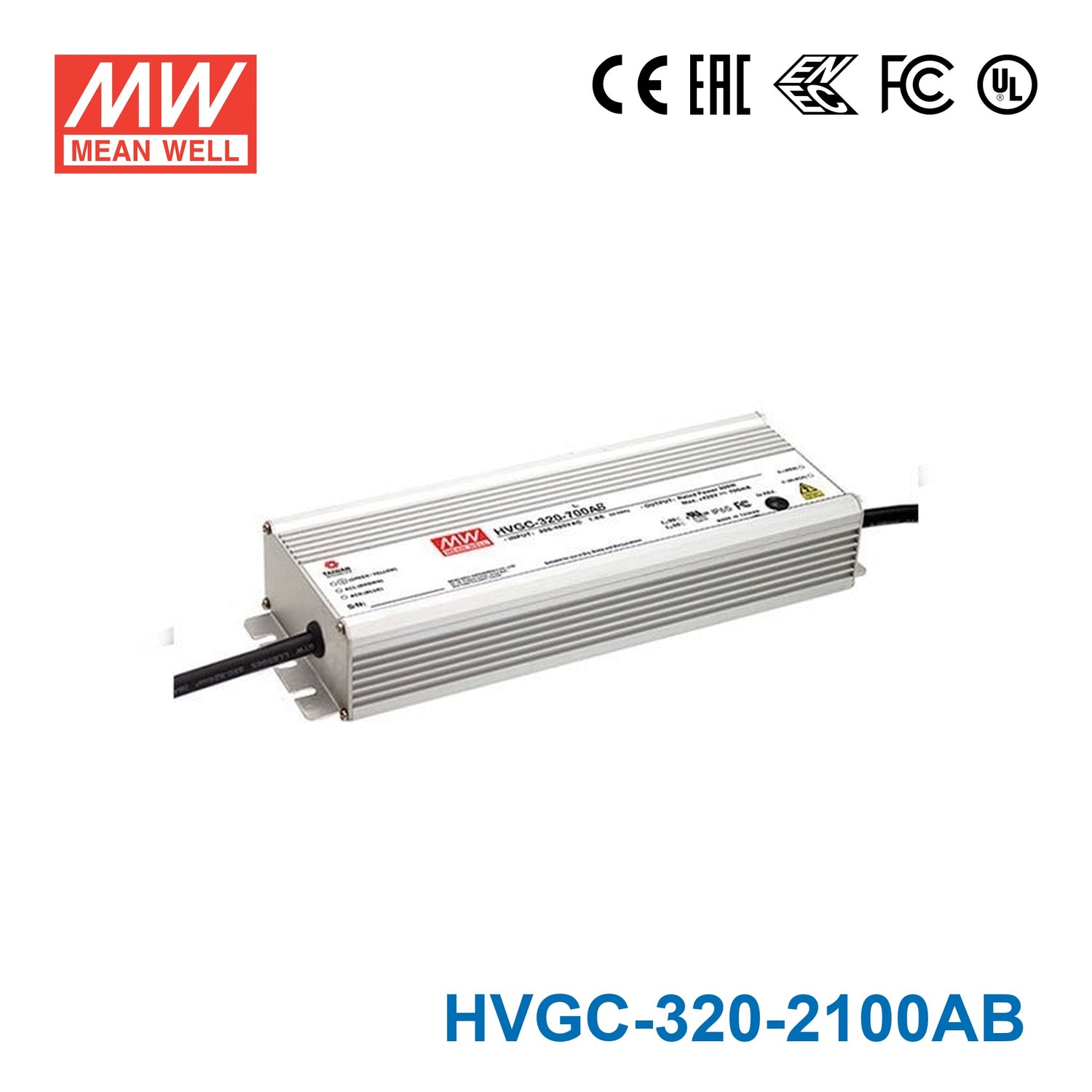

Mean Well HVGC-320-2100AB Power Supply 320W 2100mA - Adjustable and Dimmable

wide input range 180~528VAC, aluminium casing
SKU:
HVGC-320-2100AB

|

Description

Features

Wide input range 180 ~ 528VAC
Constant Current mode output
Metal housing with Class design
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 180~528VAC ; 254~747VDC
AC inrush current (max.) Cold start 50A/480VAC
Over temperature protection Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature -40~+90ºC (refer to output derating curve)
Safety standards UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A

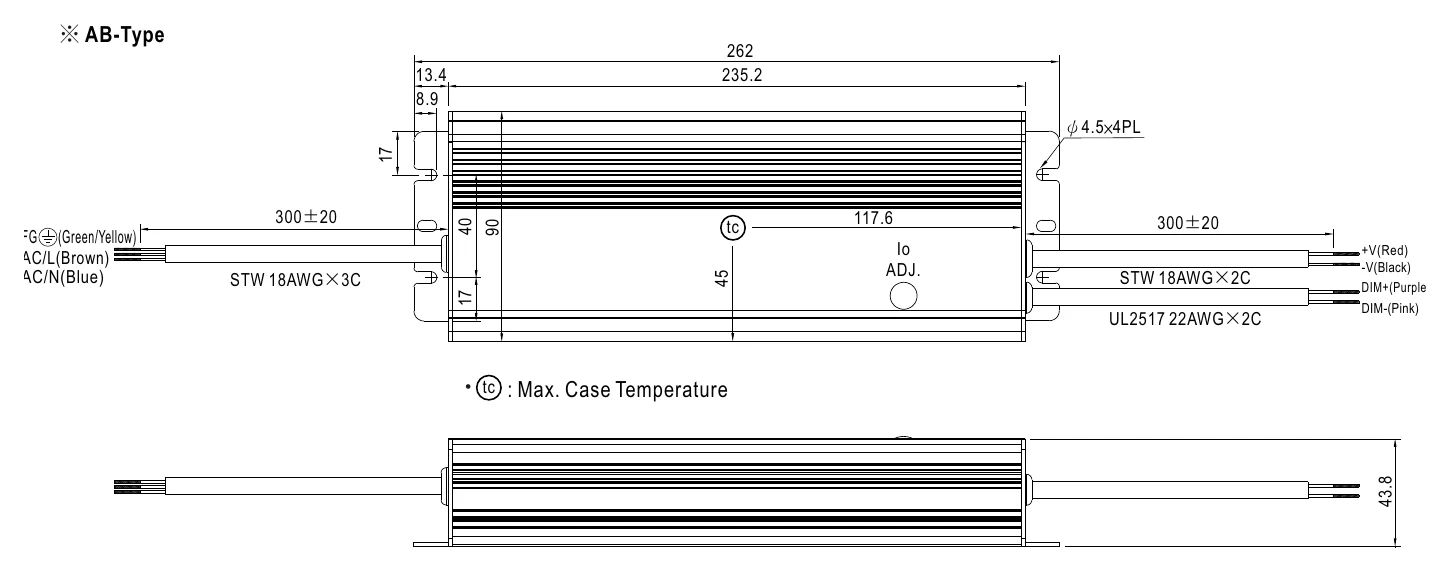

Dimension (LxWxH)(mm) 262 x 90 x 43.8 mm

Specifications

  • Brand
    Mean Well
  • Series
    HVGC Series
  • Power Rating
    320 Watt
  • Output Voltage
    156 Volt
  • Rated Current
    2.1 Ampere
  • Input Voltage
    180V~528V
  • Standards Met
    CE,EAC,ENEC,FCC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~90°C
  • Warranty
    5 Year
  • Length
    26.2 cm
  • Width
    9 cm
  • Height
    4.38 cm
  • Weight
    2 kg

File Downloads
