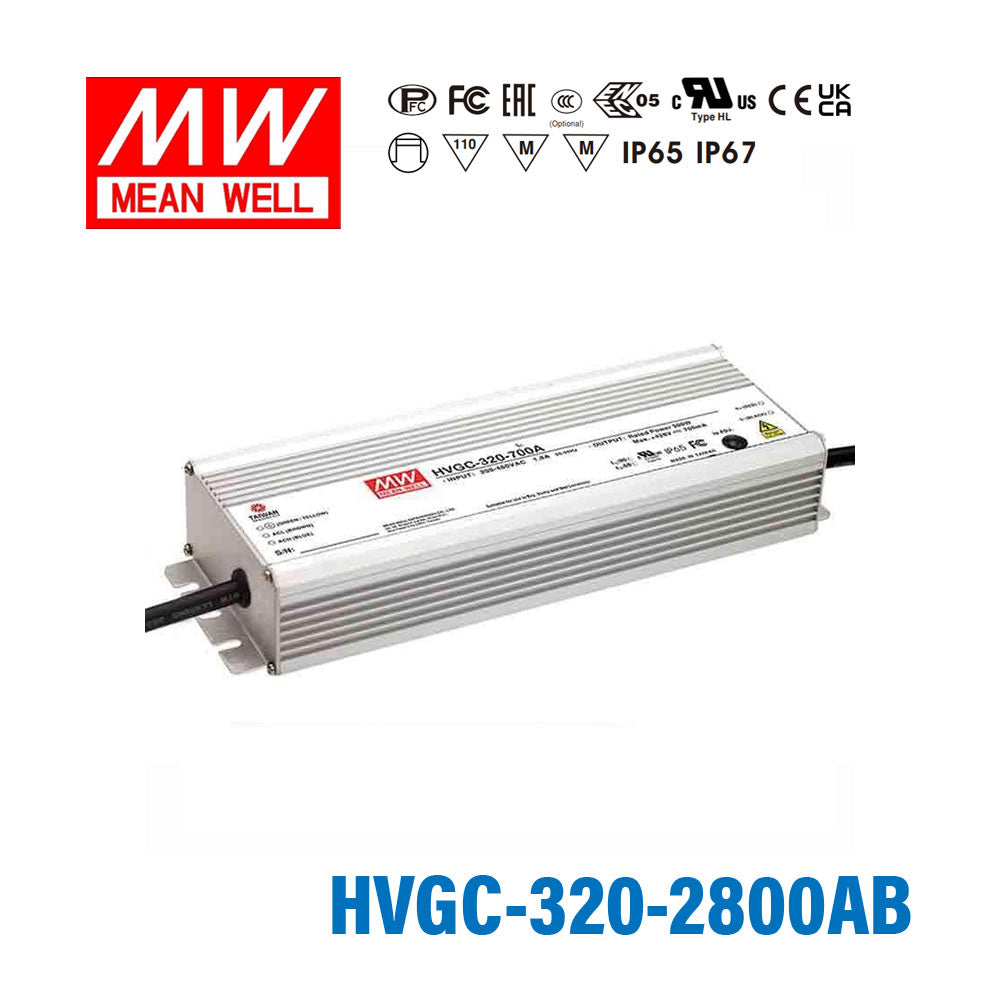

Mean Well HVGC-320-2800AB Power Supply 320W 2800mA - Adjustable and...
Please Login for Pricing
Description
Description
Features
| Wide input range 180 ~ 528VAC |
| Constant Current mode output |
| Metal housing with Class design |
| Built-in active PFC function |
| IP67 / IP65 design for indoor or outdoor installations |
| Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming |
| Typical lifetime>50000 hours |
| 5 years warranty |
General Specification
| AC input voltage range | 180~528VAC ; 254~747VDC |
| AC inrush current (max.) | Cold start 50A/480VAC |
| Over temperature protection | Shut down and latch off o/p voltage, re-power on to recover |
| Over voltage protection | Shut down o/p voltage with auto-recovery or re-power on to recovery |
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| Working temperature | -40~+90ºC (refer to output derating curve) |
| Safety standards | UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved |
| EMC standards | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A |
| Dimension (LxWxH)(mm) | 262 x 90 x 43.8 mm |
Specifications
Specifications
-
BrandMean Well
-
SeriesHVGC Series
-
Power Rating320 Watt
-
Output Voltage118 Volt
-
Rated Current2.8 Ampere
-
Input Voltage180V~528V
-
Standards MetCE,EAC,ENEC,FCC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length26.2 cm
-
Width9 cm
-
Height4.38 cm
-
Weight2 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the HVGC-320-2800AB power high-current LED downlights?
Yes, it is built for constant current LED applications at 2800mA with a 57-114V constant current range. It can be used for LED downlights when the complete load matches that current and stays inside that forward-voltage window.
Is this driver appropriate for signage modules that use constant current LEDs?
Yes, if the signage modules are designed for 2800mA constant current operation and the combined forward voltage is within 57-114V. It is not intended for constant voltage signage modules that expect a fixed DC output.
Can I use the HVGC-320-2800AB for a compact LED array with lower total voltage?
Yes, this model is a better match for LED arrays that need 2800mA at a lower total forward voltage than higher-voltage constant current drivers. Its 320W output and 57-114V CC range suit higher-current array designs that stay within those limits.
What compatibility checks matter most for the HVGC-320-2800AB?
The LED load must require 2800mA constant current, and the total forward voltage must remain within 57V to 114V. The number of LEDs will vary with each LED's forward voltage, so the correct way to size the load is by total forward voltage, not by a fixed LED count.
Is the HVGC-320-2800AB suitable for indoor and semi-exposed outdoor use?
This version has an IP65 water-resistant rating and an operating temperature range of -40°C to +90°C. That supports indoor use and many outdoor or damp-location applications where the enclosure does not need full IP67 waterproof protection.
How does the HVGC-320-2800AB differ from the A and B versions of the same rating?
The shared electrical specifications are the same across the 2800mA 320W variants: 320W output with a 57-114V constant current range at 2800mA. The variant naming separates functions, with A as adjustable, AB as adjustable and dimmable, and B as dimmable.
