Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

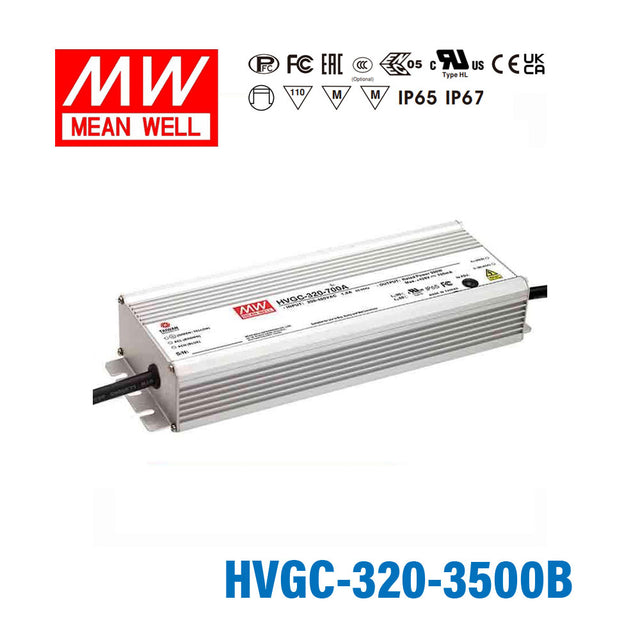

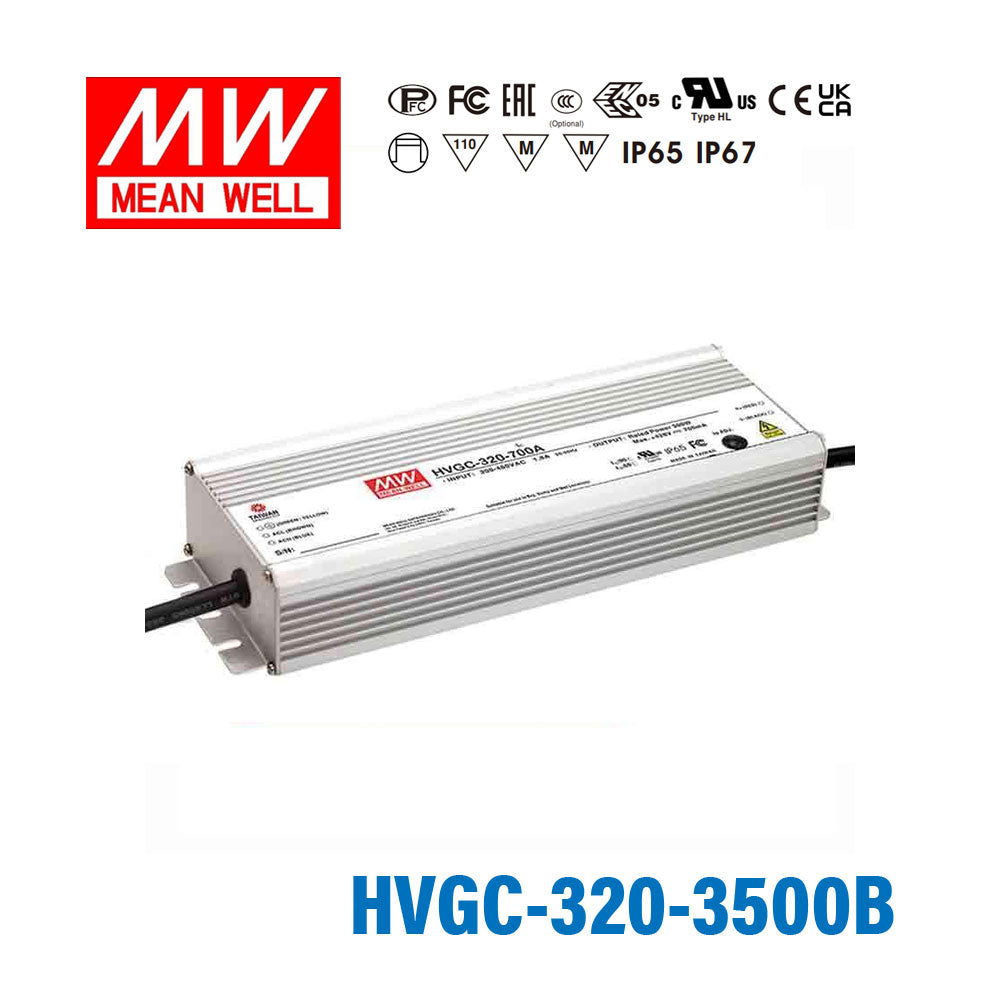

Mean Well HVGC-320-3500B Power Supply 320W 3500mA - Dimmable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-3500B

Please for Pricing

Notify me when it's back in stock

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

320 Watt
Output Voltage

94 Volt
Rated Current

3.5 Ampere
Input Voltage

180V~528V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

26.2 cm
Width

9 cm
Height

4.38 cm
Weight

2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-320-3500B for outdoor LED downlights?

Yes, if the downlight load is a constant current design at 3500mA and stays within the 45-91V CC range. Its IP67 waterproof rating makes it the better fit where stronger ingress protection is required.

Is this driver appropriate for waterproof signage lighting systems?

It can be used where the signage load is built for 3500mA constant current and falls within the 45-91V constant current range. This model is not for constant voltage signage modules, and its IP67 rating helps where full waterproof protection is important.

Will the HVGC-320-3500B work with a compact high-output LED array?

Yes, for a compact array that needs 3500mA constant current and has a total forward voltage within 45-91V. With a 320W output rating, it is intended for substantial LED loads rather than low-power arrays.

How do I size an LED load for this constant current driver?

The LED system must be rated for 3500mA constant current, and the total forward voltage must land inside the 45-91V CC output range. The number of LEDs depends on each LED's forward voltage, so the correct sizing method is voltage-range matching rather than choosing a fixed LED count.

What is the main difference between the HVGC-320-3500A, AB, and B versions?

All three versions are 320W, 3500mA constant current drivers with a 45-91V CC range, 94V output, 180-528VAC input, 262.0 × 90.0 × 43.8 mm dimensions, 2.0 kg weight, and -40°C to +90°C operating temperature. The key listed difference here is protection level: the B version is IP67 waterproof, while the A and AB versions are IP65 water-resistant.
