Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

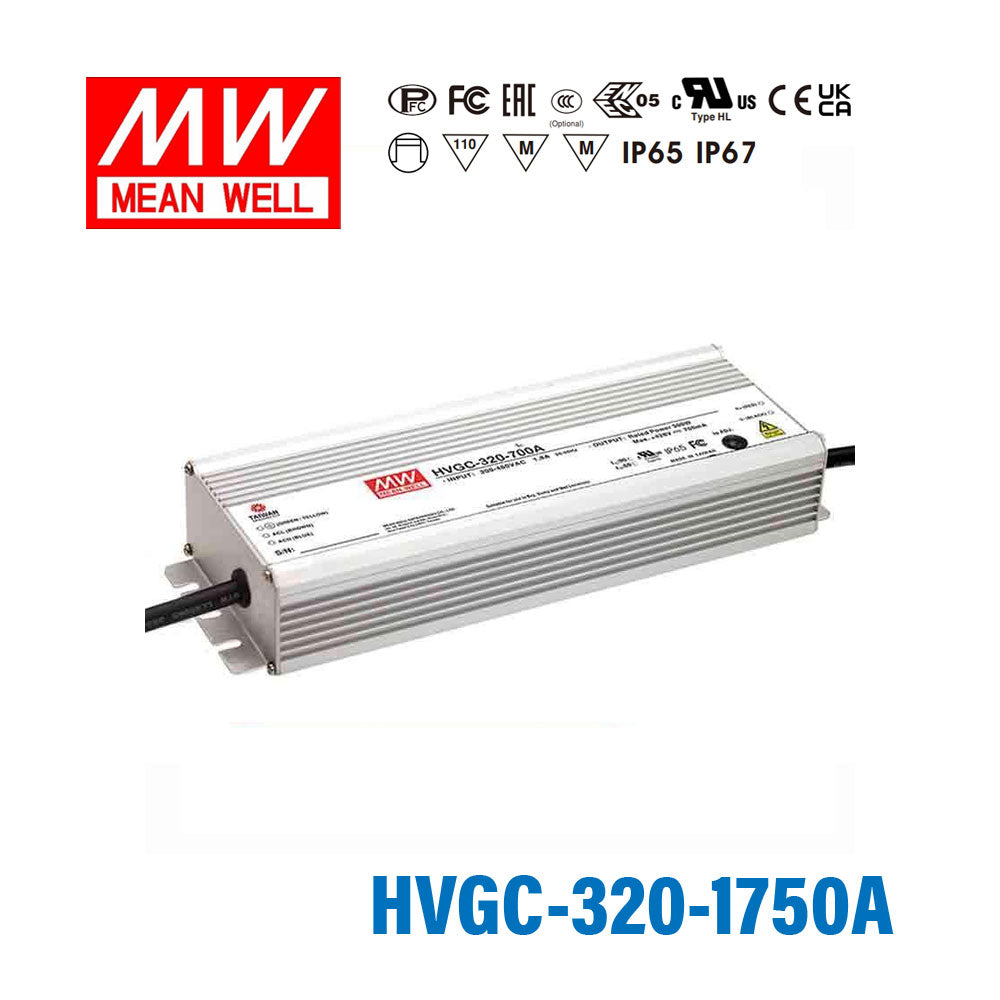

Mean Well HVGC-320-1750A Power Supply 320W 1750mA - Adjustable

wide input range 180~528VAC, aluminium casing

SKU:

HVGC-320-1750A

Please for Pricing

Notify me when it's back in stock

Description

Features

Wide input range 180 ~ 528VAC

Constant Current mode output

Metal housing with Class design

Built-in active PFC function

IP67 / IP65 design for indoor or outdoor installations

Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Timer dimming

Typical lifetime>50000 hours

5 years warranty

General Specification

AC input voltage range	180~528VAC ; 254~747VDC
AC inrush current (max.)	Cold start 50A/480VAC
Over temperature protection	Shut down and latch off o/p voltage, re-power on to recover
Over voltage protection	Shut down o/p voltage with auto-recovery or re-power on to recovery
Withstand voltage	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
Working temperature	-40~+90ºC (refer to output derating curve)
Safety standards	UL8750 CSA C22.2 No. 250.13-12, ENEC EN61347-1, EN61347-2-13, EN62384, independent,IP65 or IP67 approved
EMC standards	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level(surge immunity Line-Earth 4KV,Line-Line 2KV), criteria A
Dimension (LxWxH)(mm)	262 x 90 x 43.8 mm

Specifications

Brand

Mean Well
Series

HVGC Series
Power Rating

320 Watt
Output Voltage

187 Volt
Rated Current

1.75 Ampere
Input Voltage

180V~528V
Standards Met

CE,EAC,ENEC,FCC,UL
Operation Mode

Constant Current
Operating Temperature

-40°C~90°C
Warranty

5 Year
Length

26.2 cm
Width

9 cm
Height

4.38 cm
Weight

2 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the HVGC-320-1750A for a constant current LED downlight system?

Yes, if the downlight system requires 1750mA constant current and the total forward voltage stays within 91-182V. This is a constant current driver, so it should be matched to LED loads designed for current regulation rather than constant voltage input.

Will this driver work for a compact LED array with a mid-voltage constant current load?

It can work well for a compact LED array when the array is specified for 1750mA and its combined forward voltage fits inside the 91-182V CC range. The 320W rating makes it suitable for higher-power LED arrays that need more output than lower-wattage drivers.

Is the HVGC-320-1750A a fit for signage modules that use constant current?

It is a fit only if the signage module assembly is a constant current load at 1750mA and the full LED load voltage is between 91V and 182V. It is not intended for constant voltage signage modules.

How should I size an LED load for the HVGC-320-1750A?

The LED load needs to match 1750mA output current and fall within the 91-182V constant current range. The number of LEDs depends on the forward voltage of each LED, so the correct way to size the load is by total forward voltage, not by a fixed LED count.

Is this model suitable for dusty or damp locations?

This version is rated IP65, so it is water-resistant rather than fully waterproof. It also carries a -40°C to +90°C operating temperature range and uses an aluminium casing, which helps in demanding environments where a sealed constant current driver is needed.
