Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Ltech

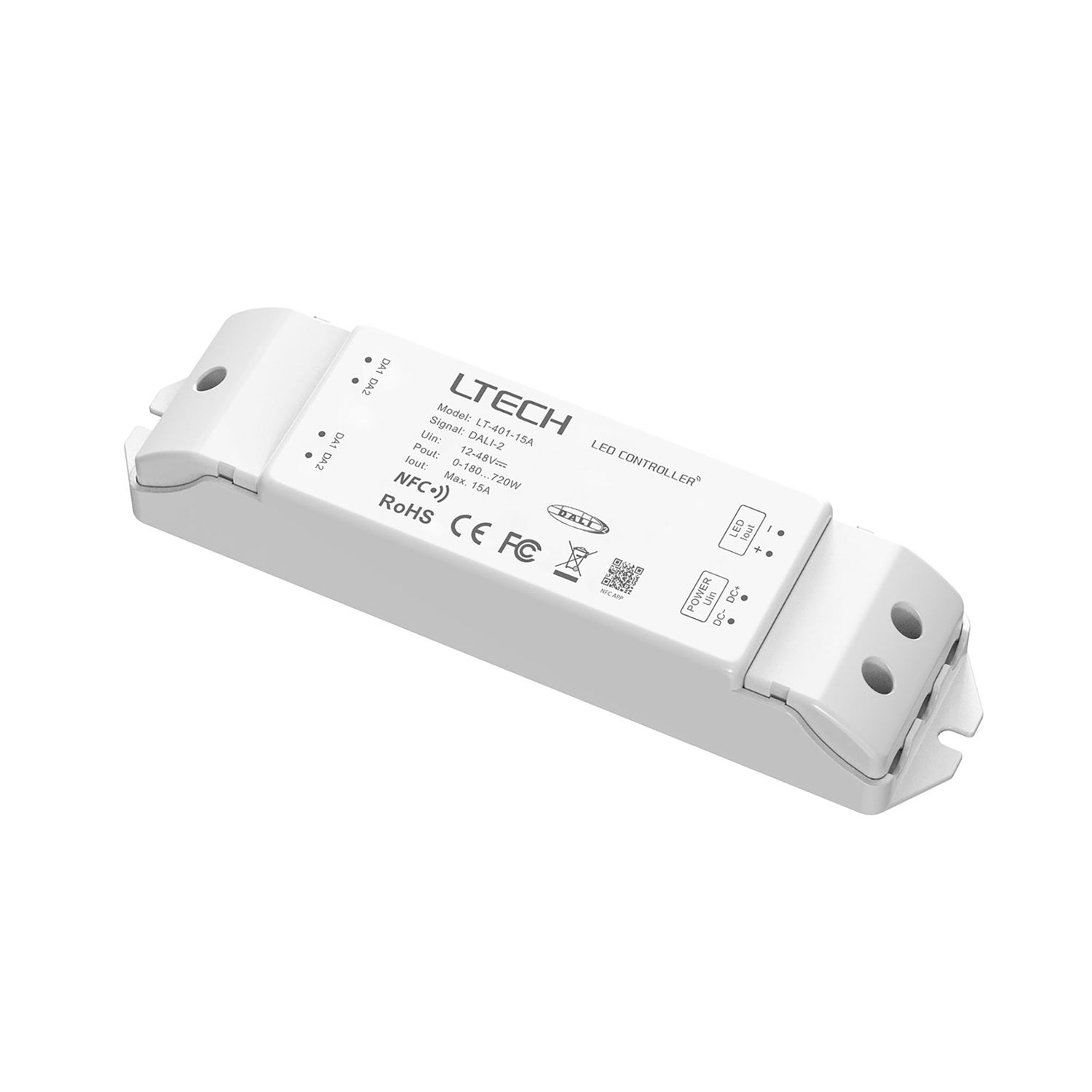

Ltech LT-401-15A DALI2 CV Controller, 12-48V, 15A, with NFC Setting

dimming down to 0.1%single channelDALI addressdimming curve and PWM frequency can be changed through NFC
SKU LT-401-15A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
|

The LT-401-15A is a high-performance single-channel constant voltage DALI LED driver, engineered for professional indoor lighting applications. Supporting the DALI bus standard (IEC62386-101, 102, 207), it delivers up to 15A output current with a maximum load of 720W. The driver offers 0–100% dimming down to 0.1% via PWM digital dimming without affecting LED colour rendering. Through the NFC Lighting App or NFC programmer, users can easily configure DALI address, dimming curve, PWM frequency, and other advanced parameters. Housed in a fully protected, durable plastic enclosure, it ensures safe and reliable operation with multiple protection features.

Key Features

  • Single-channel constant voltage DALI LED driver

  • Output voltage: 12–48VDC, max output current: 15A

  • Maximum output power: up to 720W

  • Dimming range: 0–100%, ultra-low 0.1% dimming

  • PWM digital dimming preserves LED colour rendering index

  • Fully compliant with DALI standards: IEC62386-101, 102, 207

  • NFC programming for DALI address, dimming curve, PWM frequency, and more

  • Multiple protections: short circuit, overtemperature, overcurrent, reverse polarity (auto recovery)

  • Compact size: 175×44×30 mm

  • Adjustable PWM frequency options from 300Hz to 21.6kHz

  • Suitable for indoor LED lighting environments

  • 5-year warranty
