Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

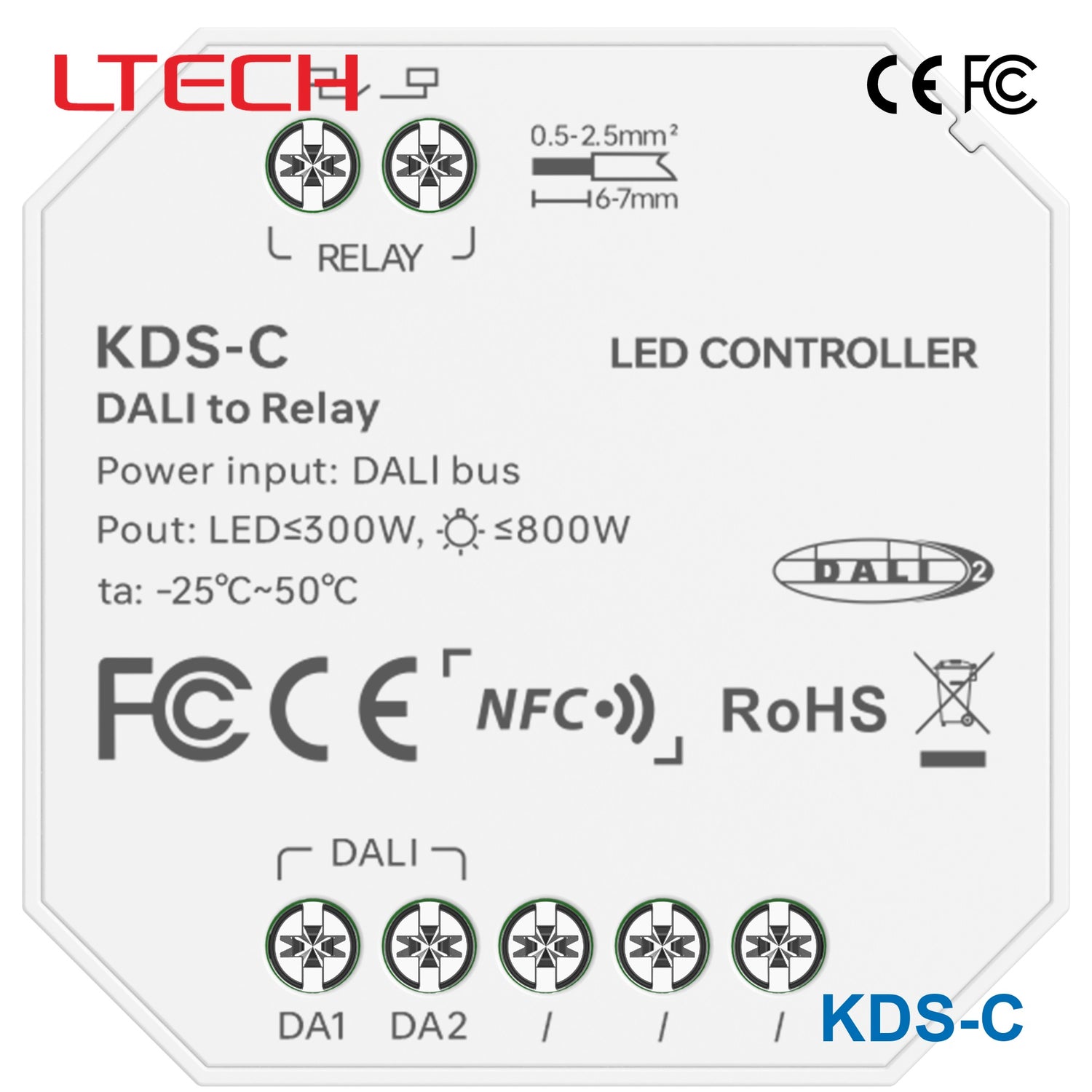

Ltech KDS-C 800W DALI-2 LED Controller

DALI-25A800W

SKU KDS-C

Log in to see price Trade pricing & online ordering for account holders

Available to order

Technical drawings

KDS-C Hide this product inside a switch box. — Hide this product inside a switch box.

KDS-C Wiring Application — Wiring Application

KDS-C 2.Control 12-24Vdc load wiring method. — 2.Control 12-24Vdc load wiring method.

KDS-C 1. Read the device — 1. Read the device

KDS-C 2. Edit parameters — 2. Edit parameters

KDS-C 3. Advanced DALI template settings — 3. Advanced DALI template settings

Downloads

Datasheet1

KDS-C datasheetKDS_C.pdf PDF Download

FAQ

What is the KDS-C used for?

The KDS-C is a DALI-2 controller that receives digital signals and controls connected loads via a built-in relay output.

How is the KDS-C powered?

It is powered directly by the DALI bus, requiring no separate power supply connection.

What is the maximum load the relay can switch?

The relay supports a maximum load current of 5A. For resistive loads, it handles up to 800W at 230Vac, 400W at 110Vac, or 200W at 48Vdc.

What are the maximum switching voltages?

The relay can switch up to 250Vac or 48Vdc.

What is the operating temperature range?

The device operates reliably in temperatures ranging from -25°C to 50°C.

Is the KDS-C waterproof or lightning-proof?

No, the standard model is not waterproof or lightning-proof. It is designed for indoor use unless a special model is specified.

What is the warranty period?

The KDS-C comes with a 5-year warranty.
