Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

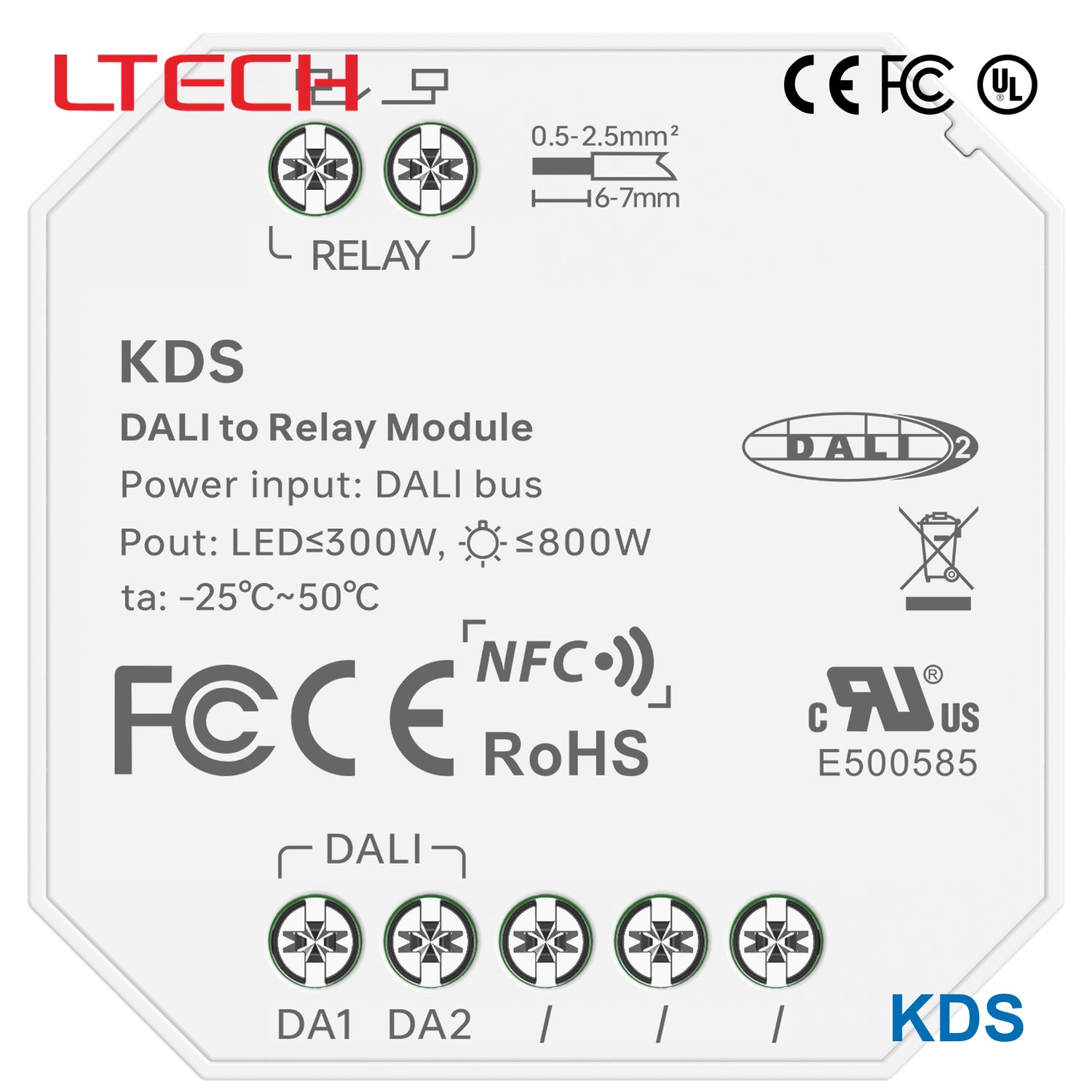

Ltech KDS 800W DALI-2 LED Controller

DALI-25A800W

SKU KDS

Log in to see price Trade pricing & online ordering for account holders

Available to order

Technical drawings

KDS Hide this product inside a switch box. — Hide this product inside a switch box.

KDS Wiring Application — Wiring Application

KDS 2.Control 12-24Vdc load wiring method. — 2.Control 12-24Vdc load wiring method.

KDS 1. Read the device — 1. Read the device

KDS 2. Edit parameters — 2. Edit parameters

KDS 3. Advanced DALI template settings — 3. Advanced DALI template settings

Downloads

Datasheet1

KDS datasheetKDS.pdf PDF Download

FAQ

What is the Ltech KDS?

The Ltech KDS is a DALI-2 LED controller that uses a relay output to switch loads. It is powered directly by the DALI bus.

What is the maximum load capacity?

The relay supports a maximum load current of 5A. For resistive loads, it handles up to 800W at 230Vac, 400W at 110Vac, or 200W at 48Vdc.

How is the device controlled?

It uses the DALI-2 input signal for control and is powered by the DALI bus. The output is a relay switch.

What are the operating conditions?

The working temperature range is -25°C to 50°C. The unit is not waterproof or lightningproof, so it must be installed in a protected indoor environment.

What are the physical dimensions?

The product size is L45 × W45.5 × H20.5 mm, and it weighs 30g.

Which certifications does it have?

It carries CE, RoHS, FCC, cRUus, and DALI certification marks, complying with standards such as IEC62386-101, IEC62386-102, and IEC62386-208.

What is the warranty period?

The Ltech KDS comes with a 5-year warranty.
