Ltech

Ltech DIN-411-12A Constant Voltage Controller - DALI Dimming

SKU DIN-411-12A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

DIN-411-12A is the 12~24Vdc output model of this series.

Features

  • Dimming interface: DALI.
  • PWM digital dimming, standard DALI logarithmic dimming curve.
  • Dimming range: 0~100%, LED start at 0.1% possible.
  • Max. current output: 12A.
  • 0-10V output, DALI system compatible with 0-10V.
  • Short circuit / Over-heat / Non load protection.
  • Full protective plastic housing.
  • DALI bus standard: IEC62386.
  • Suitable for indoor environments.

Specifications

DIN-411-12ASpecifications from the official datasheet (2018-08-23 edition)Download datasheet PDF

Main Characteristics

Dimming Interface
DALI (IEC62386)
Input Voltage
12~24Vdc
Output Voltage
12~24Vdc
Output
12A×1CH + 0-10V×1CH
Max. Output Power
0-144W...288W
Dimming Range
0~100%, LED start at 0.1% possible
Protection
Short circuit / Over-heat / Non-load
Mounting
DIN-Rail or Screw
Working Temperature
-30℃~55℃
Product Size
L112×W35×H67(mm)
Package Size
L114×W37×H70(mm)
Weight(G.W.)
120g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS, ISO9001:2008

Technical drawings

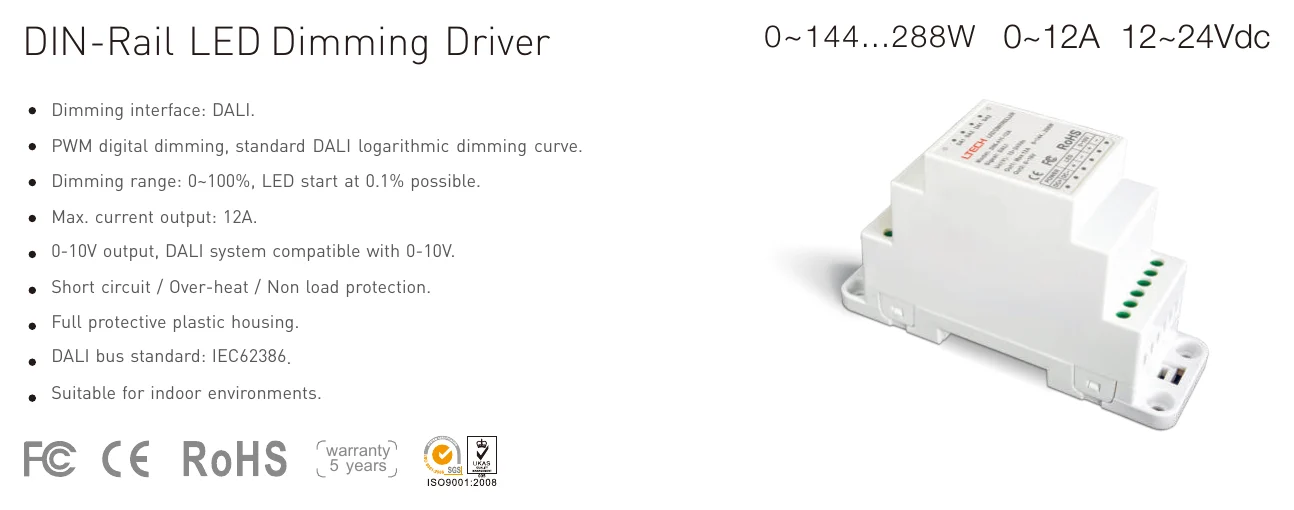

DIN-411-12A 0~144...288W 0~12A 12~24Vdc
0~144...288W 0~12A 12~24Vdc

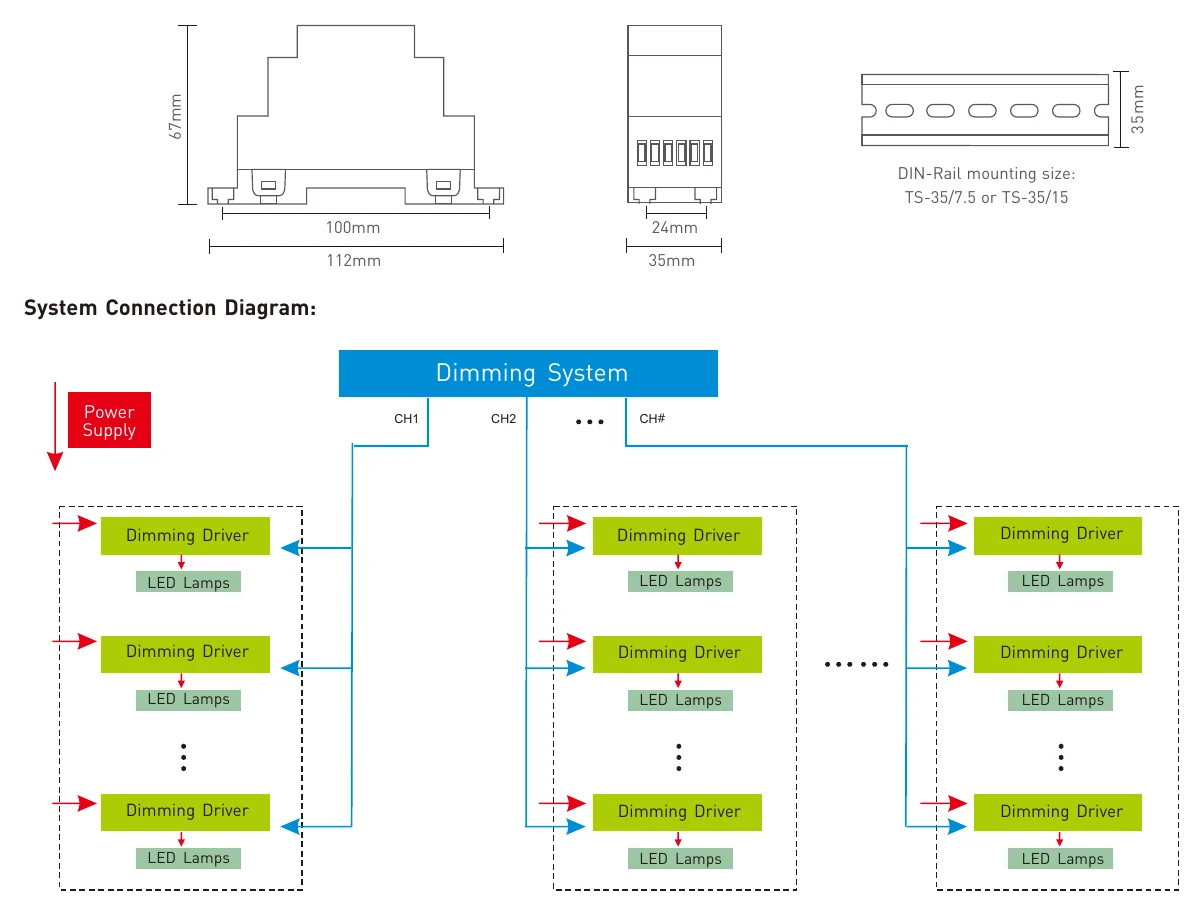

DIN-411-12A Main Characteristics
Main Characteristics

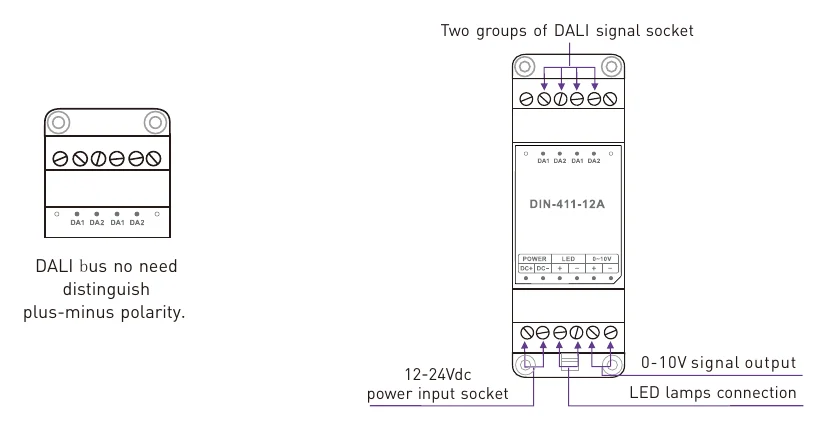

DIN-411-12A Two groups of DALI signal socket
Two groups of DALI signal socket

Downloads

FAQ

What is the Ltech DIN-411-12A used for?

The Ltech DIN-411-12A is a constant voltage LED controller designed for dimming LED strips with a DALI signal. It is intended for projects that need centralized control in a DIN rail-mounted format.

What electrical rating does this controller support?

This model supports a 12~24Vdc output voltage and 12A current, with a maximum power rating of 288 W. Those specifications make it suitable for higher-load constant voltage LED strip applications within its rated limits.

Does this controller support DALI dimming?

Yes, this controller is specifically built for DALI dimming. The product description identifies it as a DALI LED controller for dimming LED strips using a DALI signal.

What output types are available on the DIN-411-12A?

This controller provides two output signals: a 12A output and a 0-10V signal. That gives buyers a model intended for DALI-based LED control with both output types available on the same unit.

Is this model suitable for control panels or DIN rail cabinets?

Yes, the DIN-411-12A is designed to be mounted on a DIN rail. That makes it a practical choice for commercial and industrial lighting control setups where panel-based installation is preferred.

What operating temperature range can this controller handle?

The specified operating temperature range is -30 °C to 55 °C. This supports use in demanding indoor environments where lighting control equipment may be exposed to wider temperature variation.

What warranty is offered for the Ltech DIN-411-12A?

This model includes a 5-year warranty period. That longer warranty can be useful for commercial buyers who want stronger coverage for ongoing lighting control projects.
