Ltech EDA1 1 Switch Touch Panel - DALI Master Dimmer

SKU EDA1
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Features

  • Latest DALI standard protocol IEC62386.
  • Support switch and dimming function.
  • DALI bus supply power.
  • The DIP switch can set address.
  • Support scene, group, unicast, broadcast mode.

Specifications

EDA1Specifications from the official datasheet (2018-07-09 edition)Download datasheet PDF

Technical specs

Power supply
DALI power
Output signal
DALI
Dimming key
EDA1: 1CH control
Static current
6mA@16V
Standby current
4mA@16V
Working temperature
-30℃~55℃
Dimensions
L86×W86×H37(mm)
Package size
L113×W112×H50(mm)
Weight(G.W.)
200g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS

Technical drawings

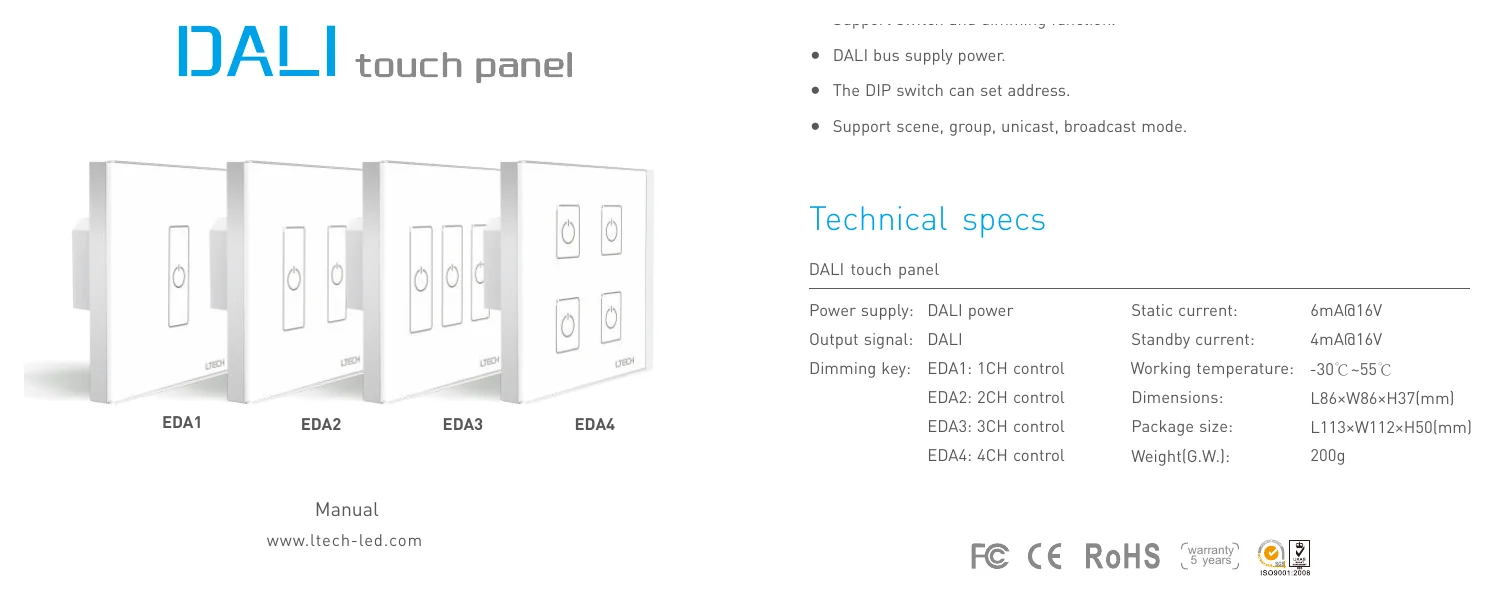

EDA1 touch panel
touch panel

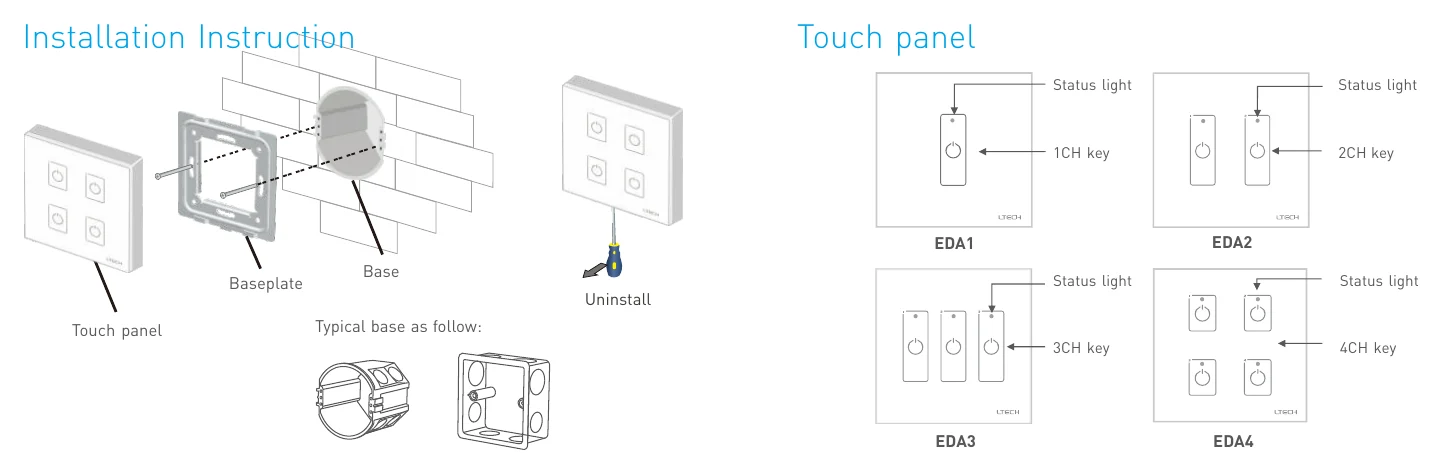

EDA1 Installation Instruction
Installation Instruction

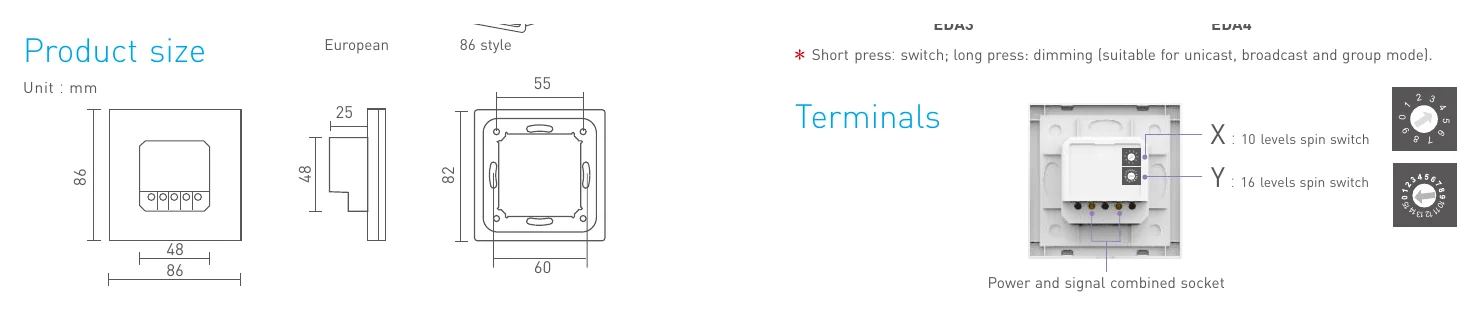

EDA1 Product size
Product size

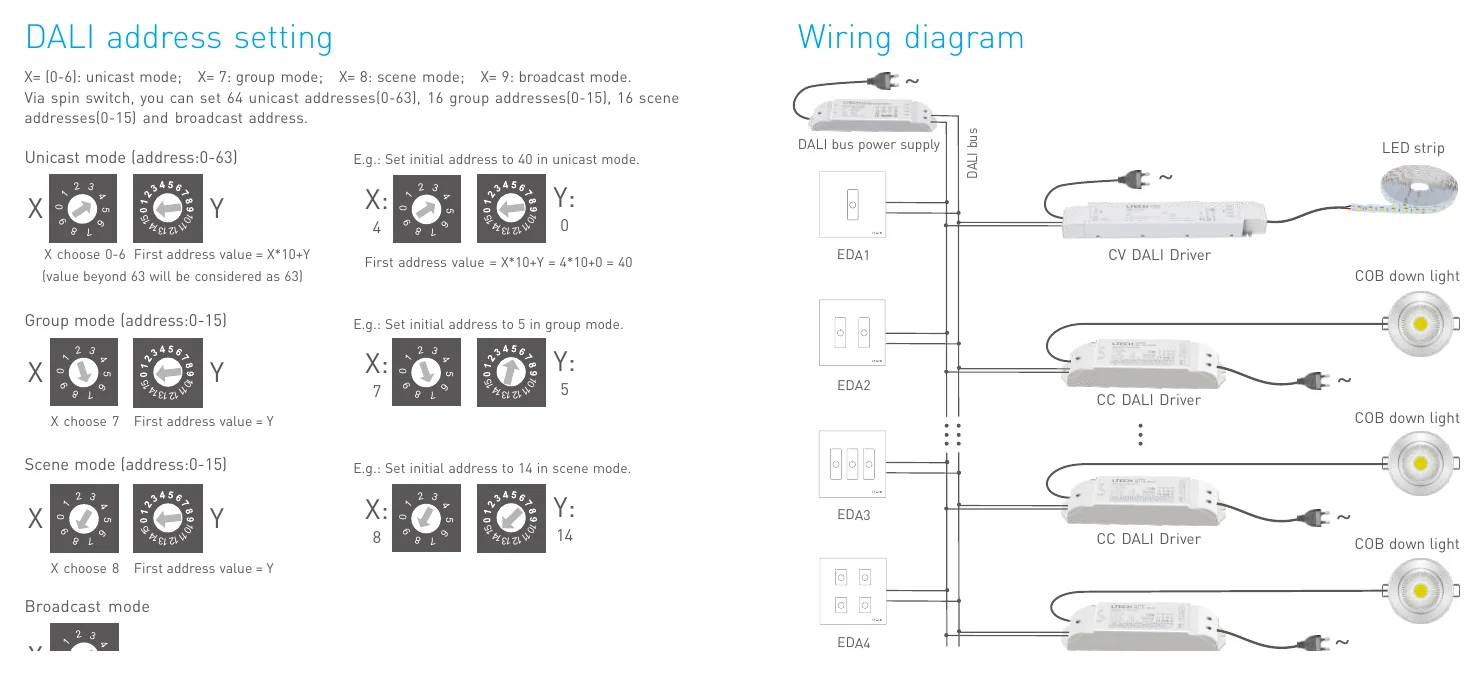

EDA1 DALI address setting
DALI address setting

Downloads

FAQ

What does the Ltech EDA1 do?

The Ltech EDA1 is a 1-switch touch panel designed to act as a DALI master dimmer. It supports both switching and dimming functions for compatible DALI lighting control applications.

Which DALI standard does the EDA1 support?

This model supports the latest DALI standard protocol listed for it: IEC62386. That makes it suitable for buyers looking for a touch panel dimmer built around a recognized DALI protocol standard.

Can the Ltech EDA1 work with different DALI control modes?

Yes. The EDA1 supports scene, group, unicast, and broadcast mode, giving it flexibility for different DALI control strategies. That makes it a practical option for projects that need more than simple on/off control.

Does the EDA1 provide DALI bus power?

Yes, the product description states that it includes DALI bus supply power. Buyers comparing DALI control panels may find that useful when reviewing device capabilities for a DALI-based system.

What operating temperature range is this touch panel rated for?

The Ltech EDA1 is rated for temperatures from -30 degrees C to 55 degrees C. That range supports use in a wide variety of indoor and controlled commercial environments, depending on the overall project conditions.

How is the device addressed within a DALI system?

According to the product details, the EDA1 uses a DIP switch to set the address. That gives buyers a defined addressing method without changing the product's role as a DALI master dimmer touch panel.
