Ltech

Ltech LT-401-15A DALI2 CV Controller, 12-48V, 15A, with NFC Setting

dimming down to 0.1%single channelDALI addressdimming curve and PWM frequency can be changed through NFC
SKU LT-401-15A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

LT-401-15A is the 12-48V output model of this series.

Features

  • Standard DALI input interface, the wires of the DALI bus are non-polarized.
  • PWM digital dimming, it doesn’t change LED lights’ color rendering index.
  • Dimming range: 0~100%, dimming down to 0.1%.
  • Single channel, constant voltage output with max. load current 15A.
  • DALI bus standard: IEC62386-101, IEC62386-102, IEC62386-207 standard.
  • Fully-protected plastic housing.
  • Suitable for indoor LED lighting environments.
  • Change the driver’s DALI address, dimming curve, PWM frequency and other parameters via the NFC Lighting APP or on our NFC programmer.

Specifications

LT-401-15ASpecifications from the official datasheetDownload datasheet PDF

Product Parameters

Model
LT-401-15A
Dimming Interface
DALI
Input Voltage
12-48V
Output Voltage
12-48V
Output Current
15A×1CH
Output Power
0-720W (Max 720W)
Dimming Range
0~100%, down to 0.1%
Protection
Short circuit, over temperature and over current protection, self-recovery, against polarity reversal
Dimensions
L175×W44×H30(mm)
Package Size
L178×W48×H33(mm)

Load Parameters

12V
300Hz: 15A/180W ; 600Hz: 15A/180W ; 1.2kHz: 15A/180W ; 1.5kHz: 15A/180W ; 1.8kHz: 15A/180W ; 2.4kHz: 15A/180W ; 3.6kHz: 15A/180W ; 7.2kHz: 10A/150W ; 10.8kHz: 10A/150W ; 14.4kHz: 8A/96W ; 18kHz: 7A/84W ; 21.6kHz: 6A/72W
24V
300Hz: 15A/360W ; 600Hz: 15A/360W ; 1.2kHz: 15A/360W ; 1.5kHz: 15A/360W ; 1.8kHz: 15A/360W ; 2.4kHz: 15A/360W ; 3.6kHz: 10A/240W ; 7.2kHz: 8A/192W ; 10.8kHz: 8A/192W ; 14.4kHz: 6A/144W ; 18kHz: 5A/120W ; 21.6kHz: 4A/96W
36V
300Hz: 15A/540W ; 600Hz: 15A/540W ; 1.2kHz: 10A/540W ; 1.5kHz: 15A/540W ; 1.8kHz: 15A/540W ; 2.4kHz: 15A/540W ; 3.6kHz: 10A/360W ; 7.2kHz: 8A/288W ; 10.8kHz: 6A/216W ; 14.4kHz: 4A/144W ; 18kHz: 3A/108W ; 21.6kHz: 3A/108W
48V
300Hz: 15A/720W ; 600Hz: 15A/720W ; 1.2kHz: 15A/720W ; 1.5kHz: 15A/720W ; 1.8kHz: 15A/720W ; 2.4kHz: 15A/720W ; 3.6kHz: 10A/480W ; 7.2kHz: 8A/384W ; 10.8kHz: 6A/288W ; 14.4kHz: 4A/192W ; 18kHz: 3A/144W ; 21.6kHz: 3A/144W

Others

Warranty periods
5 years

Certifications & ratings

Marked features
NFC
Certification marks
FCC, CE, RoHS

Technical drawings

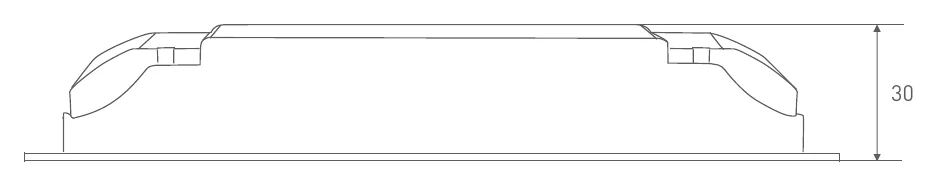

LT-401-15A Dimensions (mm)
Dimensions (mm)

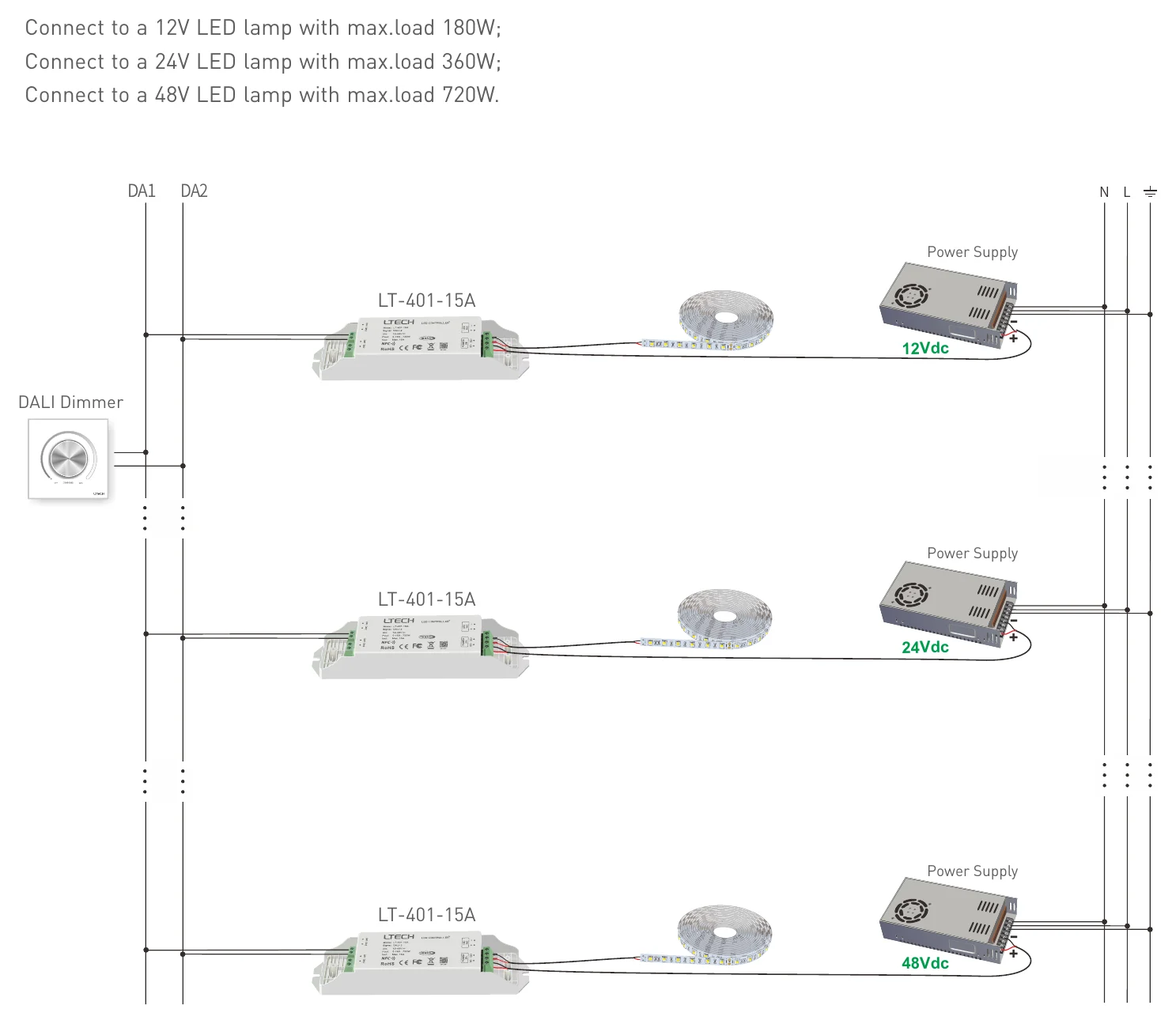

LT-401-15A Connect to a 12V LED lamp with max.load 180W;
Connect to a 12V LED lamp with max.load 180W;
LT-401-15A Use the NFC Lighting APP
Use the NFC Lighting APP

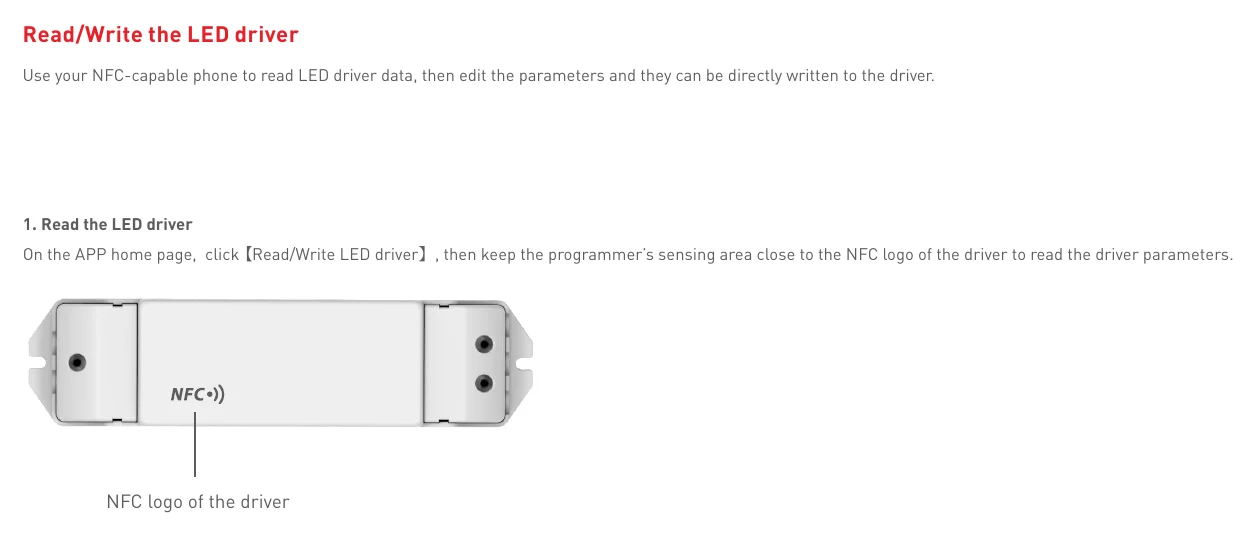

LT-401-15A Read/Write the LED driver
Read/Write the LED driver

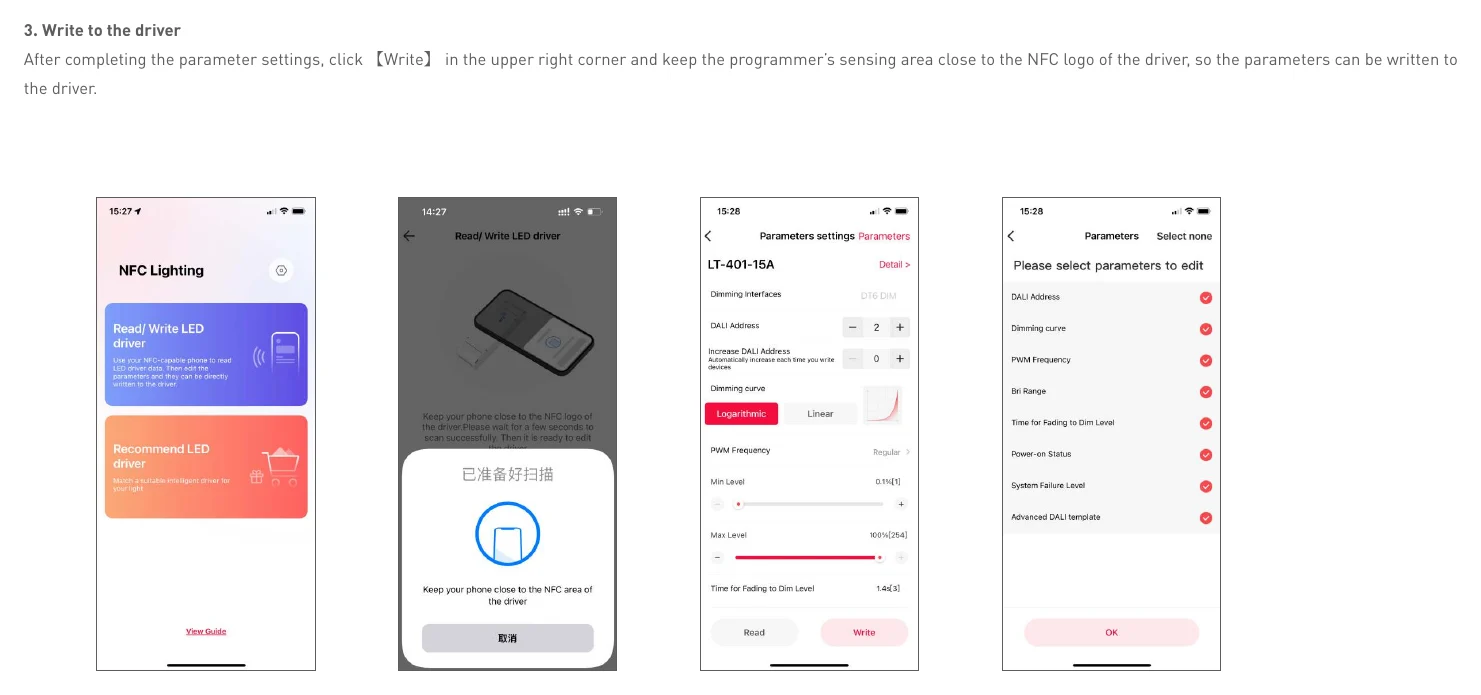

LT-401-15A 3.Write to the driver
3.Write to the driver

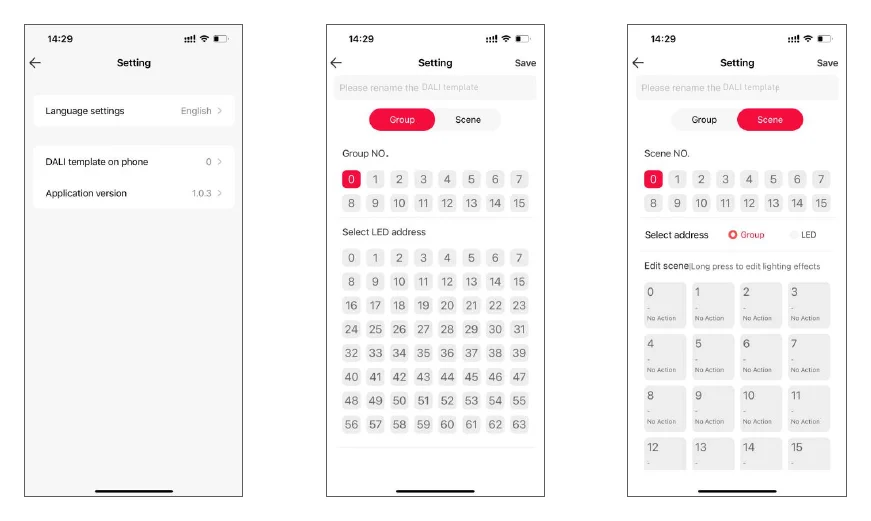

LT-401-15A Advanced DALI template
Advanced DALI template

Downloads

FAQ

What type of product is the Ltech LT-401-15A?

The Ltech LT-401-15A is a single-channel constant voltage DALI2 LED controller for professional indoor lighting applications. It is designed to provide precise dimming control for constant voltage LED loads across a 12-48VDC range.

What voltage and output capacity does the LT-401-15A support?

This model supports an output voltage range of 12-48VDC and delivers up to 15A output current. Its maximum output power is 720W, making it suitable for higher-load constant voltage LED control applications.

Does the LT-401-15A support very low dimming levels?

Yes, the LT-401-15A offers 0-100% dimming with an ultra-low dimming level down to 0.1%. It uses PWM digital dimming, which helps preserve LED colour rendering while maintaining smooth control.

Is the LT-401-15A compliant with DALI standards?

Yes, the LT-401-15A supports the DALI bus standard and is compliant with IEC62386-101, IEC62386-102, and IEC62386-207. That makes it a strong fit for commercial and professional lighting systems requiring DALI2 compatibility.

What can be adjusted through the NFC setting feature?

The LT-401-15A supports NFC configuration through the NFC Lighting App or an NFC programmer. Available settings include DALI address, dimming curve, PWM frequency, and other advanced parameters supported by the device.

Where is the LT-401-15A typically used?

This model is intended for indoor LED lighting environments where DALI2 dimming and stable constant voltage control are required. Its higher 15A output and configurable NFC settings make it suitable for professional lighting projects with more demanding control requirements.

What protection features does the LT-401-15A include?

The LT-401-15A includes protection against short circuit, overtemperature, overcurrent, and reverse polarity conditions. These protection functions are designed for safe, reliable operation and support automatic recovery where applicable.

What operating environment and warranty does this controller have?

The LT-401-15A includes a 5-year warranty, which is useful for commercial buyers looking for longer-term product support.
