Ltech LT-404-5A Constant Voltage Controller - DALI/Push RGBW

SKU LT-404-5A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

LT-404-5A is the 12~24Vdc output model of this series.

Features

  • Dimming interface: DALI, Push Dim.
  • PWM digital dimming, standard DALI logarithmic dimming curve.
  • Dimming range: 0~100%, LED start at 0.1% possible.
  • 4CH isolated control output, Max. current output: 20A.
  • Full protective plastic housing.
  • DALI bus standard: IEC62386.
  • Suitable for indoor environments.

Specifications

LT-404-5ASpecifications from the official datasheet (2019-06-27 edition)Download datasheet PDF

Main Characteristics

Dimming Interface
DALI, Push Dim
Dimming Range
0~100%
Input Voltage
12~24Vdc
Working Temperature
-30Β°C~55Β°C
Output Voltage
12~24Vdc
Product Size
L175Γ—W44Γ—H30(mm)
Output
5AΓ—4CH Max. 20A
Package Size
L178Γ—W48Γ—H33(mm)
Max. Output Power
0~60W...120W Γ— 4CH, Max. 480W
Weight(G.W.)
135g

Certifications & ratings

warranty
5 years
Certification marks
FCC, CE, RoHS

Technical drawings

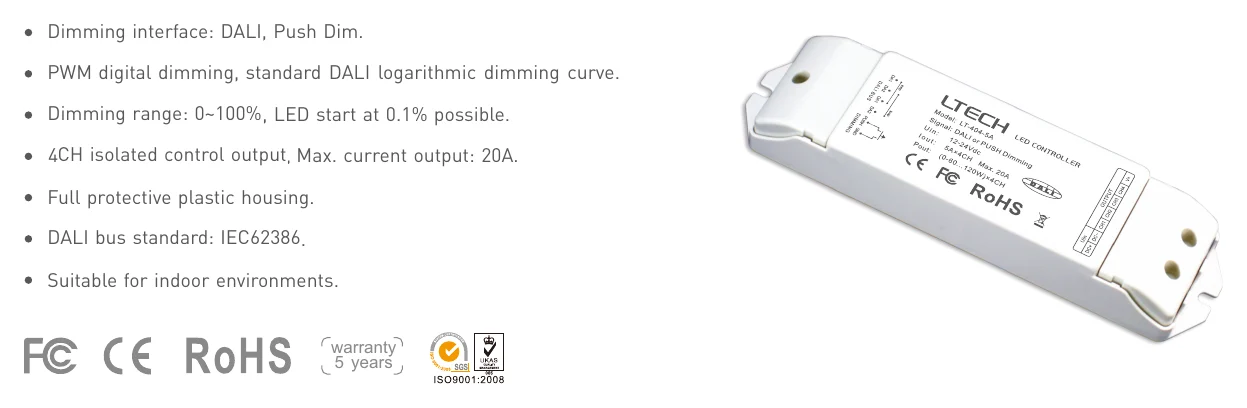

LT-404-5A Dimming interface: DALI, Push Dim.
Dimming interface: DALI, Push Dim.

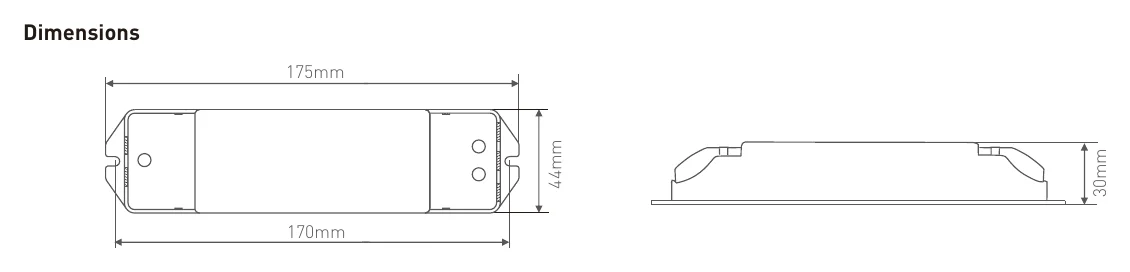

LT-404-5A Dimensions
Dimensions

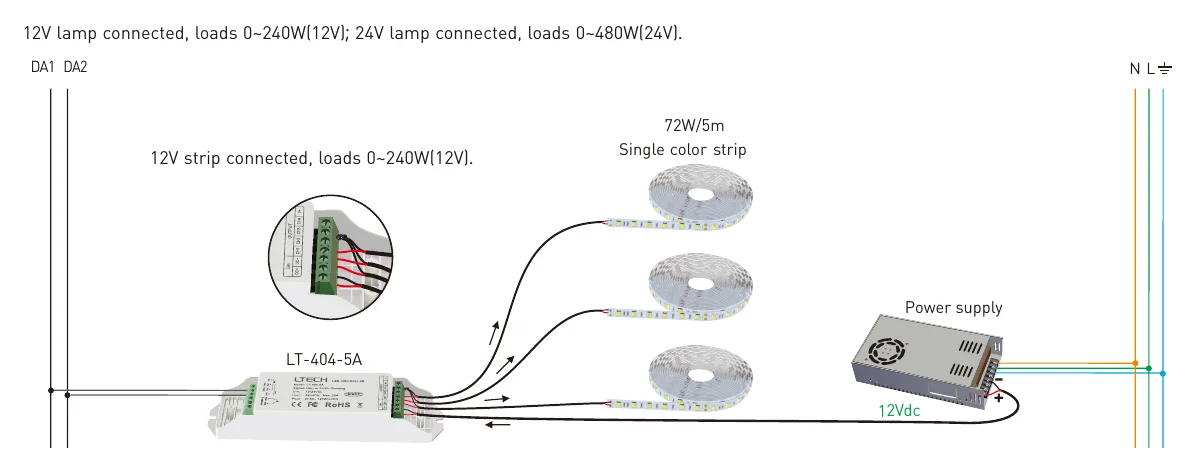

LT-404-5A 12V lamp connected, loads 0~240W(12V); 24V lamp…
12V lamp connected, loads 0~240W(12V); 24V lamp…

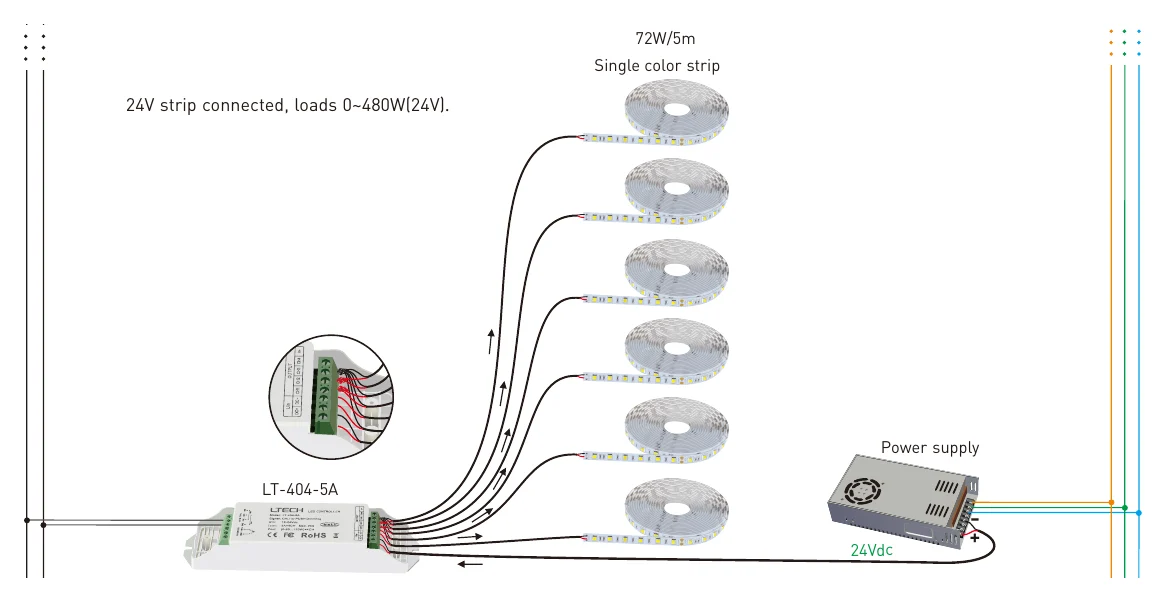

LT-404-5A Illustration (page 2)
Illustration (page 2)

Downloads

FAQ

What type of lighting systems is the Ltech LT-404-5A designed for?

The LT-404-5A is a constant voltage RGBW controller intended for LED lighting systems that use DALI or Push dimming control. It is suited for applications where separate RGBW channel control and smooth dimming performance are needed.

Which dimming protocols does the LT-404-5A support?

This model supports DALI and Push Dim control. It also uses PWM digital dimming and follows the standard DALI logarithmic dimming curve for consistent dimming behavior.

What are the output capacity and electrical ratings of the LT-404-5A?

The LT-404-5A supports an input and output voltage range of 12~24Vdc. It features 4 channels with a maximum current of 5A per channel (20A total) and a maximum output power of 480W.

How fine is the dimming range on this controller?

The dimming range is 0 to 100 percent. That makes this model a good fit for projects that require smooth brightness adjustment across the full spectrum.

Is the LT-404-5A appropriate for indoor or outdoor use?

This controller has an operating temperature range of -30 Β°C to 55 Β°C. It is designed for indoor environments.

Does this controller support multi-channel color control?

Yes, the LT-404-5A provides 4-channel control output for RGBW lighting control. That makes it appropriate for applications needing separate control across red, green, blue, and white channels.

How does the LT-404-5A compare with basic single-color dimming controllers?

Unlike a basic single-channel dimmer, the LT-404-5A is built for RGBW constant voltage lighting and offers 4-channel output. It also supports both DALI and Push dimming, which can make it a better fit for commercial lighting control environments.
