Ltech LT-451-12A Constant Voltage Controller - DALI Dimming
Log in to see priceOverview

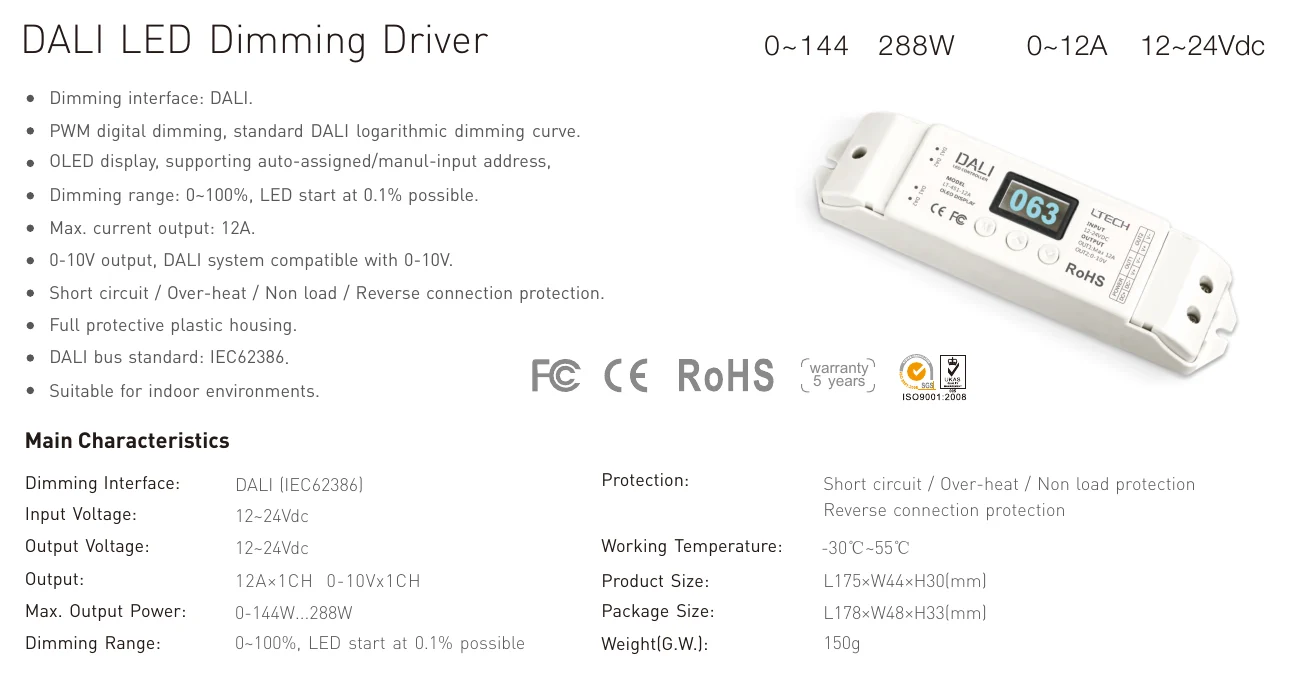

LT-451-12A is the 12~24Vdc output model of this series.
Features
- Dimming interface: DALI.
- PWM digital dimming, standard DALI logarithmic dimming curve.
- OLED display, supporting auto-assigned/manul-input address,
- Dimming range: 0~100%, LED start at 0.1% possible.
- Max. current output: 12A.
- 0-10V output, DALI system compatible with 0-10V.
- Short circuit / Over-heat / Non load / Reverse connection protection.
- Full protective plastic housing.
- DALI bus standard: IEC62386.
- Suitable for indoor environments.
Specifications
Main Characteristics
- Dimming Interface
- DALI (IEC62386)
- Input Voltage
- 12~24Vdc
- Output Voltage
- 12~24Vdc
- Output
- 12A×1CH, 0-10V×1CH
- Max. Output Power
- 0-144W...288W
- Dimming Range
- 0~100% (LED start at 0.1% possible)
- Protection
- Short circuit / Over-heat / Non load / Reverse connection protection
- Working Temperature
- -30℃~55℃
- Product Size
- L175×W44×H30(mm)
- Package Size
- L178×W48×H33(mm)
- Weight(G.W.)
- 150g
Certifications & ratings
- warranty
- 5 years
- Certification marks
- FCC, CE, RoHS, ISO9001

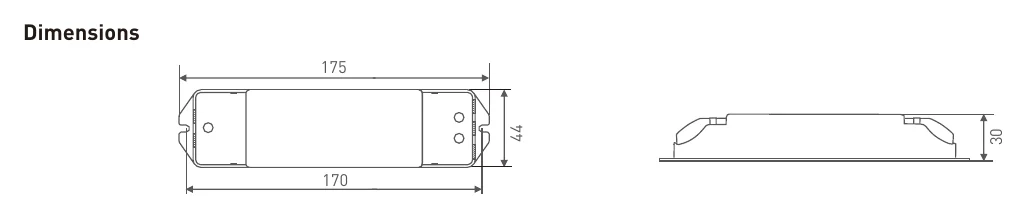

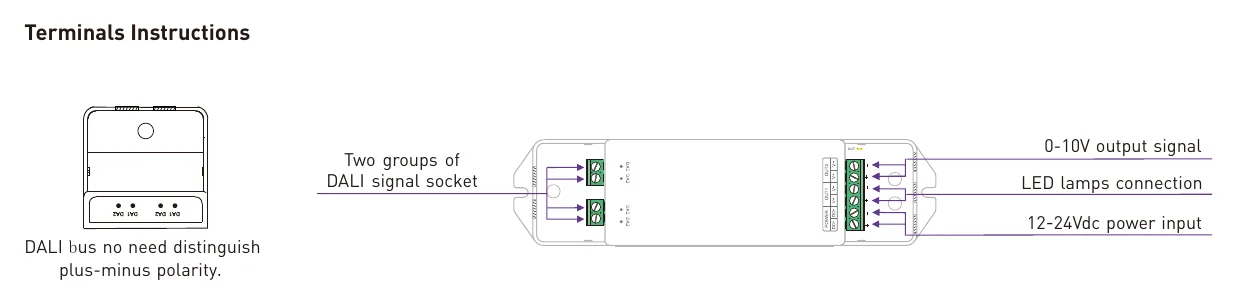

Technical drawings
Downloads
FAQ
What type of lighting control is the Ltech LT-451-12A designed for?
The LT-451-12A is a constant voltage controller for DALI dimming applications. It accepts a DALI digital dimming signal and is intended for DC 12V to 24V lighting systems that need smooth dimming control. This model is suited to commercial and architectural LED control setups where DALI is already being used.
What are the input voltage and output capacity of the LT-451-12A?
This controller operates on DC 12V to DC 24V input. It provides 12A on 1 channel plus 1 channel of 0-10V output. Maximum output power is 144W at 12V and 288W at 24V.
Is the LT-451-12A a single-channel controller?
Yes. The main constant voltage output is rated at 12A x 1 channel, and the unit also includes 1 channel of 0-10V output. That makes it a fit for projects that need single-channel dimming rather than multi-channel color control.
What dimming range does the Ltech LT-451-12A support?
The LT-451-12A supports a dimming range from 0% to 100%, with LED start possible at 0.1%. This gives it a wide usable control range for applications that need both low-level dimming and full output. For buyers comparing models, that range is a key specification for fine lighting adjustment.
Can the LT-451-12A be used in demanding temperature conditions?
The rated working temperature range is -30 C to 55 C. That makes it suitable for environments where the controller may be exposed to colder or warmer operating conditions than standard indoor-only electronics. Buyers should still confirm the overall enclosure and system design match the site conditions.
What physical size and warranty does the LT-451-12A offer?
The controller measures 175 x 44 x 30 mm, with a package size of 178 x 48 x 33 mm. Its listed weight is 0.150 kg, which helps when space is limited in compact control assemblies. The product also carries a 5-year warranty.
