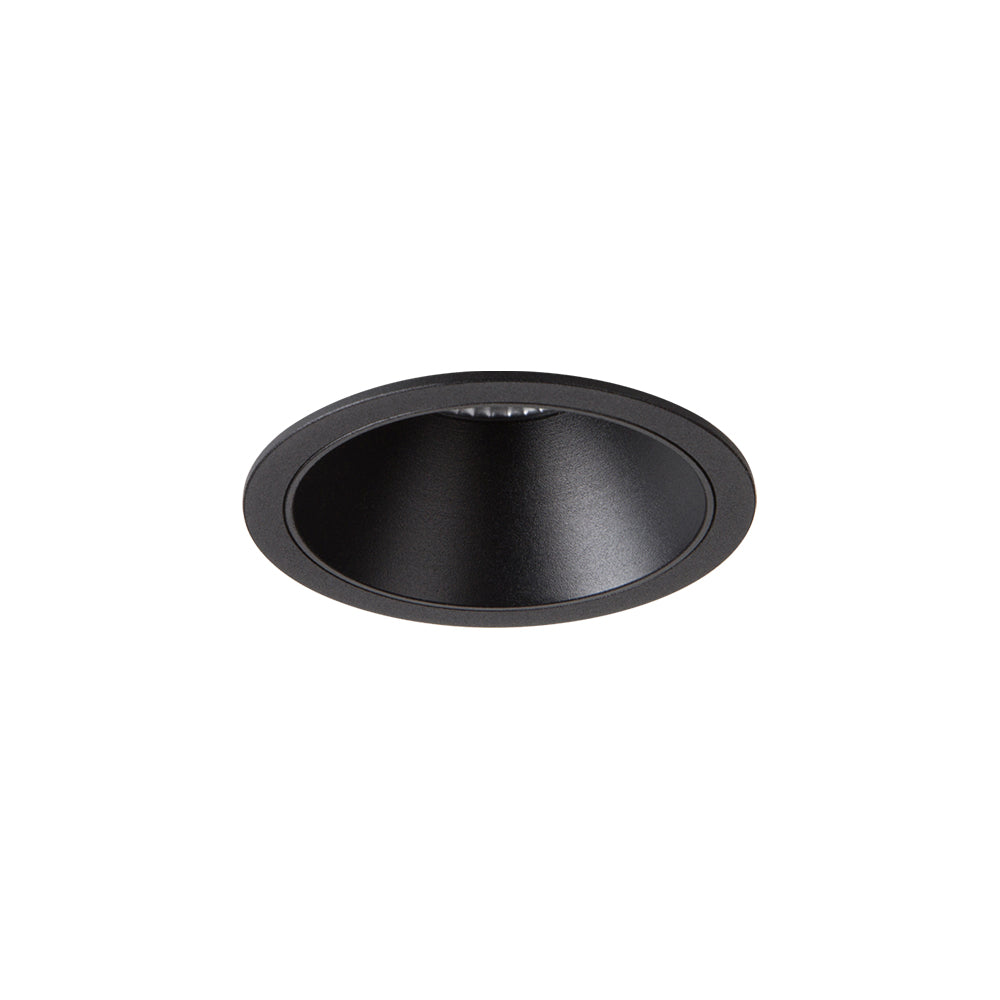

Archilight Ray Downlight 10W Black + Black
Log in to see priceSpecifications
Archilight Ray Downlight 10W Black + BlackSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | LED Colour |
|---|---|
| KC-010177A-60D-2700K-BB | Warm White 2700K |
| KC-010177A-60D-3000K-BB | Warm White 3000K |
| KC-010177A-60D-4000K-BB | Natural White 4000K |
| KC-010177A-60D-5000K-BB | Cool White 5000K |
Specifications
- LED chip
- COB
- Power
- 10W
- Beam angle
- 23°/ 36°/ 60°
- IP level
- IP20
- Material
- Aluminum
- Material color
- White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
- Dimming
- Non-dim/ 1-10V/ DALI/ Triac
- Lighting efficiency
- >85lm/W
- Color render index(CRI)
- ≥90
- Operating temperature
- -25~+50°C
- Lifetime
- 35,000-50,000hrs
- Driver
- Driver included
- Warranty
- 3 years
- UGR
- <19
- Voltage
- 220-240V
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
FAQ
What beam angles are available in the Archilight Ray Downlight 10W Black + Black range?
This parent range is available with 23 degree, 36 degree, and 60 degree beam angles. That gives buyers the choice between a narrower beam for more focused accent lighting and wider beams for broader general illumination.
What colour temperature options are offered across this Ray downlight family?
The family is offered in 2700K, 3000K, 4000K, and 5000K options depending on the selected variant. This makes the range suitable for projects that need warmer ambient tones or cooler, crisper light output.
Is the Archilight Ray 10W downlight suitable for commercial interior projects?
Yes, this range is designed for interior recessed lighting applications where a compact fitting and clean trim detail are important. Its CRI above 90 and UGR below 19 support high visual comfort and strong colour quality in professional spaces.
What are the main performance specs of this downlight family?
Across the family, the fitting is rated at 10W with 850 lumens of output, CRI 90, and a 50,000 hour lifetime. The range also carries a 5 year warranty, which makes it suitable for longer-term commercial and architectural use.
Does this Ray downlight include a driver and support dimming?
Yes, the driver is included with this product family. The range is listed as dimmable optional, so dimming capability depends on the selected control setup rather than being implied as standard in every project environment.
What cut-out size does this parent product family require?
All listed variants in this family show a 75 mm cut-out size. That consistency means beam angle and colour temperature can be selected without changing the required ceiling cut-out dimension.
What are the physical dimensions and finish of the Archilight Ray Downlight 10W Black + Black?
The parent model is finished in black plus black and measures 85 mm by 85 mm with a height of 75 mm. It has a compact recessed form with a small trim, which supports a minimalist ceiling appearance.
