Archilight

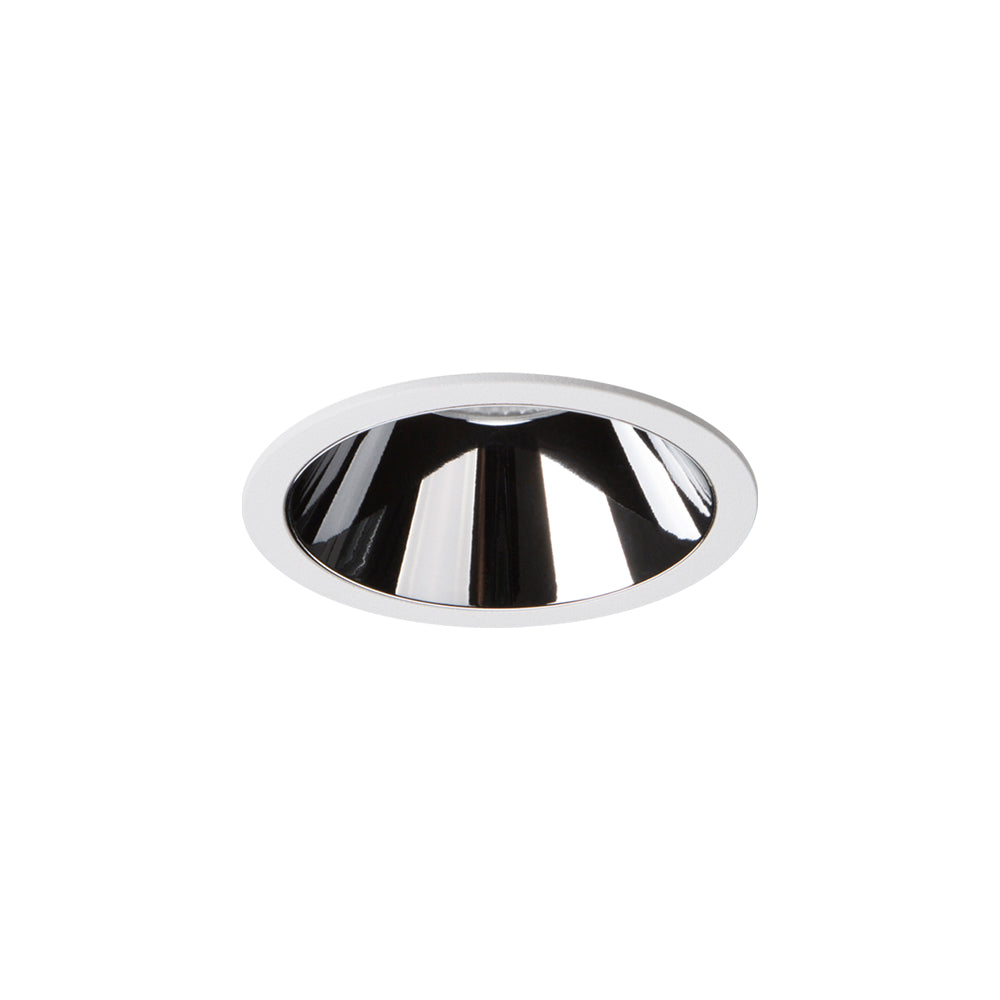

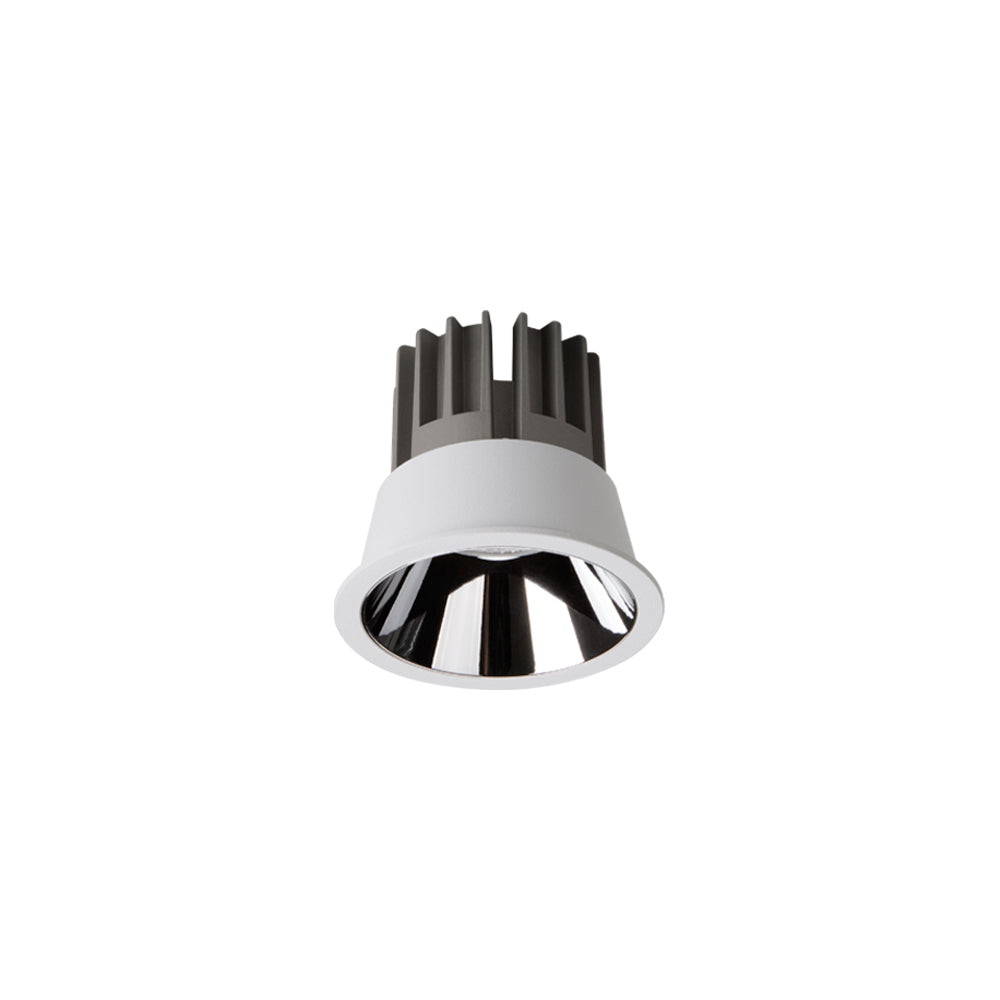

Archilight Ray Downlight 10W White + Chrome

SKU KC-010177A-23D-2700K-WC
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 12 variants

KC-010177A-23D-2700K-WC
LED Colour
Beam Angle
12 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Ray Downlight 10W White + ChromeSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-010177A-36D-5000K-WC36°Cool White 5000K
KC-010177A-60D-2700K-WC60°Warm White 2700K
KC-010177A-60D-3000K-WC60°Warm White 3000K
KC-010177A-60D-4000K-WC60°Natural White 4000K
KC-010177A-60D-5000K-WC60°Cool White 5000K

Specifications

LED chip
COB
Power
10W
IP level
IP20
Material
Aluminum
Material color
White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
Dimming
Non-dim/ 1-10V/ DALI/ Triac
Lighting efficiency
>85lm/W
Color render index(CRI)
≥90
Operating temperature
-25~+50°C
Lifetime
35,000-50,000hrs
Driver
Driver included
Warranty
3 years
UGR
<19
Voltage
220-240V

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

Archilight Ray Downlight 10W White + Chrome Ray
Ray
Archilight Ray Downlight 10W White + Chrome Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

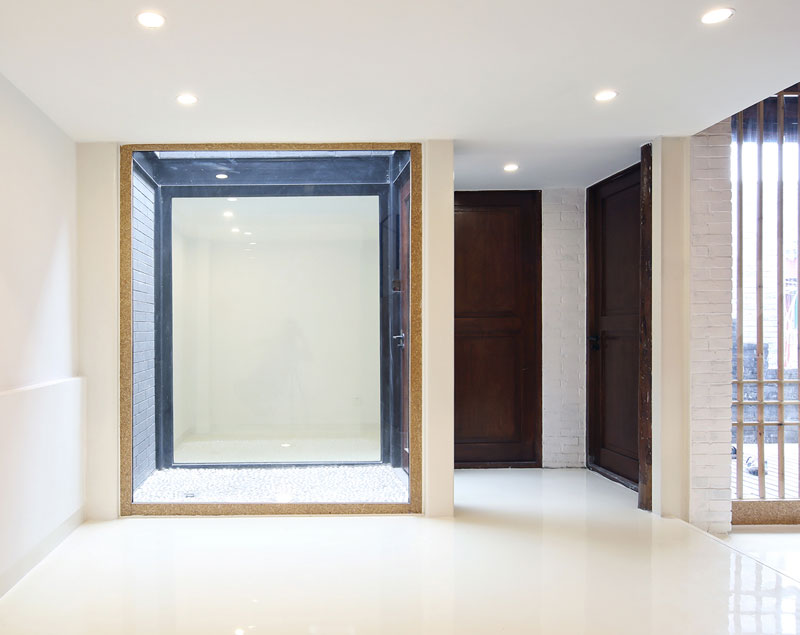

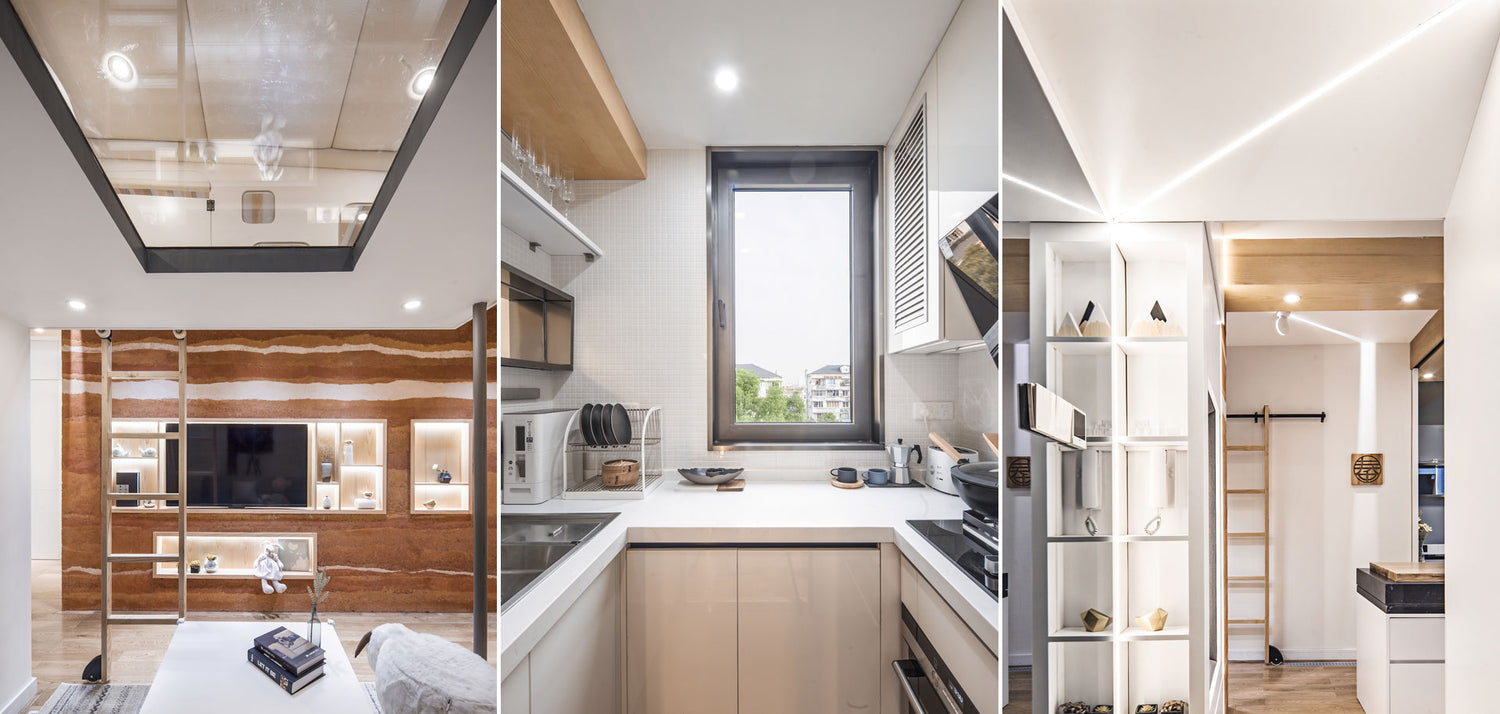

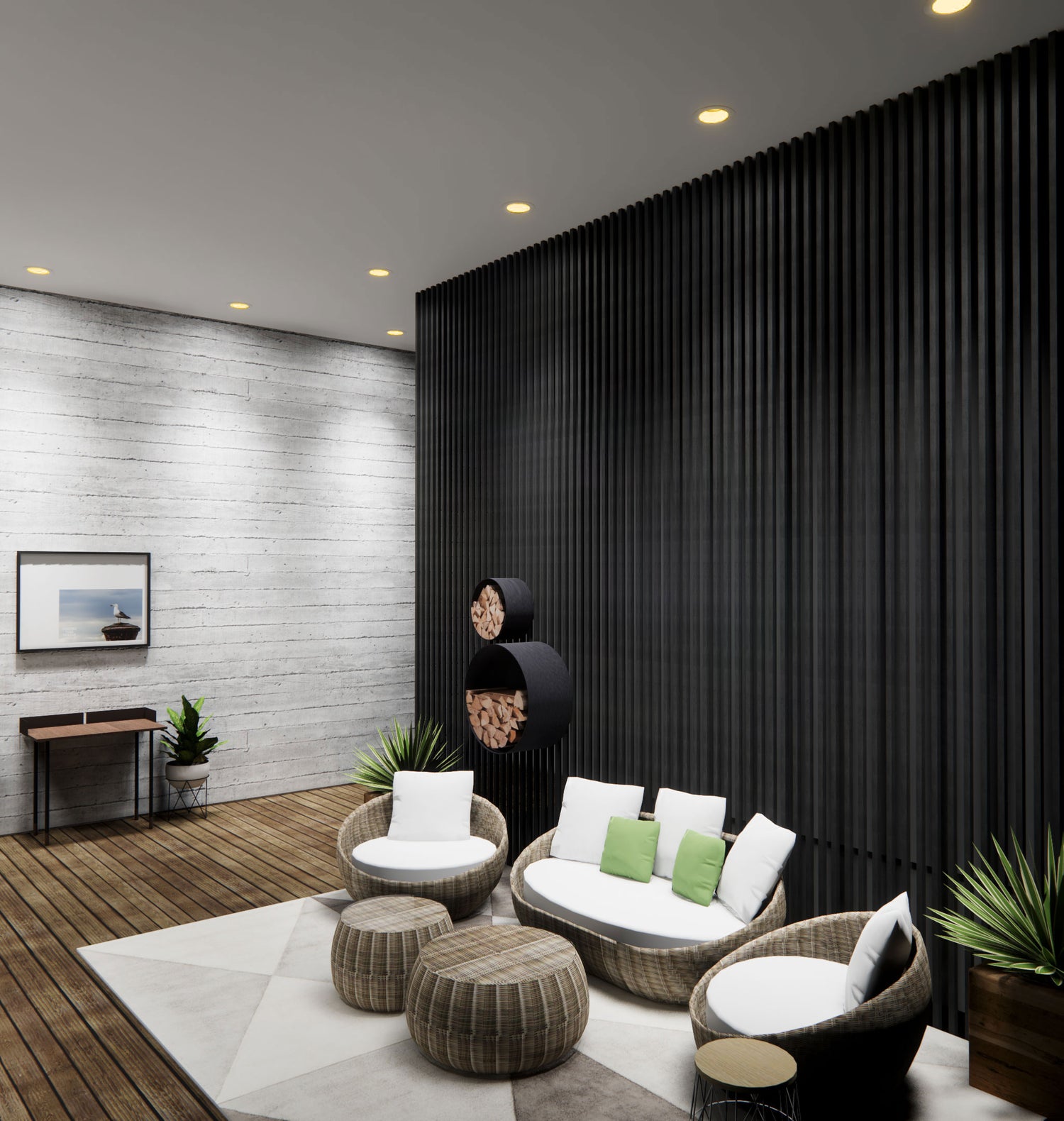

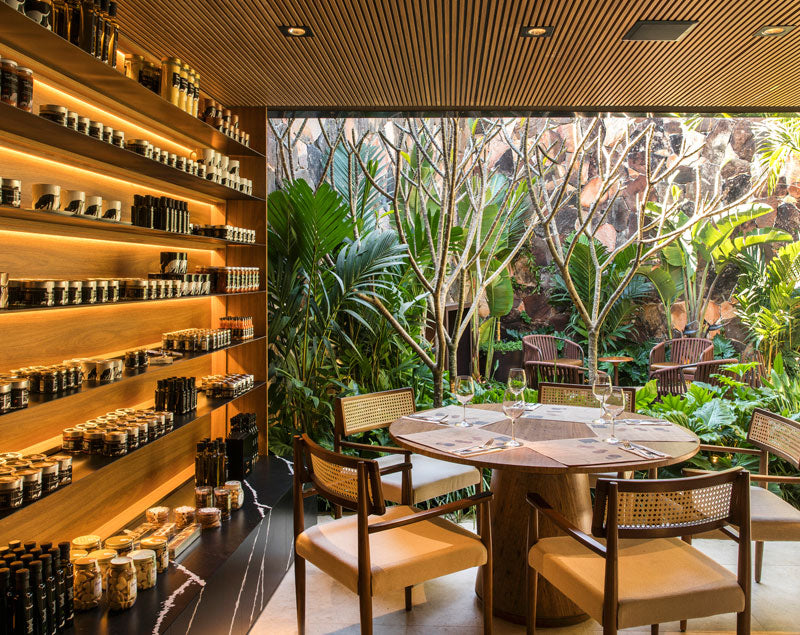

What type of spaces is the Archilight Ray Downlight 10W White + Chrome suited to?

This recessed LED downlight family is designed for interior lighting projects that need a compact, minimalist trim. It suits both general lighting and accent lighting applications, including spaces where visual comfort and a clean ceiling finish are important. The white and chrome finish also makes it suitable for contemporary commercial and residential interiors.

What beam angle options are available in this Ray Downlight family?

This parent family is available with 23 degree, 36 degree, and 60 degree beam angles. That gives buyers a choice between narrower beams for more focused lighting and wider beams for broader light distribution. The available beam angle should be selected at the variant level based on the lighting effect required.

What colour temperature options are available across the family?

Across the Ray Downlight 10W White + Chrome range, the available colour temperatures are 2700K, 3000K, 4000K, and 5000K. This allows the family to cover warmer, neutral, and cooler lighting preferences. The exact colour temperature is chosen by selecting the relevant child variant.

What are the key performance specs for this downlight family?

All listed variants in this family are rated at 10W and deliver 850 lumens. They also have a CRI of 90, which supports strong colour rendering, and a 50,000 hour lifetime. These shared specifications make the family suitable for projects that want consistent output across multiple beam and CCT options.

Is the Archilight Ray Downlight dimmable?

This product family is described as dimmable optional, with the driver included. That means the fittings are supplied with a driver, but dimming depends on selecting a compatible dimming setup for the project. Buyers should confirm dimming compatibility within their own specification process before ordering.

What cut-out size does this Ray Downlight family require?

The child variants shown for this family all specify a 75 mm cut-out, with both the minimum and maximum cut-out listed as 75 mm. This indicates a consistent ceiling cut-out requirement across the variants provided. That consistency can simplify specification when mixing beam angles or colour temperatures in the same project.

Is this downlight designed for visual comfort?

Yes, the Ray series is positioned as a low-glare option with a stated UGR below 19. Combined with its CRI above 90, it is intended to provide high visual comfort while showing colours more accurately in the lit space. This makes it a strong fit for interiors where both appearance and comfort matter.

What warranty is offered on this product family?

The listed variants in this Ray Downlight family carry a 5 year warranty. That warranty sits alongside the 50,000 hour rated lifetime, giving buyers a clearer view of expected service life and manufacturer support. It is a useful consideration for commercial and project-based lighting specifications.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Other Archilight Ray Series Models

19 other models
ModelPowerCRIDimmingCut-out
Archilight Ray Downlight 10W TDM White + White 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Silver 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Gun Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + White 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Silver 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Rose Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Gun Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Chrome 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + White 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Silver 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Rose Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Gun Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Chrome 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM Black + Black 10W 90 Optional 75 Millimeter View
View all 20 Archilight Ray Series models
