Archilight

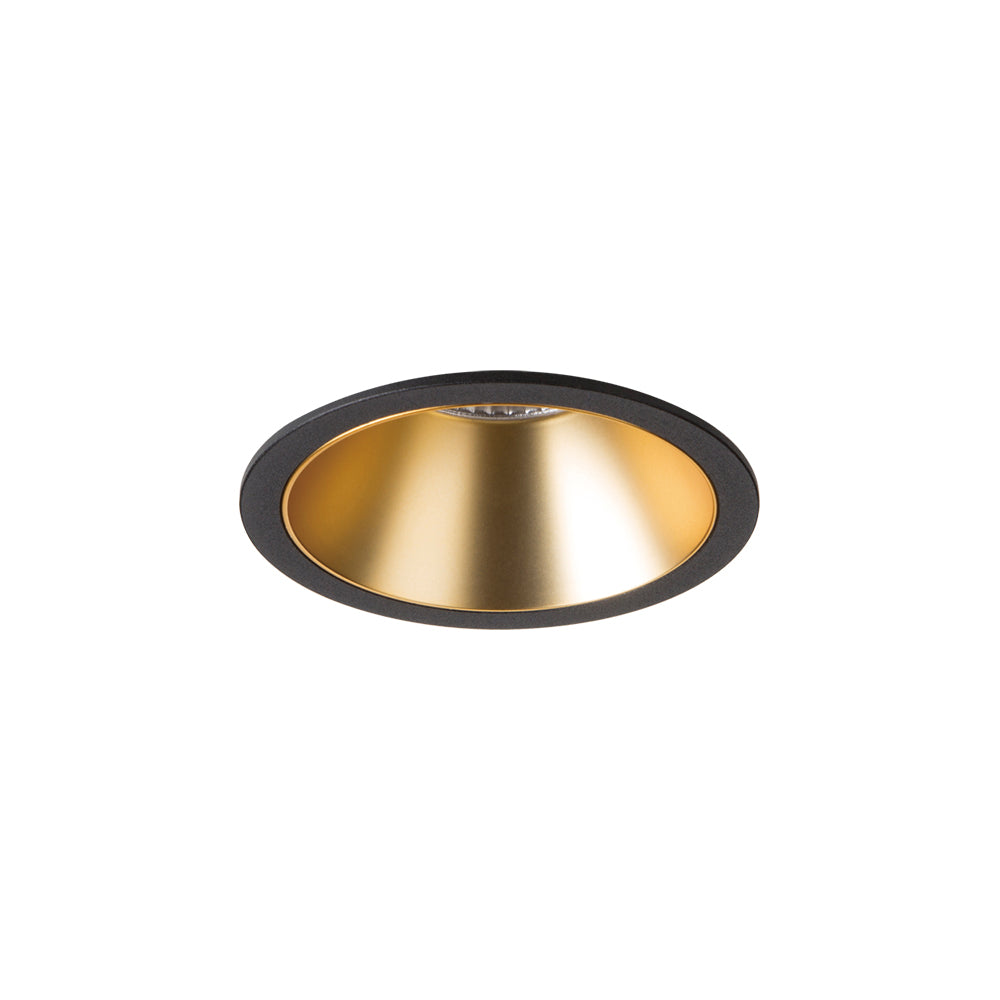

Archilight Ray Downlight 10W Black + Gold

SKU KC-010177A-23D-2700K-BG
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 12 variants

KC-010177A-23D-2700K-BG
LED Colour
Beam Angle
12 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Ray Downlight 10W Black + GoldSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED Colour
KC-010177A-60D-2700K-BGWarm White 2700K
KC-010177A-60D-3000K-BGWarm White 3000K
KC-010177A-60D-4000K-BGNatural White 4000K
KC-010177A-60D-5000K-BGCool White 5000K

Specifications

LED chip
COB
Power
10W
Beam angle
23°/ 36°/ 60°
IP level
IP20
Material
Aluminum
Material color
White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
Dimming
Non-dim/ 1-10V/ DALI/ Triac
Lighting efficiency
>85lm/W
Color render index(CRI)
≥90
Operating temperature
-25~+50°C
Lifetime
35,000-50,000hrs
Driver
Driver included
Warranty
3 years
UGR
<19
Voltage
220-240V

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

Archilight Ray Downlight 10W Black + Gold Ray
Ray
Archilight Ray Downlight 10W Black + Gold Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

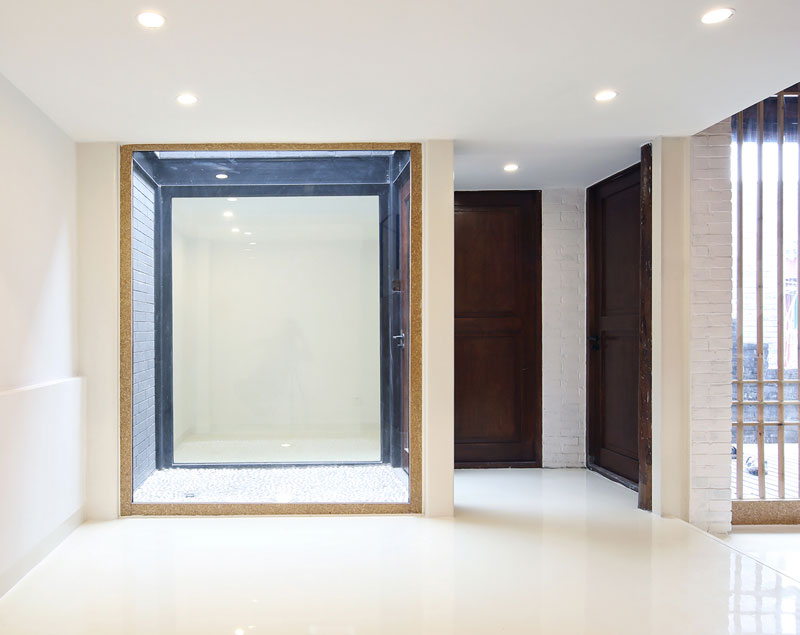

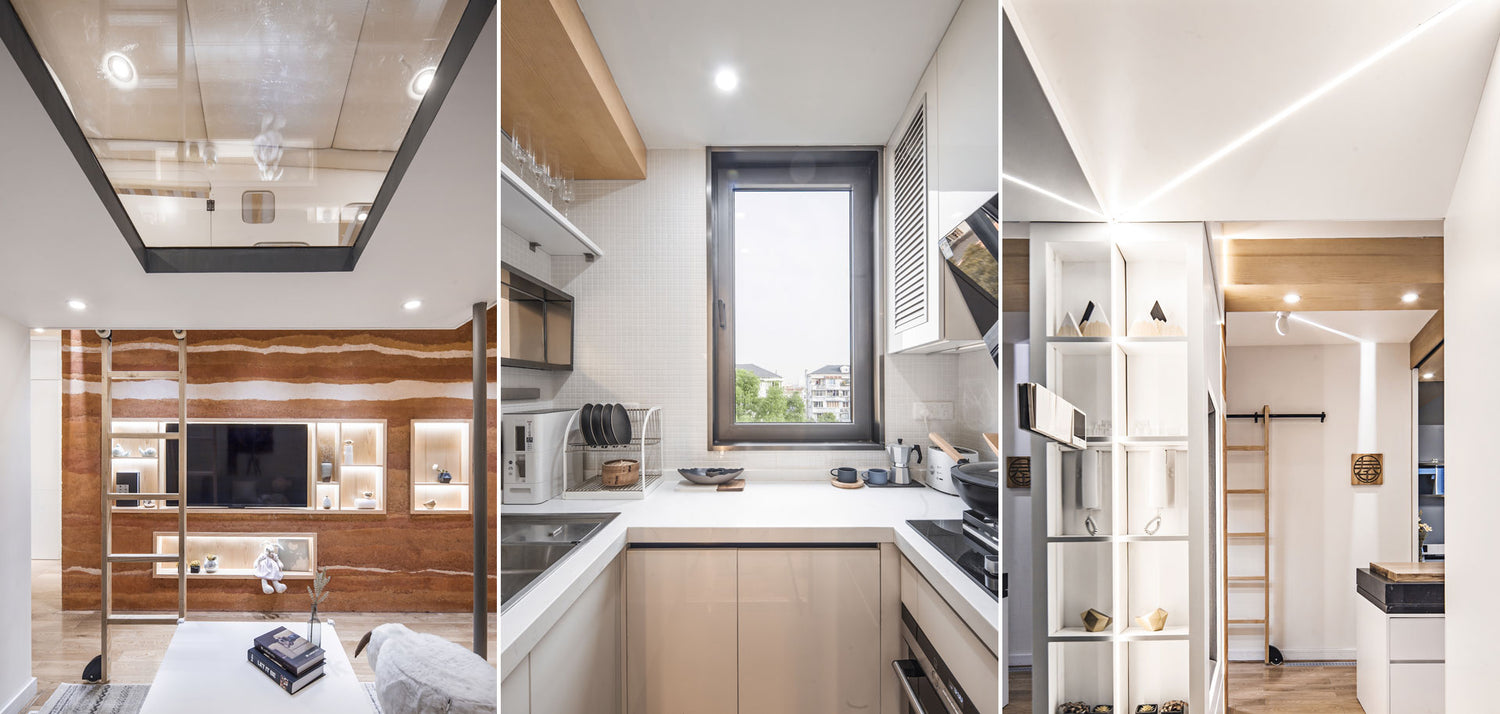

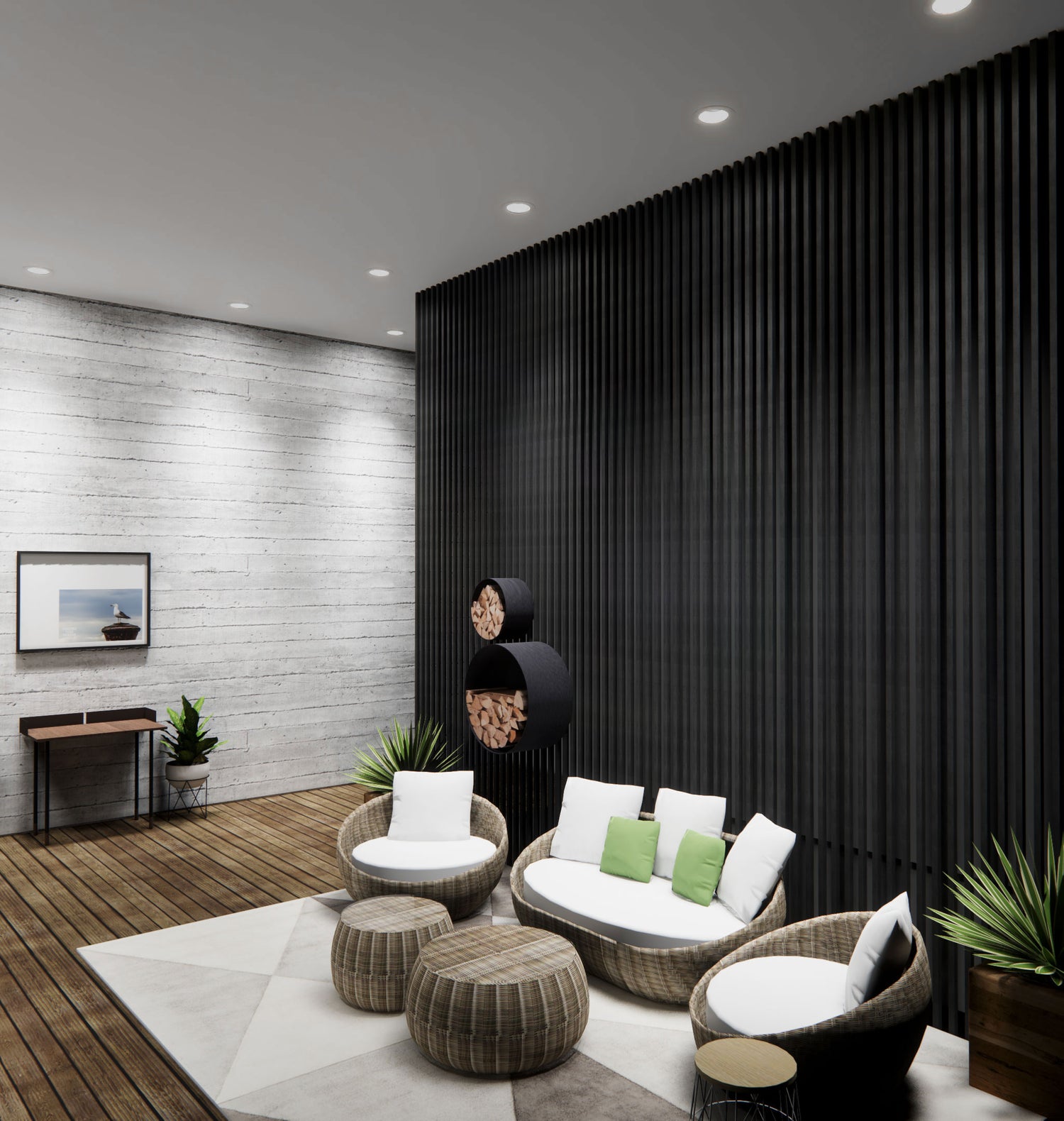

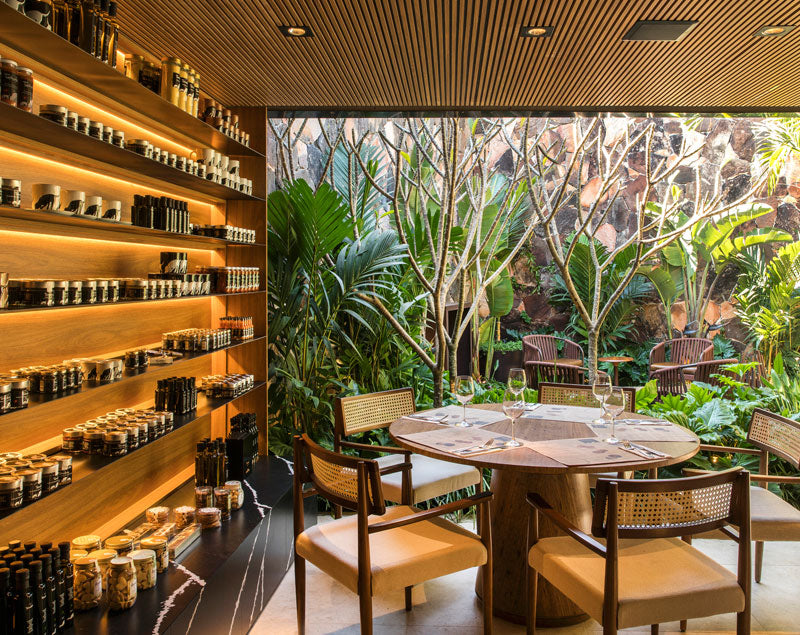

What type of spaces is the Archilight Ray Downlight 10W Black + Gold best suited for?

This downlight range is designed for interior recessed lighting where a compact, minimalist trim is preferred. It suits both general lighting and feature lighting, with beam options that let buyers choose between tighter accent effects and broader coverage. The black and gold finish also makes it suitable for projects where the fitting itself is part of the visual design.

What beam angles are available across this Ray downlight family?

The family is available in 23 degree, 36 degree, and 60 degree beam angles. This gives buyers a clear choice between narrower, more focused light and wider light distribution. Because these options exist across the parent family, the page can support both accent-lighting and more general-lighting use cases.

What colour temperature options are available for this parent model?

Across the family, this downlight is offered in 2700K, 3000K, 4000K, and 5000K options. That range covers warmer ambient lighting through to cooler, crisper light output. Buyers can choose the colour temperature that best matches the intended mood or task environment.

What are the main performance specifications of the Archilight Ray 10W downlight range?

All listed variants in this family are rated at 10W and deliver 850 lumens. The series also has CRI above 90 for strong colour rendering, a low glare rating of UGR below 19, and a rated lifetime of 50,000 hours. These specs position it as a high-quality architectural downlight for visual comfort and consistent light quality.

Is a driver included, and is this downlight dimmable?

The family data shows that a driver is included with the product. It is also listed as dimmable with optional dimming control, so dimming capability depends on the control setup used with the fitting. This makes the range suitable for projects that may require light level adjustment.

What cut-out size and product dimensions should buyers expect for this downlight family?

All child variants shown use a 75 mm cut-out size. The parent product dimensions are 85 mm by 85 mm with a height of 75 mm, which supports a compact recessed design with a small trim appearance. This consistency across the family makes specification simpler when selecting between beam angles and colour temperatures.

Is this Ray downlight range suitable for projects where glare control and visual comfort matter?

Yes, this family is positioned for applications where visual comfort is important. The product description states a low UGR value below 19, which supports reduced glare, and the high CRI helps spaces and finishes appear more natural. That combination makes it a strong fit for refined interior commercial or residential lighting schemes.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Other Archilight Ray Series Models

19 other models
ModelPowerCRIDimmingCut-out
Archilight Ray Downlight 10W TDM White + White 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Silver 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Gun Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + White 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Silver 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Rose Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Gun Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Chrome 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Chrome 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + White 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Silver 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Rose Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Gun Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Chrome 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM Black + Black 10W 90 Optional 75 Millimeter View
View all 20 Archilight Ray Series models
