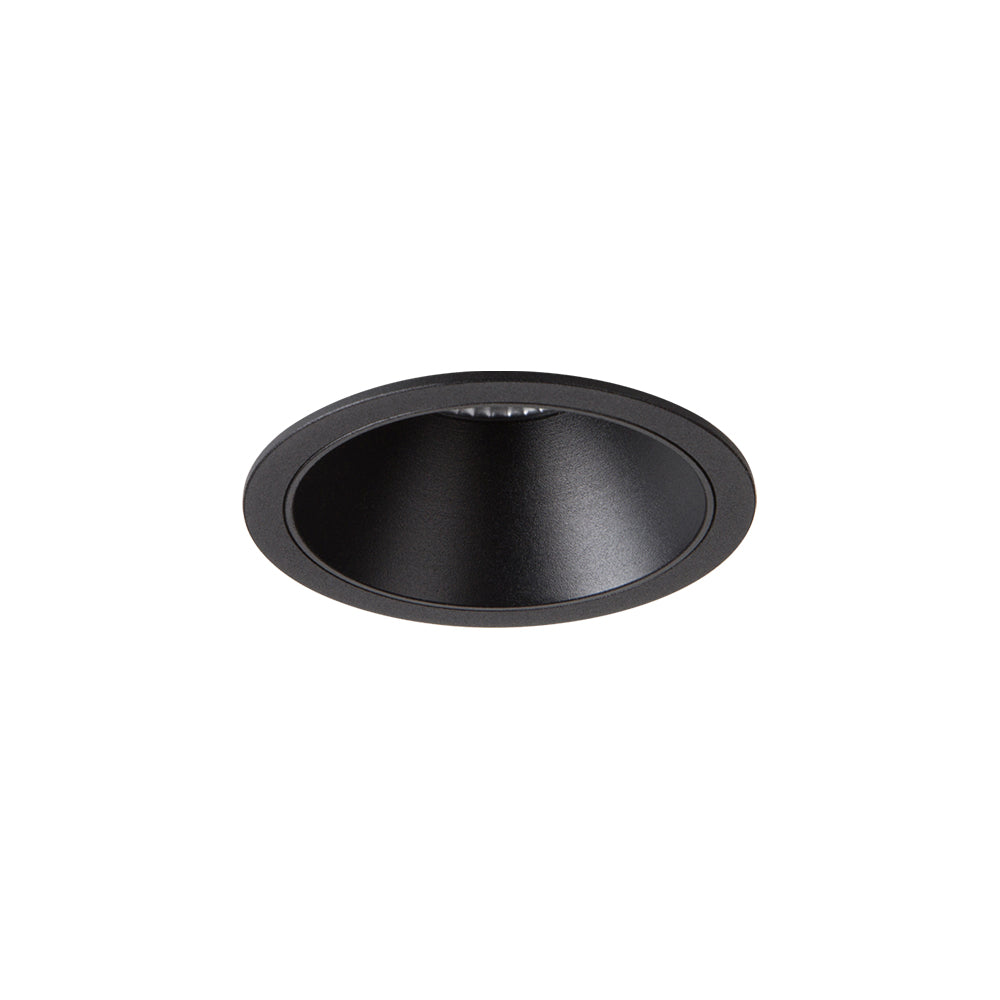

Archilight Ray Downlight 10W TDM Black + Black
Please Login for Pricing
Description
Description

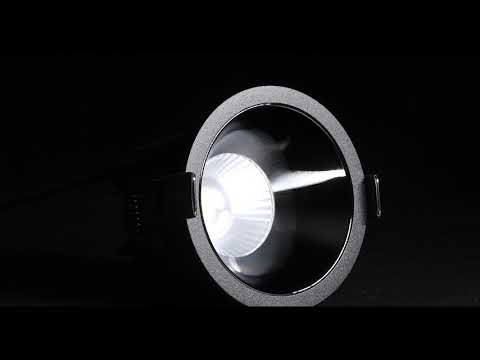

The Ray series is a stylish, and compact downlight series that offers a wide variety of colour options with a very small trim for that minimalist look. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a wide variety of colour, size and beam options available, the Ray series is perfect for all uses, from general lighting to accent lighting to highlight the important features in your project.
Specifications
Specifications
-
BrandArchilight
-
SeriesArchilight Ray Series
-
Power Rating10 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length8.5 cm
-
Width8.5 cm
-
Height7.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of lighting is the Archilight Ray Downlight 10W TDM Black + Black designed for?
This is a recessed LED downlight intended for interior lighting applications. The Ray series is positioned for both general lighting and accent lighting, making it suitable for projects where a compact fitting and a minimal trim are preferred.
What are the key performance features of this Ray downlight family?
The family uses a 10W LED light source with a CRI of over 90, which supports strong colour quality in the lit space. It is also described as having a low glare design with UGR below 19, helping provide higher visual comfort in commercial and architectural environments.
Is the driver included, and is this downlight dimmable?
The parent model data states that the driver is included. It is also listed as dimmable optional, which means dimming is supported within the family, but the exact dimming arrangement should be confirmed against the selected variant and project requirements.
What size opening does this Ray downlight family use?
The child variants shown for this parent family both list a 75 mm cut-out. The parent dimensions are 85 mm by 85 mm with a height of 75 mm, so this family is intended for compact recessed applications where a small trim appearance is important.
How consistent are the specifications across the variants in this parent family?
The listed child variants share the same 10W power rating, 60 degree beam angle, CRI 90, included driver, optional dimming, 50,000 hour lifetime, and 5 year warranty. That means the main buyer considerations are likely to be the specific light-output or colour-temperature option selected rather than changes to the core fitting format.
Is this downlight family suitable for long-term commercial or architectural use?
Yes, the published specification supports that type of use. A 50,000 hour lifetime, 5 year warranty, high CRI, and low glare positioning make this family relevant for interior projects that need durable, visually comfortable lighting with a refined finish.
