Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

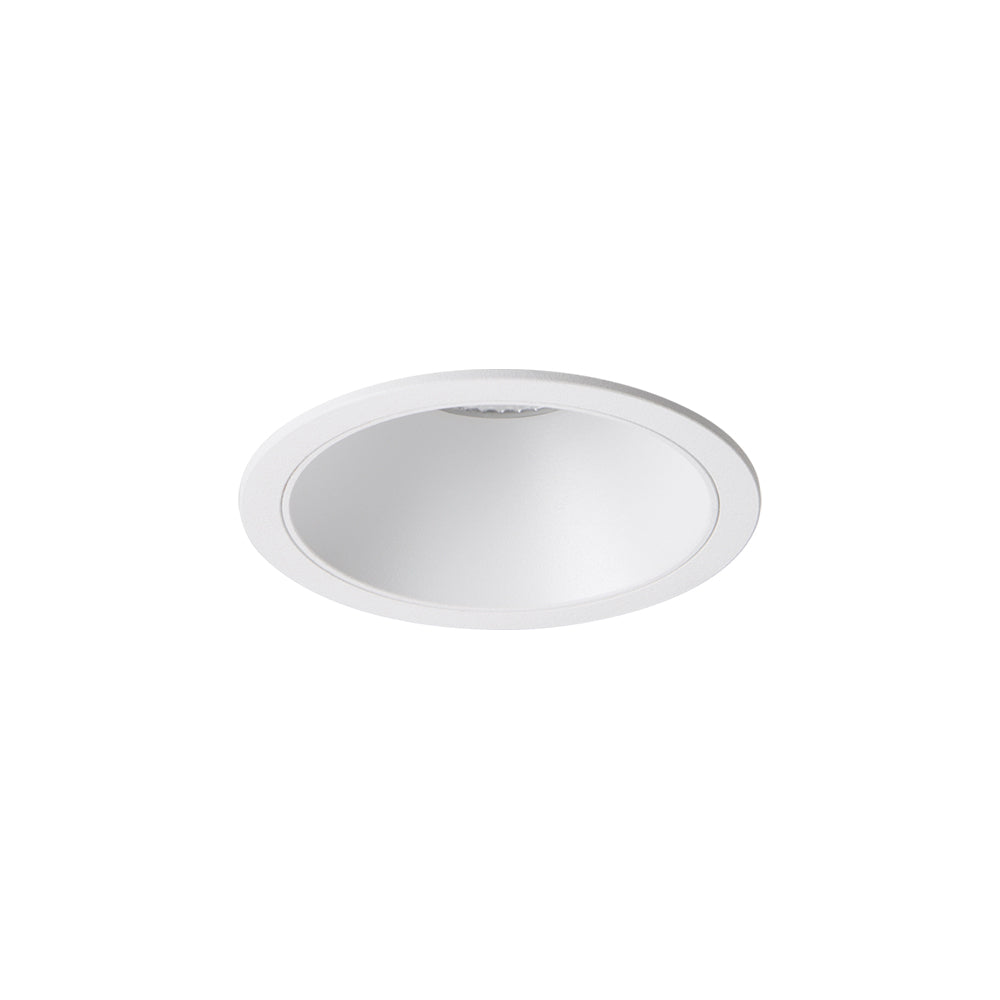

Archilight Ray Downlight 10W White + White
Log in to see priceThe Ray series is a stylish, and compact downlight series that offers a wide variety of colour options with a very small trim for that minimalist look. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a wide variety of colour, size and beam options available, the Ray series is perfect for all uses, from general lighting to accent lighting to highlight the important features in your project.
-
BrandArchilight
-
SeriesArchilight Ray Series
-
Power Rating10 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length8.5 cm
-
Width8.5 cm
-
Height7.5 cm
-
Weight0.5 kg
::specification::
Frequently Asked Questions
What type of projects is the Archilight Ray Downlight 10W White + White suited for?
This recessed LED downlight family is designed for interior applications where a compact, minimalist trim is preferred. It suits general lighting, accent lighting, and feature lighting in commercial and professional spaces. The combination of high CRI and low glare also makes it suitable for areas where visual comfort and colour quality matter.
What beam angle options are available across this Ray 10W family?
The parent family is available in 23 degree, 36 degree, and 60 degree beam angles. That gives buyers a choice between a tighter beam for more focused lighting and wider beams for broader light spread. Beam angle should be selected based on how concentrated or even the light needs to be in the space.
What colour temperature options are offered for this downlight range?
This Ray 10W family is available in 2700K, 3000K, 4000K, and 5000K variants. That allows the same fitting style to be specified in warmer or cooler light tones depending on the project requirement. The parent page covers all of these colour temperature options within the family.
What are the key performance specifications for the Archilight Ray 10W downlight family?
All listed variants in this family are rated at 10W and deliver 850 lumens. The range has CRI 90, a rated lifetime of 50,000 hours, and a 5-year warranty. These specifications make it a strong option for projects needing efficient output with good colour quality.
Is the Archilight Ray 10W White + White dimmable?
The family is listed as dimmable optional, so dimming capability depends on the selected configuration and compatible control setup. A driver is included with the product family. For procurement and specification purposes, it is best to confirm the dimming requirement against the chosen variant before ordering.
Does this downlight family support low-glare, high-comfort lighting?
Yes, the Ray series is described as having a low UGR below 19, which supports reduced glare and improved visual comfort. It also has a CRI above 90, helping colours appear more accurate in the lit space. That combination makes the family suitable for interiors where both comfort and presentation are important.
What cut-out size does this parent downlight family require?
Across the listed child variants, the cut-out size is consistently 75 mm. This means the family keeps the same cut-out requirement while offering different beam angles and colour temperatures. That consistency can simplify specification across a project using multiple lighting effects.
