Archilight

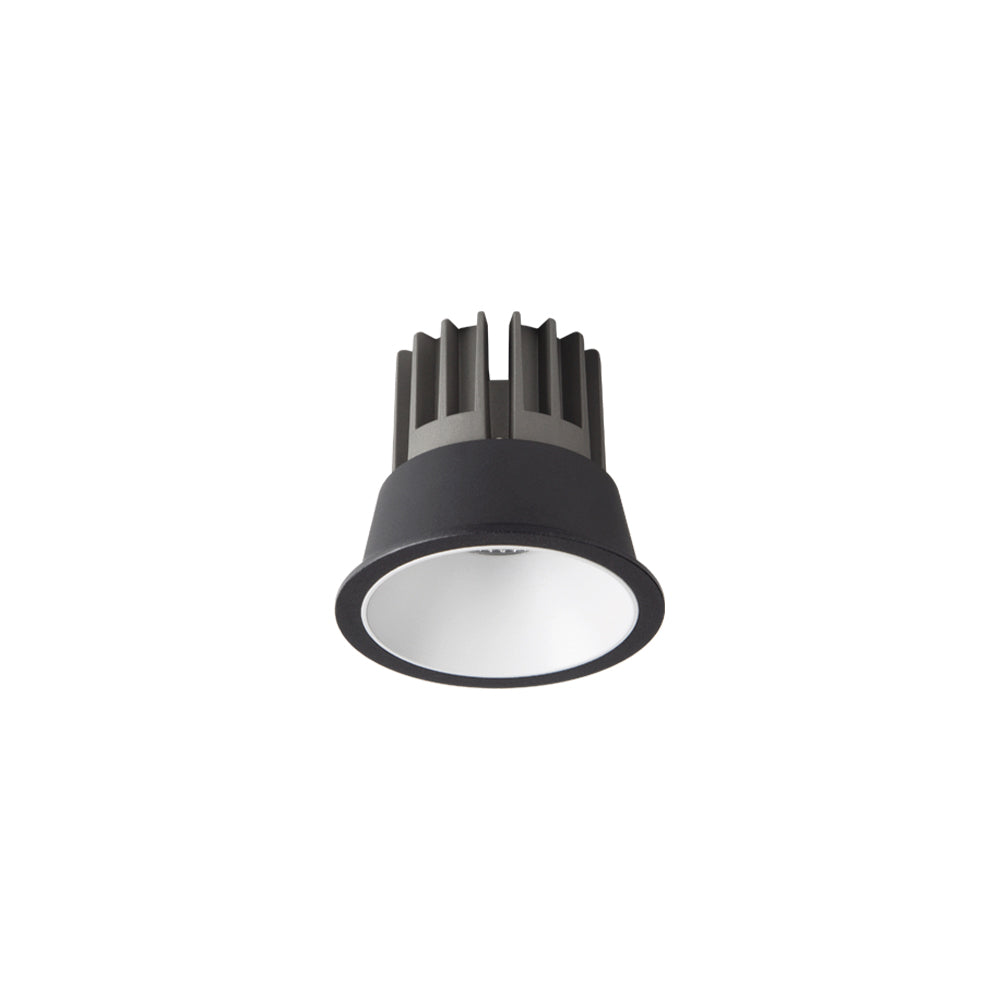

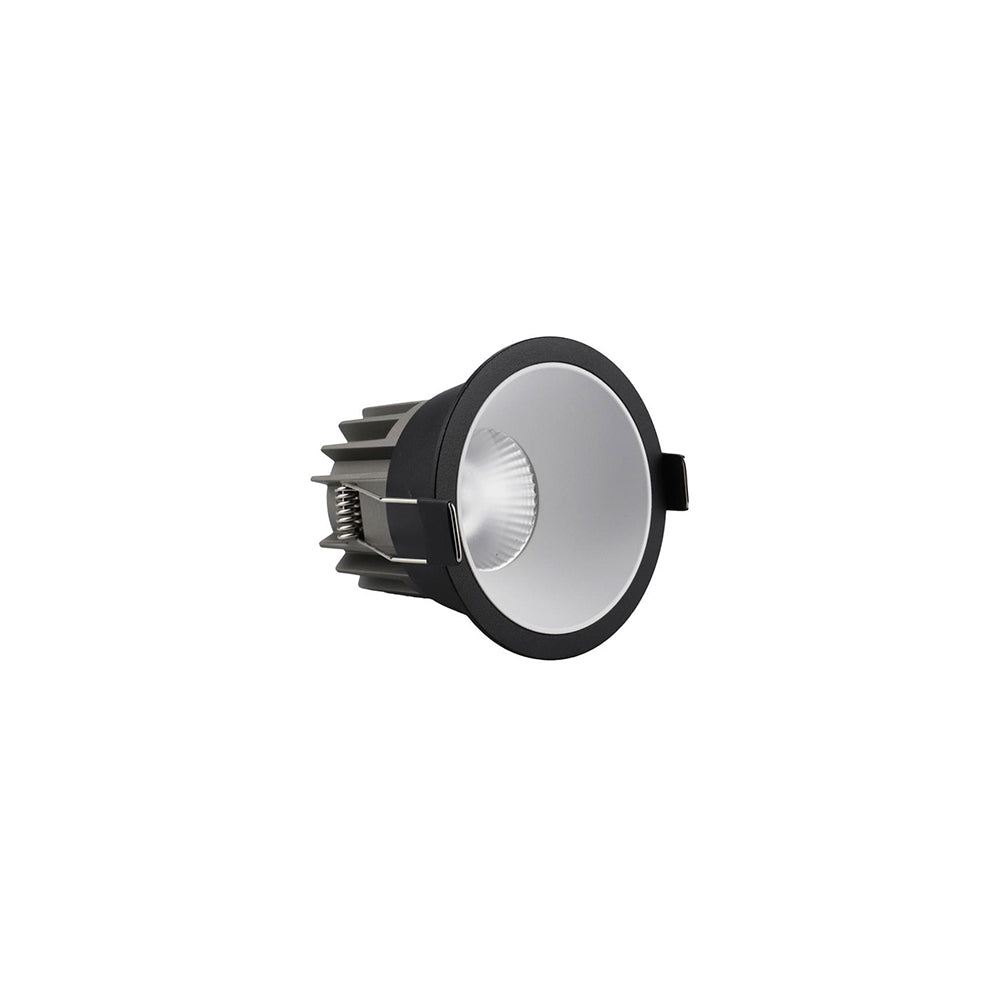

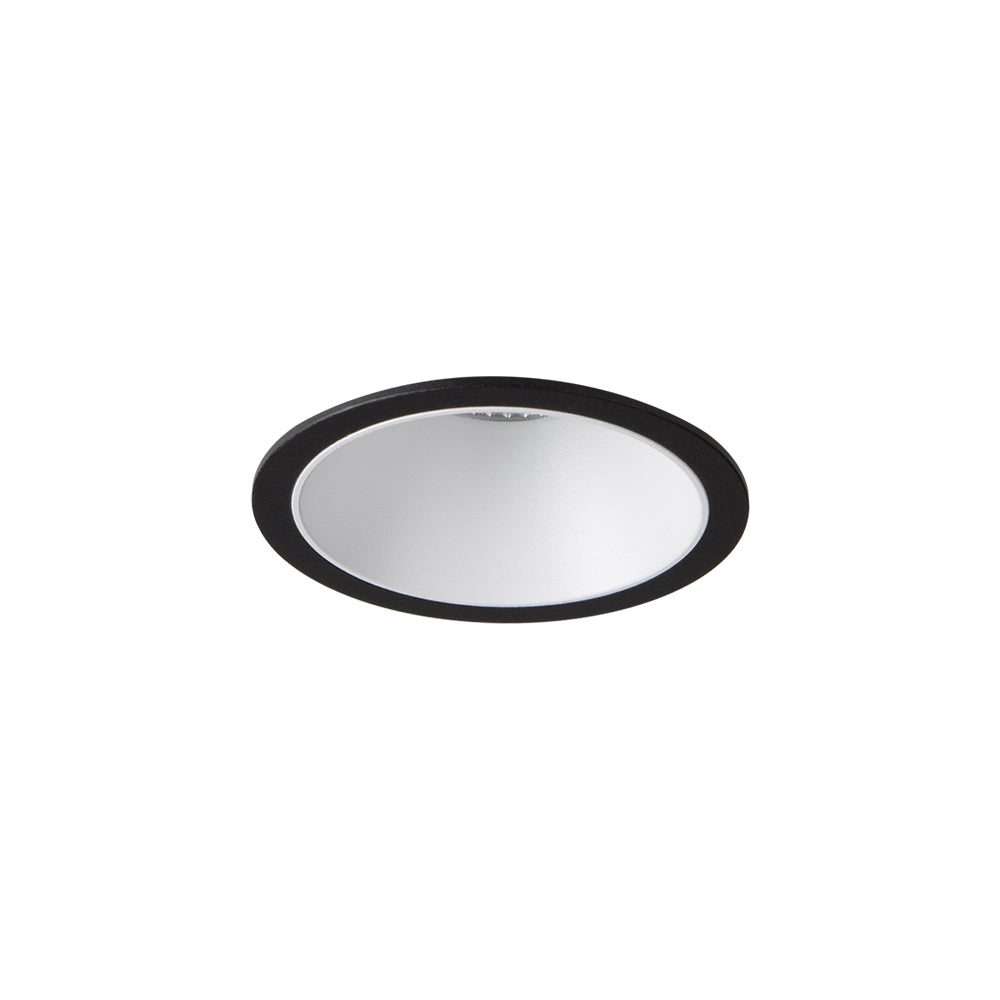

Archilight Ray Downlight 10W Black + White

SKU KC-010177A-23D-2700K-BW
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 12 variants

KC-010177A-23D-2700K-BW
LED Colour
Beam Angle
12 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Ray Downlight 10W Black + WhiteSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED Colour
KC-010177A-60D-2700K-BWWarm White 2700K
KC-010177A-60D-3000K-BWWarm White 3000K
KC-010177A-60D-4000K-BWNatural White 4000K
KC-010177A-60D-5000K-BWCool White 5000K

Specifications

LED chip
COB
Power
10W
Beam angle
23°/ 36°/ 60°
IP level
IP20
Material
Aluminum
Material color
White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
Dimming
Non-dim/ 1-10V/ DALI/ Triac
Lighting efficiency
>85lm/W
Color render index(CRI)
≥90
Operating temperature
-25~+50°C
Lifetime
35,000-50,000hrs
Driver
Driver included
Warranty
3 years
UGR
<19
Voltage
220-240V

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

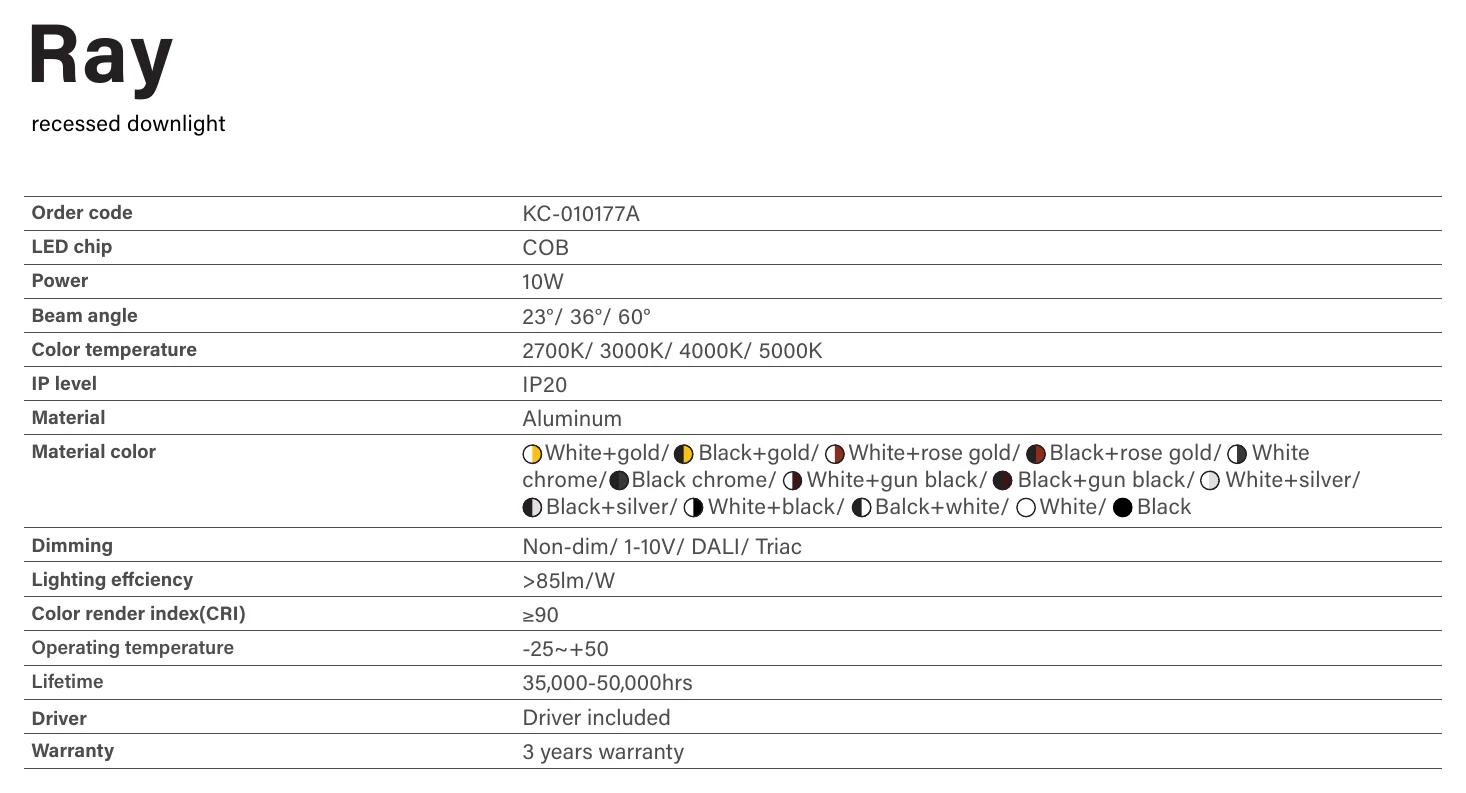

Archilight Ray Downlight 10W Black + White Ray
Ray

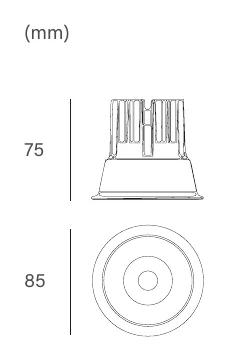

Archilight Ray Downlight 10W Black + White Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of projects is the Archilight Ray Downlight 10W Black + White suited for?

This downlight family is designed for interior recessed lighting where a compact fitting and minimal trim are important. It suits general lighting, accent lighting, and feature lighting in commercial and architectural spaces. The black and white finish also supports a clean, modern look across a range of interiors.

What are the main differences between the variants in this Ray downlight family?

The variants differ by colour temperature and beam angle. Available colour temperatures are 2700K, 3000K, 4000K, and 5000K, while beam angles are 23, 36, and 60 degrees. Across the family, the power rating remains 10W and the light output remains 850 lumens.

How do I choose between the 23, 36, and 60 degree beam options?

A 23 degree beam is the narrowest option and is better for more focused accent lighting. A 36 degree beam gives a more balanced spread for many general-purpose applications, while a 60 degree beam provides the widest distribution for broader illumination. The right choice depends on whether you want tighter highlighting or wider coverage.

What light quality can I expect from this downlight range?

This family has a CRI of 90, which supports strong colour rendering in the lit space. The product description also states a low glare design with UGR below 19, helping improve visual comfort. Together, these specifications make it suitable for projects where both appearance and comfort matter.

Is the Archilight Ray Downlight 10W Black + White dimmable?

Yes, this product family is listed as dimmable optional. It also includes a driver as part of the product specification. If dimming is required for a project, confirm the exact control compatibility before purchase because the parent data only states optional dimming rather than a specific dimming protocol.

What are the size and cut-out details for this downlight family?

The parent model dimensions are 85 mm by 85 mm with a height of 75 mm. The child variant data shows a 75 mm cut-out across the family. That means the overall fitting size is consistent while the beam angle and colour temperature vary.

Is this a durable option for long-term commercial use?

The Ray 10W Black + White family is rated for a 50,000 hour lifetime and comes with a 5 year warranty. Those specifications make it a strong option for commercial and architectural environments where maintenance intervals and product longevity matter. Its efficient 10W design also supports lower ongoing energy use.
