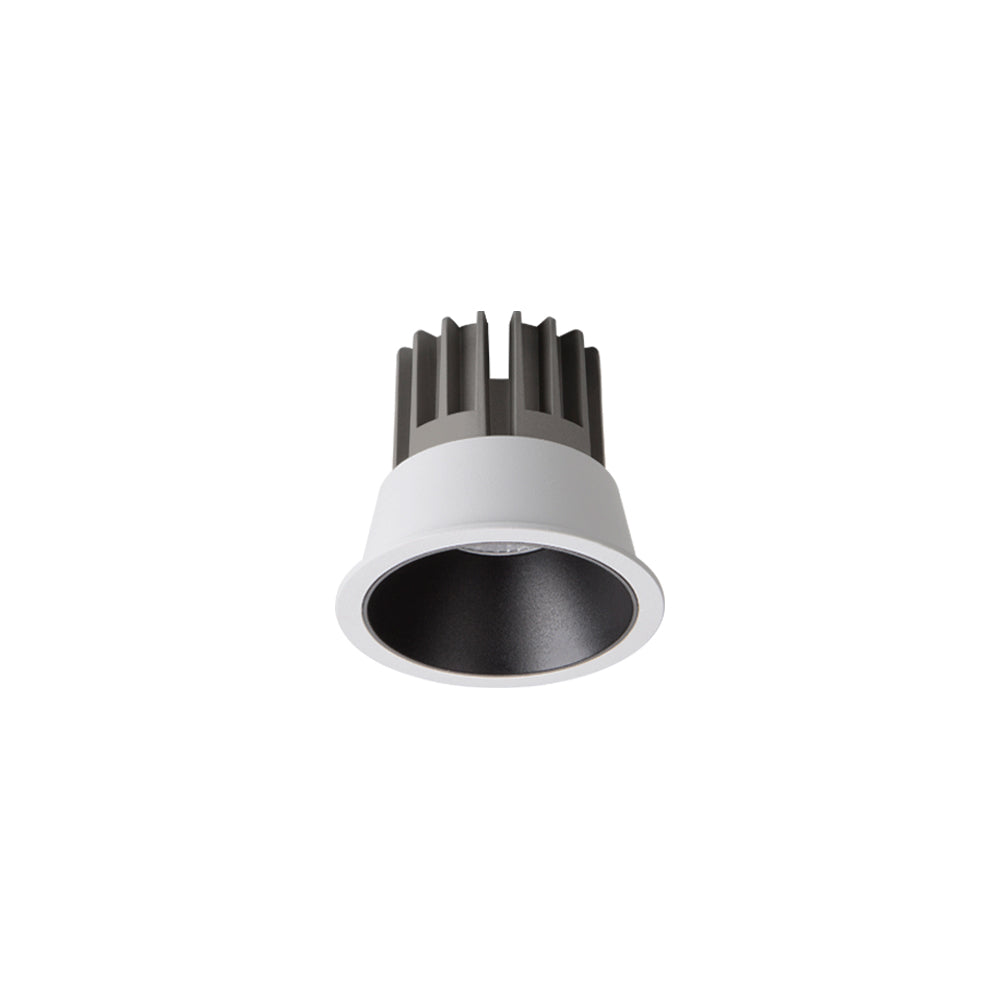

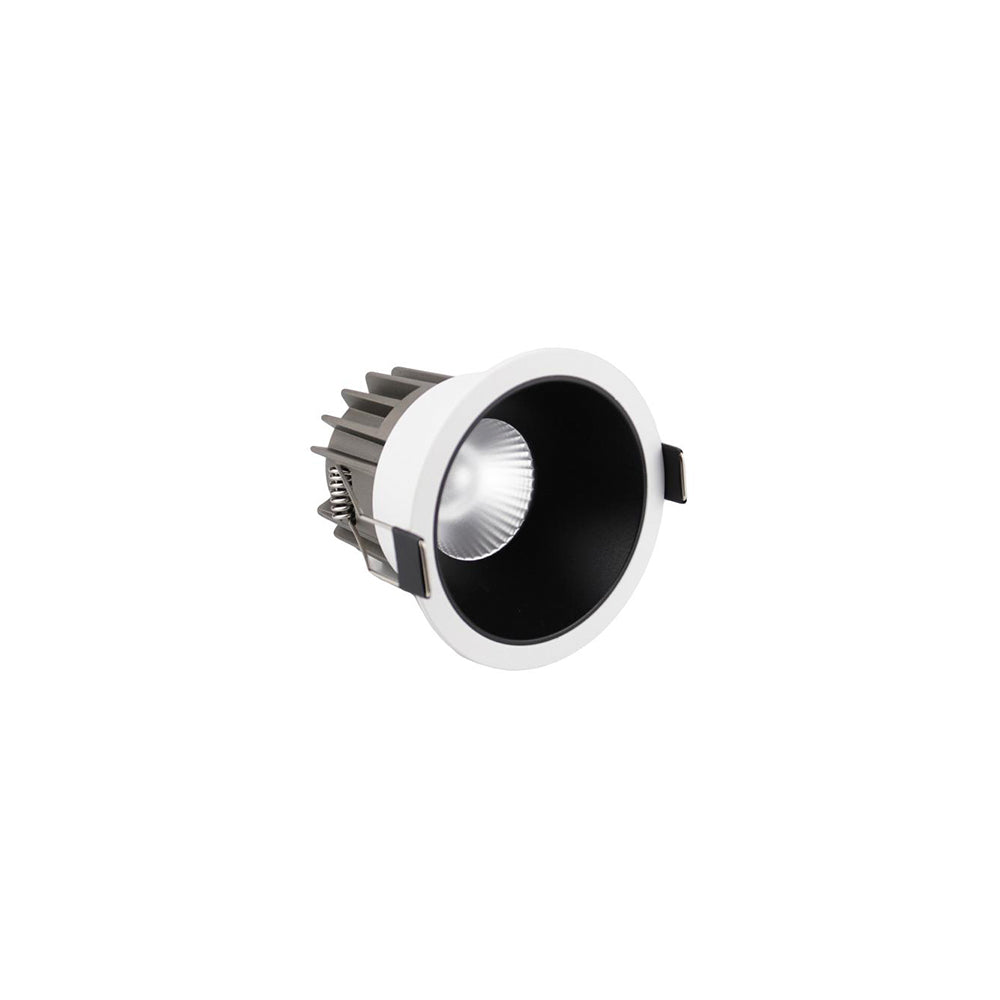

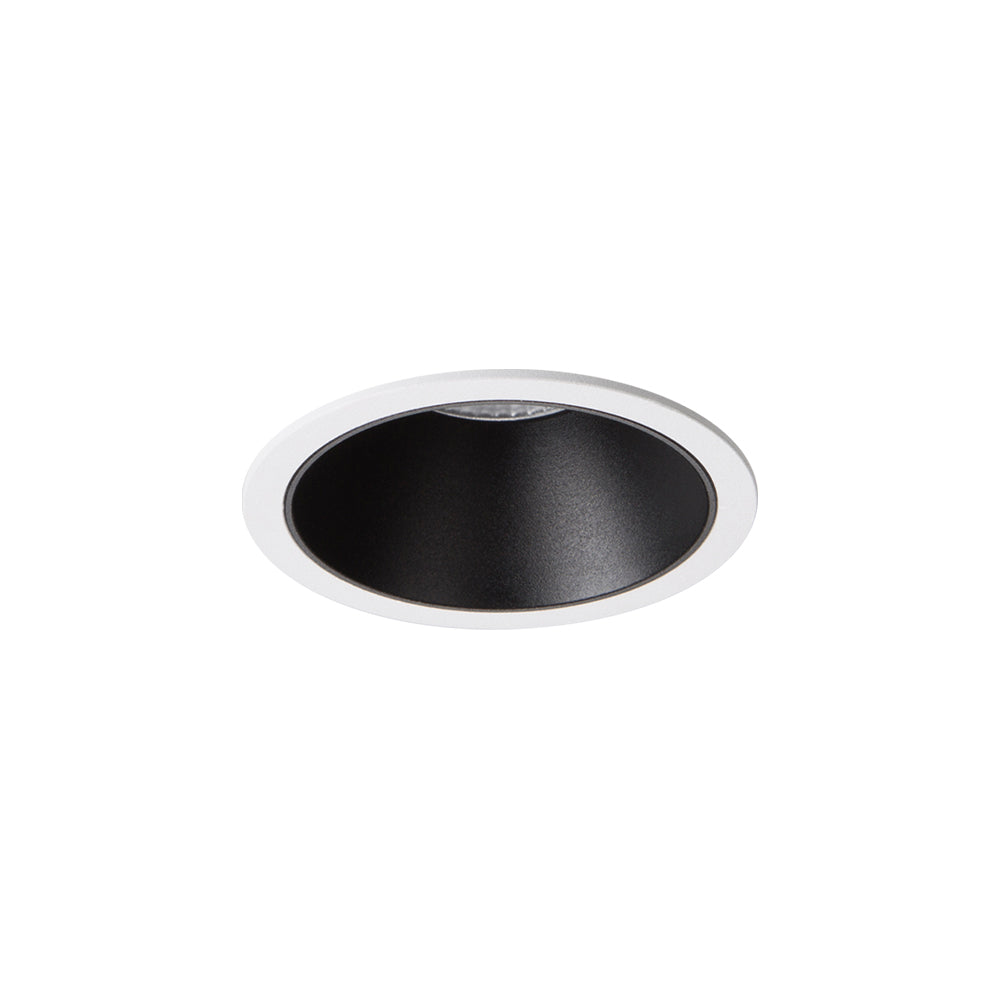

Archilight Ray Downlight 10W White + Black
Log in to see priceSpecifications
Archilight Ray Downlight 10W White + BlackSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | LED Colour |
|---|---|
| KC-010177A-60D-2700K-WB | Warm White 2700K |
| KC-010177A-60D-3000K-WB | Warm White 3000K |
| KC-010177A-60D-4000K-WB | Natural White 4000K |
| KC-010177A-60D-5000K-WB | Cool White 5000K |
Specifications
- LED chip
- COB
- Power
- 10W
- Beam angle
- 23°/ 36°/ 60°
- IP level
- IP20
- Material
- Aluminum
- Material color
- White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
- Dimming
- Non-dim/ 1-10V/ DALI/ Triac
- Lighting efficiency
- >85lm/W
- Color render index(CRI)
- ≥90
- Operating temperature
- -25~+50°C
- Lifetime
- 35,000-50,000hrs
- Driver
- Driver included
- Warranty
- 3 years
- UGR
- <19
- Voltage
- 220-240V
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
FAQ
What applications is the Archilight Ray Downlight 10W White + Black best suited for?
This downlight is designed for interior recessed lighting where a compact, low-glare fitting is preferred. Its small trim, CRI above 90, and multiple beam angle options make it suitable for general lighting, feature lighting, and accent lighting in commercial and architectural spaces.
What variant options are available across this Ray 10W White + Black family?
This parent model is available in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. It is also offered with 23 degree, 36 degree, and 60 degree beam angles, while the 10W power rating, white and black finish, CRI 90, and 850 lumen output remain consistent across the variants shown.
How do I choose between the 23 degree, 36 degree, and 60 degree beam options?
The 23 degree version is the narrowest option and is better suited to tighter, more focused lighting effects. The 36 degree option provides a more balanced spread, while the 60 degree version gives the widest distribution for broader illumination. The right choice depends on whether the project needs accent lighting or wider general coverage.
What light quality can I expect from this downlight family?
The Ray 10W family has a CRI of 90, which supports strong colour accuracy in the illuminated space. It also has a UGR below 19, so it is designed to reduce glare and improve visual comfort in professional interior environments.
Is the Archilight Ray Downlight 10W supplied with a driver, and can it be dimmed?
The family is listed as driver included, so the driver is supplied with the product. Dimming is optional, which means dimmable versions are supported within the family where the appropriate dimming control is selected.
What are the key physical and performance specifications for this product family?
This parent family is rated at 10W and uses 230V power input. The fitting dimensions are 85 mm by 85 mm with a height of 75 mm, and the child variants shown use a 75 mm cut-out. Each listed variant delivers 850 lumens, has a 50,000 hour lifetime, and comes with a 5 year warranty.
