Archilight

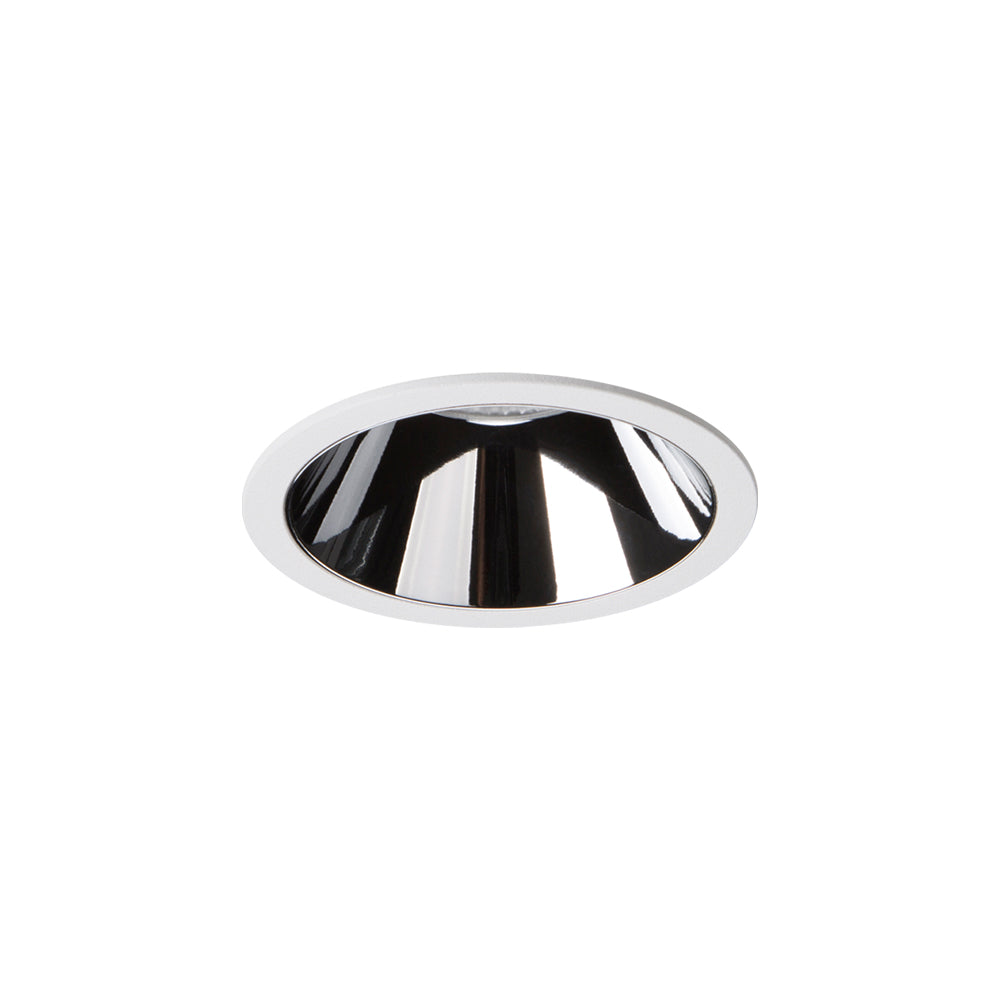

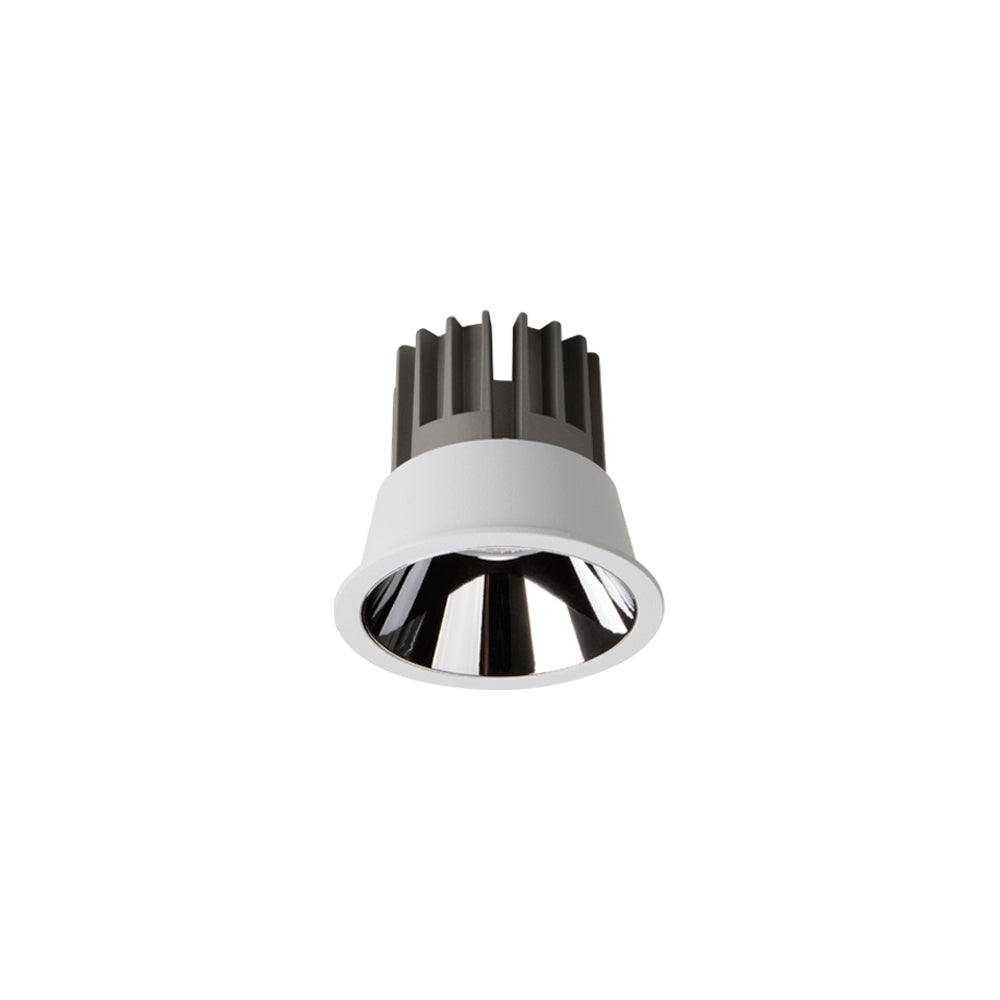

Archilight Ray Downlight 10W TDM White + Chrome

SKU KC-010177A-23D-2700K-WC-TDM
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 7 variants

KC-010177A-23D-2700K-WC-TDM
LED Colour
Beam Angle
7 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Ray Downlight 10W TDM White + ChromeSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED Colour
KC-010177A-60D-3000K-WC-TDMWarm White 3000K
KC-010177A-60D-4000K-WC-TDMNatural White 4000K
KC-010177A-60D-5000K-WC-TDMCool White 5000K

Specifications

LED chip
COB
Power
10W
Beam angle
23°/ 36°/ 60°
IP level
IP20
Material
Aluminum
Material color
White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
Dimming
Non-dim/ 1-10V/ DALI/ Triac
Lighting efficiency
>85lm/W
Color render index(CRI)
≥90
Operating temperature
-25~+50°C
Lifetime
35,000-50,000hrs
Driver
Driver included
Warranty
3 years
UGR
<19
Voltage
220-240V

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

Archilight Ray Downlight 10W TDM White + Chrome Ray
Ray
Archilight Ray Downlight 10W TDM White + Chrome Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Archilight Ray Downlight 10W TDM White + Chrome best suited for?

This recessed LED downlight is designed for interior lighting where a compact fitting and minimal trim are preferred. It suits both general lighting and accent lighting, making it useful for commercial, retail, hospitality, and other specification-led projects. The high CRI and low glare design also support spaces where visual comfort and accurate colour appearance matter.

What beam angle options are available across this Ray downlight family?

This parent family includes 23 degree and 60 degree beam angle variants. The narrower 23 degree option is better for more focused lighting effects, while the 60 degree option is better for broader light distribution. Beam angle choice depends on whether the project needs accent emphasis or wider general coverage.

What are the main performance specifications for this downlight family?

All variants in this family are 10W LED downlights with CRI 90, a rated lifetime of 50,000 hours, and a 5 year warranty. They are designed for 230V power input and use a power-efficient format intended to balance output quality with visual comfort. These are consistent family-level specifications across the listed variants.

Is the driver included, and is this downlight dimmable?

Yes, the driver is included with this product family. Dimming is optional, so buyers should confirm the required dimming setup and compatible control approach within their project specification before ordering. The parent model is not described as non-dimmable.

What ceiling cut-out and product dimensions should be allowed for this downlight?

The listed child variants use a 75 mm cut-out. The parent product dimensions are 85 mm long, 85 mm wide, and 75 mm high, with a weight of 0.5 kg. These measurements make it a compact recessed fitting for projects targeting a clean, low-profile ceiling appearance.

What does the White + Chrome finish offer for project aesthetics?

This version combines a white and chrome finish to support a clean, contemporary recessed lighting look. It is intended for projects that want a subtle trim presence while still adding a refined decorative edge. The finish is fixed for this parent model, while beam angle varies across the family.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Other Archilight Ray Series Models

19 other models
ModelPowerCRIDimmingCut-out
Archilight Ray Downlight 10W TDM White + White 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Silver 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM White + Gun Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + White 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Silver 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Rose Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Gun Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Chrome 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W White + Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + White 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Silver 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Rose Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Gun Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Gold 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Chrome 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W Black + Black 10W 90 Optional 75 Millimeter View
Archilight Ray Downlight 10W TDM Black + Black 10W 90 Optional 75 Millimeter View
View all 20 Archilight Ray Series models
