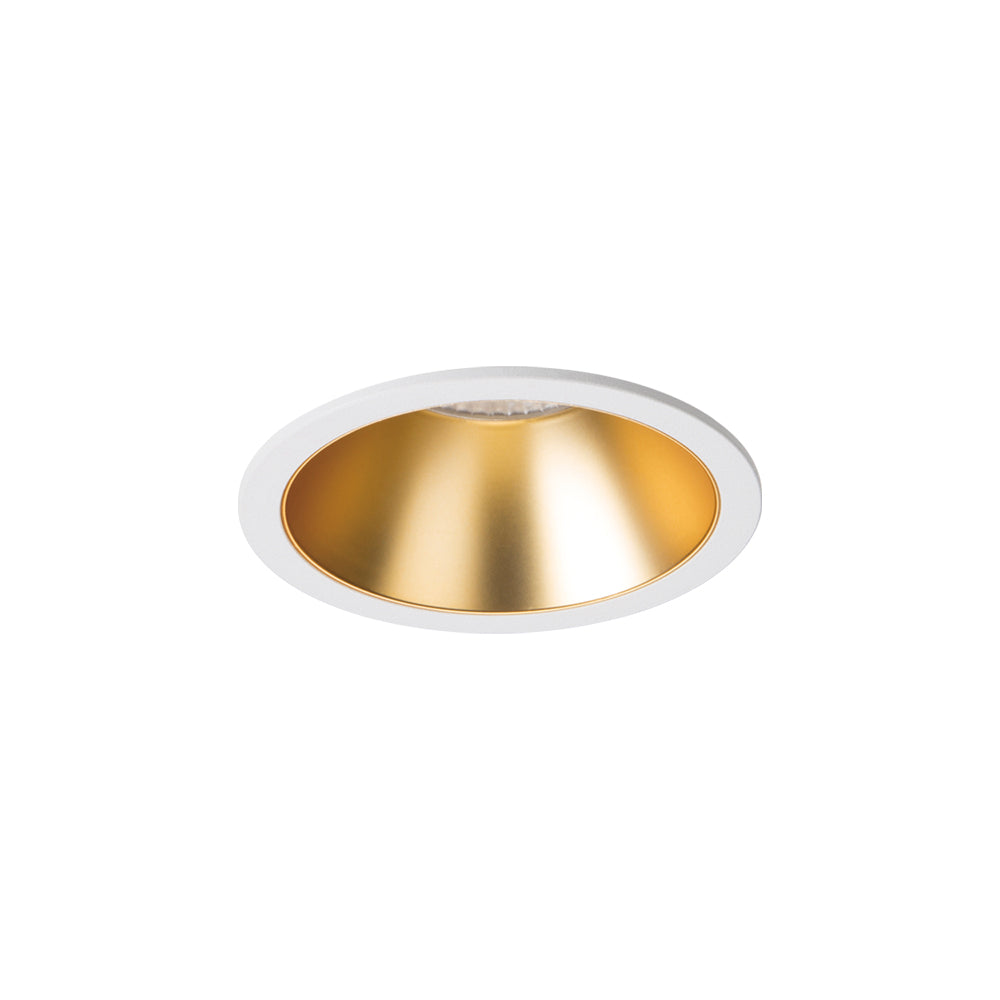

Archilight Ray Downlight 10W White + Gold
Log in to see priceSpecifications
Archilight Ray Downlight 10W White + GoldSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour |
|---|---|---|
| KC-010177A-36D-5000K-WG | 36° | Cool White 5000K |
| KC-010177A-60D-2700K-WG | 60° | Warm White 2700K |
| KC-010177A-60D-3000K-WG | 60° | Warm White 3000K |
| KC-010177A-60D-4000K-WG | 60° | Natural White 4000K |
| KC-010177A-60D-5000K-WG | 60° | Cool White 5000K |
Specifications
- LED chip
- COB
- Power
- 10W
- IP level
- IP20
- Material
- Aluminum
- Material color
- White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
- Dimming
- Non-dim/ 1-10V/ DALI/ Triac
- Lighting efficiency
- >85lm/W
- Color render index(CRI)
- ≥90
- Operating temperature
- -25~+50°C
- Lifetime
- 35,000-50,000hrs
- Driver
- Driver included
- Warranty
- 3 years
- UGR
- <19
- Voltage
- 220-240V
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
FAQ
What are the main specifications of the Archilight Ray Downlight 10W White + Gold family?
This downlight family is a 10W recessed LED option with a white and gold finish, CRI 90, and a rated lifetime of 50,000 hours. It includes a driver and is available with optional dimming control. The fitting measures 85 x 85 x 75 mm and carries a 5-year warranty.
What beam angle options are available in this Ray downlight family?
The family is offered in 23 degree, 36 degree, and 60 degree beam angles. That gives buyers a choice between narrower and wider light distribution depending on whether the goal is accent lighting or broader general illumination. All listed beam options remain within the same 10W white and gold parent family.
What colour temperature options are available for this product range?
The Ray Downlight 10W White + Gold family is available in 2700K, 3000K, 4000K, and 5000K variants. This allows the same product style to be specified across warmer and cooler lighting schemes. These colour temperature choices are available across the beam angle variants shown.
How bright is the Archilight Ray Downlight 10W White + Gold?
Each child variant listed in this family is rated at 850 lumens. That means brightness stays consistent across the available beam angles and colour temperatures in the data provided. Buyers can therefore choose beam spread and CCT without changing the stated lumen output.
Is this downlight suitable for low-glare, high-visual-comfort applications?
Yes, the Ray series description states a low UGR value of less than 19, which supports reduced glare and improved visual comfort. It also has a CRI greater than 90, helping colours appear more accurate in the illuminated space. This makes the range well suited to interior projects where comfort and colour quality matter.
What ceiling cut-out does this Ray downlight family require?
All listed child variants in this parent family show a 75 mm minimum and maximum cut-out, so the cut-out size is consistent across the range. That consistency can simplify specification when selecting between different beam angles or colour temperatures. The outer fitting dimensions are 85 x 85 mm.
