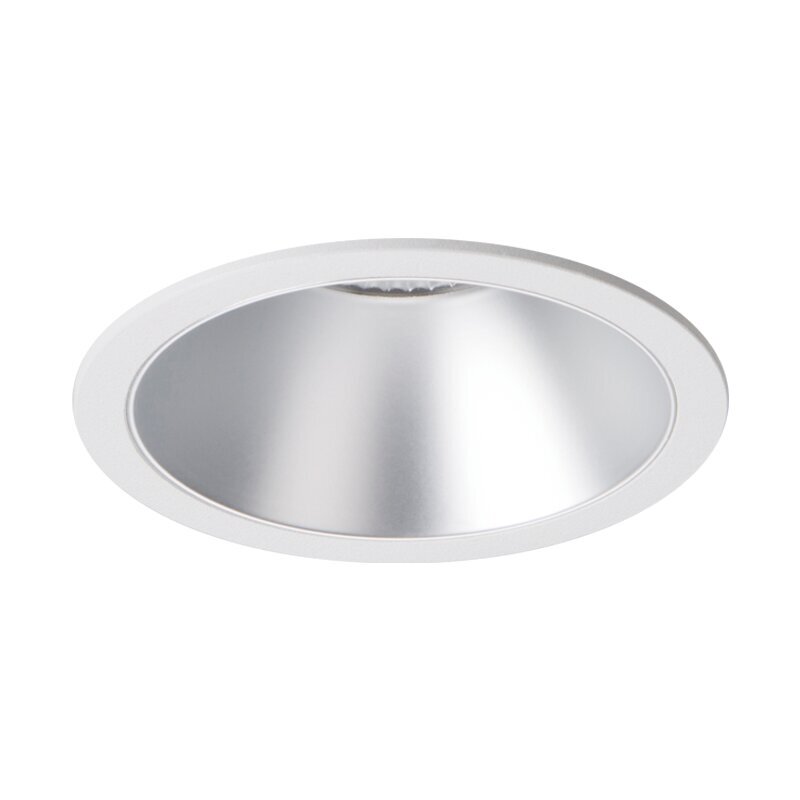

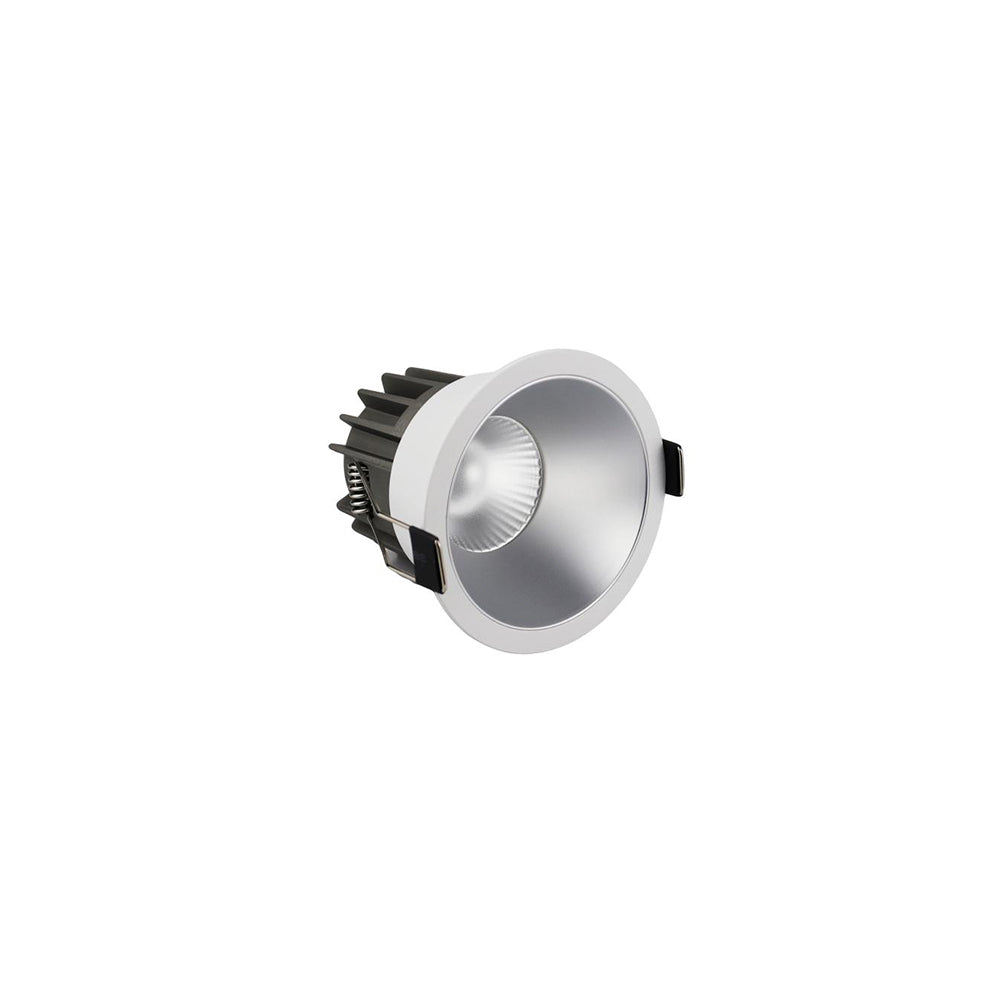

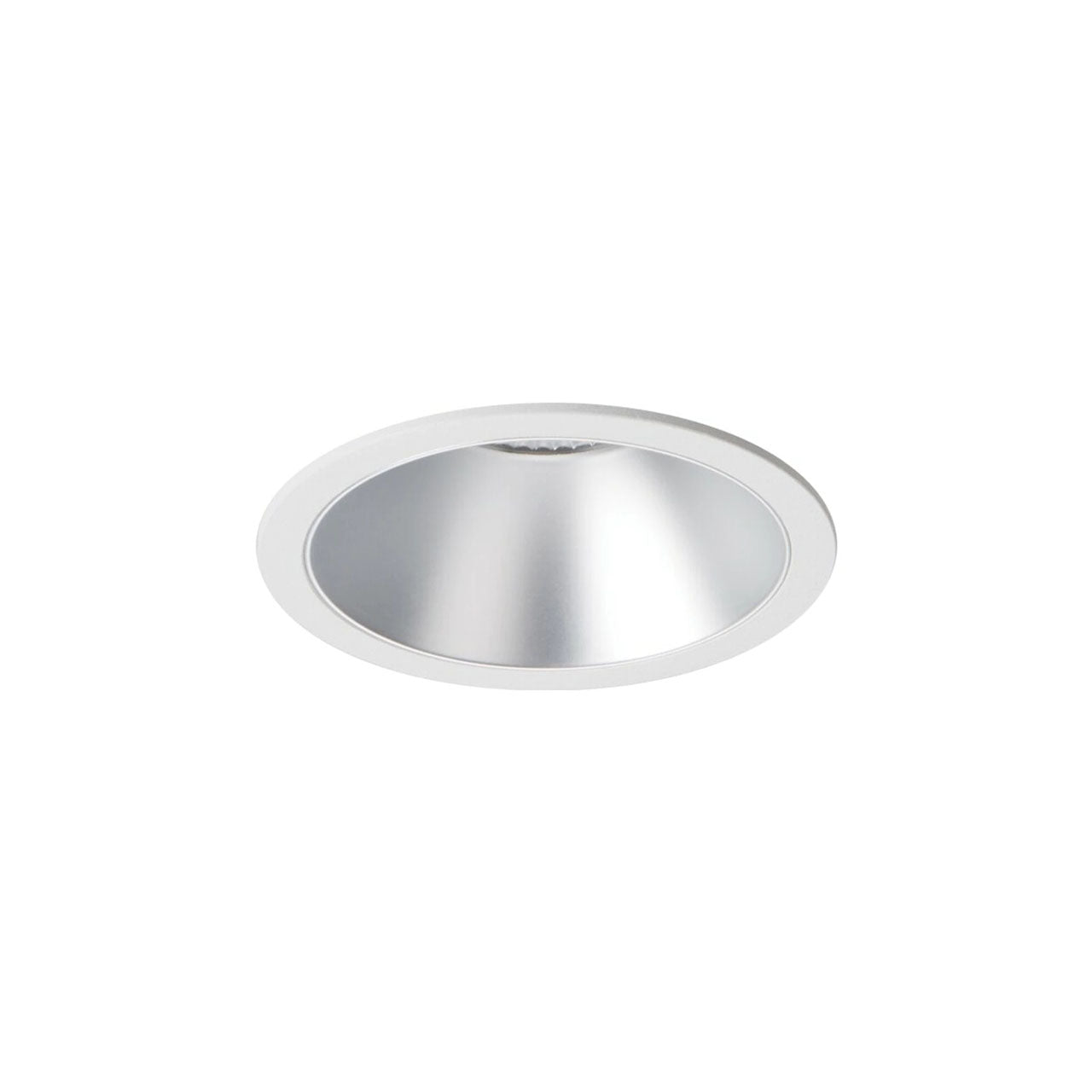

Archilight Ray Downlight 10W White + Silver
Log in to see priceSpecifications
Archilight Ray Downlight 10W White + SilverSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | Beam Angle | LED Colour |
|---|---|---|
| KC-010177A-36D-5000K-WS | 36° | Cool White 5000K |
| KC-010177A-60D-2700K-WS | 60° | Warm White 2700K |
| KC-010177A-60D-3000K-WS | 60° | Warm White 3000K |
| KC-010177A-60D-4000K-WS | 60° | Natural White 4000K |
| KC-010177A-60D-5000K-WS | 60° | Cool White 5000K |
Specifications
- LED chip
- COB
- Power
- 10W
- IP level
- IP20
- Material
- Aluminum
- Material color
- White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
- Dimming
- Non-dim/ 1-10V/ DALI/ Triac
- Lighting efficiency
- >85lm/W
- Color render index(CRI)
- ≥90
- Operating temperature
- -25~+50°C
- Lifetime
- 35,000-50,000hrs
- Driver
- Driver included
- Warranty
- 3 years
- UGR
- <19
- Voltage
- 220-240V
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
FAQ

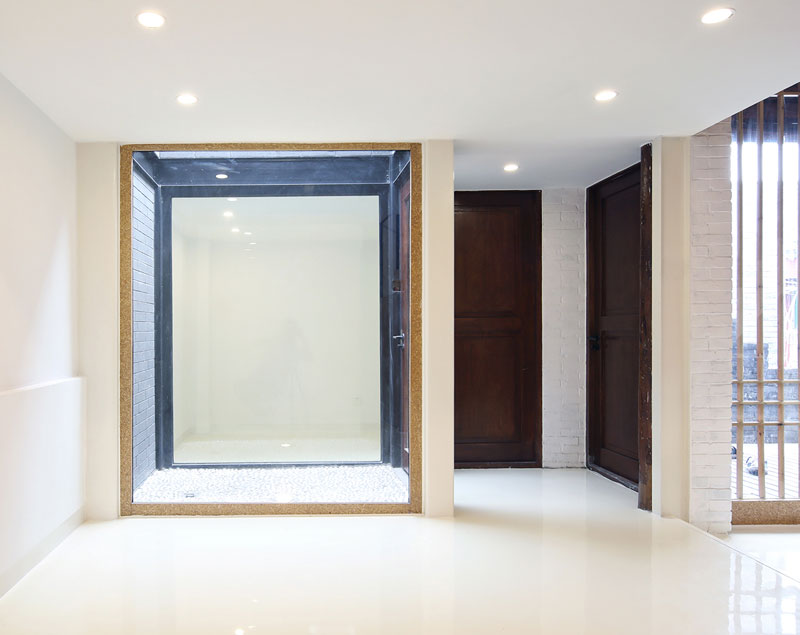

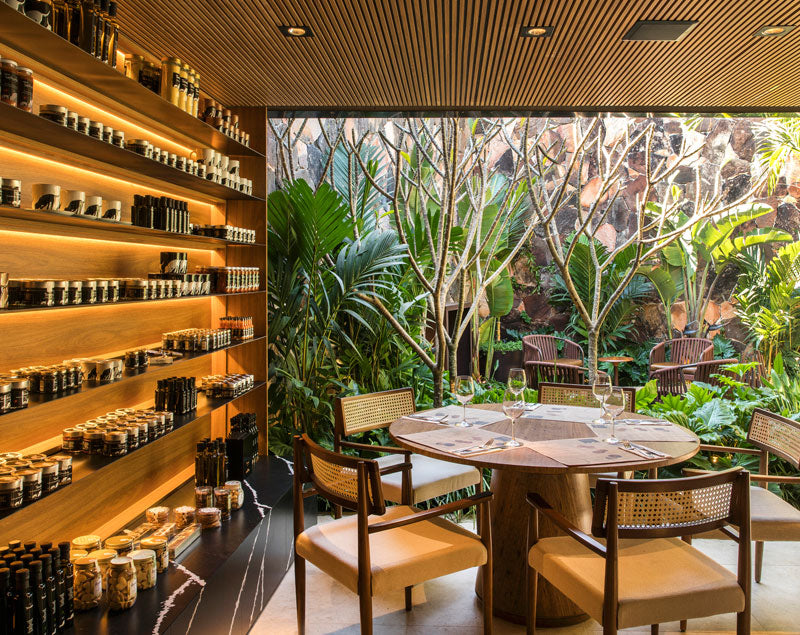

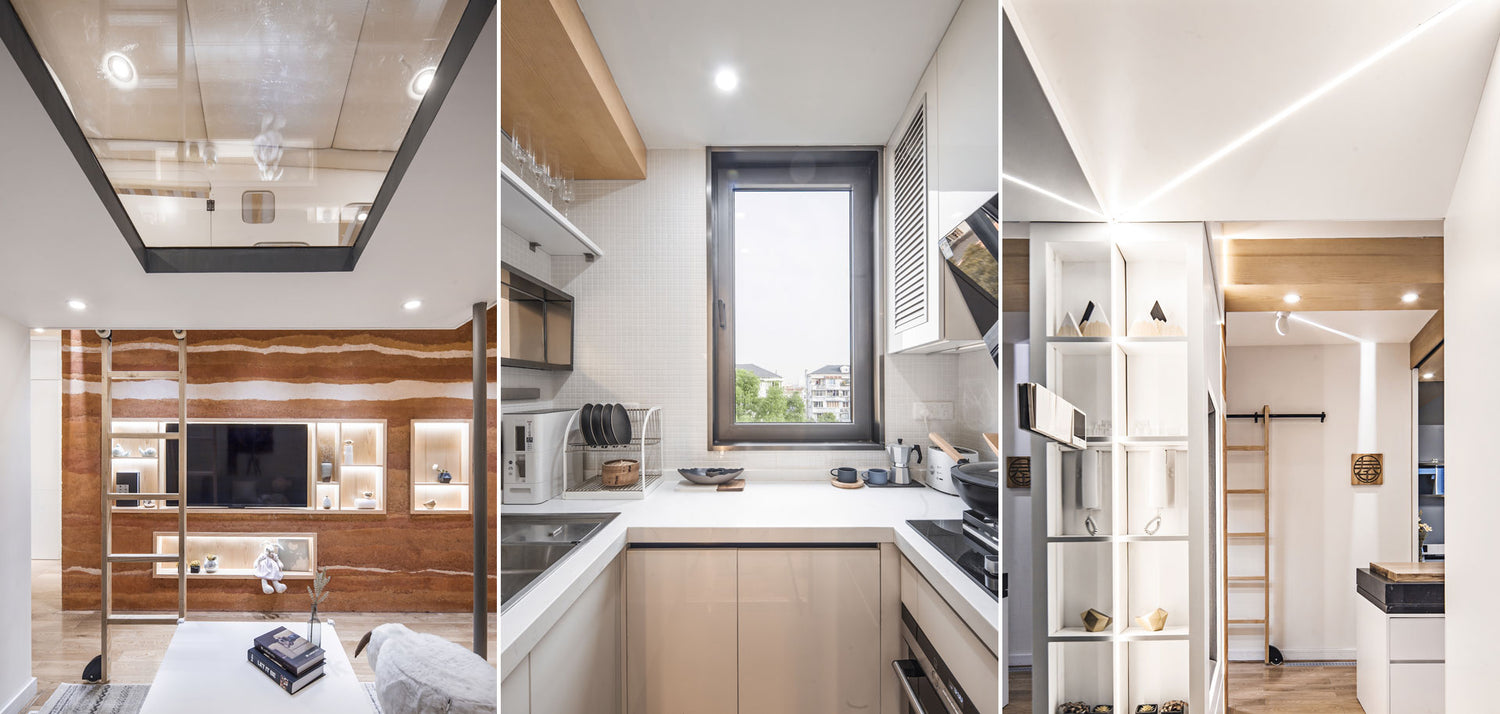

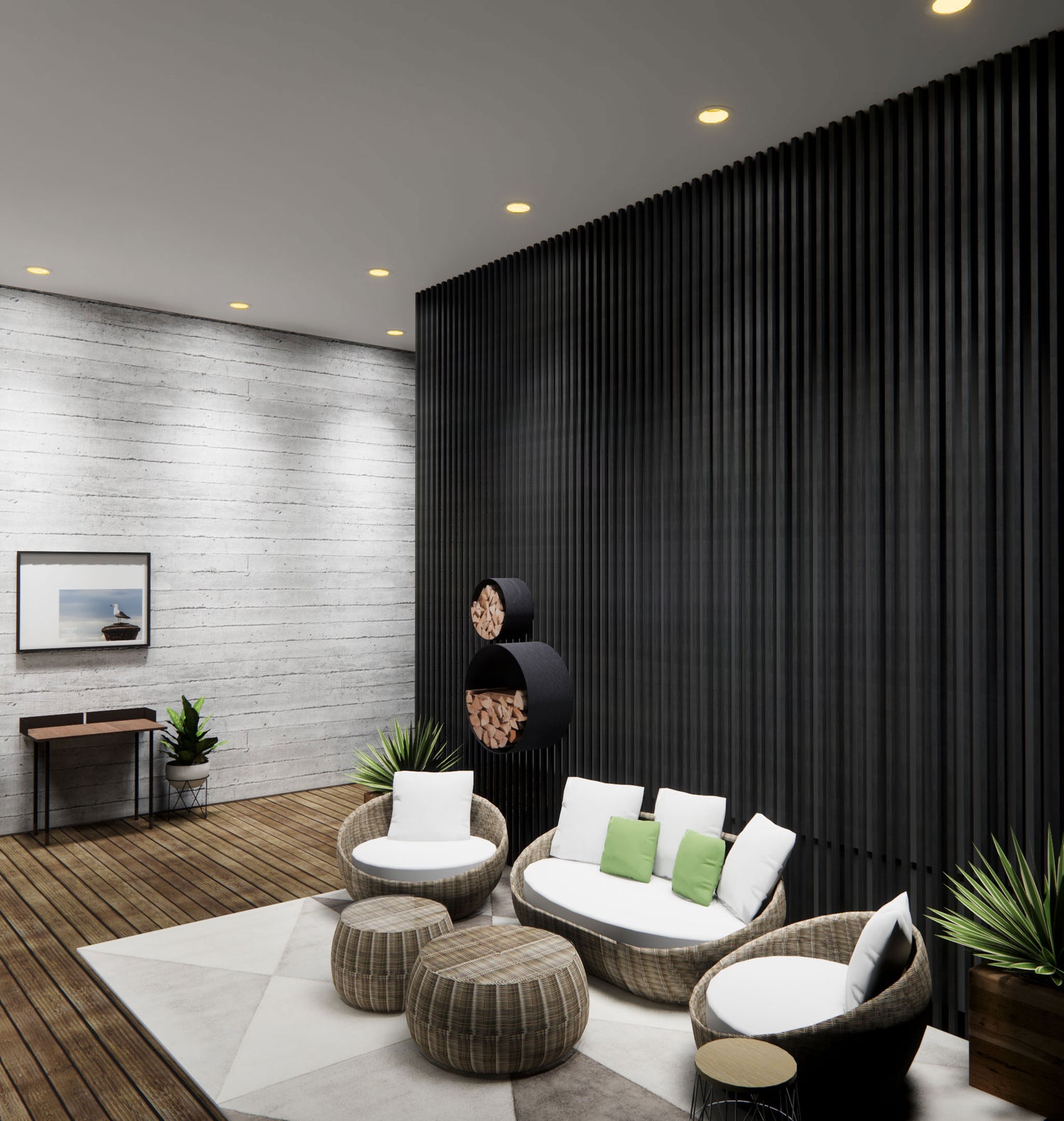

What type of projects is the Archilight Ray Downlight 10W White + Silver best suited for?
The Archilight Ray series is designed for interior recessed lighting where a compact fitting and minimal trim are preferred. It suits both general lighting and accent lighting applications, making it useful for commercial, retail, hospitality, and other design-led indoor spaces.
What variant options are available in this Ray 10W White + Silver family?
This parent model is available in four colour temperatures: 2700K, 3000K, 4000K, and 5000K. It also comes in three beam angles: 23 degree, 36 degree, and 60 degree, so buyers can choose a combination that suits either tighter highlighting or broader light distribution.
How bright is the Archilight Ray Downlight 10W White + Silver?
All listed variants in this family deliver 850 lumens at 10W. That gives the range a consistent output level while allowing buyers to select the beam angle and colour temperature that best fit the space.
Is the Archilight Ray Downlight dimmable?
This product family is listed as dimmable optional, with the driver included. That means the fitting supports dimming capability where the appropriate dimming setup is selected for the project.
What is the cut-out size for this downlight family?
The child variants in this family show a 75 mm cut-out size, with both minimum and maximum cut-out values listed as 75 mm. This consistency helps when specifying multiple variants from the same family in one project.
What light quality can I expect from the Ray 10W downlight range?
The Ray series has a CRI greater than 90, and the listed variants show CRI 90, which supports strong colour accuracy in the illuminated space. It also has a low UGR rating under 19, helping provide high visual comfort with reduced glare.
How durable is the Archilight Ray Downlight 10W White + Silver?
This family is rated for a 50,000 hour lifetime and comes with a 5 year warranty. Those specifications make it suitable for longer-term professional lighting projects where reliability and maintenance planning matter.
