Archilight

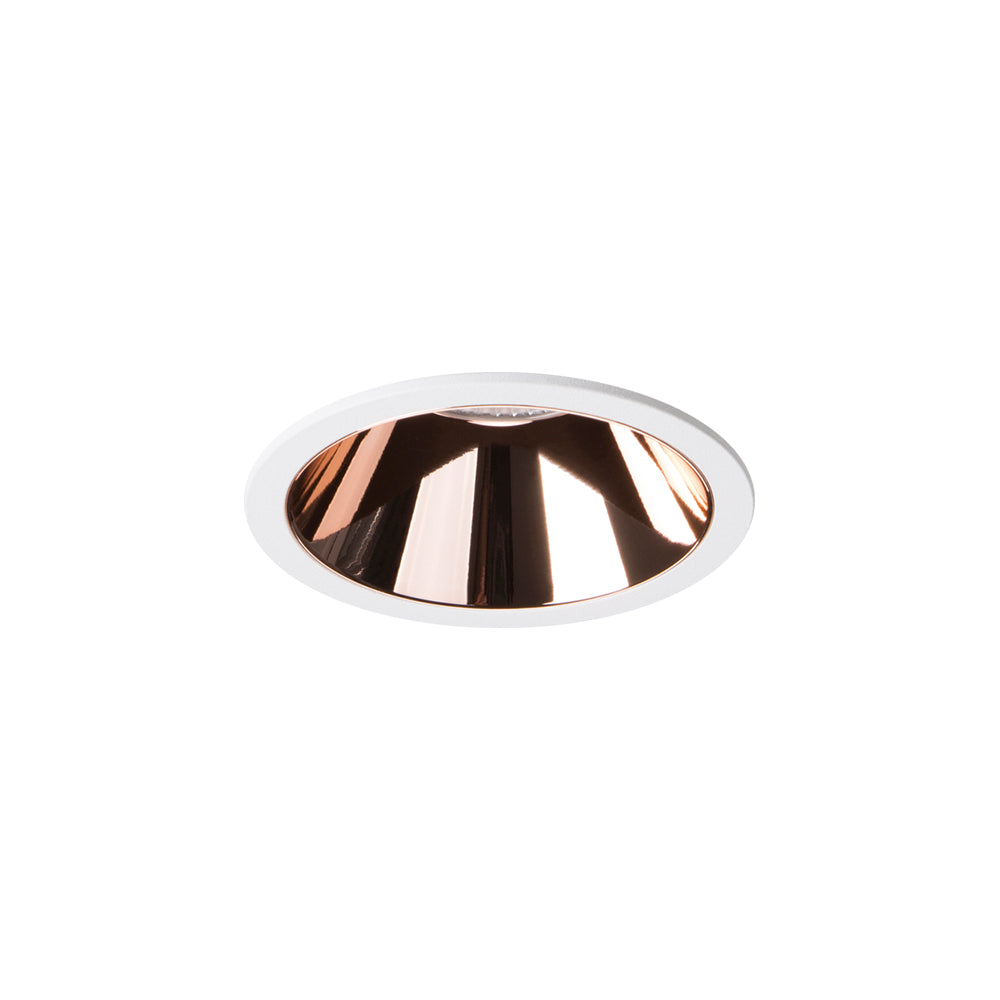

Archilight Ray Downlight 10W White + Rose Gold

SKU KC-010177A-23D-2700K-WRG
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 12 variants

KC-010177A-23D-2700K-WRG
LED Colour
Beam Angle
12 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Ray Downlight 10W White + Rose GoldSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-010177A-36D-5000K-WRG36°Cool White 5000K
KC-010177A-60D-2700K-WRG60°Warm White 2700K
KC-010177A-60D-3000K-WRG60°Warm White 3000K
KC-010177A-60D-4000K-WRG60°Natural White 4000K
KC-010177A-60D-5000K-WRG60°Cool White 5000K

Specifications

LED chip
COB
Power
10W
IP level
IP20
Material
Aluminum
Material color
White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
Dimming
Non-dim/ 1-10V/ DALI/ Triac
Lighting efficiency
>85lm/W
Color render index(CRI)
≥90
Operating temperature
-25~+50°C
Lifetime
35,000-50,000hrs
Driver
Driver included
Warranty
3 years
UGR
<19
Voltage
220-240V

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

Archilight Ray Downlight 10W White + Rose Gold Ray
Ray
Archilight Ray Downlight 10W White + Rose Gold Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What are the main features of the Archilight Ray Downlight 10W White + Rose Gold family?

This recessed LED downlight family combines a compact, minimalist trim with a white and rose gold finish for a refined architectural look. Across the range, each variant is 10W, delivers a CRI of 90, includes a driver, and is designed for high visual comfort with low glare. The series is also rated for a 50,000-hour lifetime and backed by a 5-year warranty.

What beam angles are available in this Ray downlight family?

This parent family is available in 23 degree, 36 degree, and 60 degree beam angles. These options let buyers choose between narrower accent-style lighting and broader general illumination. Beam angle availability is consistent across the listed colour temperature variants.

What colour temperatures are offered in this product range?

The Ray 10W White + Rose Gold family is available in 2700K, 3000K, 4000K, and 5000K options. That gives buyers flexibility to select warmer or cooler light tones depending on the project brief. Each colour temperature is offered across the available beam angles shown for this family.

Is this downlight dimmable?

Yes, this product family is listed as dimmable optional. That means dimming capability is available for the range, while the exact dimming arrangement depends on the selected configuration and compatible control setup. The included driver remains standard across the family.

What cut-out size does this Ray downlight family require?

All listed variants in this parent family show a 75 mm cut-out, with both minimum and maximum cut-out dimensions given as 75 mm. That consistency makes the family easier to specify across different beam angle and colour temperature choices. The product body dimensions are 85 mm by 85 mm with a height of 75 mm.

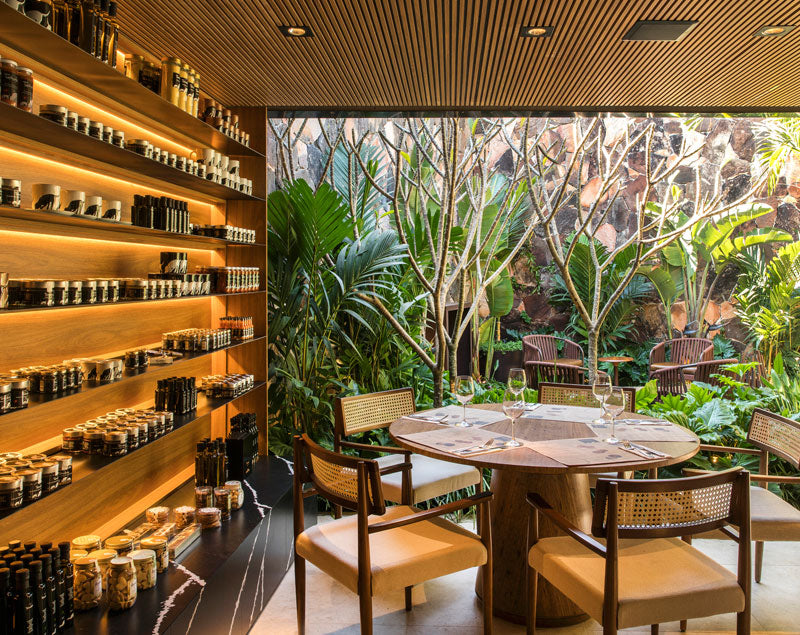

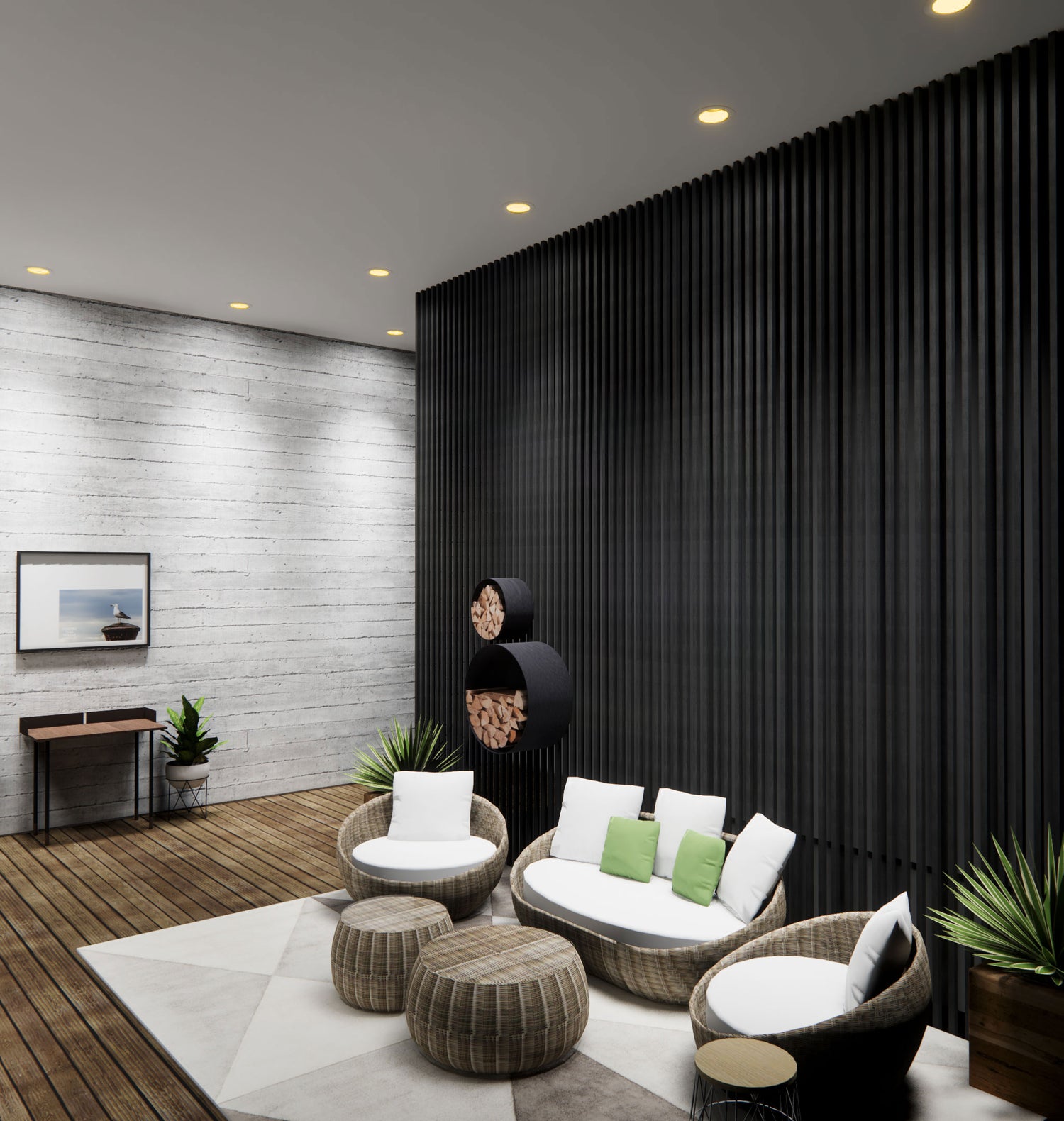

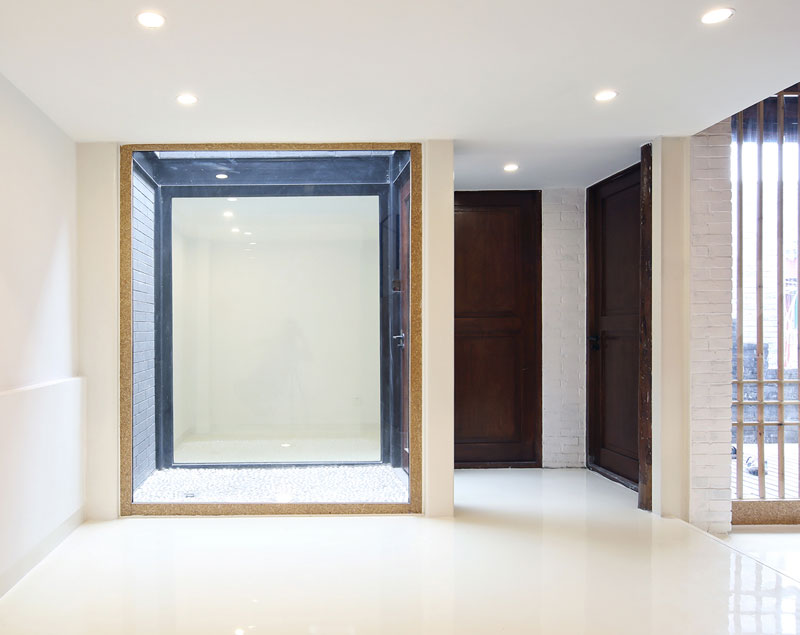

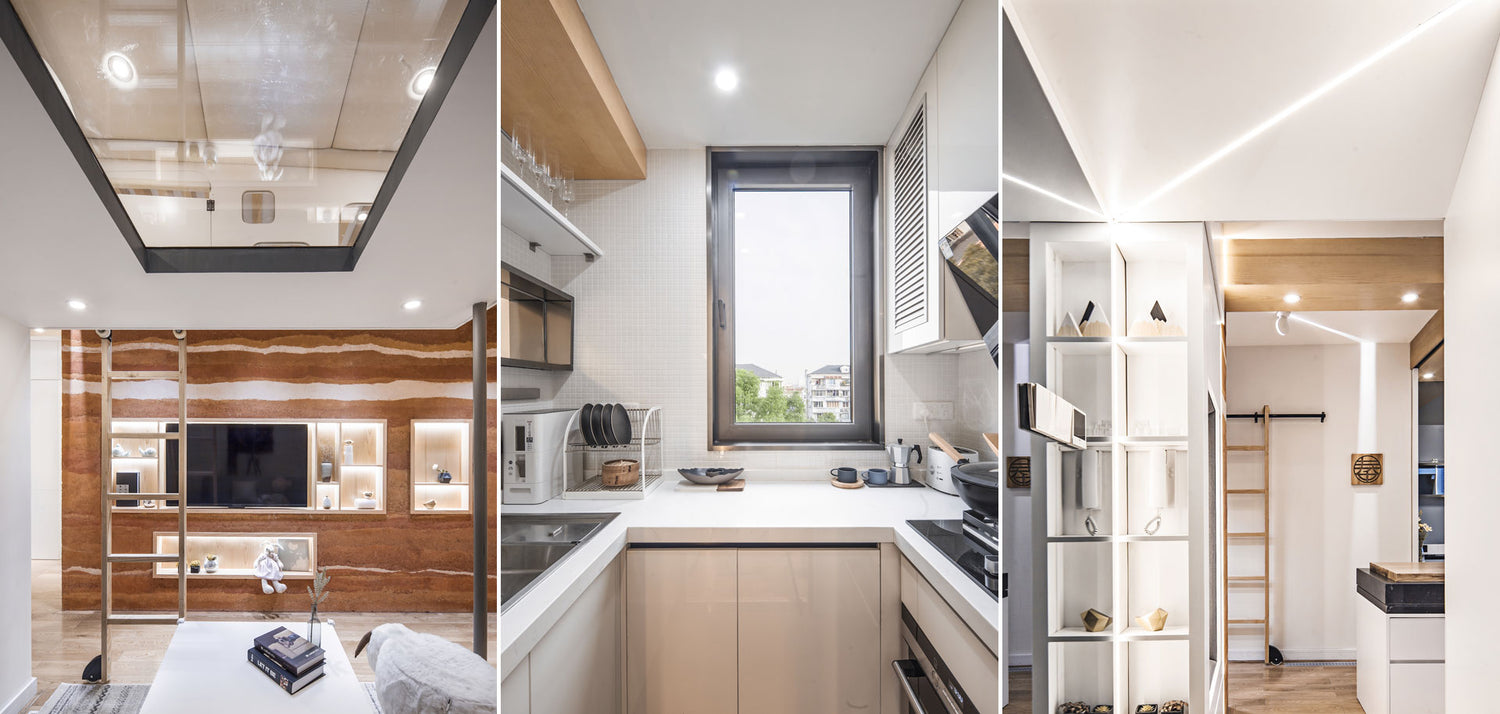

Where is this downlight family best suited to use?

The Ray series is designed for interior recessed lighting applications where a compact trim and high visual comfort are important. Based on the family description and beam options, it suits both general lighting and accent lighting roles. Its CRI 90 performance also supports spaces where accurate colour appearance matters.
