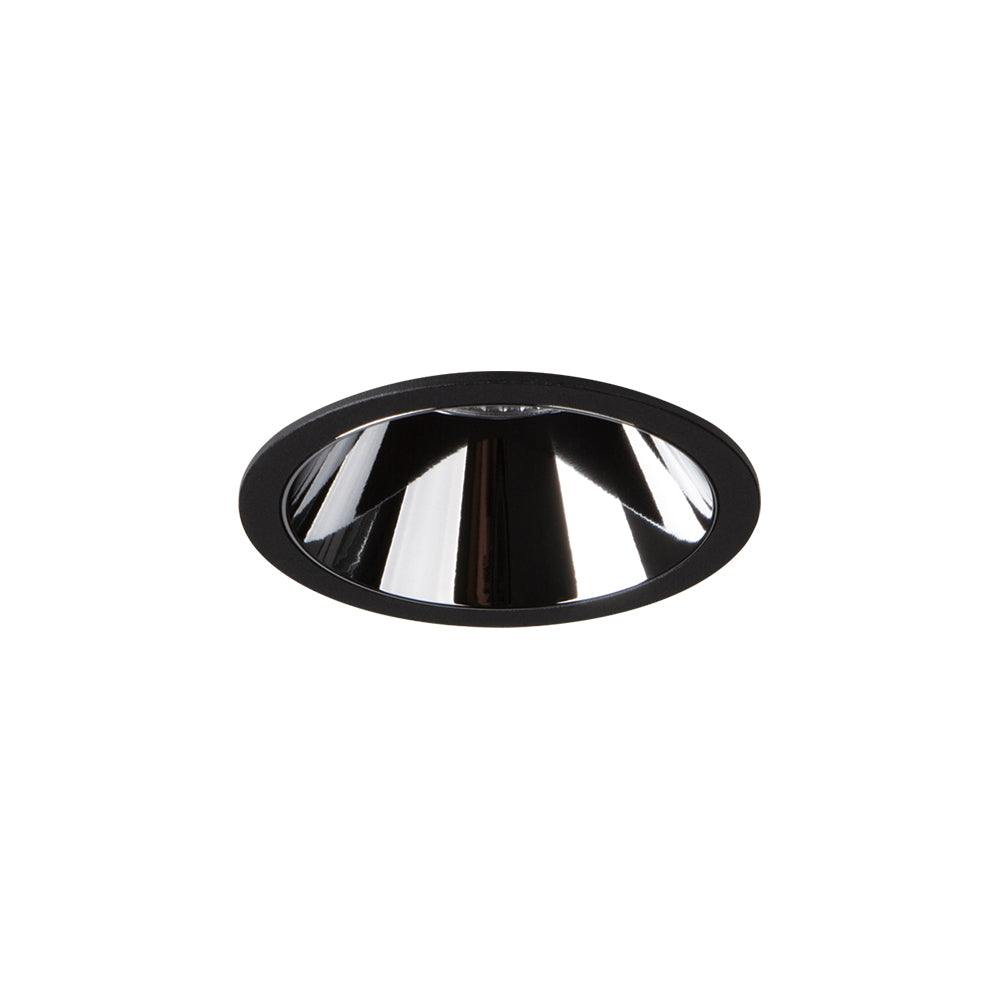

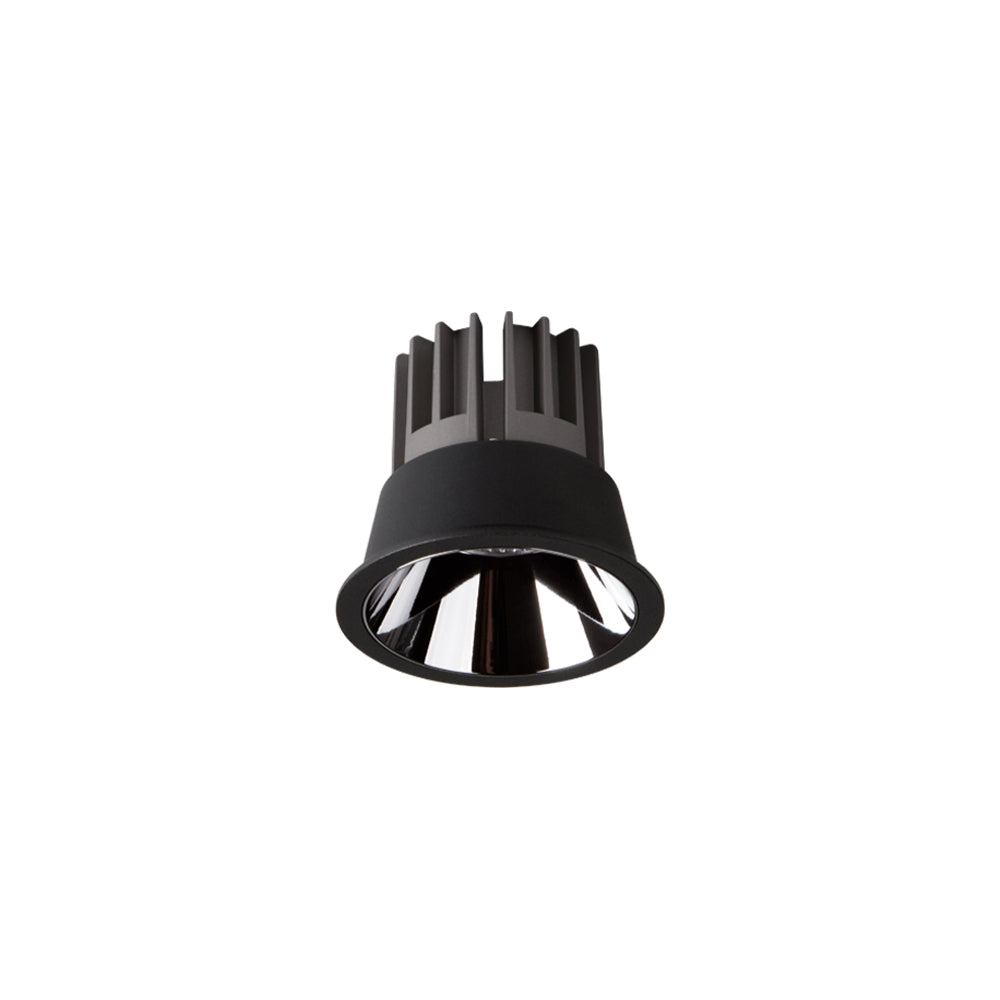

Archilight Ray Downlight 10W Black + Chrome
Log in to see priceSpecifications
Archilight Ray Downlight 10W Black + ChromeSpecifications from the official datasheetDownload datasheet PDF
Variants
| SKU | LED Colour |
|---|---|
| KC-010177A-60D-2700K-BC | Warm White 2700K |
| KC-010177A-60D-3000K-BC | Warm White 3000K |
| KC-010177A-60D-4000K-BC | Natural White 4000K |
| KC-010177A-60D-5000K-BC | Cool White 5000K |
Specifications
- LED chip
- COB
- Power
- 10W
- Beam angle
- 23°/ 36°/ 60°
- IP level
- IP20
- Material
- Aluminum
- Material color
- White+gold/ Black+gold/ White+rose gold/ Black+rose gold/ White chrome/ Black chrome/ White+gun black/ Black+gun black/ White+silver/ Black+silver/ White+black/ Black+white/ White/ Black
- Dimming
- Non-dim/ 1-10V/ DALI/ Triac
- Lighting efficiency
- >85lm/W
- Color render index(CRI)
- ≥90
- Operating temperature
- -25~+50°C
- Lifetime
- 35,000-50,000hrs
- Driver
- Driver included
- Warranty
- 3 years
- UGR
- <19
- Voltage
- 220-240V
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
FAQ

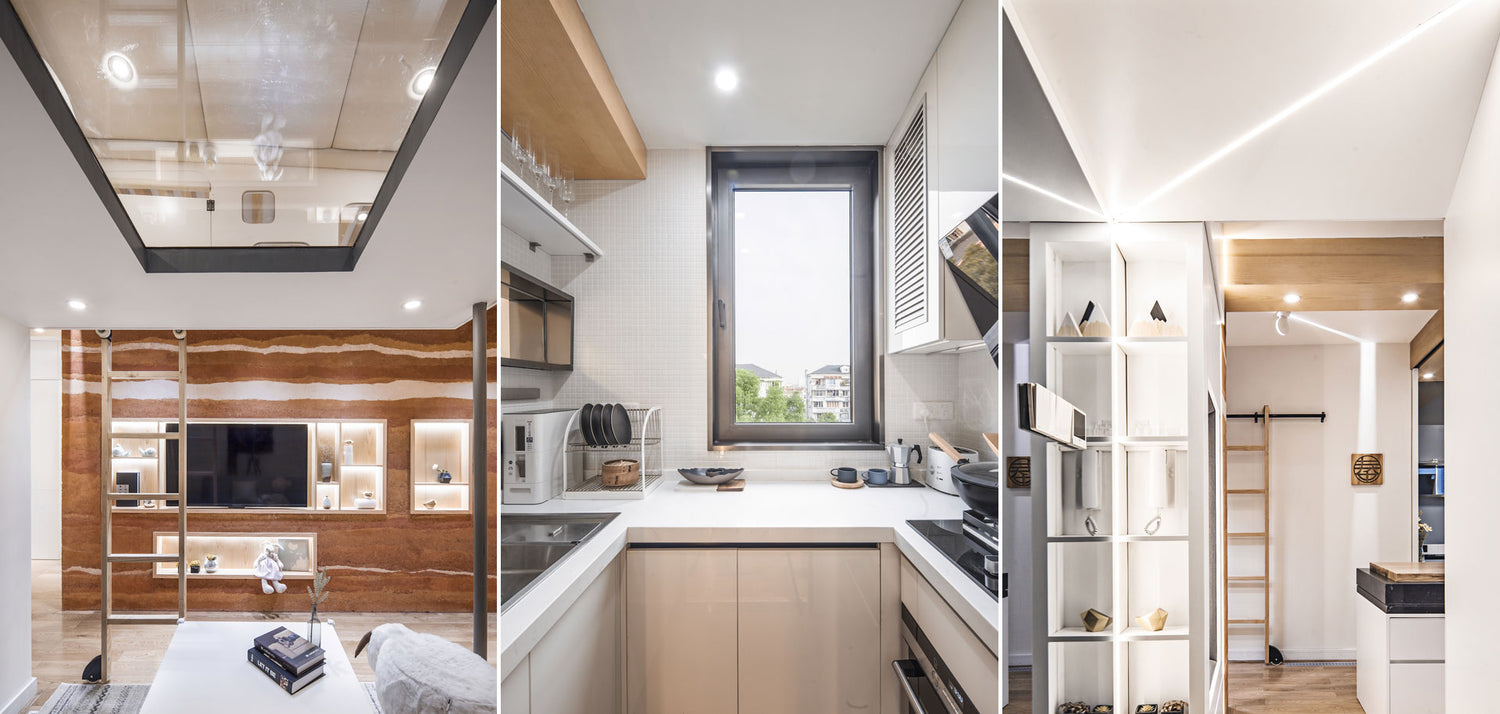

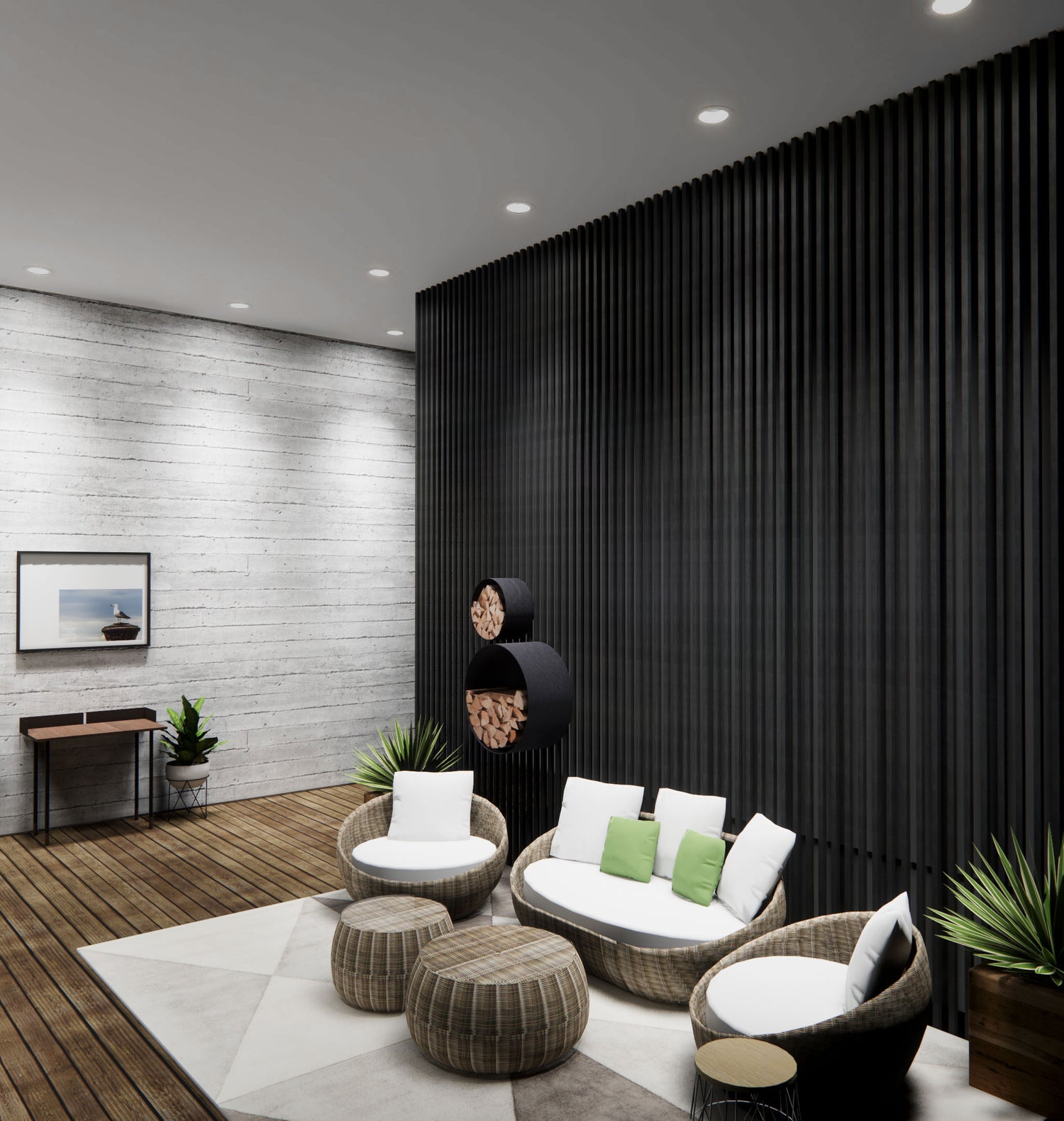

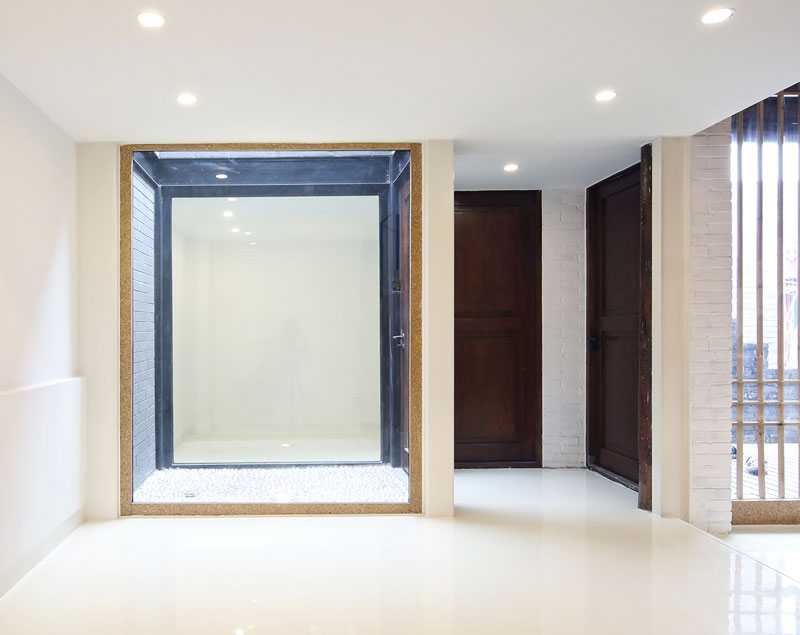

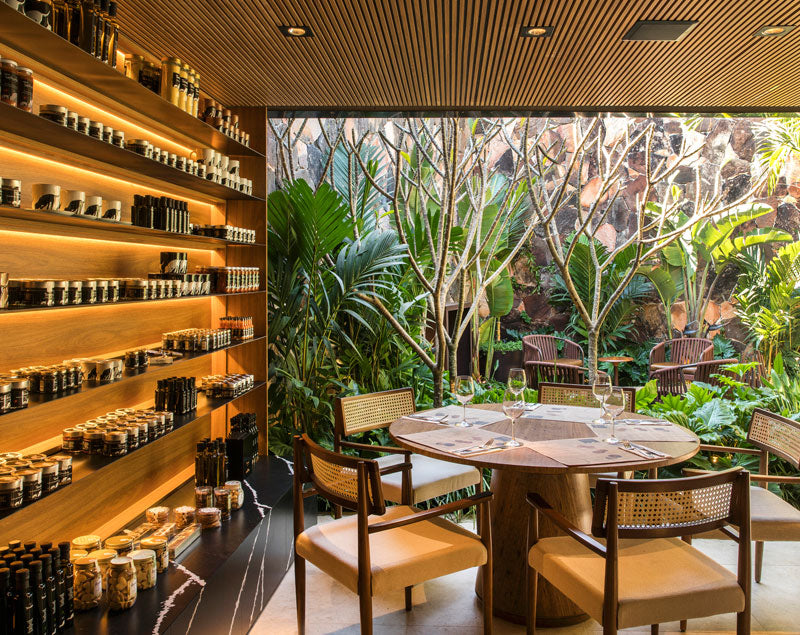

What type of spaces is the Archilight Ray Downlight 10W Black + Chrome best suited for?
This recessed LED downlight family is designed for interior applications where a compact, minimalist trim is preferred. It suits general lighting, accent lighting, and feature lighting in commercial or architectural spaces that need strong visual comfort and a refined finish.
What variant options are available in this Ray Downlight family?
This parent family includes multiple beam angles and colour temperatures across the same 10W black and chrome format. Available beam angles are 23, 36, and 60 degrees, and available CCT options are 2700K, 3000K, 4000K, and 5000K.
How do I choose between the different beam angles in this range?
The 23 degree option is the narrowest beam and is better suited to more focused lighting effects. The 36 degree version offers a more balanced spread, while the 60 degree option gives the widest distribution for broader illumination.
What light quality can I expect from this downlight family?
All variants in this family have a CRI of 90, which supports strong colour accuracy in the lit space. The Ray series is also described with a low glare design and a UGR below 19, helping deliver higher visual comfort in interior environments.
Are all versions of this product the same brightness and power?
Yes. Based on the listed child variants, each option in this family is rated at 10W and 850 lumens, so the main differences are beam angle and colour temperature rather than output or wattage.
What are the key physical and performance specifications for this product family?
This downlight family has a 75 mm height and an 85 x 85 mm face size, with listed cut-out dimensions of 75 mm on the variants shown. It includes a driver, has a 50,000 hour lifetime rating, and comes with a 5 year warranty.
Is this downlight family dimmable?
This product family is listed as dimmable optional, rather than as a standard dimming model across all situations. It is also specified as driver included, so dimming capability should be considered as an option within the family rather than assumed as the default feature in every project.
