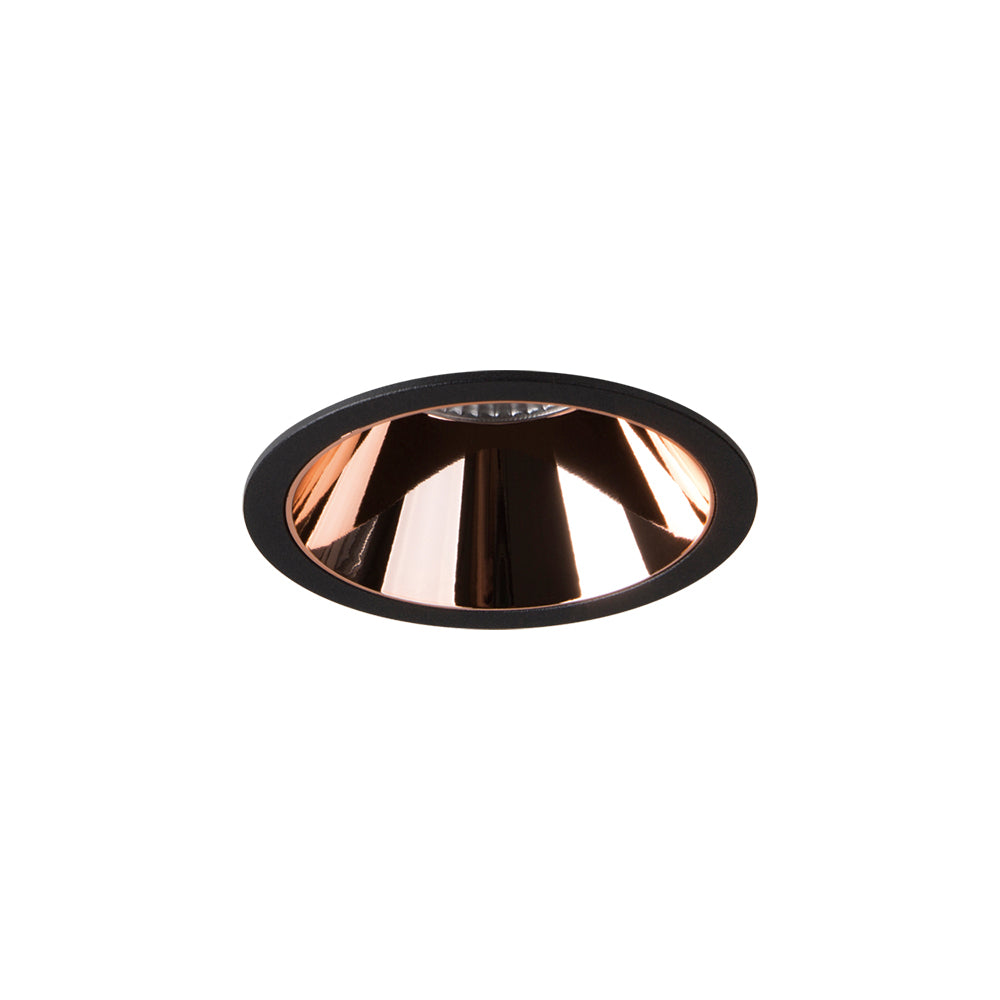

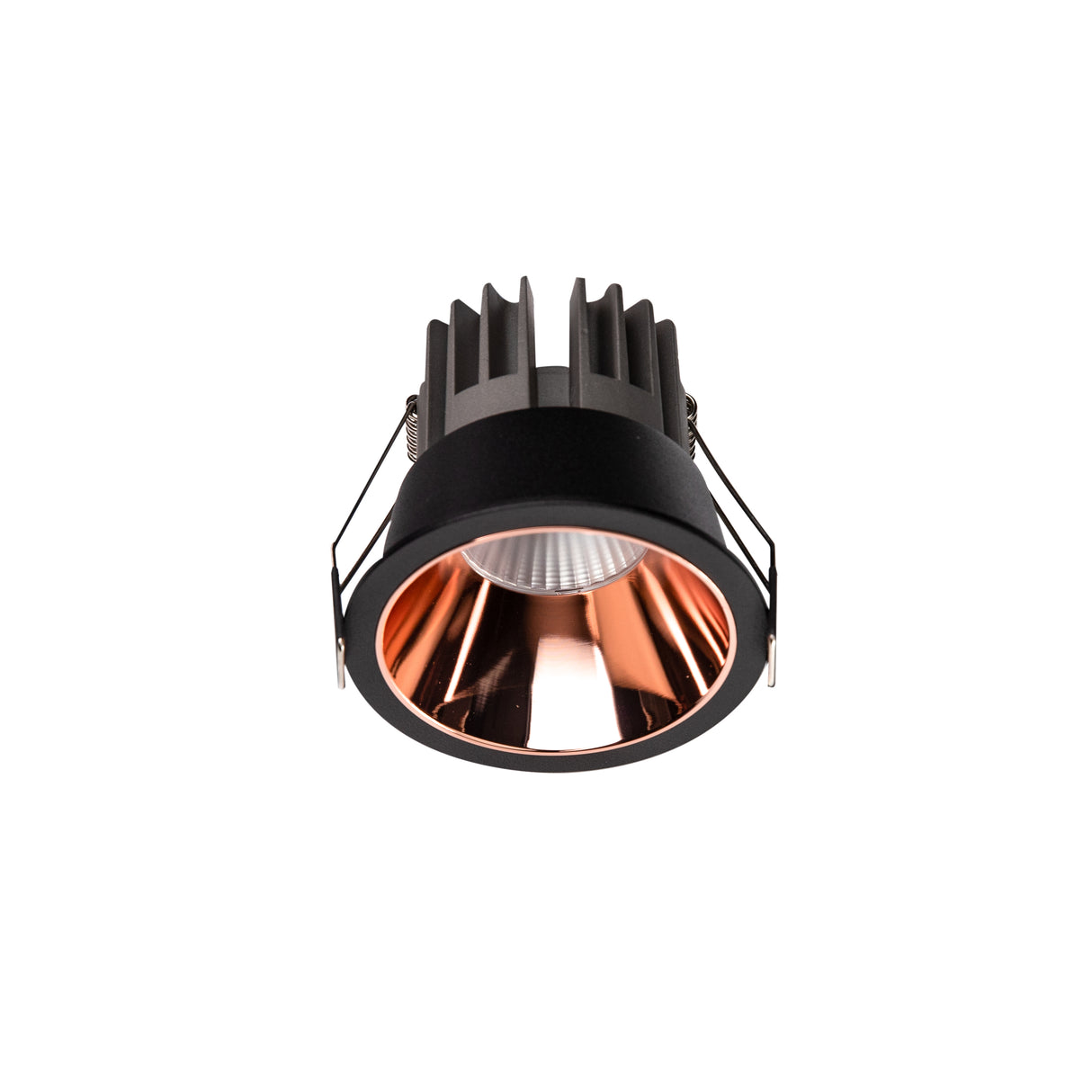

Archilight Ray Downlight 10W Black + Rose Gold
Please Login for Pricing
Description
Description
The Ray series is a stylish, and compact downlight series that offers a wide variety of colour options with a very small trim for that minimalist look. Its power efficient design with high colour rendering index (CRI>90) and low UGR rating (UGR<19) makes it a top quality light with low glare to provide high visual comfort, whilst displaying the true colours of an area beautifully. With a wide variety of colour, size and beam options available, the Ray series is perfect for all uses, from general lighting to accent lighting to highlight the important features in your project.
Specifications
Specifications
-
BrandArchilight
-
SeriesArchilight Ray Series
-
Power Rating10 Watt
-
Standards MetCB,CCC,CE,SAA,TUV
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length8.5 cm
-
Width8.5 cm
-
Height7.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What makes the Archilight Ray 10W downlight suitable for commercial interior projects?
This downlight combines a compact, minimal-trim design with a black and rose gold finish for a refined architectural look. It also offers CRI 90 for strong colour accuracy, UGR below 19 for low glare, and a 50,000-hour lifetime, which makes it well suited to interior spaces where visual comfort and presentation matter.
What beam angle options are available in this Ray downlight family?
The Ray Black + Rose Gold 10W family is available in 23 degree, 36 degree, and 60 degree beam angles. This gives buyers flexibility to choose a narrower beam for more focused lighting or a wider beam for broader general illumination, depending on the project requirement.
What colour temperature options are offered across this parent product range?
Across the family, this downlight is available in 2700K, 3000K, 4000K, and 5000K options. That range allows buyers to select warmer or cooler light output while keeping the same 10W platform, finish, and overall product format.
Are the performance specifications consistent across the variants?
Yes. The listed variants all use 10W power, deliver 850 lumens, have CRI 90, include a driver, and carry a 5-year warranty with a 50,000-hour lifetime rating. The main differences across the family are beam angle and colour temperature.
What cut-out size should this downlight family match?
The child variants in this family are listed with a 75 mm cut-out size. The parent product dimensions are 85 mm by 85 mm with a height of 75 mm, which helps buyers assess fit and ceiling compatibility at a planning stage.
Is this downlight family dimmable?
This product family is described as dimmable optional. That means dimming capability is available for the range, while buyers should confirm the exact dimming requirement for the selected project and control environment.
