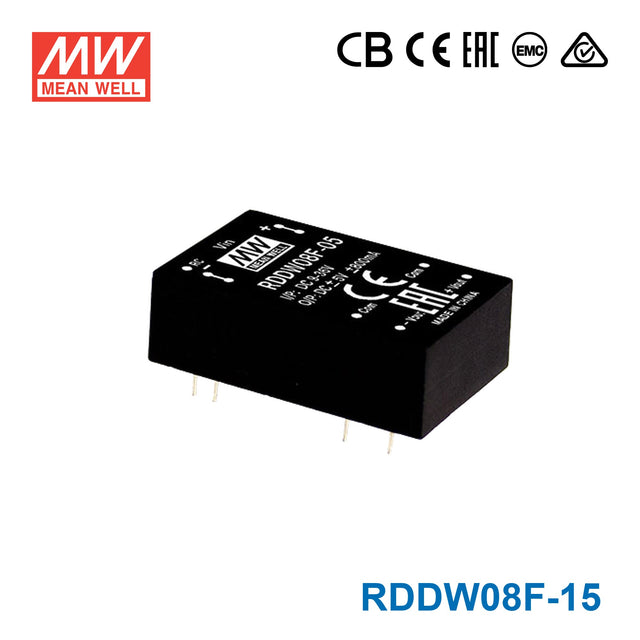

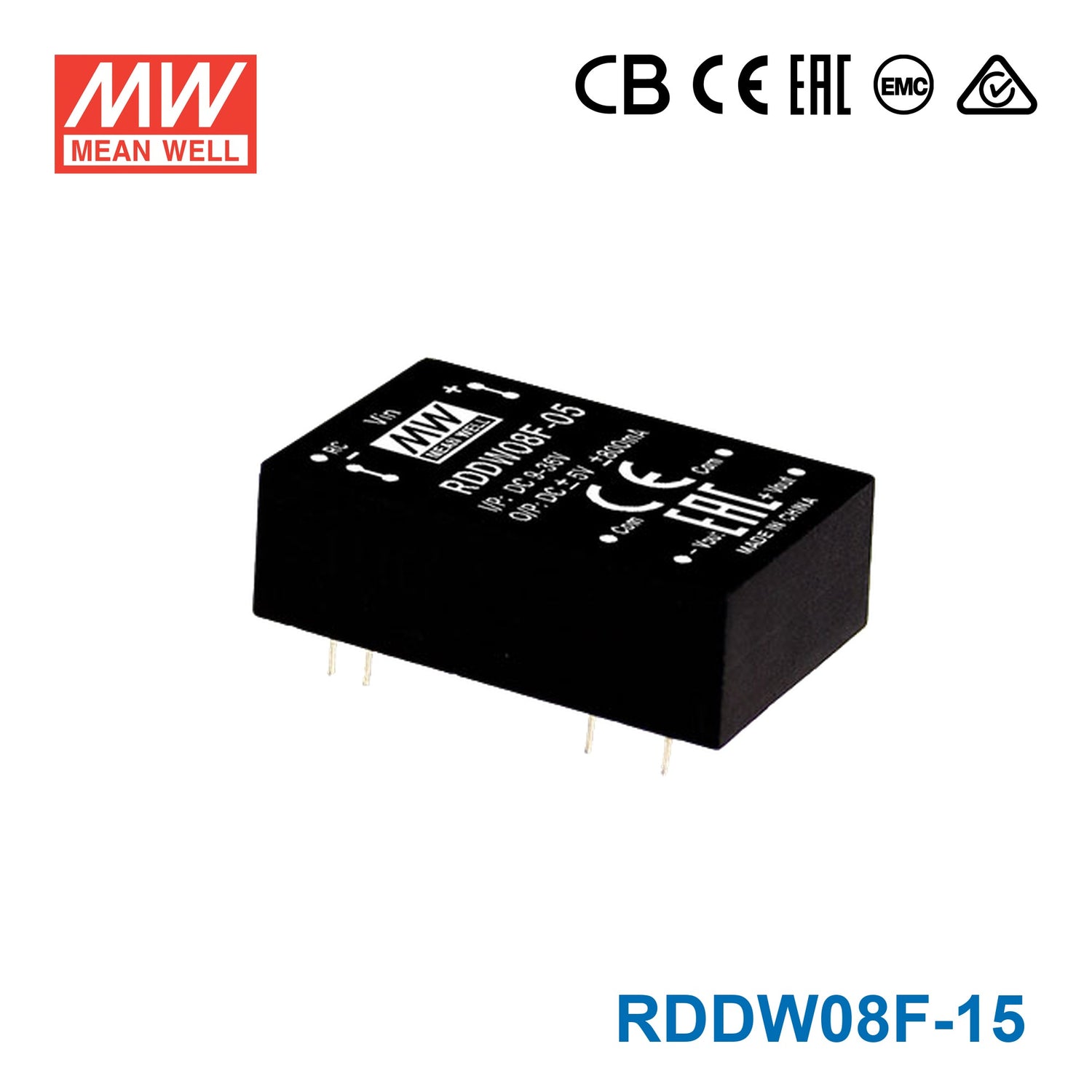

Mean Well RDDW08F-15 DC-DC Converter - 8W - 3~36V in ±15V out 256mA
Log in to see priceOverview
RDDW08F-15 is the ±15V output model of this series: rated power 8W, typical efficiency 85%.
RSDW08 and RDDW08 series are 8W module type DC-DC reliable railway converter with DIP24 package. It features inter-national standard pins, a high efficiency up to 86%, wide working temperature range -40~+85℃, 1.5KVDC I/P-O/P isolation voltage, compliance with EN50155 railway standard, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.
Features
- Compliance with EN50155 railway standard
- DIP 24 package with standard pinout
- 4:1 wide input range
- Wide operating temperature range -40 ~ +85℃
- No minimum load required
- Full encapsulated
- Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
- 1.5KVDC I/O isolation
- Remote ON/OFF control
- 3 years warranty
Specifications
INPUT
- INPUT VOLTAGE (RANGE)
- Normal 24V (9 ~ 36V)
- INPUT CURRENT NO LOAD
- 15mA
- INPUT CURRENT FULL LOAD
- 390mA
- VOLTAGE RANGE
- 9~36Vdc ,
- SURGE VOLTAGE (100ms max.)
- 24Vin models : 50Vdc, 48Vin models : 100Vdc
- FILTER
- Pi type
- PROTECTION (Typ.)
- Fuse recommended. 24Vin models: 3A delay time Type, 48Vin models: 1.5A delay time Type
- INTERNAL POWER DISSIPATION
- 500mW
OUTPUT
- OUTPUT VOLTAGE
- ±15V
- OUTPUT CURRENT
- ±0 ~ 265mA
- EFFICIENCY (Typ.)
- 85%
- CAPACITOR LOAD (MAX.)
- 265μF (each output)
- VOLTAGE ACCURACY
- ±1.5%
- RATED POWER
- 8W
- RIPPLE & NOISENote.2
- 50mVp-p
- LINE REGULATIONNote.3
- ±0.5%
- LOAD REGULATIONNote.4
- Single output models: ±0.5%, Dual output models:±1%
- CROSS REGULATION
- ±5% @ 25%~100% load
- SWITCHING FREQUENCY (min.)
- 100KHz
PROTECTION
- SHORT CIRCUIT
- Protection type : Continuous, automatic recovery
- OVERLOAD
- 120 ~ 180% rated output power Protection type : Recovers automatically after fault condition is removed
- OVER VOLTAGE
- Protection type : Clamp by diode
- UNDER VOLTAGE LOCKOUT Start-up voltage
- 24Vin: 8.8Vdc, 48Vin: 17Vdc
- UNDER VOLTAGE LOCKOUT Shutdown voltage
- 24Vin: 8Vdc, 48Vin: 16Vdc
FUNCTION
- REMOTE CONTROL
- Power ON: R.C. ~ -Vin >3.5~36Vdc or open circuit ; Power OFF: R.C. ~ -Vin <1.2Vdc or short
ENVIRONMENT
- COOLING
- Free-air convection
- WORKING TEMP.
- -40 ~ +85℃ (Refer to "Derating Curve")
- CASE TEMPERATURE
- +100℃ max.
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -55 ~ +125℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- 0.03% / ℃ (0 ~ 71℃)
- SOLDERING TEMPERATURE
- 1.5mm from case of 1 ~ 3sec./260℃ max.
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: compliance to EN61373(Category 1- Class B)
SAFETY & EMC ( Note.5)
- SAFETY STANDARDS
- EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
- WITHSTAND VOLTAGE
- I/P-O/P:1.5KVDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- ISOLATION CAPACITANCE (Typ.)
- 1000pF
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55032 Class A/B with external components Radiated BS EN/EN55032 N/A - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.) - RAILWAY STANDARD
- EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC
OTHERS
- MTBF
- Single: 1500Khrs, Dual: 1300Khrs MIL-HDBK-217F(25℃)
- DIMENSION (L*W*H)
- 31.8*20.3*10.2mm (1.25*0.8*0.4 inch)
- CASE MATERIAL
- Black coated copper with non-conductive base
- PACKING
- 18.4g ; 10pcs/per tube, 700pcs/70 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input(F:24Vdc, G:48Vdc), rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Bus, tram, metro or railway system
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Highly vibrating, heavily dusty, extremely low or high temperature harsh environment
Downloads
Certificates3
Test reports1
FAQ
Can I use the RDDW08F-15 for ±15V analog or instrumentation circuitry?
Yes, this converter is aimed at low-power constant voltage applications that need a ±15V output from a 9~36V input range. With an 8W rating, it is better suited to analog, instrumentation, or signal-interface sections than to larger 15V loads.
Is the RDDW08F-15 suitable for compact embedded electronics that need ±15V support power?
Its 31.8 × 20.3 × 10.2 mm size and 0.0184 kg weight make it practical for compact embedded assemblies. The 8W output class fits support-power duties where space is limited and the load is modest.
Can the RDDW08F-15 be used where the input source varies across low-voltage systems?
The converter accepts a 9~36V input range, which gives it flexibility across a broad span of low-voltage source conditions. That is useful when the same design needs to accommodate different upstream supply levels while keeping a constant ±15V output.
Would the RDDW08F-15 fit industrial signal-processing or interface modules?
It can fit industrial signal-processing or interface modules that need ±15V at low power. The 8W limit keeps it in the support-power category, so it is best matched to electronics modules rather than larger field or motion devices.
What are the main differences between the RDDW08F-15 and its sibling models?
All listed RDDW08F versions are 8W units with the same 9~36V input range, 31.8 × 20.3 × 10.2 mm dimensions, and 18.4g weight. The difference is the output specification: RDDW08F-05 is ±5V and ±800mA, RDDW08F-12 is ±12V and ±333mA, and RDDW08F-15 is ±15V and ±265mA.
Is the RDDW08F-15 rated for outdoor use or extreme temperatures?
The operating temperature range is -40°C to +85°C, which supports demanding temperature conditions in industrial or embedded equipment. No IP rating is provided, so the supplied specs do not define it as suitable for outdoor exposure.
