Ltech LT-600 - DMX Master controller
Log in to see priceOverview
LT-600 lighting control system is our latest launch of a world’s advanced LED lighting products video display control system. LT-600 kernel is VLSI. It can achieve computer’s simultaneously play, offline video on demand, WiFi wireless transmission, automatic timing control and its exterior connect with DMX console to reach the world’s first 5 in 1 function. Achieving synchronization/ offline seamlessly switch, no need any splitter. Online control doesn’t need to add DVI display adapter and send cards, easy to install, matching software’s function perfect. Easy to operate. Compatible with a variety of LED driving IC; break through traditional rule of cabling restrictions, support a variety of any cabling’s abnormal lighting project, make the controlling cabling more flexible, apply to any indoor or outdoor LED lights online / offline control. Advanced color grey level processing technology, consistent with human eye’s visual sensory, display effect will be more vivid, higher brightness, richer color. Let your LED lights effect performance thoroughly, one-upmanship!
Features
- One set controller collect 5 kinds major function, which reached by previous multiple controllers.
- Ethernet real time computer control via synchronous display, supporting WiFi wireless transmission.
- Offline play stored programme in SD card, stored programme, speed chosen and other functions will be seen with half an eye on the LCD.
- Compatible with DMX protocol, connecting DMX console to build lighting control network.
- Support WiFi wireless transmission, suitable for special occasion, no wiring needed.
- Supporting timing display. Realize display different programs, no matter on working day or weekend.

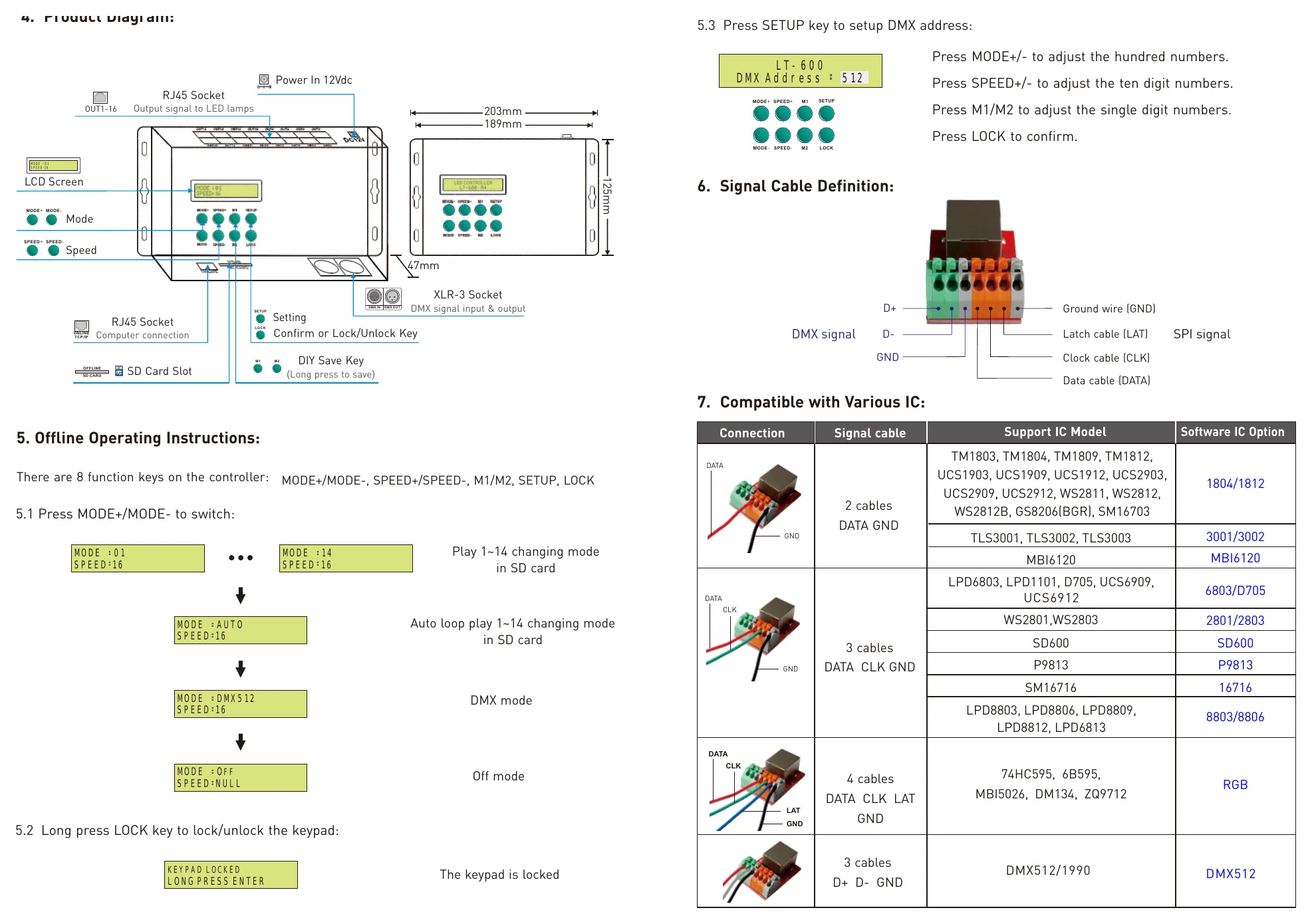

- Output DMX signal directly, and controlling various LED driving chips, The LED lights base on the following IC can be controlled: 74HC595, 6B595, MBI5026, DM134, ZQ9712, LPD6803, LPD6813, LPD1101, D705, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2801, WS2803, WS2811,WS2812, WS2812b, HL1609, SM16716, SD600, P9813, LPD8803, LPD8806, LPD8809, LPD8812, TLS3001, TLS3002, TLS3003, TM1803, TM1804, TM1809, TM1812, MBI6120 etc..
- LED lights not only in accordance with the rule of cabling, but also support a variety of any cabling’s abnormal lighting project, easy to operate via setting software.
- Extra large control capability, 16 channels signal output, Max. control 32768 full color pixels per LT-600. Support network synchronization of multiple controllers, multiple networked can control max. 250,000 full-color pixels.

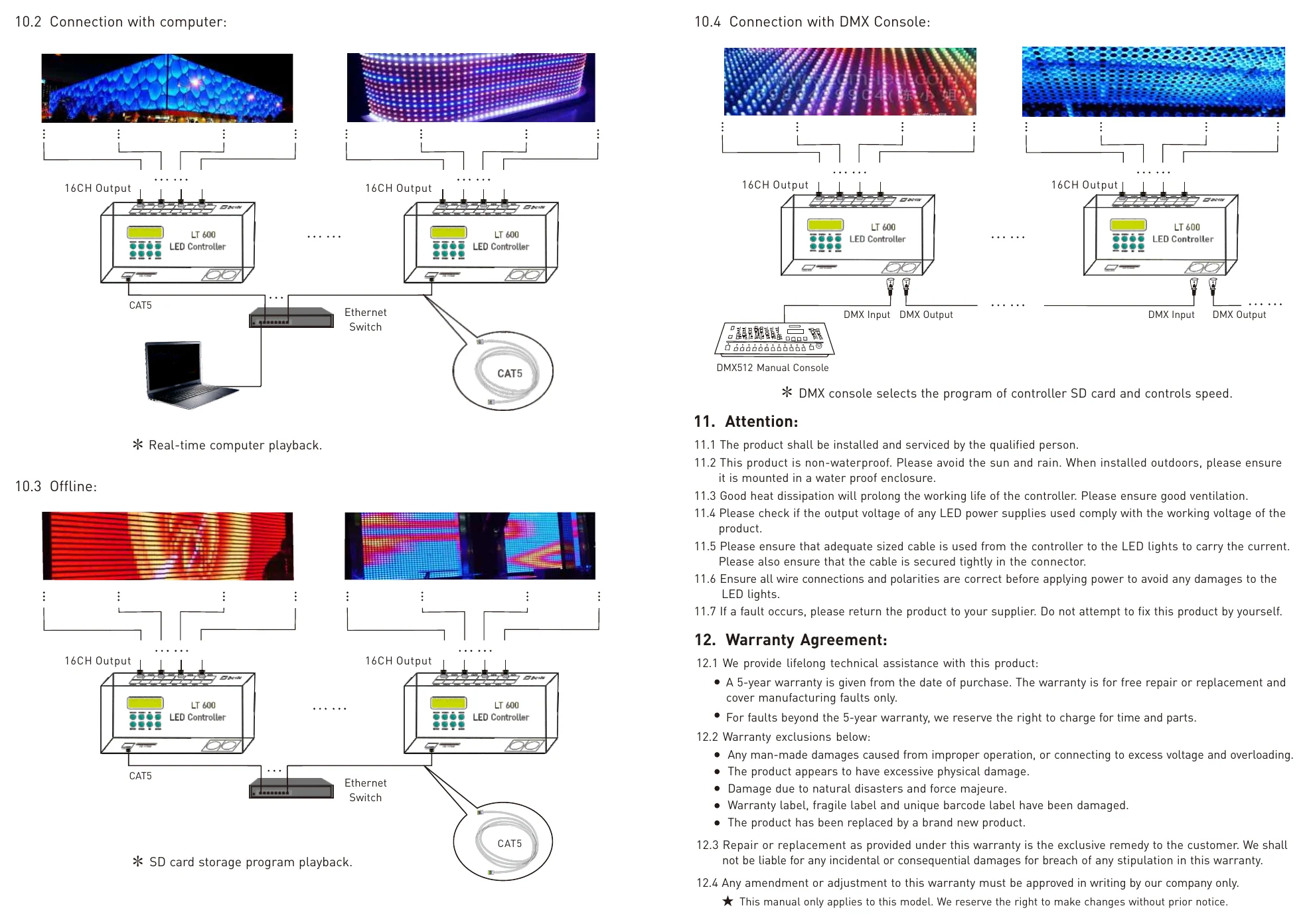

- On-line controlling adopt universal 10/100/1000MBPS network interface, with TCP/IP standard Ethernet protocol, accommodate to wide range. Reliable communication, support WiFi wireless network transmission and real-time simultaneous display. Also can use internet’s remote control to achieve real-time simultaneous display.
- Adopting advanced image processing technology. Online synchronous play doesn’t need to add DVI display adapter or send card, any desktop and laptop can control it, convenient for project’s debugging and demonstration.
- Adopting the way of network synchronization, synchronous controlling of multiple can be achieved through network switch. The transmission distance will be unlimited.
- Animation, video files converted generate ultra-fidelity off SD card’s read files. ultra-small size, let the time of request programmes longer. And the content more affluent, SD card is easy to play the animation, either pull down and then use card reader to update, can also be updated remotely via Ethernet.
- Advanced color grey level processing technology, consistent with human eye’s visual sensory, display effect will more vivid, higher brightness, richer color. Effectively remove the tooth angle produced by the floating line in video, show the smooth and natural image.
- Perfect software function, simple to operate, built-in video player, support most media format. User can compile various picture, texts, cartoon, video as programmes that will be present. Can input any text display in the process of play. Support viewfinder read the display on screen directly. Breakthroughing the restrictions to code stream format, play format file at will. Achieve split screen display, can divide screen at will. Switching Chinese and English version freely.
Specifications
Specifications
- Working voltage
- 12Vdc (with a power supply adapter)
- Output signal channels
- 16 channels
- SPI output
- Max 1364 pixel×16CH 21824 pixel
- DMX output
- Max 170 pixel×16CH 2720 pixel
- Input & output interface
- RJ45
- Grey level
- Max 65536 scale (64K)
- Refreshing frequency
- 60Hz~3000Hz
- Online transmission mode
- TCP/IP standard internet protocol
- Off-line storage media
- SD memory card
- SD card capability
- Max. 2GB
- The 3th interface
- DMX512/1990 Protocol
- Operating system
- Support Chinese and English Windows 2000/2003/XP/Vista/Windows 7
- Product size
- L203×W125×H47(mm)
- Packing size
- L267×W138×H88(mm)
- Weight
- 920g(N.W.) 1450g(G.W.)
Certifications & ratings
- warranty
- 5 years
- Certification marks
- FCC, CE, RoHS, SGS, UKAS
Technical drawings
Downloads
FAQ
What is the Ltech LT-600 designed for?
The Ltech LT-600 is a DMX master controller built for LED lighting control and video display control applications. It is intended for projects that need centralized control of LED effects with DMX-based operation and advanced playback features.
What control and playback functions does the LT-600 include?
The LT-600 supports simultaneous computer playback, offline video on demand, and automatic timing control. It provides SPI and DMX512 signal outputs and uses TCP/IP for online transmission.
Is the LT-600 suitable for projects that need both live and offline control modes?
Yes. The LT-600 is described as supporting synchronization and offline mode with seamless switching between them. That makes it a practical option for commercial lighting environments that need flexible playback and scheduling behavior.
Can the LT-600 work with a DMX console?
Yes. The product description states that the LT-600 can interface with a DMX console. For buyers already working in DMX-based environments, that makes it relevant for broader control-system integration.
What makes the LT-600 different from simpler DMX controllers?
The LT-600 is positioned as more than a basic DMX controller because it combines video display control, offline playback, timing control, and SPI/DMX512 output functions in one unit. It is aimed at more advanced LED lighting applications where multiple control functions are needed in a single controller.
Does the LT-600 include any features for display quality or visual performance?
Yes. The description highlights advanced color grey level processing technology designed to align with human visual perception. This is intended to improve the visual performance of LED lighting effects.
What are the warranty period and product weight for the LT-600?
The listed warranty period for the Ltech LT-600 is 5 years. The product weight is 0.9200 kg, which can be useful when evaluating equipment handling and project logistics.
