Ltech LT-905-OLED Constant Voltage Decoder - DMX/RDM

The LT-905-OLED is a 5-channel constant voltage decoder designed for DMX/RDM lighting control applications. It is intended for dimming and control of DIM, CT, RGB, RGBW, and RGBWY LED modules in commercial and professional lighting systems.

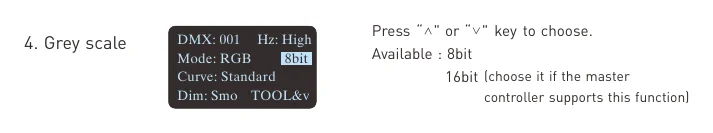

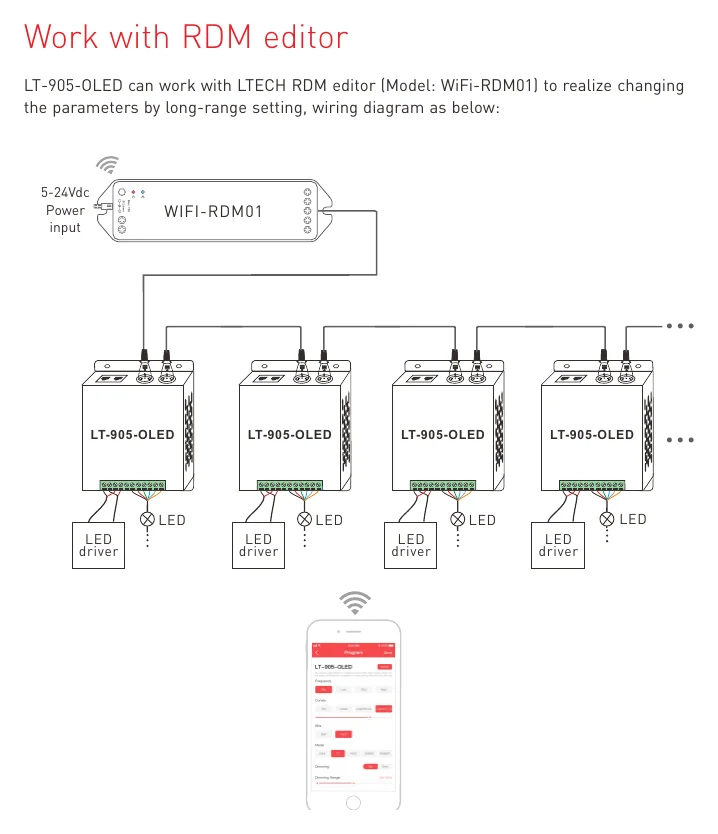

This model supports both DMX and RDM control. It also supports 8-bit and 16-bit functions, which can be useful in projects that need either standard control resolution or finer dimming adjustment.

The LT-905-OLED is rated for up to 600W maximum power and 25A maximum current across its 5 channels. Each channel is rated at 5A, making it suitable for constant voltage LED loads within those limits.

Yes, the product description states that the LT-905-OLED works with both 12V and 24V DC LED modules. That makes it a flexible option for buyers managing different constant voltage LED product types within one control ecosystem.

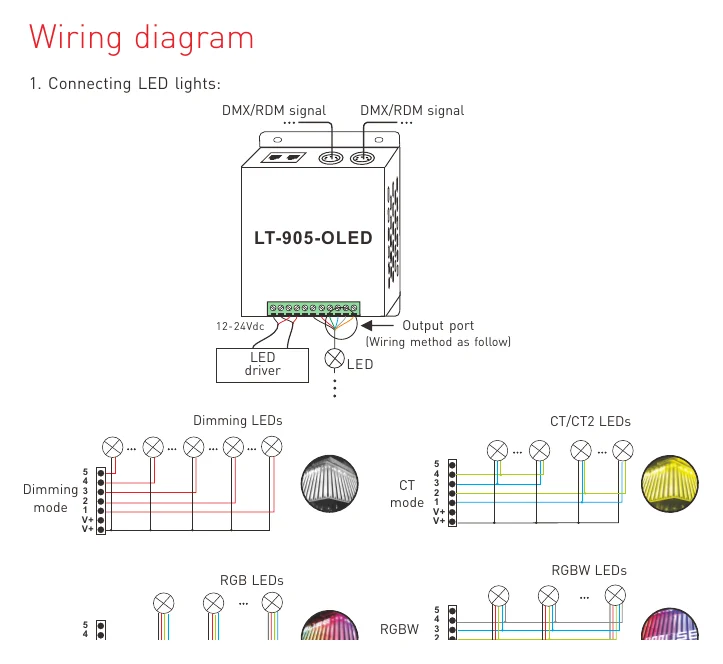

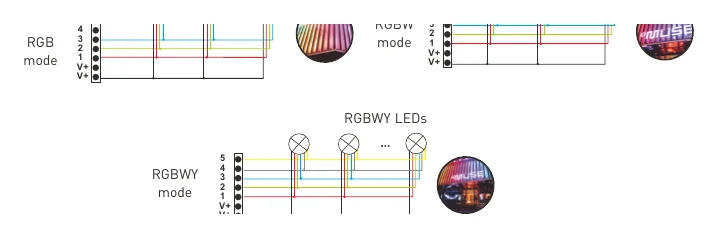

Its 5-channel design allows it to support multiple LED control types including DIM, CT, RGB, RGBW, and RGBWY. That gives specifiers and integrators more flexibility than single-purpose decoders when working across varied lighting applications.

This decoder is rated for operation from -30°C to 65°C. That wide temperature range makes it suitable for projects where the control hardware may be exposed to colder or hotter operating environments than typical indoor-only equipment.

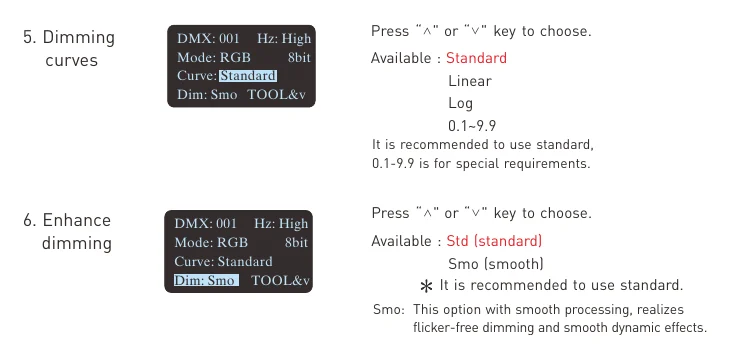

The LT-905-OLED supports a dimming curve range of 0.1 to 9.9, as stated in the product description. Combined with 8-bit and 16-bit support, this helps it serve applications that require more refined dimming behavior.
