Ltech LT-912-OLED Constant Voltage Decoder - DMX/RDM

The LT-912-OLED is a 12-channel constant-voltage decoder for DMX/RDM lighting control systems. It is intended for projects where multiple dimming, color temperature, or RGB loads need to be controlled from a DMX signal. This model supports 12V and 24V DC LED modules.

This decoder provides 12 output channels rated at 4A each, with a 48A maximum total current. Its maximum power rating is 1152W. That makes it suitable for larger multi-channel constant-voltage LED control applications.

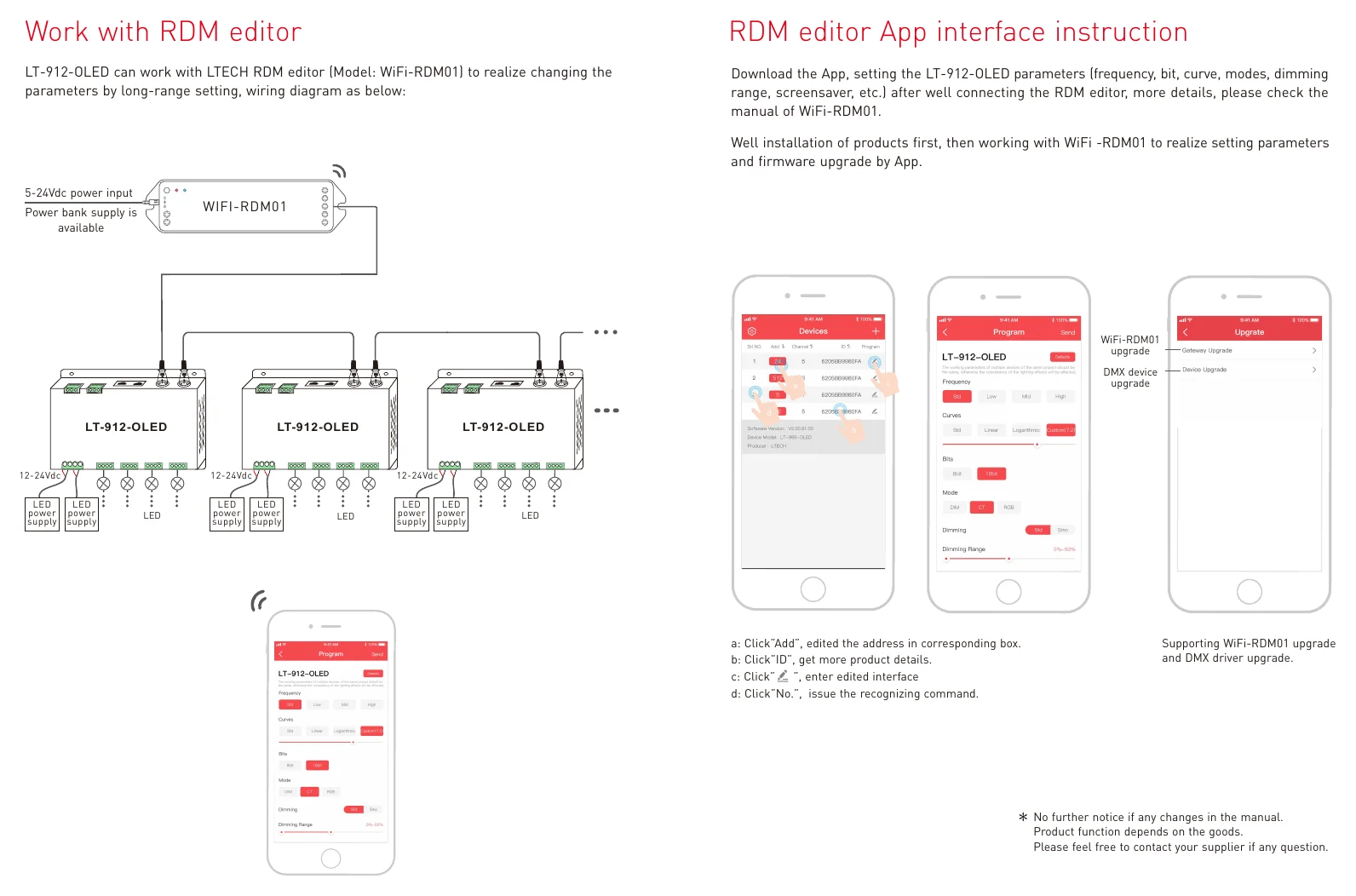

Yes, this model supports both DMX and RDM dimming control. That makes it appropriate for installations that require standard DMX operation as well as systems using RDM-capable device management. The product description specifically identifies DMX/RDM support for this decoder.

The LT-912-OLED is best suited for multi-channel constant-voltage LED applications where DIM, CT, or RGB control is needed. It is a practical option for commercial and architectural lighting systems that need many independently controlled channels from one decoder.

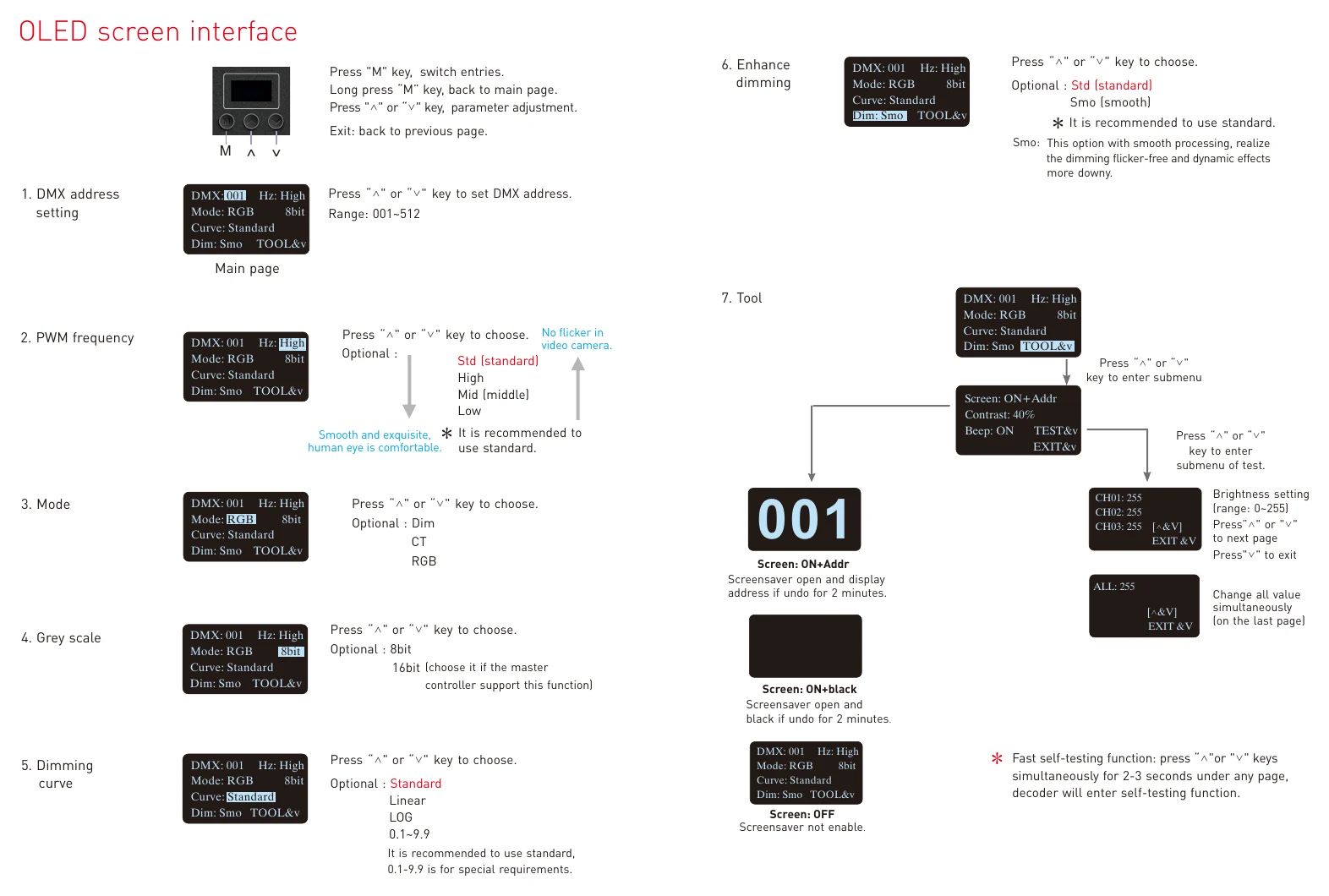

A key differentiator is its 12-channel design, which allows more controlled outputs from a single decoder than lower-channel models. It also combines DMX/RDM support, an OLED display, and both 8-bit and 16-bit functionality in one unit. This makes it a stronger fit for more complex multi-zone or multi-function LED control layouts.

Yes, the decoder supports both 8-bit and 16-bit functions. It also offers a dimming curve range from 0.1 to 9.9. These features make it better suited for applications where smoother or more precise dimming behavior is important.

This model is rated for operation from -30 C to 65 C, which gives it a wide working temperature range. That makes it more suitable than basic indoor-only control gear for projects exposed to colder or hotter conditions. It also includes a 5-year warranty, which is a useful indicator for long-term commercial use.
