Ltech LT-916 Constant Voltage Decoder - DMX/RDM

The Ltech LT-916 is a constant voltage DMX/RDM decoder designed for high-power, multi-channel LED control projects. It is built for applications that need up to 16 output channels and supports single color, color temperature, RGB, and RGBW control modes.

This model supports up to 1152W total output power at 24V DC. It provides 16 channels with a maximum of 3A per channel, making it suitable for larger constant voltage lighting zones that need many independently controlled outputs.

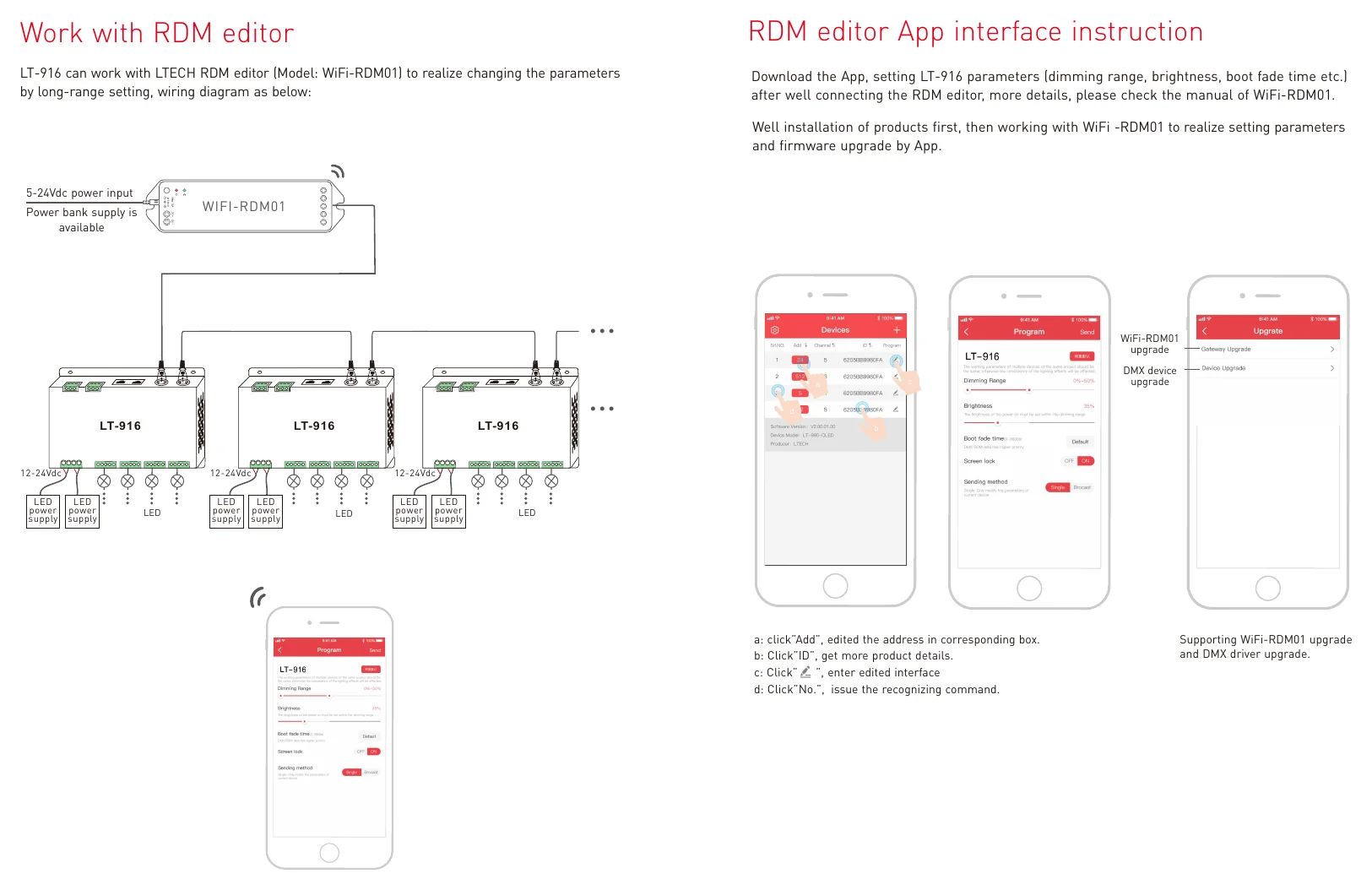

Yes. The LT-916 supports DMX control and also includes RDM remote management protocol support. That allows compatible RDM master consoles to handle functions such as parameter viewing, setting adjustments, DMX address setting, and device identification.

The LT-916 offers four selectable modes: single color, color temperature, RGB, and RGBW. This gives it flexibility for commercial and architectural LED projects that use different constant voltage fixture types across the same general control platform.

It is designed for demanding use cases with features such as photoelectric isolation, short circuit protection, over current protection, and fault warnings. The operating temperature range of -30°C to 65°C also makes it suitable for environments where wider temperature tolerance matters.

Compared with basic decoders, the LT-916 stands out with 16 output channels, support for both 8-bit and 16-bit dimming resolution, and RDM remote management. It also features photoelectric isolation and automatic recovery protections for reliable device management.
