Ltech LT-916-OLED Constant Voltage Decoder - DMX/RDM

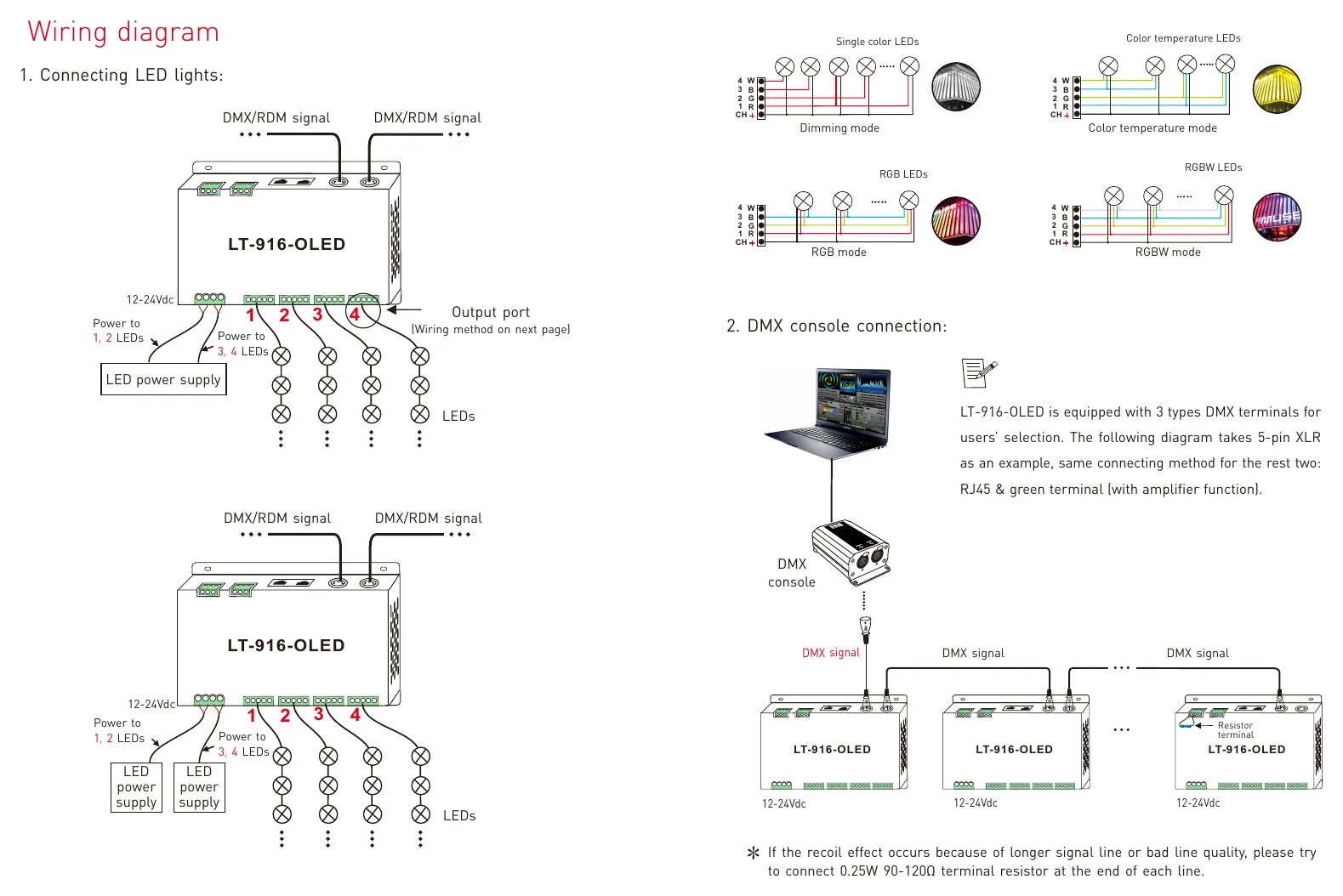

The Ltech LT-916-OLED is a constant voltage DMX/RDM decoder built for high-power, multi-channel LED control applications. It provides 16 output channels and is suited for commercial or architectural projects that need centralized control across multiple lighting zones or fixture groups.

This model is rated for up to 1152W total output power at 24V DC. It supports up to 3A per channel, with a total rated current of 48A across its 16 channels.

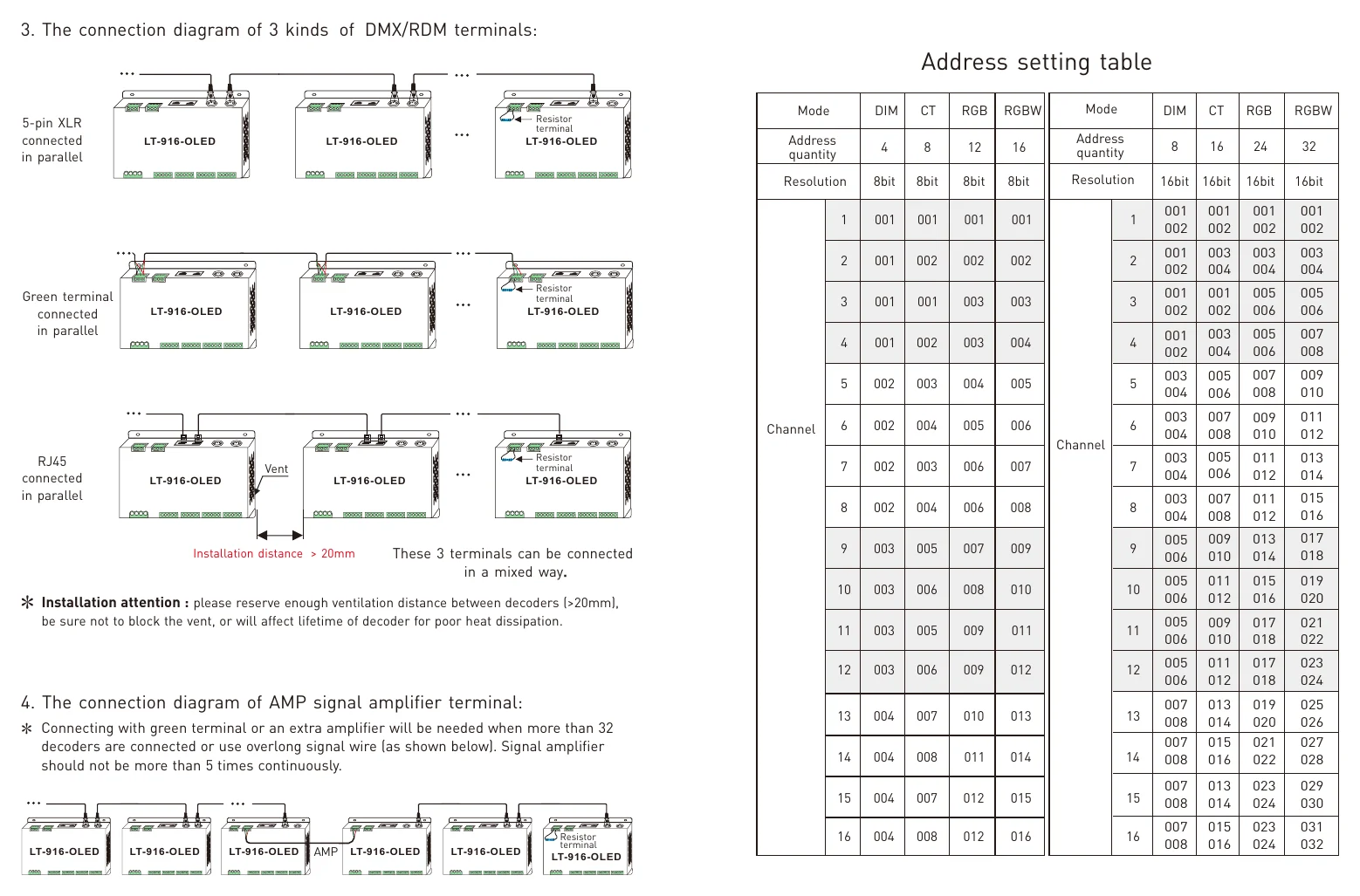

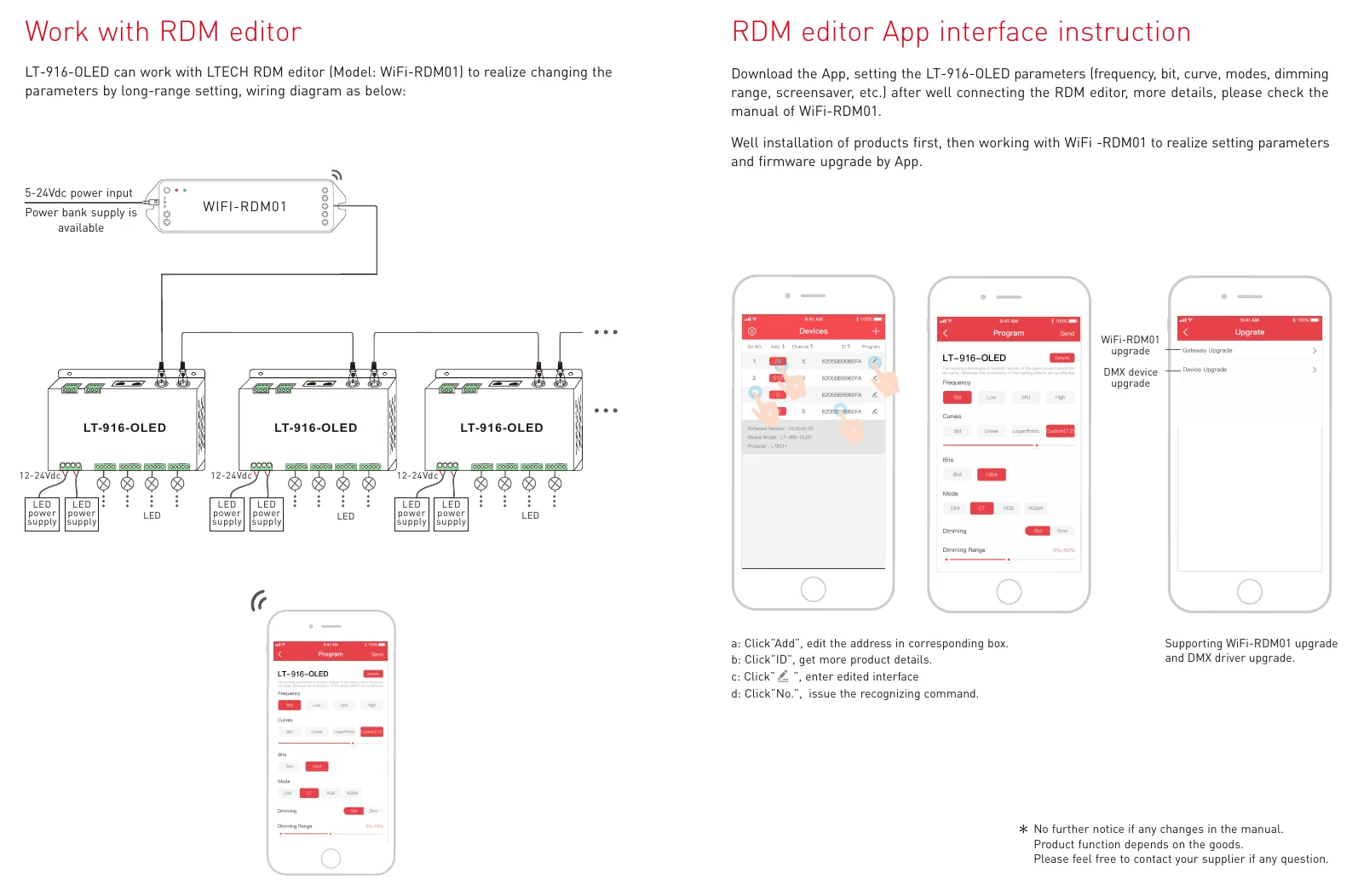

The LT-916-OLED supports both DMX and RDM control. RDM support allows compatible master consoles to handle functions such as parameter browsing, parameter setting, DMX address setting, and device identification remotely.

This decoder supports four selectable modes: single color, color temperature, RGB, and RGBW. That gives it flexibility for different constant voltage LED lighting applications without changing to a different decoder model.

Compared with basic decoders, the LT-916-OLED is built for more demanding projects with 16 output channels, OLED touch-button operation, and RDM remote management. It also offers selectable 16-bit or 8-bit gray levels and adjustable dimming curves for finer control performance.

Yes. The LT-916-OLED has an operating temperature range of -30°C to 65°C, which makes it suitable for a wide range of professional indoor and enclosure-based installations where temperature conditions can vary.

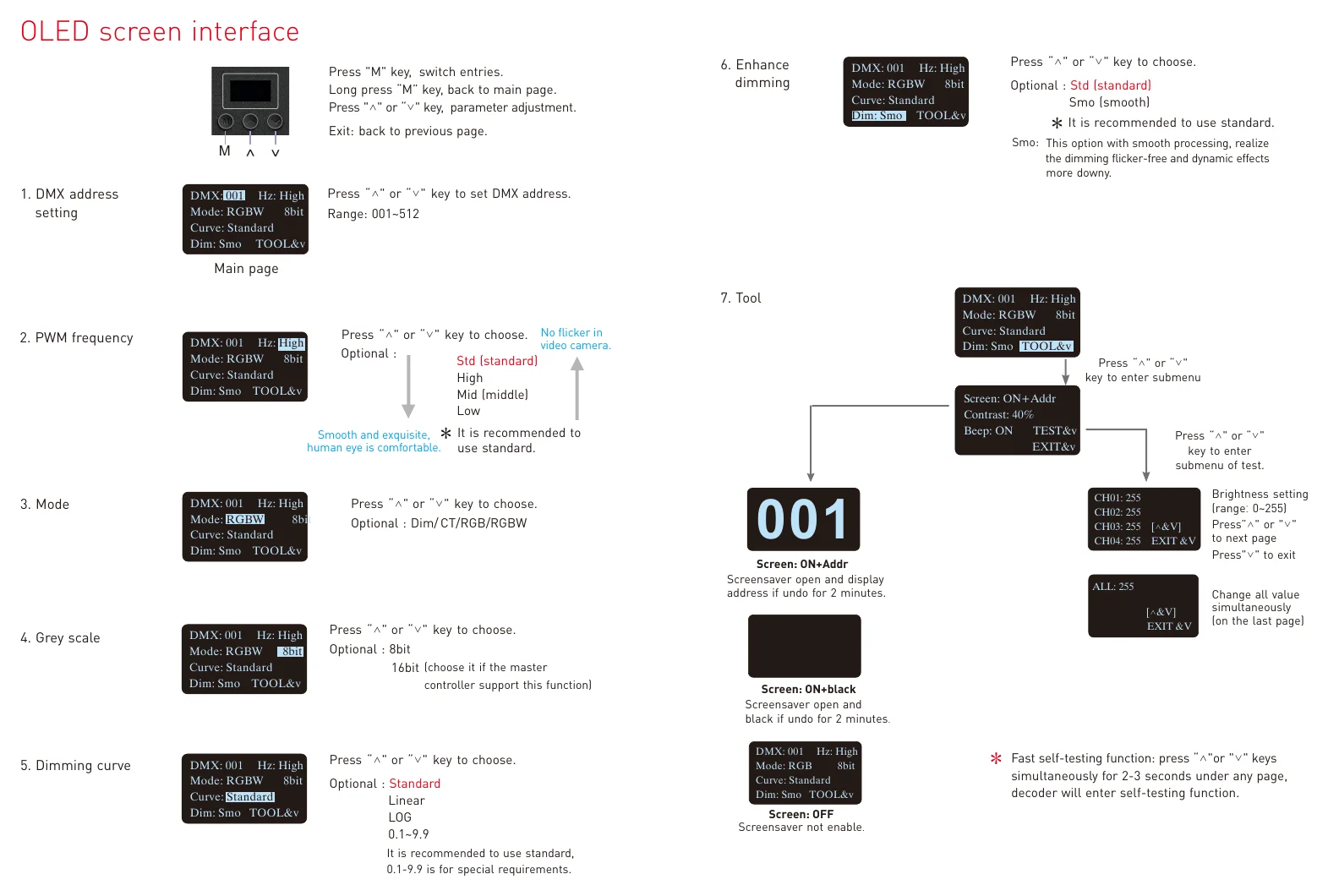

This model includes photoelectric isolation, short circuit protection, over-current protection, and over-temperature protection. It also features an OLED display for status monitoring, supporting maintenance and system checks in professional lighting environments.

The LT-916-OLED includes a 5-year warranty. That longer warranty period is useful for commercial buyers who need a decoder intended for long service life in professional LED control systems.
