Ltech LT-932-OLED Constant Voltage Decoder - DMX/RDM
Log in to see priceOverview
Designed for Hi-power multiple channels application, 32 channels output, and Max. 3A current per channel, up to 2304W output power.
Features

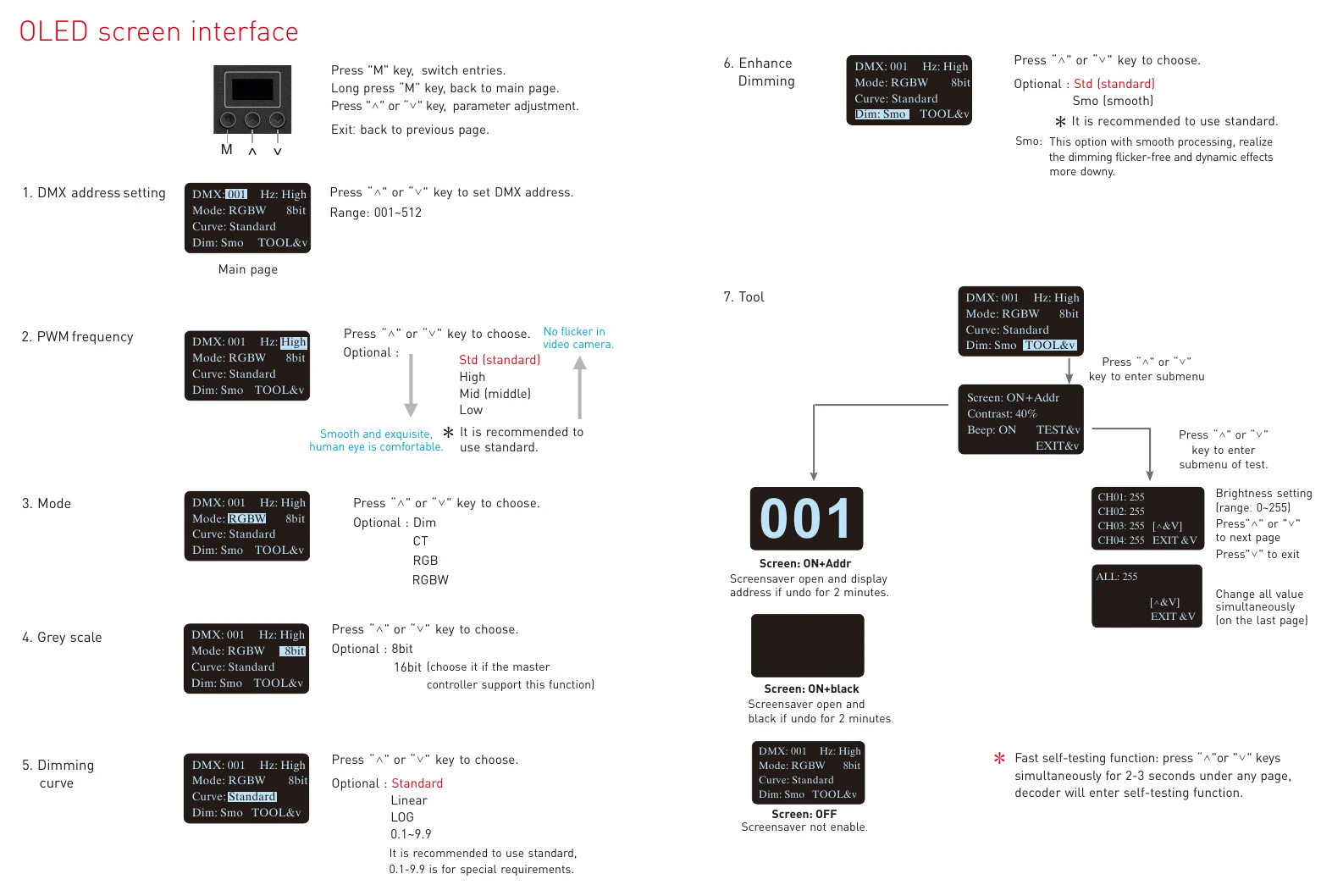

- Easy operation with OLED screen and touch buttons.
- 4 kinds of mode optional: single color, color temperature, RGB and RGBW.
- 3-pin XLR, 5-pin XLR, RJ45 and green terminal DMX interface with photoelectric isolation, improve signal transmission efficiency and anti-interference ability, the green terminal also has signal amplifier function.

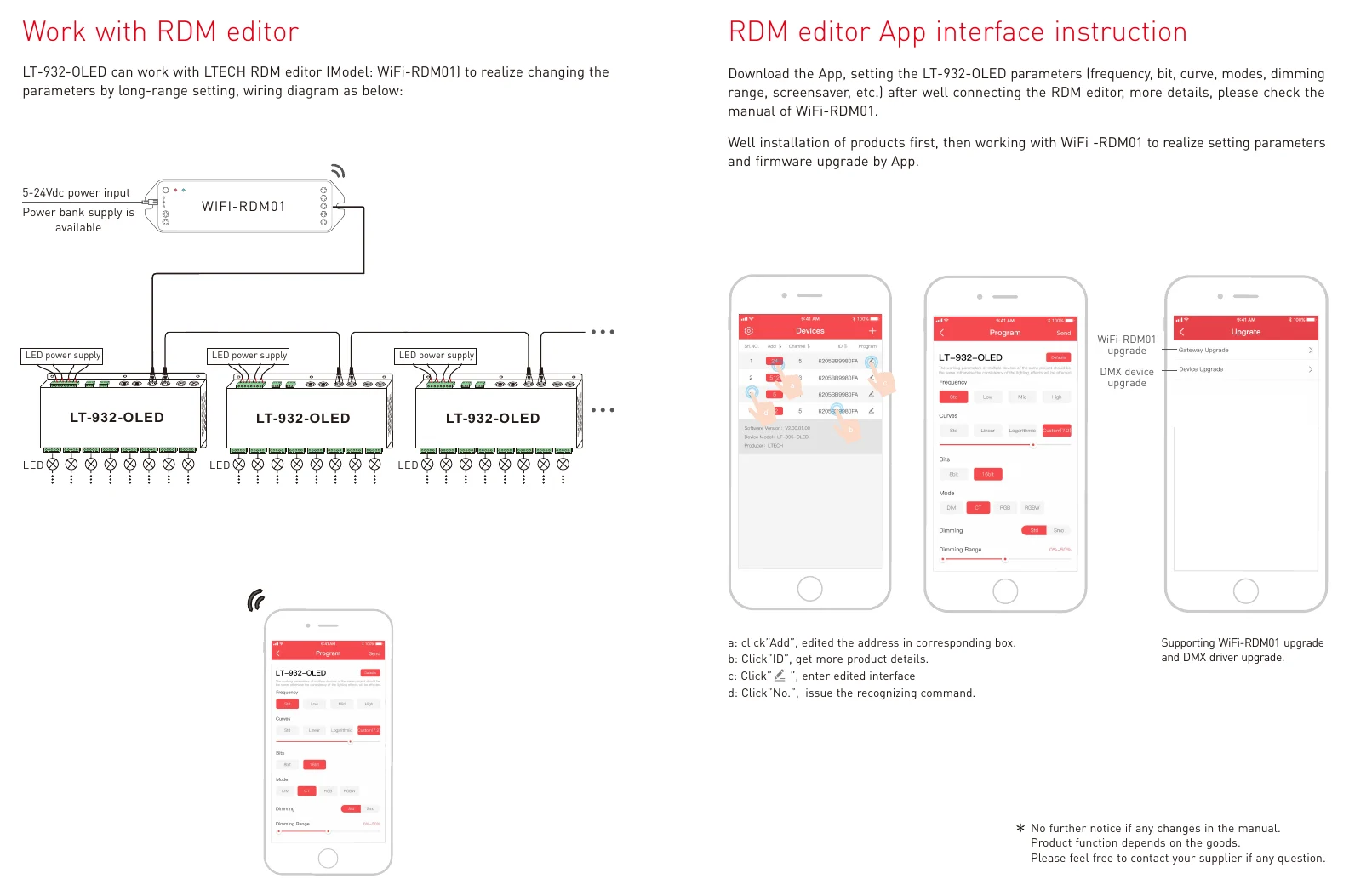

- With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
- With firmware upgrade function.
- With short circuit, over current and over temp. protection, as well as warning function when fault.
- With power-on state management and fast self-testing function.
- 16bit (65536 levels) / 8bit (256 levels) grey level optional.
- Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
Specifications
Technical specs
- Model
- LT-932-OLED
- Input signal
- DMX512/RDM
- Input voltage
- 12~24Vdc
- Current load
- 3A × 32CH Max 96A
- Output power
- 0~36W...72W × 32CH Max. 2304W
- DMX interface
- 3-pin XLR, 5-pin XLR, RJ45, Green terminal
- Control mode
- Dimming/CT/RGB/RGBW
- Dimming curve
- 0.1~9.9, standard, linear, LOG
- Grey level
- 8bit (256 levels) / 16bit (65536 levels)
- Photoelectric isolation
- Yes
- Protection
- Short circuit / Over current / Over temp.
- Working temperature
- -30°C~65°C
- Dimensions
- L300×W122×H39mm
- Package size
- L313×W127×H41mm
- Weight (G.W.)
- 1180g
Certifications & ratings
- 32 CHANNEL
- 32 CHANNEL
- warranty
- 5 years
- Marked features
- OLED display, 8 bit / 16 bit, 4 kinds of DMX interfaces, Protection: OTP/OCP/SCP, Over temp. protection, Display
- Certification marks
- cRUus, FC, CE, RoHS, ISO9001:2008

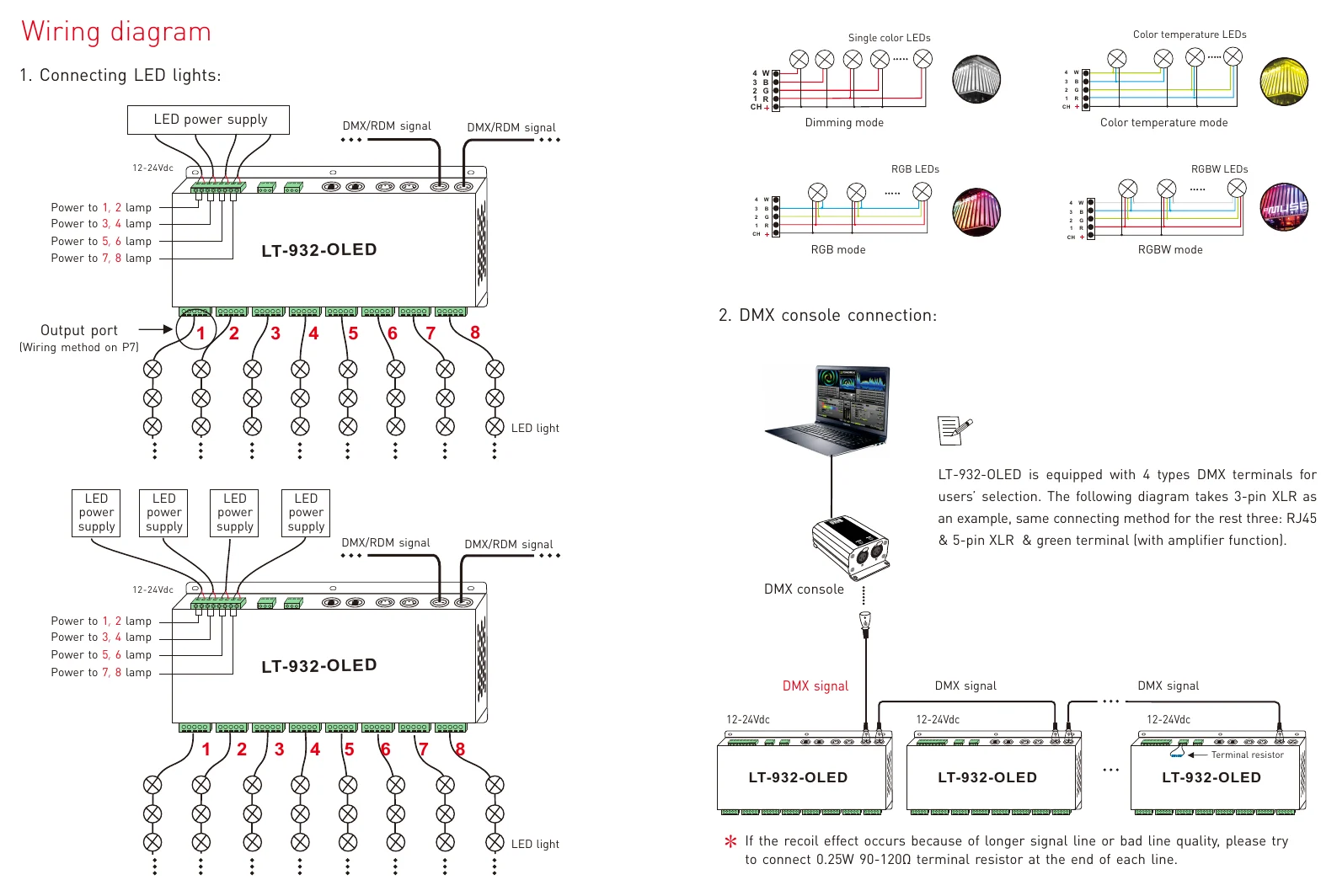

Technical drawings
Downloads
FAQ
What is the Ltech LT-932-OLED used for?
The LT-932-OLED is a constant voltage DMX/RDM decoder designed for LED control applications that need many output channels. It is suited for dimming, color temperature, RGB, and RGBW control in commercial and professional lighting systems. Its 32-channel design makes it a fit for larger multi-zone LED projects.
How many channels does the LT-932-OLED provide?
This model provides 32 output channels, with each channel rated at 3A. That gives it a maximum combined current of 96A.
What is the maximum power capacity of the LT-932-OLED?
The LT-932-OLED supports up to 2304W maximum power. It is built for high-capacity constant voltage LED control where many channels need to be managed from a single decoder. That makes it suitable for larger architectural or commercial lighting systems.
Does the LT-932-OLED support both DMX and RDM control?
Yes, this model supports both DMX and RDM control. That makes it suitable for systems that require standard DMX dimming as well as RDM-capable environments. The product description specifically identifies it as a DMX/RDM decoder.
What voltage LED systems is the LT-932-OLED compatible with?
The LT-932-OLED works with 12V and 24V DC LED modules. The input voltage range is 12~24Vdc, allowing it to drive constant voltage LED strips and modules within this range.
What dimming and control features does the LT-932-OLED include?
The LT-932-OLED supports 8-bit and 16-bit functions for more precise control options. It also offers a dimming curve range of 0.1 to 9.9. These features make it better suited to professional lighting applications that need finer dimming behavior.
Is the LT-932-OLED suitable for demanding environments?
This model is rated for operation from -30°C to 65°C. That wide temperature range makes it appropriate for installations where environmental conditions may vary significantly. It also includes a 5-year warranty, which is useful for commercial buyers evaluating long-term reliability.
