Ltech LT-995 Constant Voltage Decoder - DMX/RDM

The Ltech LT-995 is a constant-voltage DMX/RDM decoder for LED control systems that need multi-channel output. It is designed for applications where a controller must manage constant-voltage LED loads with DMX-based dimming and remote device management support.

This model provides 5 output channels with a maximum total output power of 720W. Its listed output voltage is 24V, and the rated current is 30A overall.

Yes. The LT-995 supports DMX control and also includes RDM functionality for remote management tasks such as parameter viewing, parameter setting, DMX address setting, and device identification through an RDM master console.

Compared with a basic DMX-only decoder, the LT-995 adds RDM support for remote management and device recognition. It also includes a digital display, touch-button operation, self-testing, selectable PWM frequency, and selectable 16-bit or 8-bit grey levels.

It is built for a wide operating temperature range from -30°C to 65°C, which supports use in challenging indoor or protected equipment environments. The unit also includes short-circuit protection, overload protection, and fault warning functions for added operating reliability.

The LT-995 offers selectable 16-bit and 8-bit grey level modes. That means you can choose between finer dimming resolution with 65,536 levels or standard 256-level control depending on system requirements.

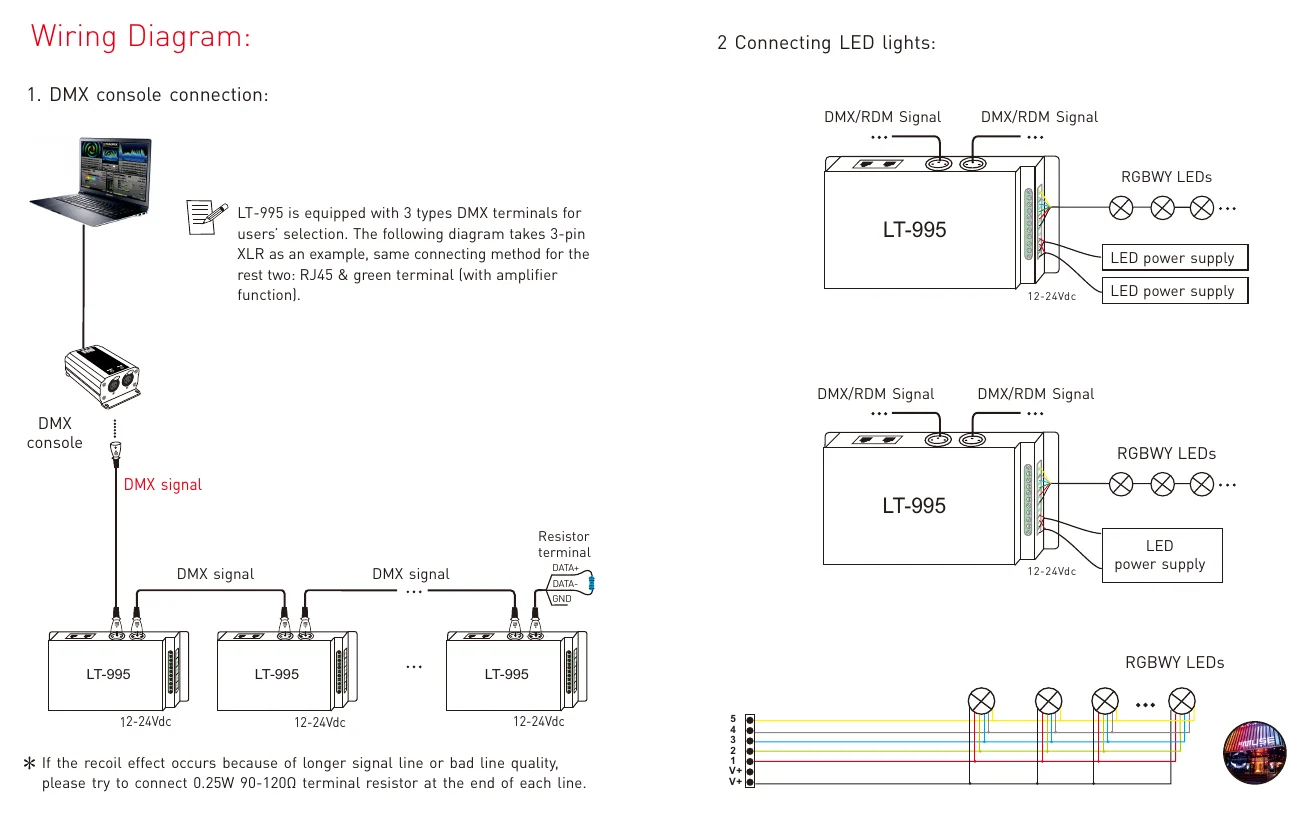

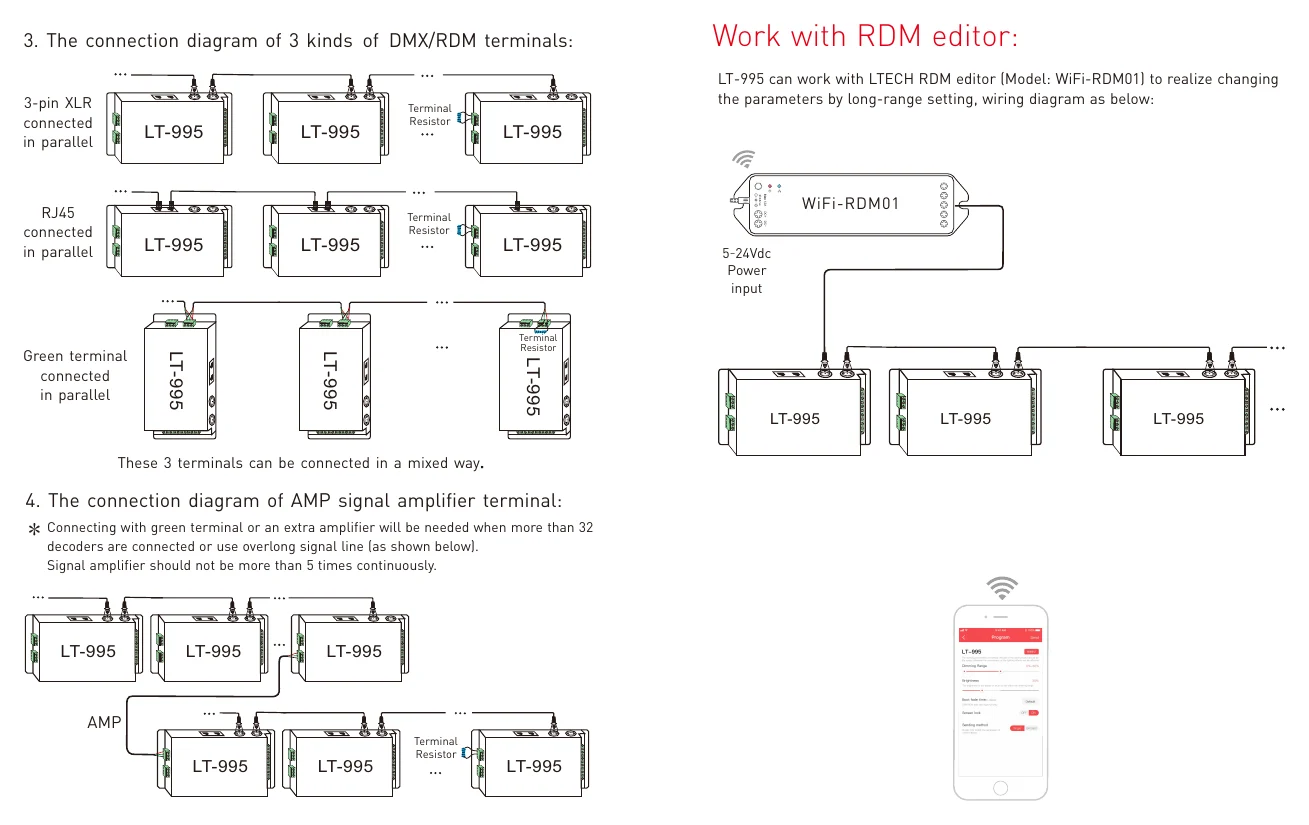

This model supports three DMX port formats: 3-pin XLR, RJ45, and green terminal style ports. That gives buyers more flexibility when matching the decoder to existing DMX infrastructure and controller hardware.

The listed warranty period for the LT-995 is 5 years. That makes it a longer-coverage option for buyers evaluating LED control hardware for professional projects.
