Ltech

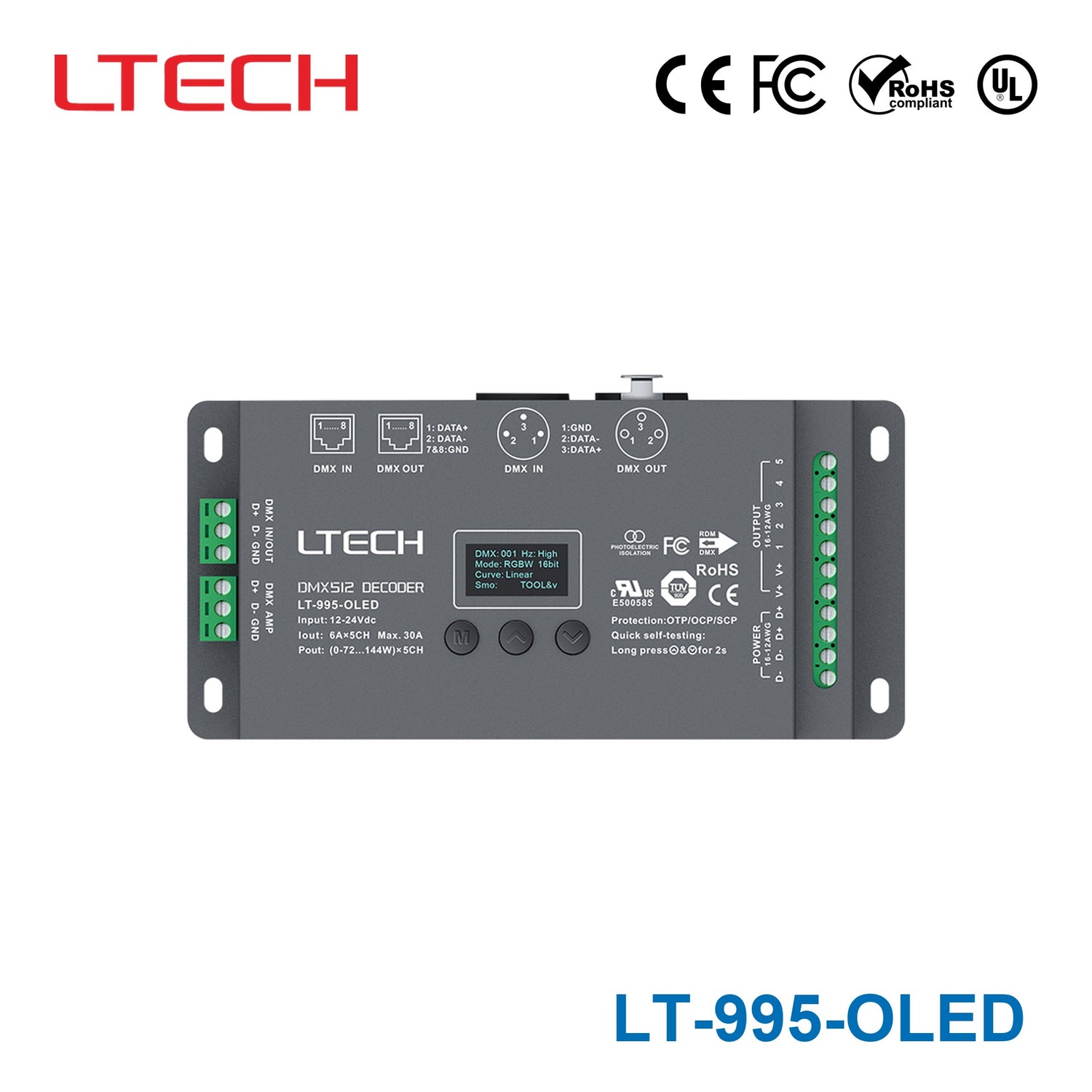

Ltech LT-995-OLED Constant Voltage Decoder - DMX/RDM

SKU LT-995-OLED
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

Product Introduction:

Features

  • 1. Designed with 5 channels output, and Max. 6A current per channel, up to 720W output power.
  • 2. Easy operation with digital display and the touch buttons.
  • 3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45, green terminal.
  • 4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
  • 5. With firmware upgrade function.
  • 6. With short circuit / over-heat / over current protection, as well as warning function when fault.
  • 7. With fast self-testing function.
  • 8. High/low PWM frequency for optional
  • 9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.

Specifications

LT-995-OLEDSpecifications from the official datasheetDownload datasheet PDF

Technical Specs:

Model:
LT-995
Input Signal:
DMX512/RDM
Input Voltage:
12~24Vdc
Current Load:
6A × 5CH Max. 30A
Output Power:
(0~72W...144W) × 5CH Max. 720W
DMX Interface:
3-pin XLR, RJ45, green terminal
Grey Level:
8bit (256 levels) / 16bit (65536 levels)
Photoelectric Isolation:
Yes
Protection:
Short circuit / Over-heat / Over current protection, recover automatically.
Working Temperature:
-30°C~65°C
Dimensions:
L169×W80×H39mm
Package Size:
L182×W91×H41mm
Weight (G.W.):
550g

Certifications & ratings

CHANNELS
5
warranty
5 years
Certification marks
cULus, FC, CE, RoHS

Technical drawings

LT-995-OLED Wiring Diagram
Wiring Diagram
LT-995-OLED Work with RDM editor
Work with RDM editor
LT-995-OLED RDM editor App interface instruction
RDM editor App interface instruction

Downloads

FAQ

What applications is the Ltech LT-995-OLED designed for?

The LT-995-OLED is designed for constant voltage LED control in DMX and RDM systems. It supports dimming, color temperature, RGB, RGBW, and RGBWY lighting applications, which makes it suitable for commercial and architectural LED projects that need multi-channel control.

What are the output capacity and power limits of the LT-995-OLED?

This decoder provides 5 output channels rated at 6A each, with a combined maximum current of 30A. It supports up to 720W total power and is intended for use with 12V and 24V DC LED modules.

Does the LT-995-OLED support both DMX and RDM control?

Yes, this model supports both DMX and RDM dimming control. That makes it a good fit for projects that require standard DMX operation while also benefiting from RDM-capable system environments.

Is the LT-995-OLED suitable for RGBW and RGBWY lighting systems?

Yes, the LT-995-OLED is intended for multi-channel LED formats including RGBW and RGBWY. Its 5-channel design allows it to handle more complex color control applications than simpler single-color or lower-channel decoders.

What dimming performance features does the LT-995-OLED offer?

The LT-995-OLED supports both 8-bit (256 levels) and 16-bit (65536 levels) grey levels. These features help it fit projects where finer dimming behavior and smoother control resolution are important.

Can the LT-995-OLED be used in demanding indoor or industrial environments?

This model is rated for operation from -30°C to 65°C, which gives it a broad working temperature range. That makes it suitable for demanding environments where temperature tolerance matters, provided the rest of the system is specified appropriately.

How does the LT-995-OLED compare with lower-capacity LED decoders?

Compared with lower-capacity decoders, the LT-995-OLED offers 5 channels, up to 30A total output current, and up to 720W maximum power. It is better suited to higher-load or more feature-rich constant voltage LED control applications that need DMX/RDM support and multiple control modes.
