Ltech WIFI-RDM01 - RDM Master Controller
Log in to see priceOverview
WiFi-RDM01 is the RDM master control, which browsing and setting corresponding parameters of the equipment with RDM protocol through the RDM standard protocol. WiFi-RDM01 uses the WiFi module, which can wireless control by the phone's APP and support to upgrade the firmware remotely. which is convenient for customers' using the most functional and latest firmware version. WiFi-RDM01 can be compatible with other brand's product with RDM protocol, and it does not affect the normal operation of other products when hangs on the bus.
Features
- Fast searching
- Address programmable
- Long-range maintenance
- Convenience testing
- Firmware upgrade
Specifications
Product parameters
- Model:
- WiFi-RDM01
- Name:
- LED controller
- Input voltage:
- 5~24Vdc
- Output signal:
- DMX512 / RDM
- Wireless type:
- 2.4GHz Wi-Fi , 802.11b/g/n
- Working temp.:
- -30°C~55°C
- Warranty:
- 5 years
- Product size:
- 125×33×20mm(L×W×H)
- Packing size:
- 127×35×24mm(L×W×H)
- Weight(G.W.):
- 110g
- Certifications:
- CE
Certifications & ratings
- Marked features
- Fast searching, Address programmable, Long-range maintenance, Convenience testing, Firmware upgrade, iOS, Android

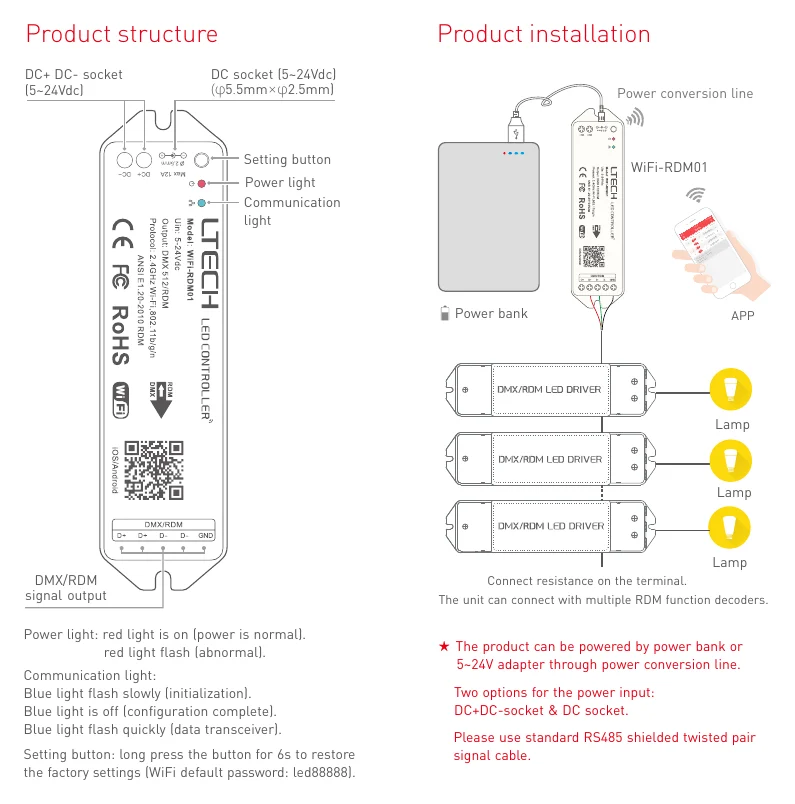

Technical drawings
Downloads
FAQ
What is the Ltech WIFI-RDM01 used for?
The Ltech WIFI-RDM01 is an RDM master controller for equipment that supports the RDM protocol. It is used to browse and set corresponding device parameters through the RDM standard protocol.
Is the WIFI-RDM01 for DMX lighting control systems?
Yes. This model is listed with DMX dimming/control and is intended for RDM-compatible equipment within DMX lighting control applications.
Can the WIFI-RDM01 be controlled wirelessly?
Yes. The WIFI-RDM01 uses a 2.4GHz Wi-Fi module (802.11b/g/n) and supports wireless control via iOS and Android apps.
Does the WIFI-RDM01 support remote firmware upgrades?
Yes. This controller supports remote firmware upgrades, which helps keep the unit updated with newer firmware versions when available.
What operating temperature range does the WIFI-RDM01 support?
The WIFI-RDM01 is rated for operation from -30 °C to 55 °C. This range supports use in a variety of professional lighting control environments.
How much does the WIFI-RDM01 weigh?
The WIFI-RDM01 weighs 0.1100 kg. Its low weight makes it suitable for compact control-system layouts where equipment weight matters.
What warranty period applies to the WIFI-RDM01?
The WIFI-RDM01 has a 5-year warranty period. This is useful for B2B buyers planning long-term lighting control projects or maintenance cycles.
