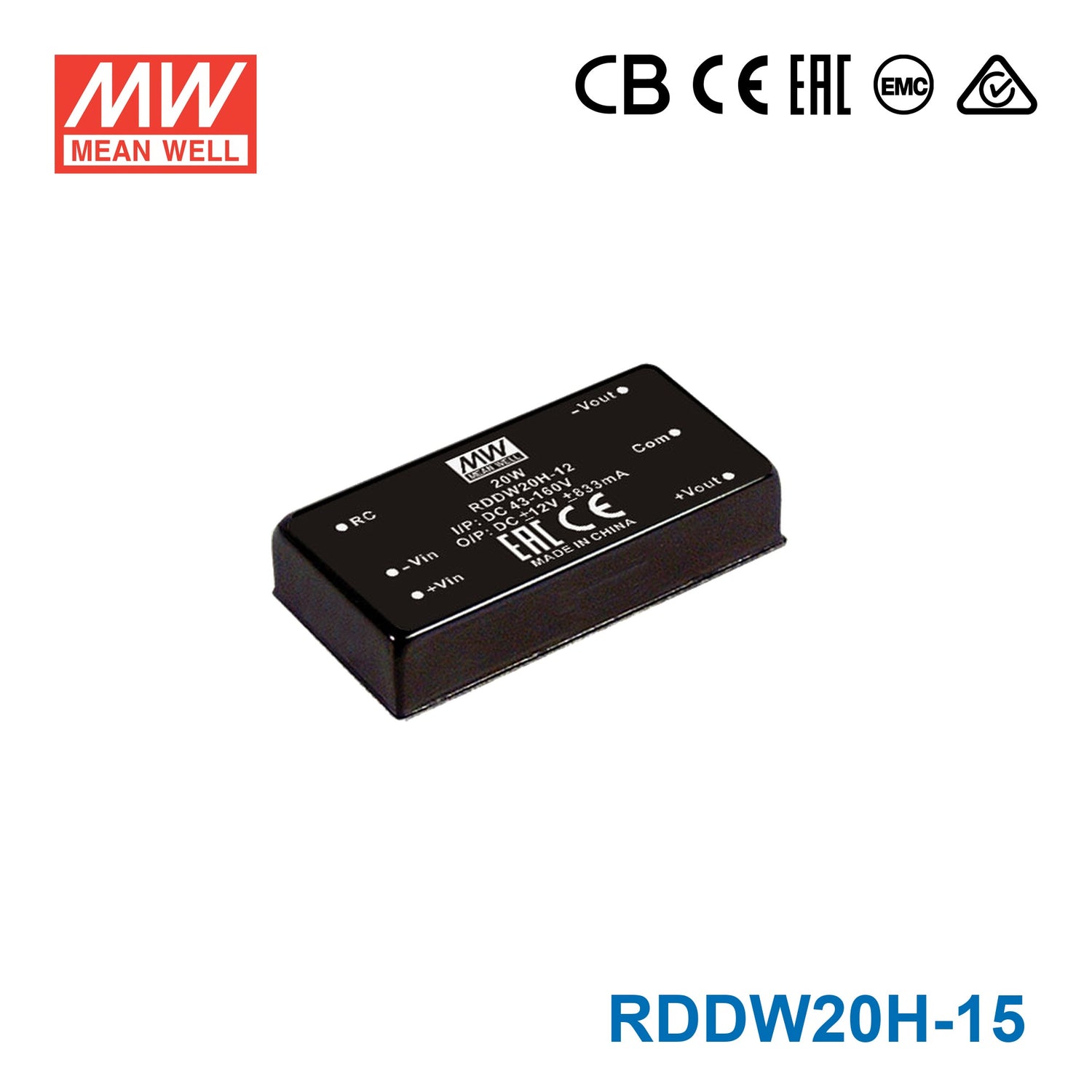

Mean Well RDDW20H-15 DC-DC Converter - 20W - 43~160V in ±15V out 667mA
Log in to see priceOverview
RDDW20H-15 is the ±15V output model of this series: rated power 20W, typical efficiency 88.5%.
RSDW20 and RDDW20 series are 20W module type DC-DC reliable railway converter with 2"x1" package. It features international standard pins, a high efficiency up to 90%, wide working temperature range -40~+85℃, 1.5KVDC(F/G models)/3KVDC(H models) I/P-O/P isolation voltage, compliance with EN50155 railway standard, continuous-mode short circuit protection, etc. The models account for different input voltage 9~36V, 18~75V and 43~160V 4:1 wide input range, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for railway, trams, buses and also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.
Features
- Compliance with EN50155 railway standard
- DIP 2"x1" package with standard pinout
- 4:1 wide input range
- Wide operating temperature range -40 ~ +85℃
- No minimum load required
- Full encapsulated
- Protections: Short circuit (Continuous) / Overload / Over voltage / Input under voltage
- 1.5KVDC,3KVDC I/O isolation by models
- Remote ON/OFF control
- 3 years warranty
Specifications
MODEL SELECTION TABLE
- INPUT VOLTAGE (RANGE)
- Normal 110V (43 ~ 160V)
- INPUT CURRENT NO LOAD
- 3mA
- INPUT CURRENT FULL LOAD
- 206mA
- OUTPUT VOLTAGE
- ±15V
- OUTPUT CURRENT
- ±0 ~ 667mA
- EFFICIENCY (Typ.)
- 88.5%
- CAPACITOR LOAD (MAX.)* For each output
- *350μF
INPUT
- VOLTAGE RANGE
- 43~160Vdc
- SURGE VOLTAGE (100ms max.)
- 24Vin models : 50Vdc, 48Vin models : 100Vdc, 110Vin models : 200Vdc
- FILTER
- Pi type
- PROTECTION
- Fuse recommended. 24Vin models: 4A delay time Type, 48Vin models: 2A delay time Type, 110Vin models: 0.8A delay time Type
OUTPUT
- VOLTAGE ACCURACY
- ±1.5%
- RATED POWER
- 20W
- RIPPLE & NOISENote.2
- 60mVp-p
- LINE REGULATIONNote.3
- ±0.2%
- LOAD REGULATIONNote.4
- Single output models: ±0.5%, Dual output models:±1%
- CROSS REGULATION
- ±5% @ 25%~100% load
- SWITCHING FREQUENCY (Typ.)
- F/G: Single output 350KHz, Dual output 400KHz H: 250KHz
- EXTERNAL TRIM ADJ. RANGE (Typ.)
- ±10% (Single output model only)
PROTECTION
- SHORT CIRCUIT
- Protection type : Continuous, automatic recovery
- OVERLOAD
- 110 ~ 160% rated output power Protection type : Recovers automatically after fault condition is removed
- OVER VOLTAGE
- Protection type : Clamp by diode
- UNDER VOLTAGE LOCKOUT Start-up voltage
- 24Vin: 8.8Vdc, 48Vin: 17Vdc, 110Vin: 40Vdc
- UNDER VOLTAGE LOCKOUT Shutdown voltage
- 24Vin: 8Vdc, 48Vin: 16Vdc, 110Vin: 38Vdc
FUNCTION
- REMOTE CONTROL
- Power ON: >5.5~75Vdc or open circuit (F/G models) ; >3.5~75Vdc or open circuit (H models) Power OFF: <1.2Vdc or short (F/G/H models)
ENVIRONMENT
- COOLING
- Free-air convection
- WORKING TEMP.
- -40 ~ +85℃ (Refer to "Derating Curve")
- CASE TEMPERATURE
- +105℃ max.
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -55 ~ +125℃, 10 ~ 95% RH non-condensing
- TEMP. COEFFICIENT
- 0.03% / ℃ (0 ~ 71℃)
- SOLDERING TEMPERATURE
- 1.5mm from case of 1 ~ 3sec./260℃ max.
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC ( Note.5)
- SAFETY STANDARDS
- EAC TP TC 020/2011(EAC TP TC 004 for 48Vin/110Vin type only) approved
- WITHSTAND VOLTAGE
- F/G: I/P-O/P 1.5KVDC, H: I/P-O/P 3KVDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- ISOLATION CAPACITANCE (Typ.)
- 1000pF
- EMC EMISSION
-
Parameter Standard Test Level Conducted BS EN/EN55032 Class B with external components Radiated BS EN/EN55032 Class B with external components - EMC IMMUNITY
-
Parameter Standard Test Level ESD BS EN/EN61000-4-2 Level 2, ±8KV air, ±4KV contact Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m EFT/Bursts BS EN/EN61000-4-4 Level 1, 0.5KV Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line-Line Conducted BS EN/EN61000-4-6 Level 2, 3V(e.m.f.) - RAILWAY STANDARD
- EN50155 including EN61373 for shock & vibration, EN50121-3-2 for EMC
OTHERS
- MTBF
- F/G: 720Khrs ; H: 880Khrs MIL-HDBK-217F(25℃)
- DIMENSION (L*W*H)
- 50.8*25.4*10.2mm (2*1*0.4 inch)
- CASE MATERIAL
- Black coated copper with Non-Conductive Base
- PACKING
- 35g ; 12pcs/per tube, 300pcs/25 tube/per carton
Test conditions and notes5
- 1.All parameters are specified at normal input(F:24Vdc, G:48Vdc, H:110Vdc), rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 0% to 100% rated load.
- 5.The final equipment must be re-confirm that it still meet EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”(as available on http://www.meanwell.com)
Technical drawings
Typical applications
- Bus, tram, metro or railway system
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Highly vibrating, heavily dusty, extremely low or high temperature harsh environment
Downloads
FAQ
Can the RDDW20H-15 power ±15V analog circuitry in industrial monitoring or control hardware?
Yes. Its dual ±15V constant-voltage output and 20W power rating fit low-power analog circuitry such as measurement front ends, interface cards, and control electronics. The -40°C to +85°C operating range also supports use in industrial environments.
Is this converter suitable for embedded systems that need split ±15V rails?
It is designed for applications that require dual ±15V output instead of a single rail. With a compact 50.8 × 25.4 × 10.2 mm form factor and 0.035 kg weight, it fits embedded assemblies where space is limited.
Can I use the RDDW20H-15 for instrumentation or amplifier supply rails inside automation equipment?
Yes, that is a typical fit for a 20W dual ±15V constant-voltage converter. It is best suited to powering internal electronics and analog subsystems rather than larger end loads.
Is the RDDW20H-15 suitable for outdoor or exposed locations?
The specs list an operating temperature range of -40°C to +85°C, but no IP rating is provided. That means the temperature capability is broad, but the published data does not indicate protection for exposed outdoor conditions.
How does the RDDW20H-15 compare with the other model in the RDDW20H series?
Both listed RDDW20H models are 20W converters with 43-160Vdc input. The RDDW20H-12 is ±12V at ±833mA, while the RDDW20H-15 is ±15V at ±667mA. The choice between them is primarily based on required output voltage.
