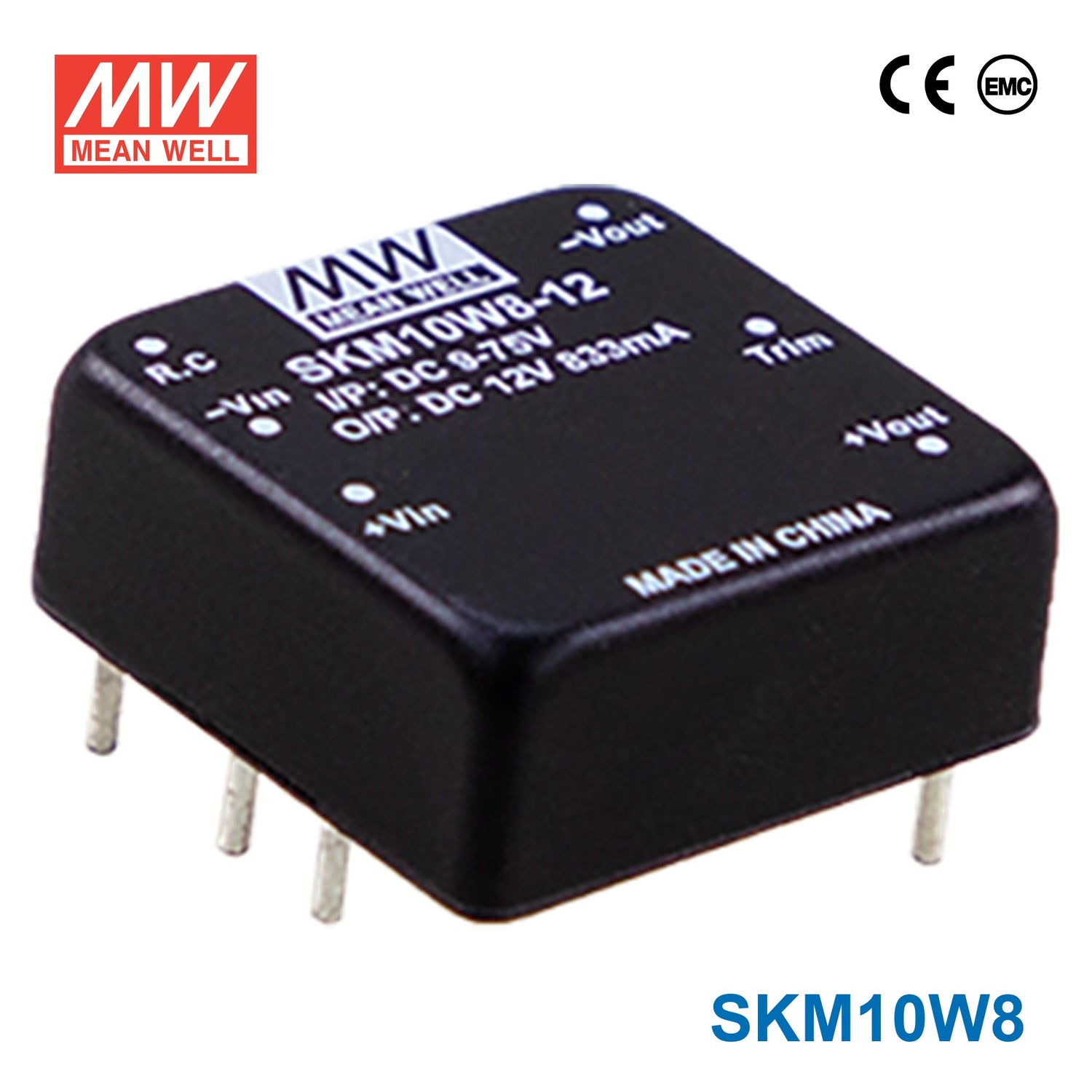

Mean Well SKM10W8 DC-DC Converter — 10W 9~75Vdc Input
Please Login for Pricing
Description
Description
The Mean Well SKM10W8 is a 10W isolated and regulated module type DC-DC converter with a DIP 1"×1" package. It features international standard pins, high efficiency up to 85%, wide working temperature range −40~+90℃, 3KVdc I/P-O/P isolation voltage, and compliance to BS EN/EN55032 radiated Class A without additional components. Comprehensive protections include continuous short circuit, overload, over voltage, and under voltage lockout. The 9~75Vdc 8:1 ultra-wide input range with single output options (3.3/5/12/15Vdc) makes it suitable for industrial control, telecommunications, and distributed power architectures.
Key Features
- ✓DIP 1"×1" package with industry standard pinout
- ✓8:1 (9~75Vdc) ultra-wide input — nominal 12/24/36/48/72Vdc
- ✓Single output: 3.3/5/12/15Vdc
- ✓High efficiency up to 85%
- ✓3KVdc I/P-O/P isolation voltage
- ✓Operating temperature: −40~+90℃
- ✓No minimum load required
- ✓Protections: short circuit (continuous) / overload / over voltage / UVLO
- ✓Remote ON/OFF control
- ✓Trimming output (±10%)
- ✓Certifications: CE
- ✓3-year Mean Well warranty
Specifications
Specifications
-
BrandMean Well
-
Input Voltage9~75Vdc
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Length2.54 cm
-
Width2.54 cm
-
Height1.22 cm
-
Weight0.02 kg
