ENVO DALI2 Wall Panel, 6 Buttons, White
Log in to see priceOverview
Features
- DALI-2 control device with 6 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
- Supports feedback functionality, provides 12 LEDs
- Suitable for integration and in combination with DALI-2 compliant central control units
- Multimaster capable, multiple modules can be installed on the DALI- line
- DALI bus powered, no extra power supply required
- Easy configuration via DALI-2 compliant central controller USB interface
- Compatible with universal 55mm frames
Specifications
DALI Interface
- Input Type
- DALI
- Marking
- DA
- Input Voltage Range
- 12VDC - 22.5VDC (according IEC62368-101)
- Typ. Current Consumption DALI (at 16.5V)
- 2mA
- Max. Current Consumption DALI (Inrush Current at 22.5V)
- 10mA
- Number of Addresses for DALI Control Devices
- 6
- Number of Feedback LED
- 12
General Data
- Dimensions (L x W x H)
- 71.2mm x 71.2mm x 11mm
- Mounting
- Wall Mounting or on Conduit Box
- Max. casing temperature Tc
- 75°C
- Expected Life Time @Tc
- 50,000H
- Protection Class
- II in Intended Use
- Protection Degree Housing
- IP20
- Protection Degree Terminals
- IP20
- Function
- Configurable
- Start-up Time
- <150ms
Terminals
- Connector Type
- Push-In
- Wire Size Solid Core
- 0.2 - 1.3 mm2 (AWG26 - AWG16)
- Wire Size Fine Core
- 0.2 - 1.3 mm2 (AWG26 - AWG16)
- Wire Size Using Wire End Ferrule
- 0.25 - 1.0 mm2
- Stripping Length
- 9 - 10 mm / 0.35 - 0.39 inch
- Release Connector
- Push Button
Environment Conditions
- Storing Temperature
- -20°C~+50°C
- Working Ambient Temperature
- -20°C~+50°C
- Relative Humidity
- 8%- 80%
Standards
- DALI
- IEC62386-101:2014 IEC62386-103:2014 IEC62386-301 IEC62386-332
- EMC
- EN 61547 EN 50015 / IEC CISPR15
- Safety
- EN 61347-2-11 EN 61347-1
Certifications & ratings
- Certification marks
- DALI-2, CE

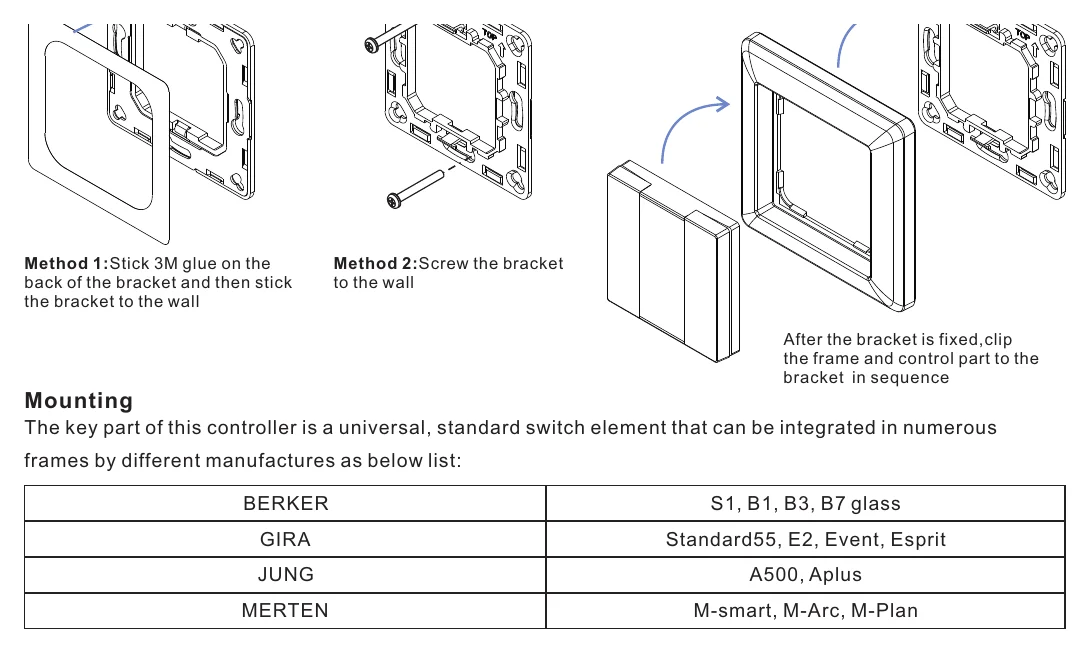

Technical drawings
Downloads
Datasheet1
FAQ
What is the Sunricher SR-2422K6-DA2?
The SR-2422K6-DA2 is a DALI2 wall panel in a white finish. This model is identified as a 6-button wall panel in the product name and is positioned for smart LED control applications.
What control system is this wall panel intended for?
This model is intended for DALI2-based lighting control environments. Its product naming and category data place it in the DALI2 and LED controller segment rather than as a general-purpose wall switch.
What are the key specifications of this model?
The listed rated current is 0.0100 A, the finish colour is white, and the product weight is 0.2000 kg. It also includes a 3-year warranty period.
What temperature range is the SR-2422K6-DA2 rated for?
This wall panel is rated for ambient temperatures from -20 degrees C to 50 degrees C. That range makes it suitable for many commercial and professional indoor environments where temperature conditions stay within those limits.
Is this a good fit for commercial smart lighting projects?
Yes, this model is aimed at B2B smart LED control use cases based on its product family and category classification. Buyers looking for a white DALI2 wall control panel for professional lighting systems would see this as a purpose-built option.
