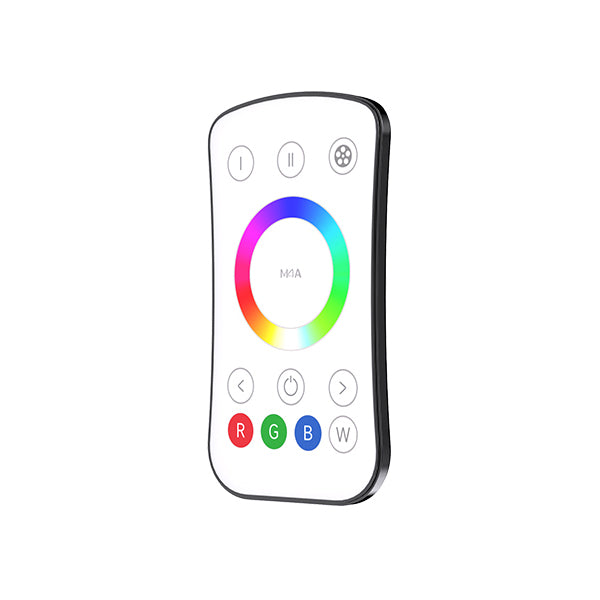

Ltech M4A Mini Remote - RGBW, Single Zone - White Finish
Please Login for Pricing
Description
Description
Features:
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters.
Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off, adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications.
General Specification
Model
M4A
Color
White
Dimming mode
RGBW
Wireless protocol
RF 2.4GHz
Working voltage
3Vdc (Button battery Cr2032×1)
Standby current
<2uA
Distance of remote
30M (Under no interference)
Working temp
-30°C~55°C
Weight
40g±10g
Dimensions
104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech M4A Mini Remote used for?
The Ltech M4A Mini Remote is a handheld RF remote for controlling RGBW LED lighting in a single zone. It is designed for use with compatible controllers and supports functions such as on/off control, brightness adjustment, static color selection, dynamic modes, and scene recall.
What type of lighting control does the M4A support?
This model uses RGBW dimming control, so it is intended for color-changing LED lighting systems that include red, green, blue, and white channels. It is not described as a tunable white-only or single-color remote, which helps distinguish it from other control types.
What wireless technology and range does the M4A use?
The M4A uses RF 2.4GHz wireless transmission technology. Its stated control distance is up to 30 meters under no interference, making it suitable for local control in commercial or residential lighting environments.
Is the Ltech M4A a single-zone or multi-zone remote?
The M4A is a single-zone remote. That makes it a fit for applications where one lighting area or group is being controlled together rather than splitting control across multiple independent zones.
What power source does the M4A remote use?
The remote operates on 3Vdc and uses one CR2032 button battery. Its standby current is listed as less than 2uA, which indicates very low idle power consumption.
Can the M4A be used in demanding temperature conditions?
The specified working temperature range is -30°C to 55°C. That range makes it suitable for a wide variety of indoor and some challenging environmental conditions, as long as the overall application stays within the product's rated limits.
Which controller family is the M4A described to work with?
The product description states that it connects to a P5 controller with 5-channel outputs that support DIM, CT, RGB, RGBW, and RGBCW light types. For purchasing purposes, that means buyers should confirm they are pairing it with a compatible controller platform rather than assuming universal compatibility with every LED controller.
