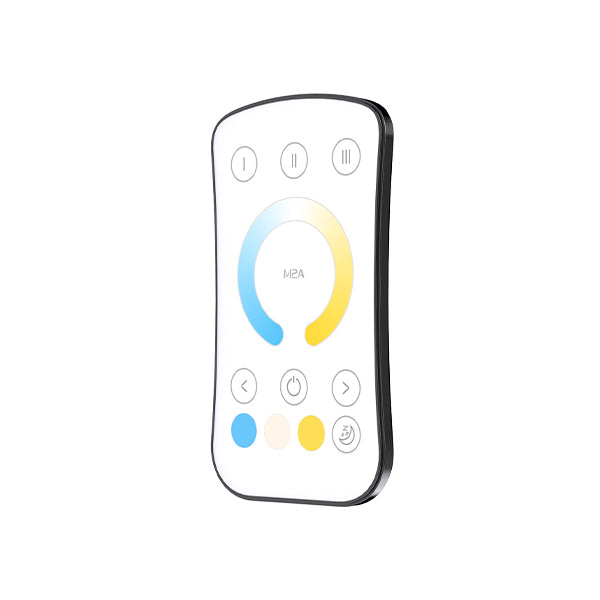

Ltech M2A Mini Remote - Tunable White, Single Zone - White Finish
Log in to see priceOverview

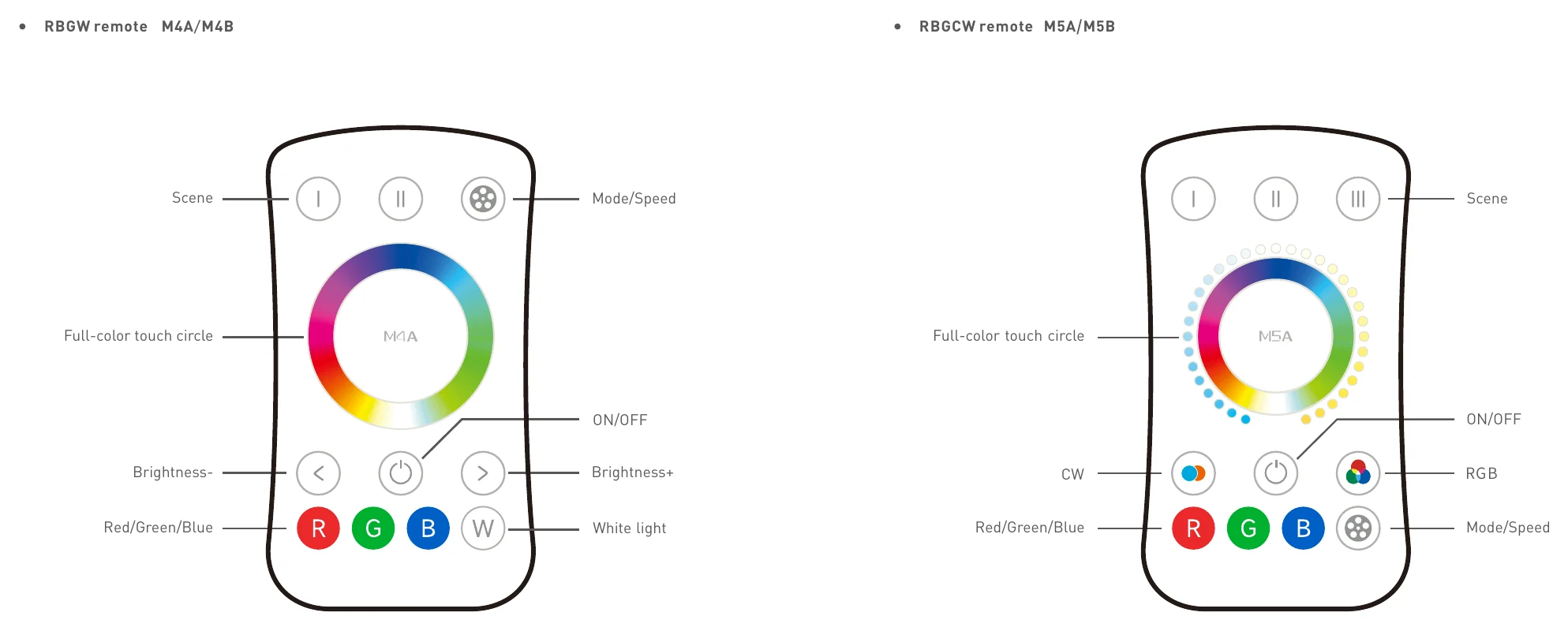

The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters. Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off, adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications. Dimming remote (M1A/M1B) has brightness shortcuts that allow you to switch the brightness percentage with one press; CT remote (M2A/M2B) has the night light function that allows you to switch to low brightness with one press; RGBW remote (M4A/M4B) and RGBCW remote (M5A/M5B) allow you to switch dynamic modes through the mode button, as well as to loop playing the effects of 12 modes through pressing different buttons together.
Specifications
Technical parameters
- Color
- White
- Dimming mode
- CT
- Wireless protocol
- RF 2.4GHz
- Working voltage
- 3Vdc (Button battery Cr2032×1)
- Standby current
- <2uA
- Distance of remote
- 30M (Under no interference)
- Working temp.
- -30°C~55°C
- Weight
- 40g±10g
- Dimensions
- 104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Others
- Warranty periods
- 5 years
Certifications & ratings
- Certification marks
- CE, FCC, RoHS

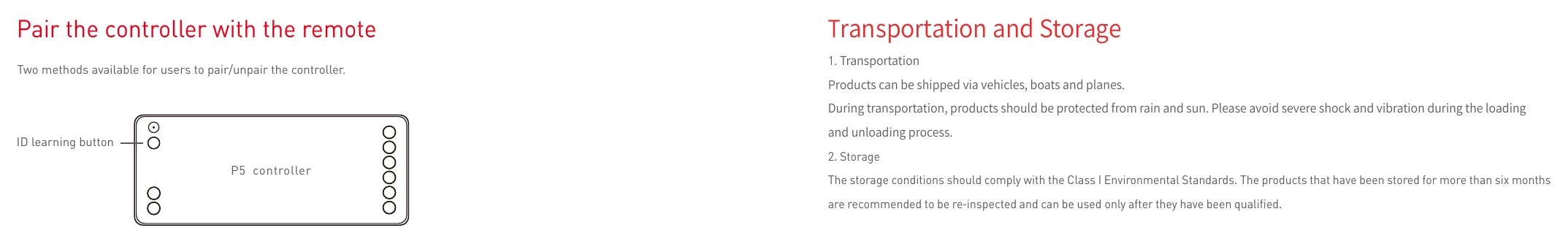

Technical drawings
Downloads
Datasheet1
FAQ
What kind of lighting control is the Ltech M2A Mini Remote designed for?
The M2A is a tunable white remote designed for CT control in a single zone. It is intended for adjusting brightness and color temperature on compatible lighting systems rather than managing multiple zones or full-color RGB scenes.
Is the M2A a single-zone or multi-zone remote?
This model is a single-zone remote, as stated in the product name. It is suited to applications where one lighting area or one controlled group needs tunable white control from a compact handheld remote.
What controller platform is this remote compatible with?
The M2A is a CT-focused remote for tunable white control. It is designed for adjusting brightness and color temperature on compatible lighting systems.
What wireless range can I expect from the Ltech M2A?
The M2A uses RF 2.4GHz wireless transmission and has a stated control distance of up to 30 meters under no interference. Actual range will depend on the surrounding environment and any signal obstacles or interference nearby.
Is this remote suitable for demanding temperature conditions?
The specified working temperature range is -30°C to 55°C, which makes it suitable for a wide range of commercial and industrial indoor environments. That temperature rating reflects operating conditions, but it does not indicate any specific weatherproof or outdoor-exposure certification.
How is the M2A powered?
The remote operates on 3Vdc using one CR2032 button battery. Its standby current is listed as less than 2uA, which supports very low idle power consumption.
When should I choose the M2A instead of a color LED remote?
Choose the M2A when the application needs tunable white control with brightness and color temperature adjustment in a single zone. If the project requires RGB, RGBW, or RGBCW color selection features, a color-focused remote would be a better match than this CT model.
