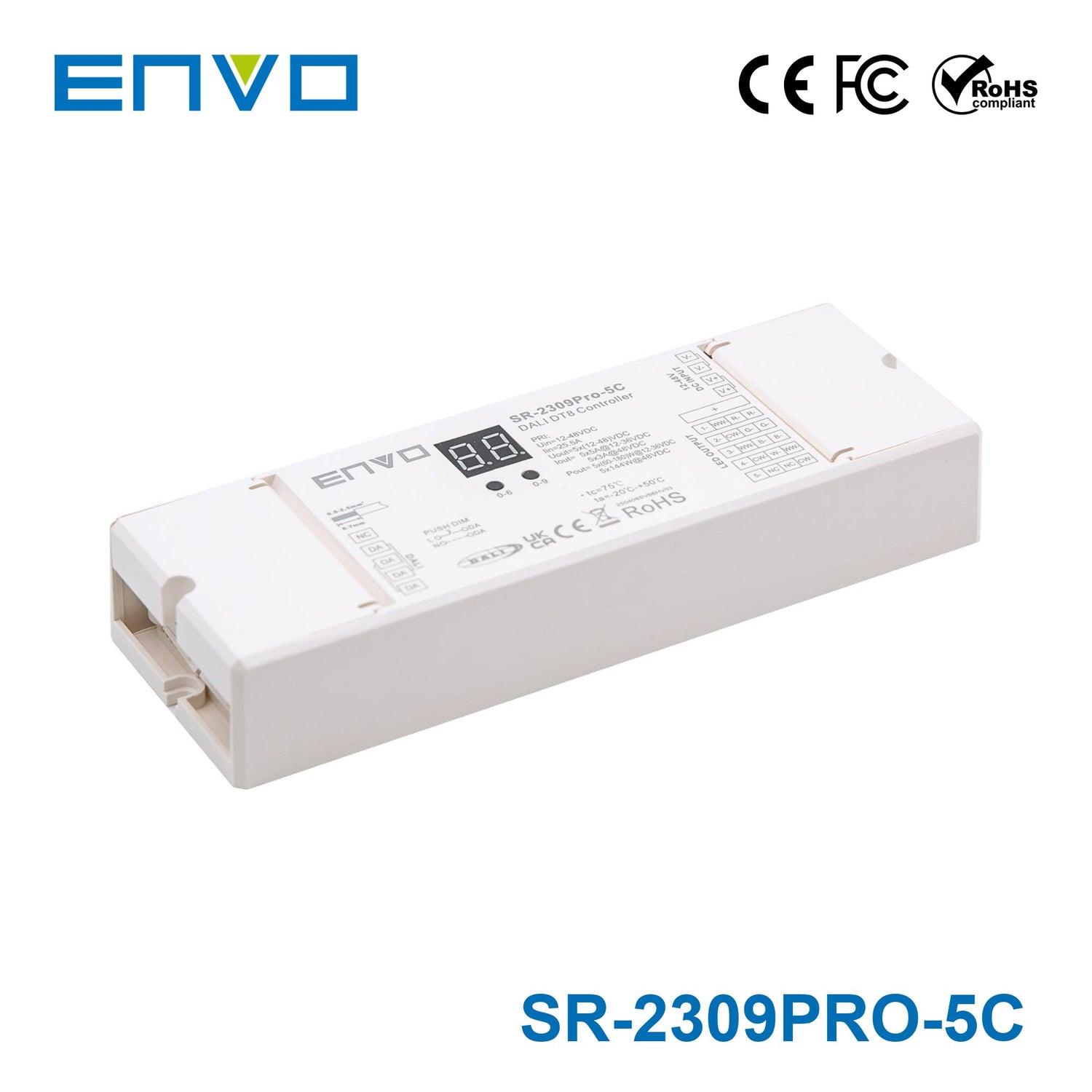

ENVO PRO DALI2 DT8 LED Controller RGBWW 5 CH 12-36VDC
Please Login for Pricing
Description
Description
Features:
- In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209:2011
- Built-in DALI-2 interface, DALI DT8 device
- Multi-addresses enabled DT8 control gear
- Multi-devices integrated in one control gear
- Multi-functional, 7 in 1: Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
- DALI address manually assignable through manual set buttons and showed on the display
- Can be set as different device types: single-address types or multi-addresses types
- Single-address device types: Tc, RGBWAF, XY
- Multi-addresses device types: 2*Tc, XY+Tc, RGB+Tc, XY+W (DT6)
- 5 Channels constant voltage output
- Control of five PWM outputs via DALI device type 8
- Color control as defined in the DALI specification device type 8
- Supports DT8 device commands, compatible with universal DALI masters that support DT8 commands
- Configuration via DALI master USB interface
- Color temperature and RGB color control through push dim mode even if without DALI
- Waterproof grade: IP20
- DO NOT install with power applied to device.
- DO NOT expose the device to moisture.
General Specification
Output Type
Constant voltage
Input Voltage
12-36VDC
Output Current
5x5A
Output Power
5x(60-180)W
DALI Consumption
2mA
Dimming Range
0.1%-100%
Ambient Temperature
-20℃ ~ +50℃
Dimension (LxWxH)
170x59x29mm
Specifications
Specifications
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating240 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage12V~36V
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length17 cm
-
Width5.9 cm
-
Height2.9 cm
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What lighting control types does the ENVO PRO DALI2 DT8 LED Controller support?
This model is a DALI-2 DT8 LED controller with 5 channels and supports multiple control modes in one unit. Its listed 7-in-1 functionality includes Tc, RGBWAF, XY, 2*Tc, XY+Tc, RGB+Tc, and XY+W (DT6), which makes it suitable for projects that need more than a single dimming format.
Is this controller a good fit for RGBWW lighting applications?
Yes. The product name identifies it as an RGBWW 5-channel controller, and the description also lists multi-functional color-control modes that align with advanced color-mixing applications. That makes it relevant for projects needing color and white-channel control from one DALI-2 DT8 device.
How is this model different from a basic DALI LED controller?
This controller stands out because it is a DALI-2 DT8 device with multi-addresses enabled control gear and multiple device-type options. It also combines several control modes into one product, which can reduce the need to choose separate controllers for different color-control requirements.
What are the key electrical specifications for this controller?
The listed specifications include a 240 W power rating and 5.0 A rated current. The product name identifies it as a 12-36VDC model, and it is built as a 5-channel LED controller for RGBWW applications.
Is this controller compatible with DALI-2 systems and standards-based projects?
Yes. The description states compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, and IEC 62386-209:2011, and it includes a built-in DALI-2 interface. For buyers specifying standards-based commercial lighting controls, that compliance is one of this model's main differentiators.
What operating environment is this controller rated for?
The stated operating temperature range is -20 °C to 50 °C. The product also includes a 5-year warranty period, which is useful for buyers evaluating lifecycle expectations in professional installations.
