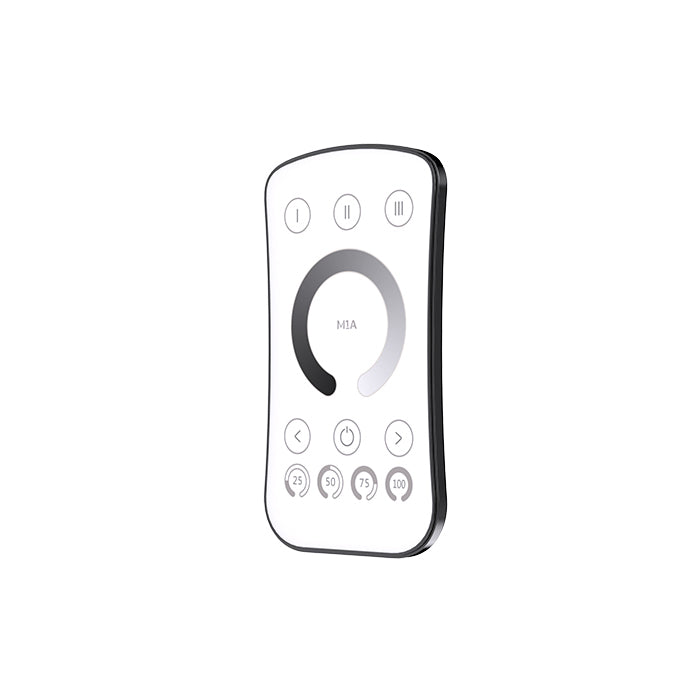

Ltech M1A Mini Remote - Single Colour Dimming, Single Zone - White ...
Please Login for Pricing
Description
Description
Features:
The MINI series LED remotes use RF 2.4GHz wireless transmission technology and the control distance (under no interference) can be up to 30 meters.
Connect to a P5 controller with 5 channel outputs which supports DIM/CT/RGB/RGBW/RGBCW light. One remote can control a large amount of controllers within the effective range to achieve different functions, such as turning lights on/off, adjusting brightness, CT, static RGB color, effects of dynamic modes, and recalling scenes, which meet the needs of users for different lighting applications.
Dimming remote (M1A) has brightness shortcuts that allow you to switch the brightness percentage with one press.
General Specification
Model
M1A
Color
White
Dimming mode
DIM
Wireless protocol
RF 2.4GHz
Working voltage
3Vdc (Button battery Cr2032×1)
Standby current
<2uA
Distance of remote
30M (Under no interference)
Working temp
-30°C~55°C
Weight
40g±10g
Dimensions
104×58×9mm (Remote), 108×63×14mm (Remote + Holder)
Specifications
Specifications
-
BrandLtech
-
SeriesLtech WIFI Series
-
Output Voltage3 Volt
-
Rated Current0 Ampere
-
Standards MetCE,FC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length10.4 cm
-
Width5.8 cm
-
Height0.9 cm
-
Weight0.01 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Ltech M1A Mini Remote designed to control?
The Ltech M1A is a single-colour dimming remote for lighting applications that use DIM control. It is intended for use with compatible Ltech controllers and is designed for single-zone operation. This model focuses on brightness control rather than colour-changing functions.
Is the M1A a multi-zone remote?
No. This model is a single-zone remote, so it is intended to control one zone rather than multiple independent zones from the same handset. That makes it a straightforward choice for smaller or dedicated single-area lighting control.
What makes the M1A different from other LED remotes?
The M1A is specifically a dimming remote with brightness shortcut buttons that let you switch to preset brightness percentages with a single press. It is not described as a colour temperature or RGB remote, so it is best suited to single-colour dimming applications. Its compact MINI-series format is also designed for simple handheld use.
What wireless range does the Ltech M1A support?
The M1A uses RF 2.4GHz wireless transmission technology. Its stated control distance is up to 30 metres under no-interference conditions. Actual usable range can vary if the environment introduces interference.
Which controller family is this remote compatible with?
The product description identifies the M1A as pairing with an Ltech P5 controller. The P5 supports multiple lighting control types, but the M1A itself is the DIM version intended for single-colour dimming use. Buyers should match it with a compatible Ltech control setup rather than treating it as a universal remote.
Can the M1A be used in demanding temperature conditions?
This remote has a stated working temperature range of -30°C to 55°C. That gives it a broad operating window for many commercial and architectural environments. As with any control device, it should still be used within its specified limits.
What power source does the Ltech M1A use?
The M1A operates at 3V DC and uses one CR2032 button battery. Its standby current is specified as less than 2uA, which reflects very low idle power draw. This battery-powered format supports its slim handheld design.
