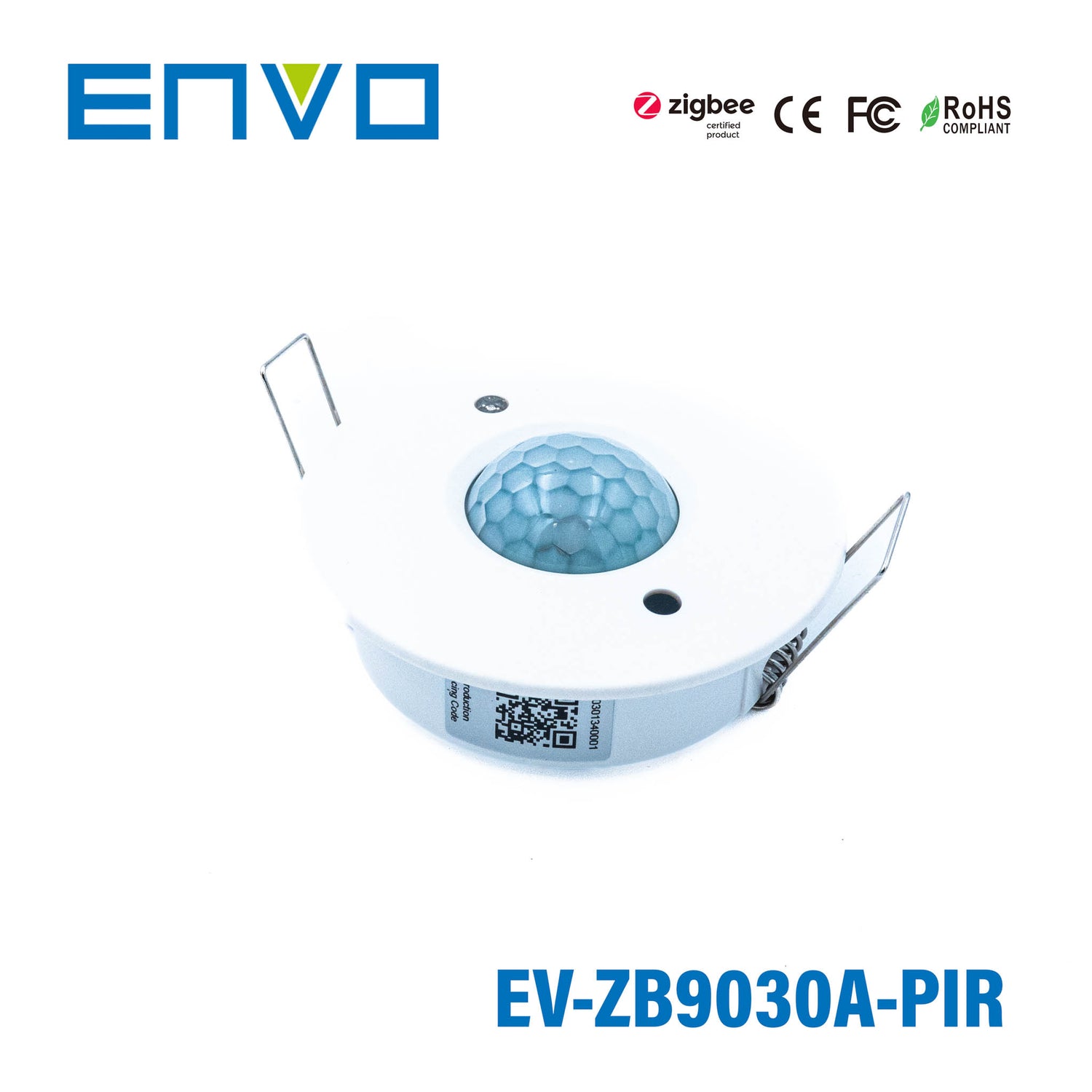

ENVO Zigbee Ceiling Mounted PIR Sensor, 0-10V Dimming

ZigBee 3.0 protocol70-73mm cutout12/24VDC

SKU EV-ZB9030A-PIR

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

The Zigbee sensor is a 4 in 1 device that combines occupancy sensing, daylight harvesting, 0-10V dimming and Zigbee radio circuits. When used with 0-10V LED drivers, it enables any lighting manufacturer to deliver wirelessly-controllable and sensor-equipped fixtures. The sensor is suitable for low bay applications which need medium size detection area and sensor based automation.

Features

Specifications

EV-ZB9030A-PIRSpecifications from the official datasheetDownload datasheet PDF

Physical Information

Cutting Hole: 70-73mm
Material / Color: ABS / White

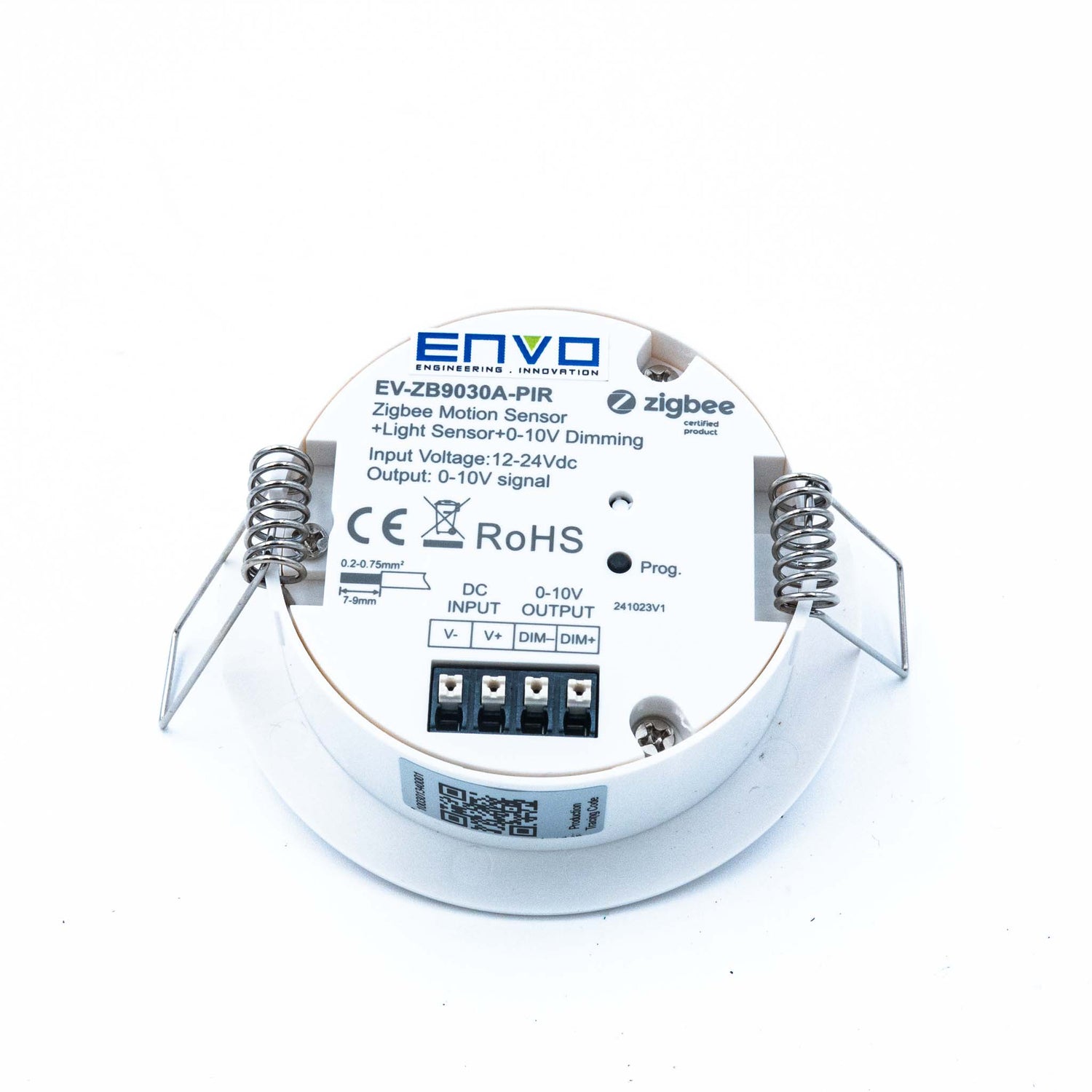

Wire Gauge: 26-16 AWG (0.2-1.3 mm2)
Strip Length: 0.28-0.35 in. / 7-9 mm

Electrical Information

Input Voltage: 12/24 VDC
Current Consumption: < 30mA (when dimming method = sink)
Dimming Control: Analog (0-10V)
Dimming Output: 4mA (sink) / 20mA (source)
Status Indicators: Red (motion detection)

Wireless Communication

Radio Frequency: 2.4 GHz
Wireless Protocol: Zigbee 3.0
Wireless Range: 100 feet (30m) Line of Sight
Radio Certification: FCC/IC, CE

Lighting Control

Features: Continuous dimming, Individual/group addressing, Scene control, Task tuning (0-100%), Autonomous sensor-based control, Scheduler control

Environment

Operating Temperature Range: 32˚F to 104˚F / 0˚C to 40˚C (indoor use only)
Operating Humidity: 0-95% (non condensing)
Safety Certification: cULus Listed, CE

Sensing

Occupancy Sensing Type: PIR sensor
Detection Sensitivity: 0-15, 0 is 100% the max. sensitivity, 15 is the min. sensitivity
Lux Detection Range: 0-1000 Lux
Mounting Height: Recommended height: 8ft (2.5m)
Detection Angle: 130°
Sensing Information: Can be shared within Zigbee mesh network

Typical applications

Residences
Offices
Meeting rooms
Corridors

Downloads

Datasheet1

EV-ZB9030A-PIR datasheetEV_ZB9030A_PIR.pdf PDF Download

FAQ

What is the ENVO Zigbee Ceiling Mounted PIR Sensor used for?

This sensor is designed for autonomous lighting control in indoor spaces using PIR motion detection and daylight harvesting. It works with 0-10V dim-to-off LED drivers to help reduce energy use and support energy code compliance.

Is this sensor compatible with Zigbee systems?

Yes. This model is Zigbee 3.0 compliant and is described as compatible with universal Zigbee platforms that support sensors. It also supports OTA firmware upgrades and operates on a robust mesh network.

What dimming method does this PIR sensor support?

This model uses analog 0-10V dimming control. Its dimming output is rated at 4mA in sink mode and 20mA in source mode, and it is intended for use with 0-10V dim-to-off LED drivers.

Where is this sensor best suited to operate?

The sensor is intended for indoor applications. Its operating temperature range is 0°C to 40°C, making it suitable for typical conditioned commercial or interior environments.

How compact is the ENVO Zigbee Ceiling Mounted PIR Sensor?

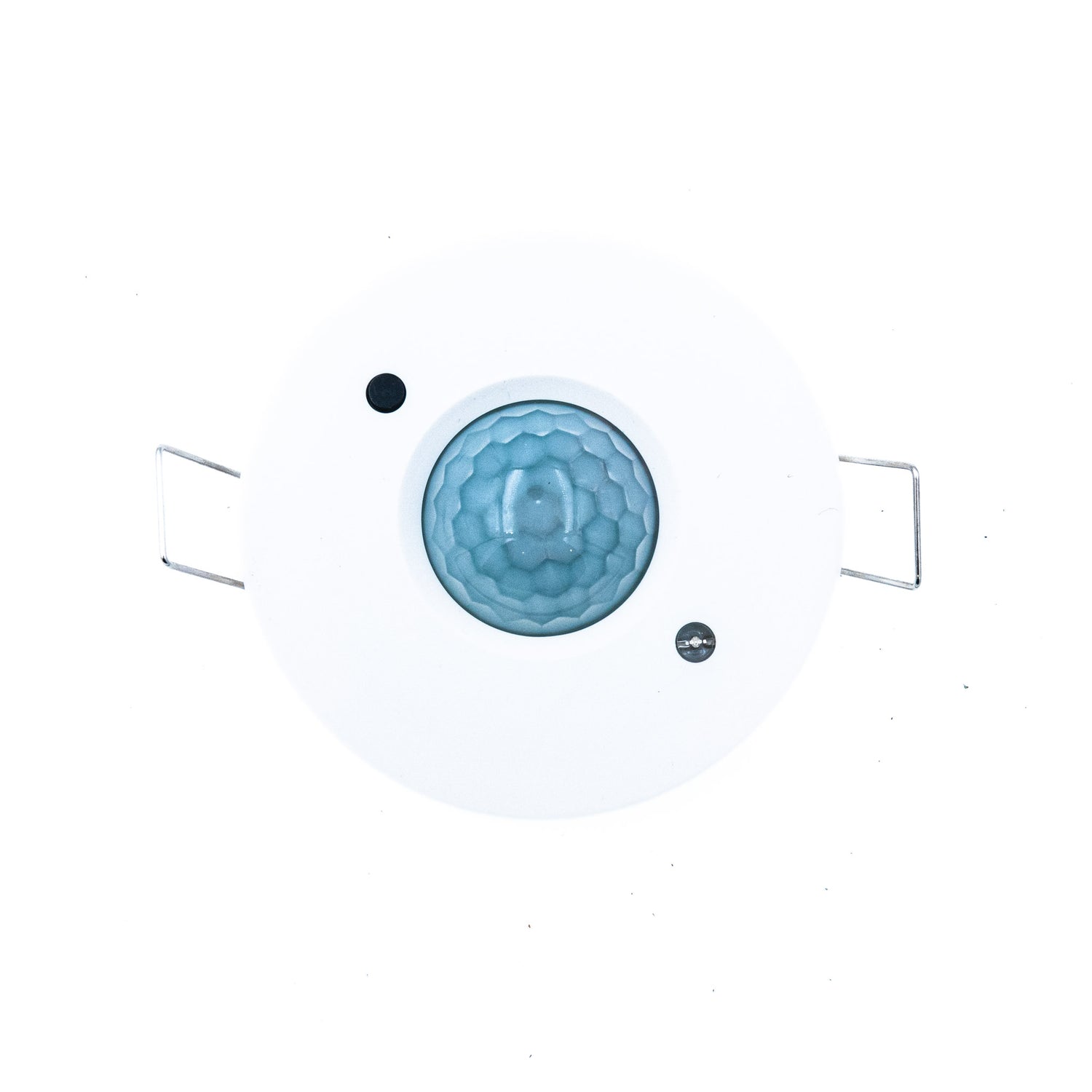

This is a compact ceiling recessed sensor with a 70-73mm cutting hole. Its small white housing helps it fit discreetly into ceiling-mounted lighting control applications.

What are the power and wireless specifications for this model?

The sensor operates on 12/24 VDC input and uses 2.4 GHz radio frequency communication. Its wireless range is rated up to 100 feet (30 meters) line of sight.
