ENVO DALI2 Wall Panel, 8 Buttons, White
Log in to see priceOverview
Features
- DALI-2 control device with 8 push buttons according to IEC62386-101, IEC62386-103, IEC62386-301 and IEC62386-332
- Supports feedback functionality, provides 16 LEDs
- Suitable for integration and in combination with DALI-2 compliant central control units
- Multimaster capable, multiple modules can be installed on the DALI- line
- DALI bus powered, no extra power supply required
- Easy configuration via DALI-2 compliant central controller USB interface
- Compatible with universal 55mm frames
Specifications
DALI Interface
- Input Type
- DALI
- Marking
- DA
- Input Voltage Range
- 12VDC - 22.5VDC (according IEC62368-101)
- Typ. Current Consumption DALI (at 16.5V)
- 2mA
- Max. Current Consumption DALI (Inrush Current at 22.5V)
- 10mA
- Number of Addresses for DALI Control Devices
- 8
- Number of Feedback LED
- 16
General Data
- Dimensions (L x W x H)
- 71.2mm x 71.2mm x 11mm

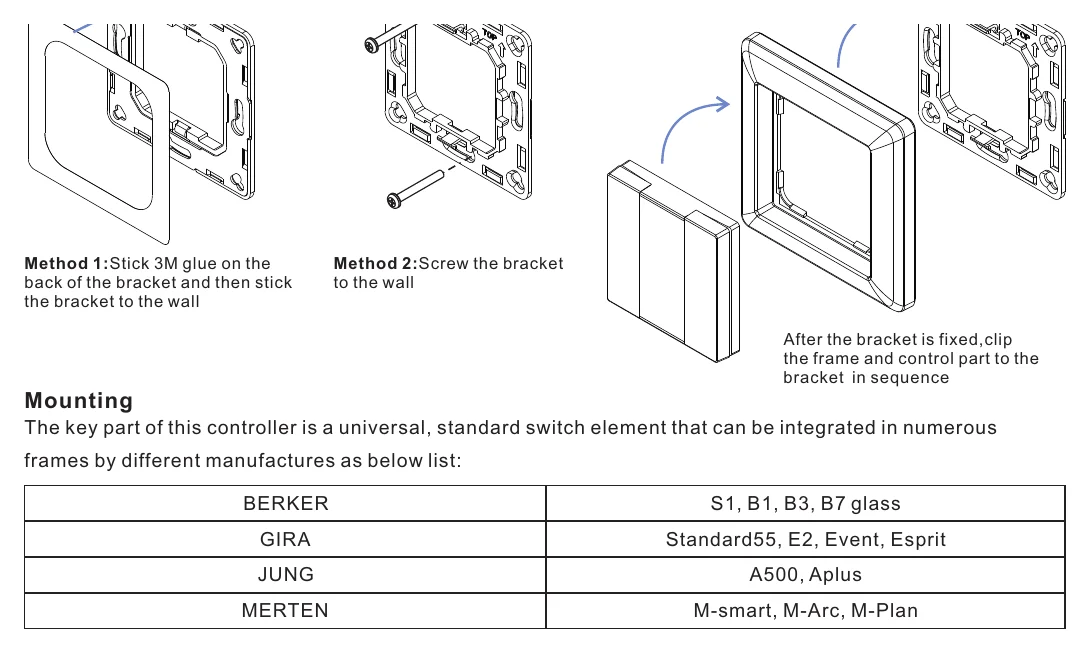

- Mounting
- Wall Mounting or on Conduit Box
- Max. casing temperature Tc
- 75°C
- Expected Life Time @Tc
- 50,000H
- Protection Class
- II in Intended Use
- Protection Degree Housing
- IP20
- Protection Degree Terminals
- IP20
- Function
- Configurable
- Start-up Time
- <150ms
Terminals
- Connector Type
- Push-In
- Wire Size Solid Core
- 0.2 - 1.3 mm2 (AWG26 - AWG16)
- Wire Size Fine Core
- 0.2 - 1.3 mm2 (AWG26 - AWG16)
- Wire Size Using Wire End Ferrule
- 0.25 - 1.0 mm2
- Stripping Length
- 9 - 10 mm / 0.35 - 0.39 inch
- Release Connector
- Push Button
Environment Conditions
- Storing Temperature
- -20°C~+50°C
- Working Ambient Temperature
- -20°C~+50°C
- Relative Humidity
- 8%- 80%
Standards
- DALI
- IEC62386-101:2014 ; IEC62386-103:2014 ; IEC62386-301 ; IEC62386-332
- EMC
- EN 61547 ; EN 50015 / IEC CISPR15
- Safety
- EN 61347-2-11 ; EN 61347-1
Certifications & ratings
- Certification marks
- DALI-2, CE
Technical drawings
Downloads
Datasheet1
FAQ
What is the Sunricher DALI2 Wall Panel SR-2422K8-DA2 used for?
The SR-2422K8-DA2 is a DALI2 wall panel intended for smart LED control applications in commercial and professional settings. Based on its product family and categories, it is suited to B2B lighting control environments where a wall-mounted control interface is needed.
How many buttons does this wall panel have?
This model is identified as an 8-button wall panel. The product name for SKU SR-2422K8-DA2 specifically lists it as the Sunricher DALI2 Wall Panel, 8 Buttons, White.
What color and finish does this model come in?
This wall panel comes in white. The listed finish colour for SKU SR-2422K8-DA2 is white, which makes it suitable for clean, neutral interior designs.
Is this wall panel suitable for demanding indoor environments?
This wall panel is rated for operation from -20°C to +50°C. That range makes it appropriate for many indoor commercial and controlled-environment applications, provided the installation space stays within those limits.
What basic specifications should buyers know before ordering?
This model features 8 programmable push buttons and 16 programmable feedback LEDs. It operates on a DALI bus with an input voltage range of 12VDC to 22.5VDC, drawing a typical current of 2mA. The unit has an expected lifetime of 50,000 hours at a maximum casing temperature of 75°C.
