Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

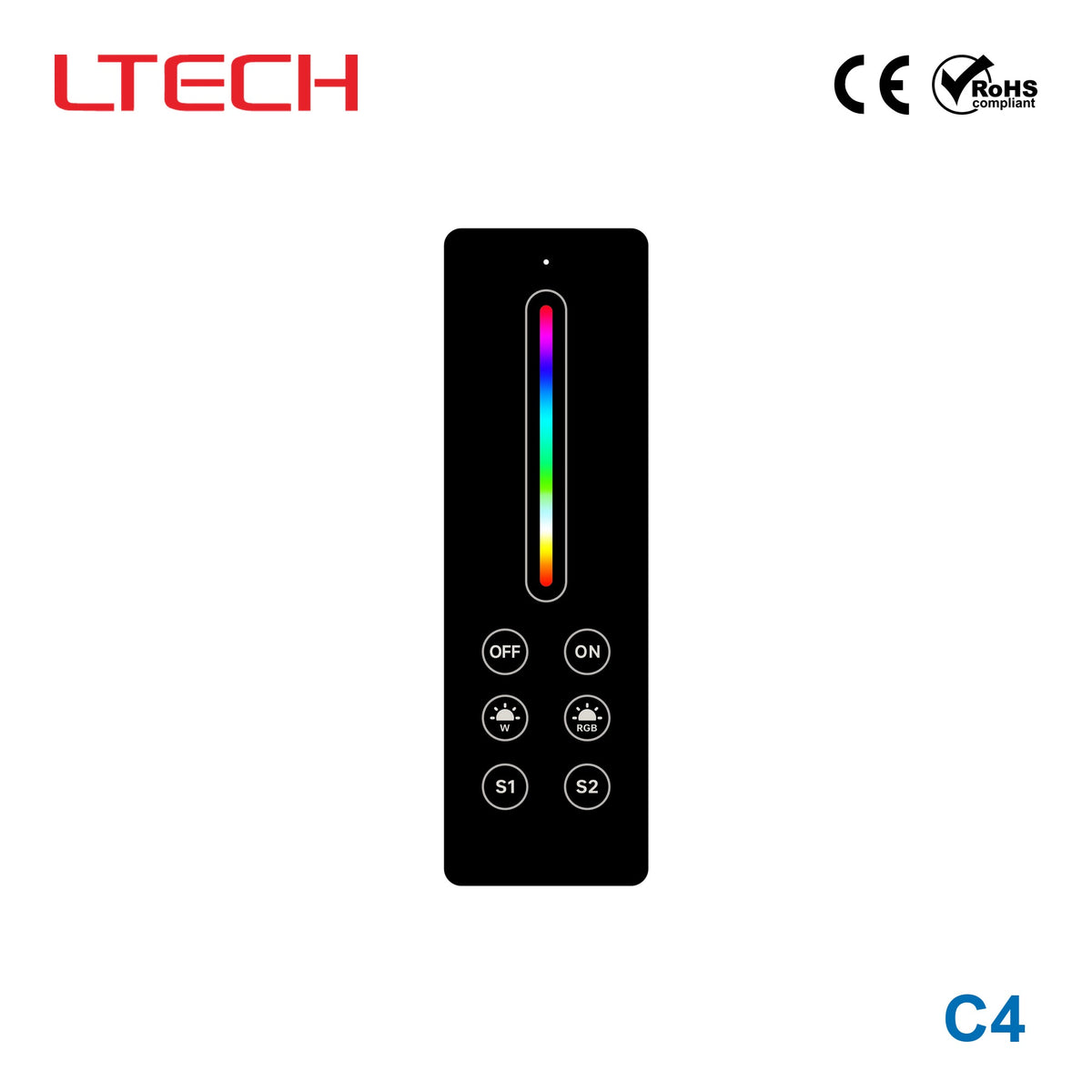

Ltech C4 LED Controller

LED controller

SKU C4

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries ;
Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
Compatible with P-series and F-series controllers;
Equipped with a dedicated on/off button for one-touch lighting control;
Quickly adjust color using the color temperature and color touch sliders;
W and RGB brightness are controlled via dedicated buttons, supporting short presses to toggle on/off and long presses to adjust, ensuring intuitive and convenient operation;
Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
Supports synchronized dimming for controller groups.

Specifications

C4Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model: C4
Area Control: Single zone
Dimming Type: RGBW
Wireless Type: RF 2.4GHz
Power Supply: 3Vdc (AAA batteries × 2) Note: Batteries must be purchased separately.
Standby Current: ＜5uA
Compatible Controllers: P3 / P4 / P5/F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature: -25℃~50℃
Product Weight: Remote control: 62 g; Mount: 12 g
Dimensions: Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, FCC, RoHS

Technical drawings

C4 For use with P-series controllers — For use with P-series controllers

C4 Use the Remote Controls Together — Use the Remote Controls Together

Downloads

Datasheet1

C4 datasheetC4.pdf PDF Download

FAQ

What is the Ltech C4 used for?

The C4 is a wireless remote control for single-zone RGBW LED lighting. It allows you to control compatible Ltech controllers via RF 2.4GHz.

Which controllers does the C4 work with?

It is compatible with the P3, P4, P5/F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

How is the remote powered?

The remote operates on 3Vdc using two AAA batteries. Please note that batteries are not included and must be purchased separately.

How do I mount the remote?

The remote comes with a dedicated mount (L85 × W35 × H20 mm) for easy wall or surface installation. The remote itself weighs 62 g.

What is the operating temperature range?

The C4 is designed to operate in temperatures ranging from -25°C to 50°C.

Does the C4 have any certifications?

Yes, the C4 carries CE, FCC, and RoHS certification marks.

What is the warranty period?

The Ltech C4 comes with a 5-year warranty.
