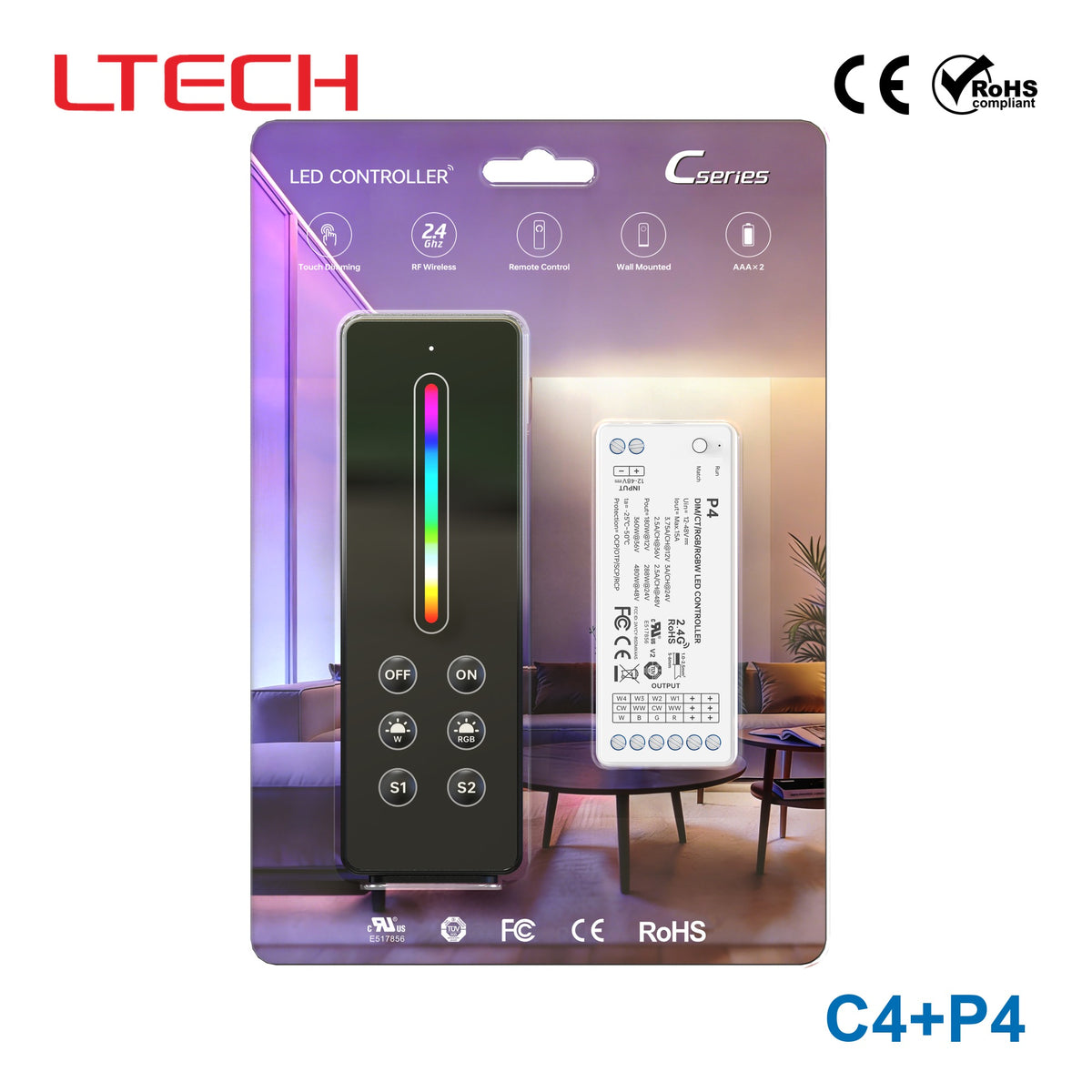

Ltech C4+P4 LED Controller

LED controller

SKU C4+P4

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

Features

Featuring a streamlined design and magnetic attachment, it is powered by two AAA batteries ;
Utilizes 2.4 GHz RF wireless transmission for stable signals and strong interference resistance;
Compatible with P-series and F-series controllers;
Equipped with a dedicated on/off button for one-touch lighting control;
Quickly adjust color using the color temperature and color touch sliders;
W and RGB brightness are controlled via dedicated buttons, supporting short presses to toggle on/off and long presses to adjust, ensuring intuitive and convenient operation;
Pre-programmed with 2 scene modes for quick access, and custom scenes can be saved by holding down the button;
A single controller can be paired with up to 10 remotes, and a single remote control can be used with multiple controllers;
Supports synchronized dimming for controller groups.

Specifications

C4+P4Specifications from the official datasheetDownload datasheet PDF

Technical Specifications

Model: C4
Area Control: Single zone
Dimming Type: RGBW
Wireless Type: RF 2.4GHz
Power Supply: 3Vdc (AAA batteries × 2) Note: Batteries must be purchased separately.
Standby Current: ＜5uA
Compatible Controllers: P3 / P4 / P5/F4-3A / F4-5A / F4-DMX-5A / F5-DMX-4A
Operating Temperature: -25℃~50℃
Product Weight: Remote control: 62 g; Mount: 12 g

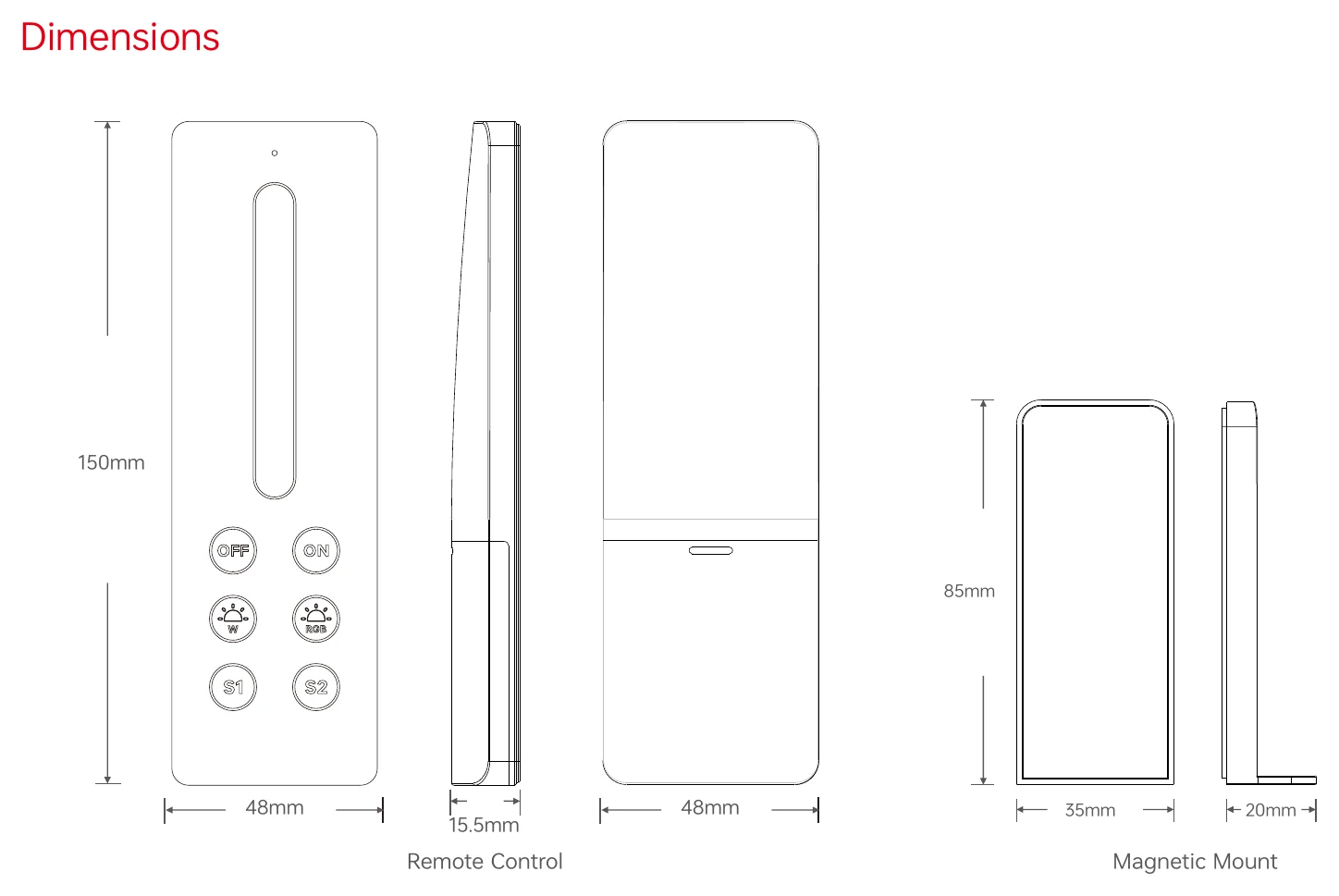

Dimensions: Remote control: L150 × W48 × H15.5 mm; Mount: L85 × W35 × H20 mm

Others

Warranty periods: 5 years

Certifications & ratings

Certification marks: CE, FCC, RoHS

Technical drawings

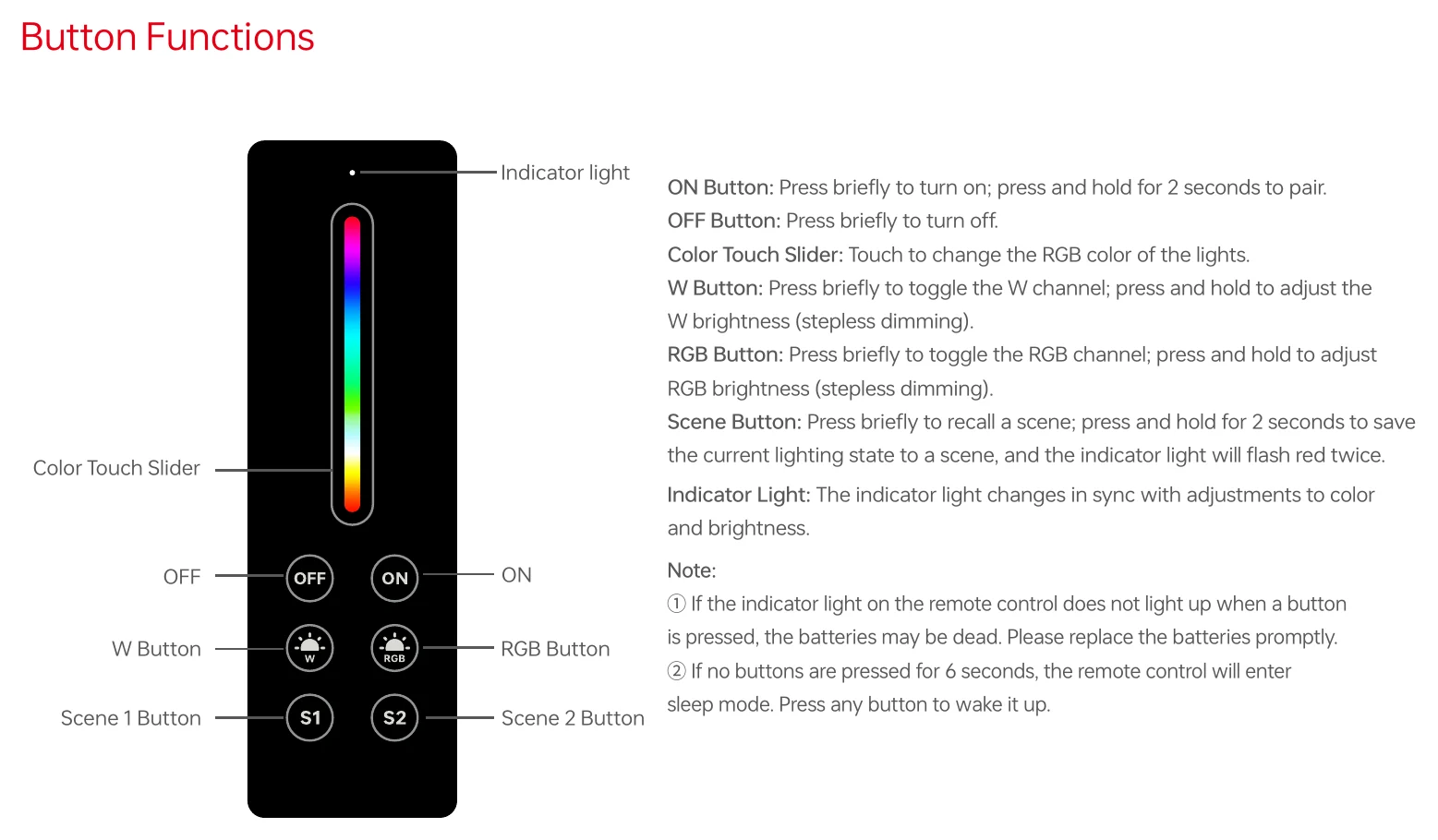

C4+P4 Button Functions — Button Functions

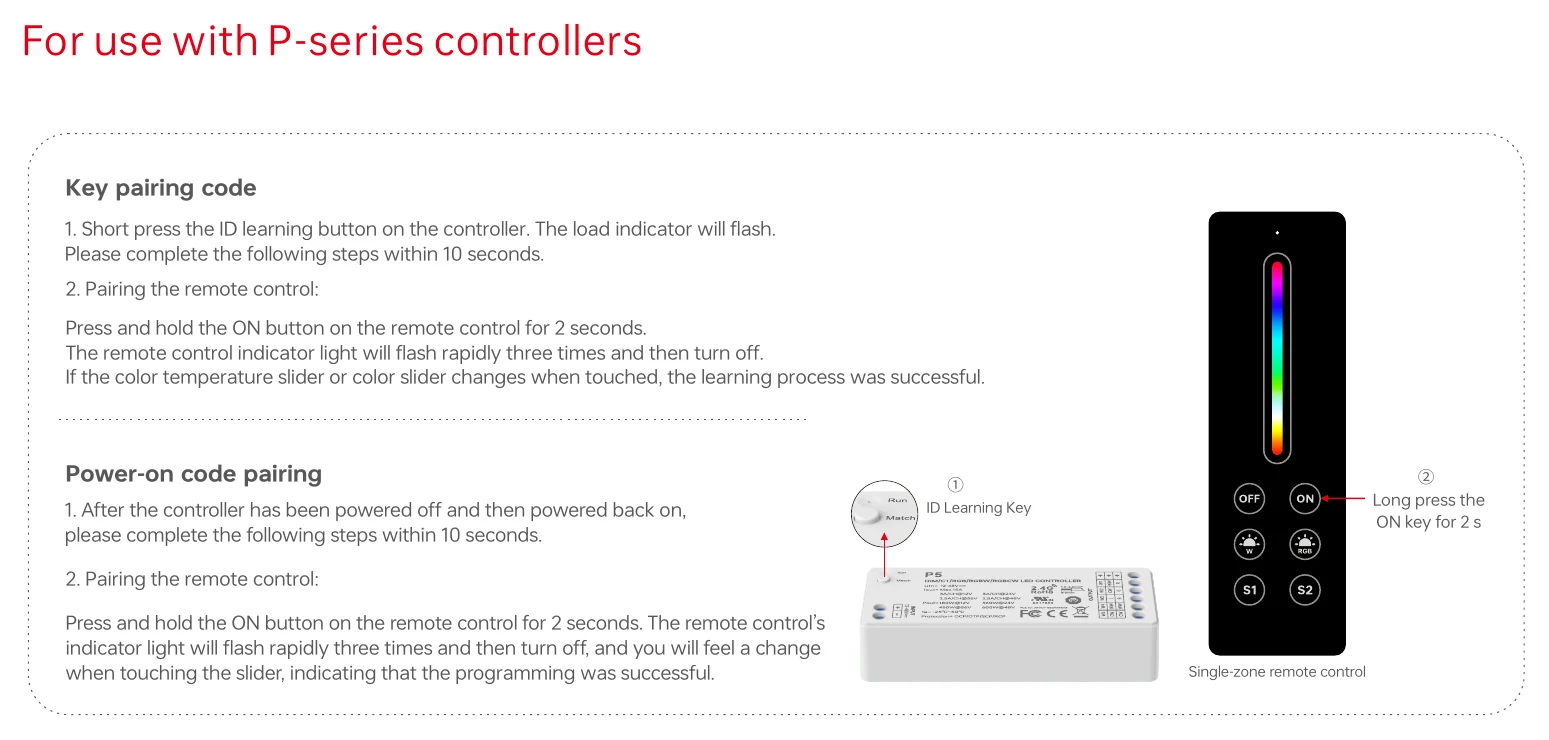

C4+P4 For use with P-series controllers — For use with P-series controllers

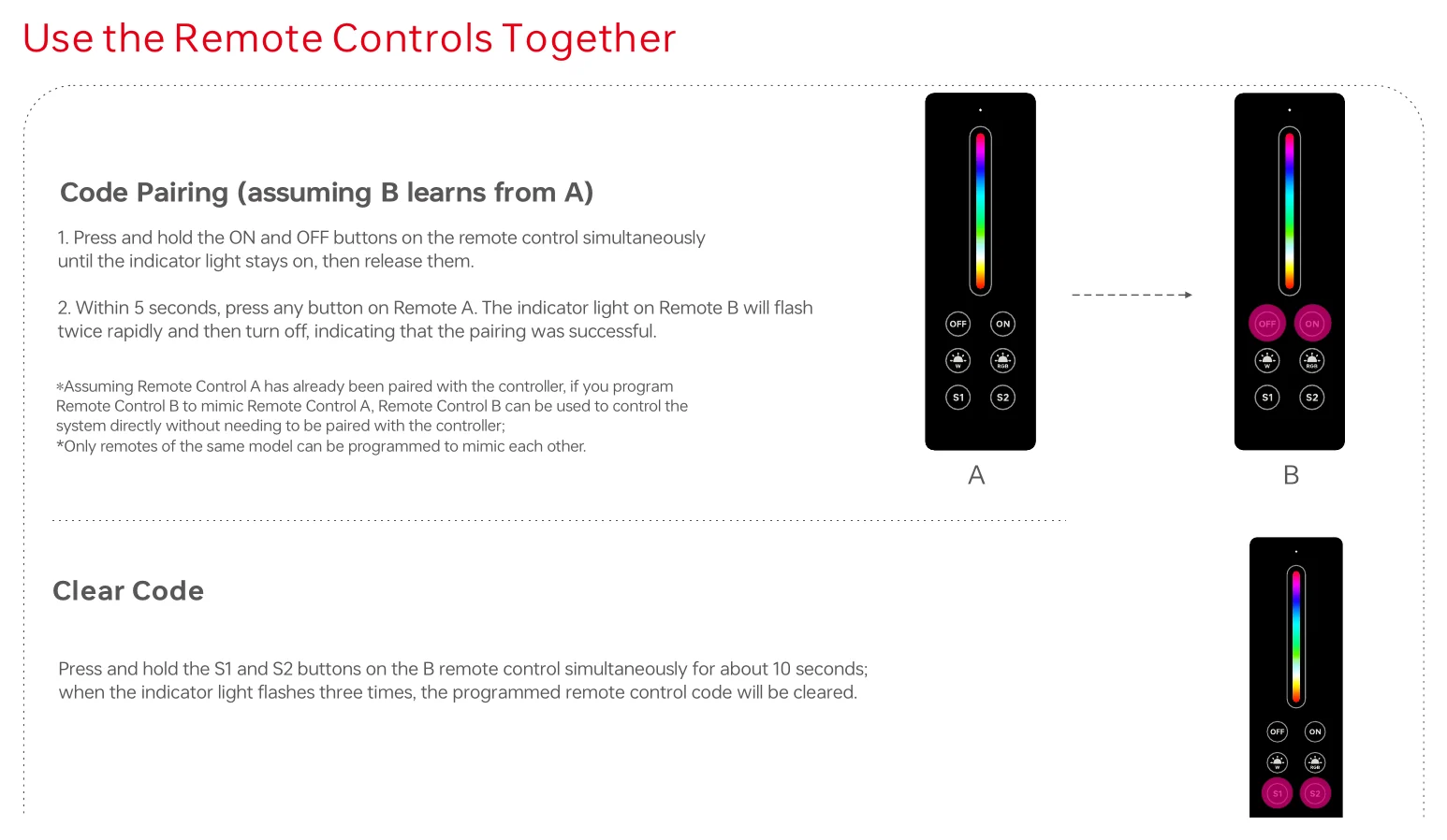

C4+P4 Use the Remote Controls Together — Use the Remote Controls Together

Downloads

Datasheet1

C4+P4 datasheetC4_P4.pdf PDF Download

FAQ

What is the C4+P4 kit used for?

The C4+P4 kit is a wireless remote control system for single-zone RGBW LED controllers. It allows you to control lighting settings remotely via RF 2.4GHz.

Which controllers are compatible with the C4 remote?

The C4 remote is compatible with P3, P4, P5, F4-3A, F4-5A, F4-DMX-5A, and F5-DMX-4A controllers.

How is the remote powered?

The remote operates on 3Vdc using two AAA batteries. Please note that batteries are not included and must be purchased separately.

How do I mount the remote?

The kit includes a dedicated mount for the remote control. The remote weighs 62g and the mount weighs 12g, with dimensions of L150 × W48 × H15.5 mm for the remote and L85 × W35 × H20 mm for the mount.

What is the operating temperature range?

The device is designed to operate in temperatures ranging from -25°C to 50°C.

Does the C4 remote have any certifications?

Yes, the C4 remote carries CE, FCC, and RoHS certification marks.

What is the warranty period?

The product comes with a 5-year warranty.
